Klimaire Fit Pro Central Ducted systems are DC Inverter
Side-discharge small footprint condensing unit and an air handling unit. This product offers and takes customer and contractor concerns into account. Our quite operating compact outdoor unit can be installed on a wall bracket, under a deck or on a balcony, or even stacked to provide comfort for larger living spaces.

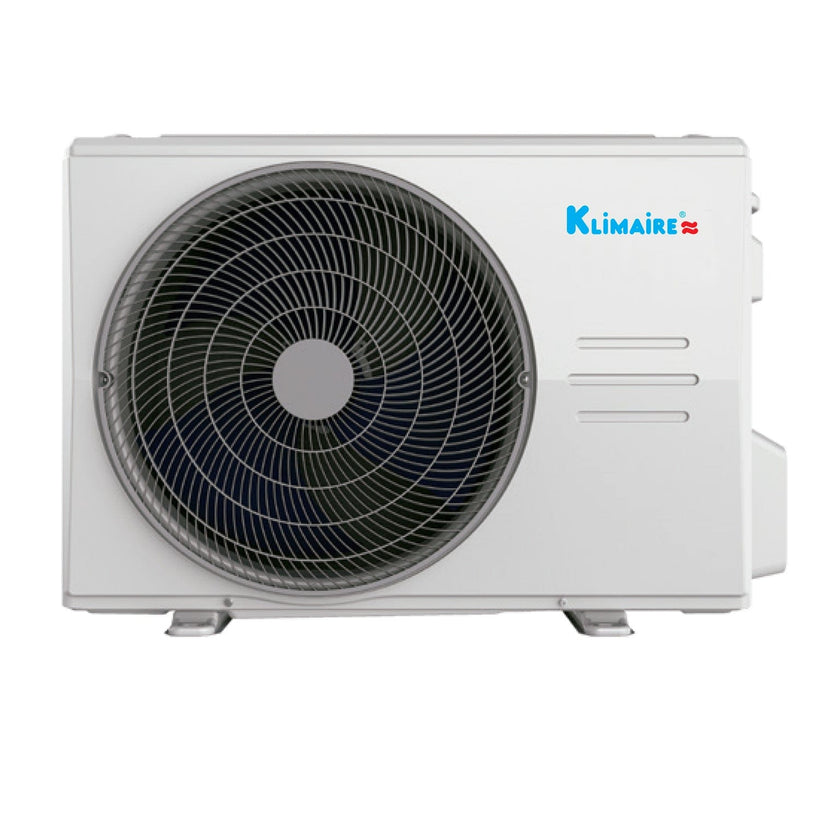

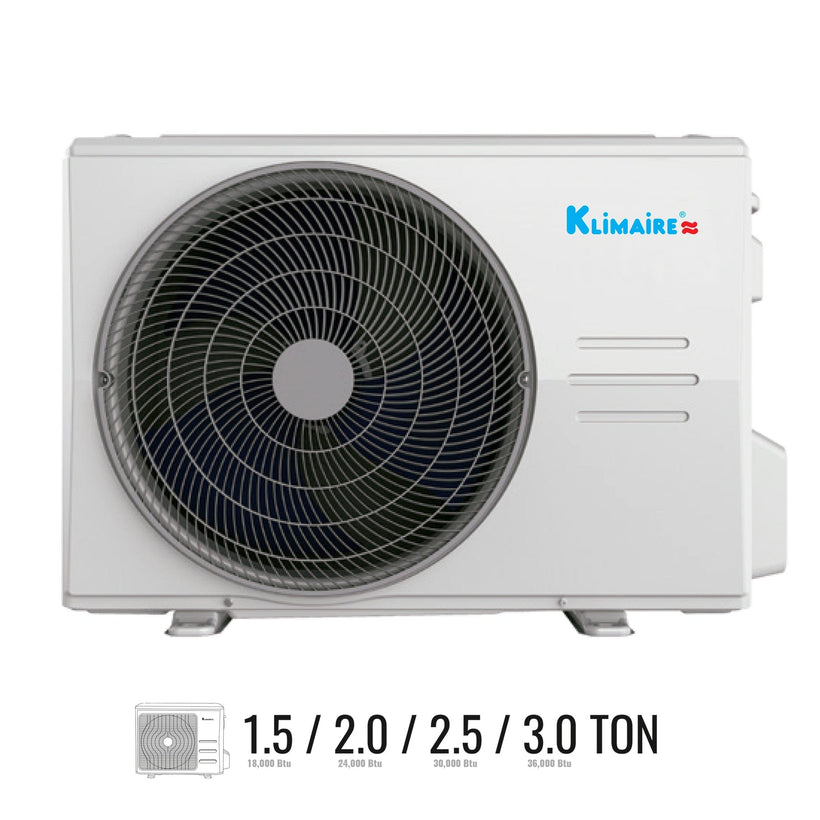

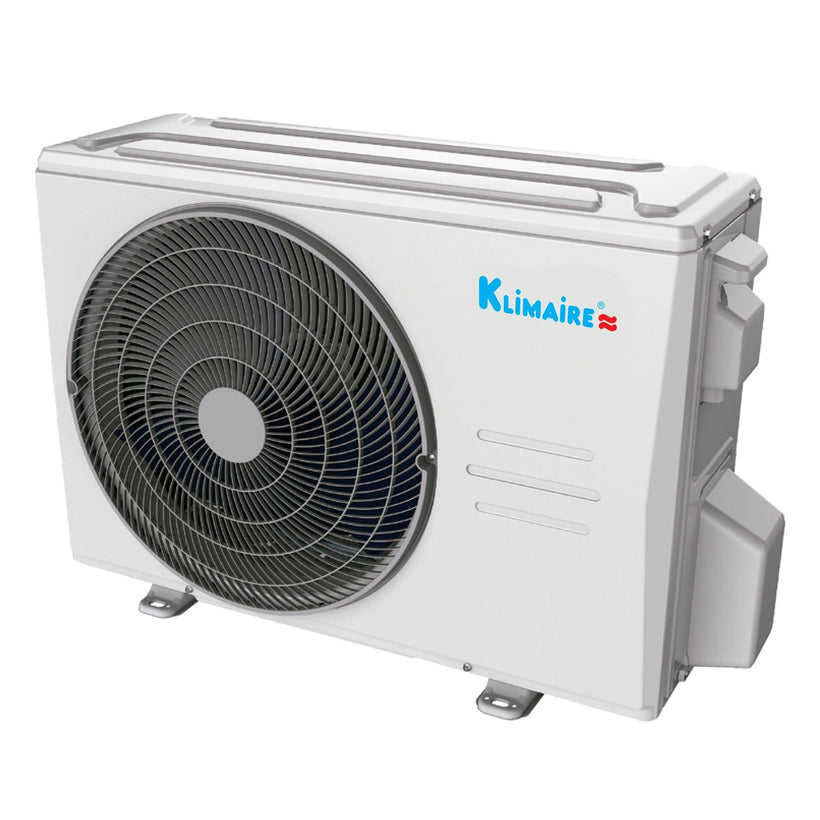

KOIF30H2-1S | Outdoor Heat Pump Unit
The nominal Unit capacity is 30,000 BTU/h or a 2.5-ton. Its capacity ranges between 10,000~33,600 BTU/h in cooling and 11,500~37,000 in heating modes. Smart Inverter, by adjusting the compressor capacity reduces operating costs, allows for quicker, smoother, and more efficient heating and cooling.
Standard Features
- Gold fin copper coil: helps to fight against corrosion in salty and harsh environments.
- Darin pan heater: prevents ice accumulation for low ambient operations to improve heat transfer.
- Can be matched with any standard air handler or a coil controlled by 24V heat pump thermostat.
- Smart dusting function: Reverses the fan operation to clean dust, sand, other debris from the coil.
- Low ambient heating and cooling.
- Can be combined with standard air handler or a coil.
- Self-Diagnostic.

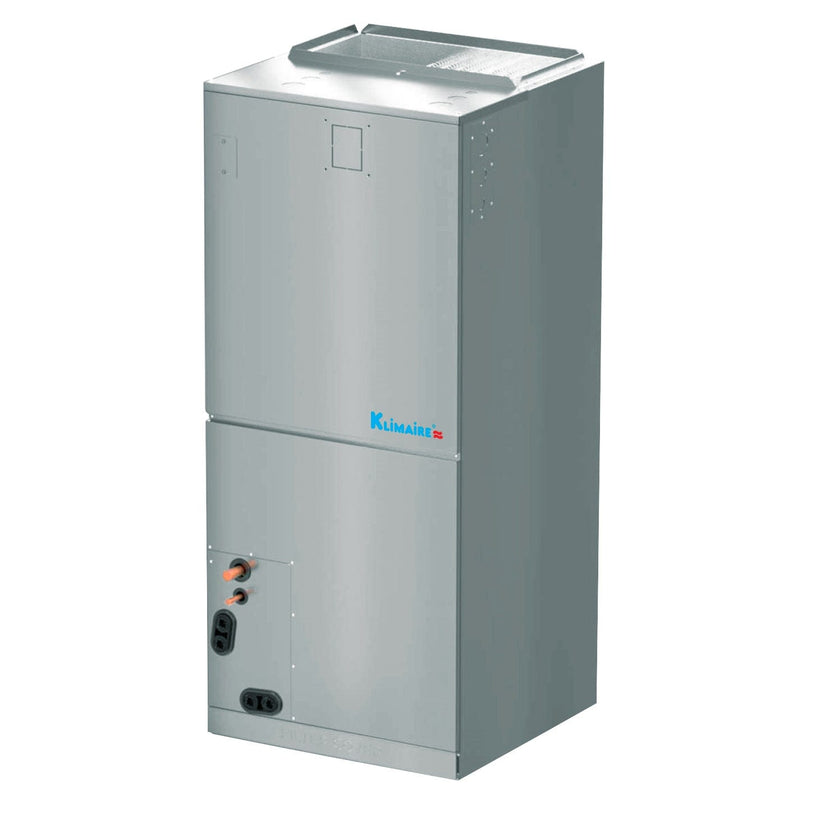

KIDF30H2-1S | Indoor Unit
Well insulated galvanized durable cabinet has less than 2% air leakage. It is equipped with a noncorrosive composite drain pan. Packed with a wired control thermostat provides a Wi-Fi connection with many comfort and convenient functions.
Improved Performance (Btu/h/W)
SEER2: 16.2 | HSPF2: 8.9 | HSPF5: 7 | EER2: 10
Standard Features
- Multi position compatible with up flow /horizontal (left/right) configuration.
- Optional auxiliary electric heater kit options.
- High static performance with self-adjusting ECM motor 0-0.8 In. wg.
- Filter rack.
- Error code display functionality.
- Aluminum coil for longer life and better heat transfer.
- IAQ equipment (UV light and humidifier) dedicated wiring port.
- Included wired and wireless controls for maximum control and comfort
- Factory installed access valve for easy maintenance.
- Braze or Flare connection possible with factory provided kit when soldering is not possible.

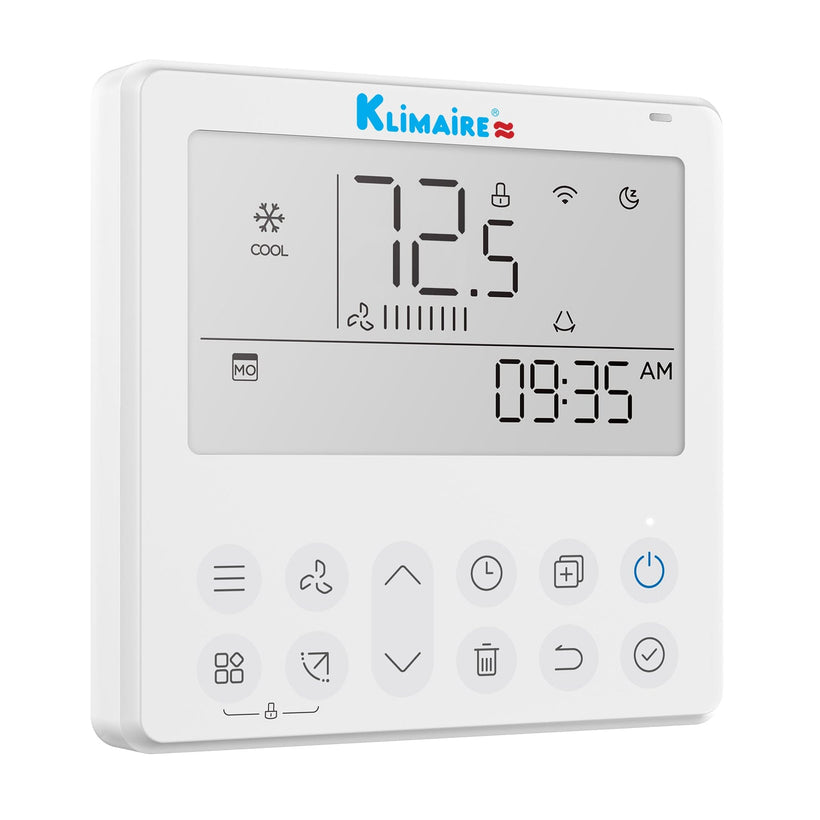

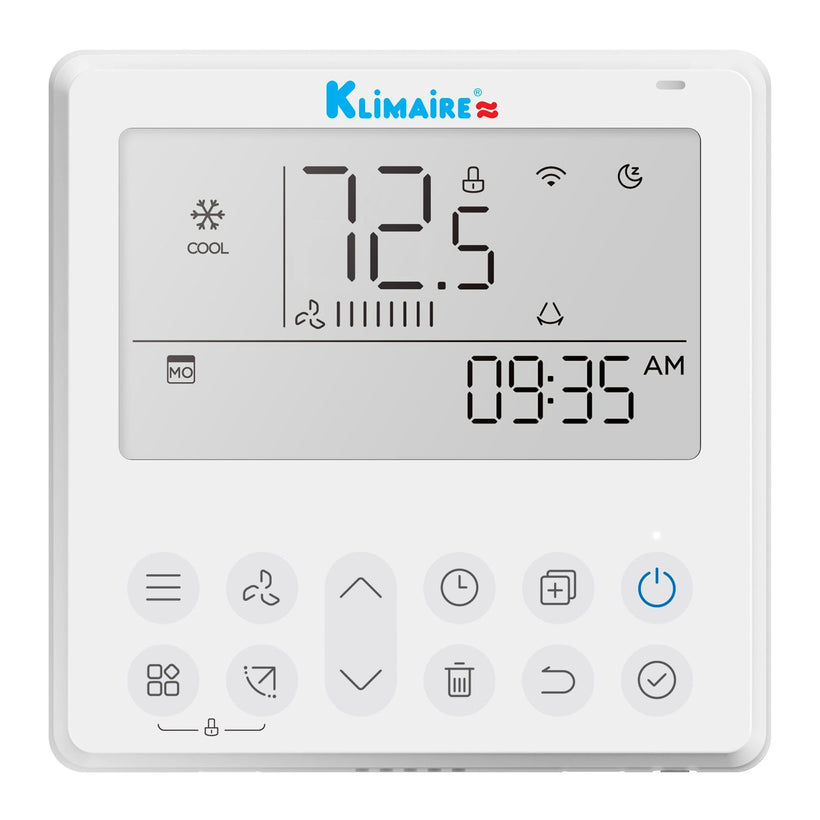

Wired Remote Control
Features
|
Wireless Remote Control
With wall bracket holder |
Allows you to manage comfort settings from any location within 26 ft away from your wired control and enjoy the convenience of the follow me function as if the thermostat were following you. |
Remotely managed
Remotely manage your mini-split system using a simple smartphone, tablet or PC via the Internet. Your Klimaire Wi-Fi enabled air conditioner lets you control your ductless mini split air conditioner using your smartphone or tablet from anywhere internet connection is available. Our free IOS and Android smartphone app gives you the freedom to instantly adjust your settings saving you time and money on energy consumption and cost. |
WHAT’S INCLUDED

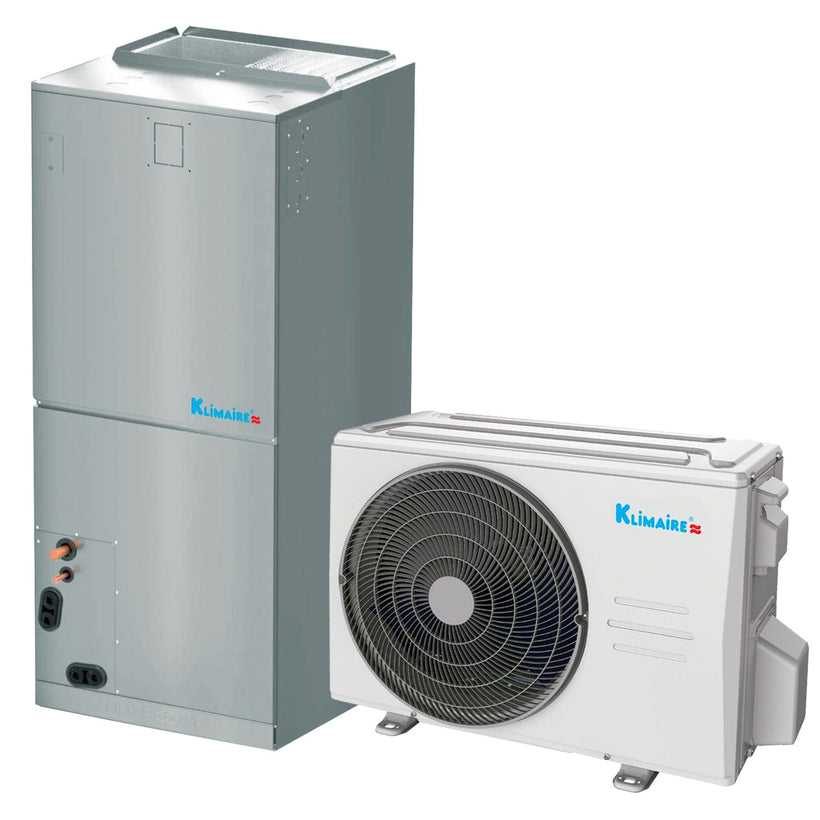

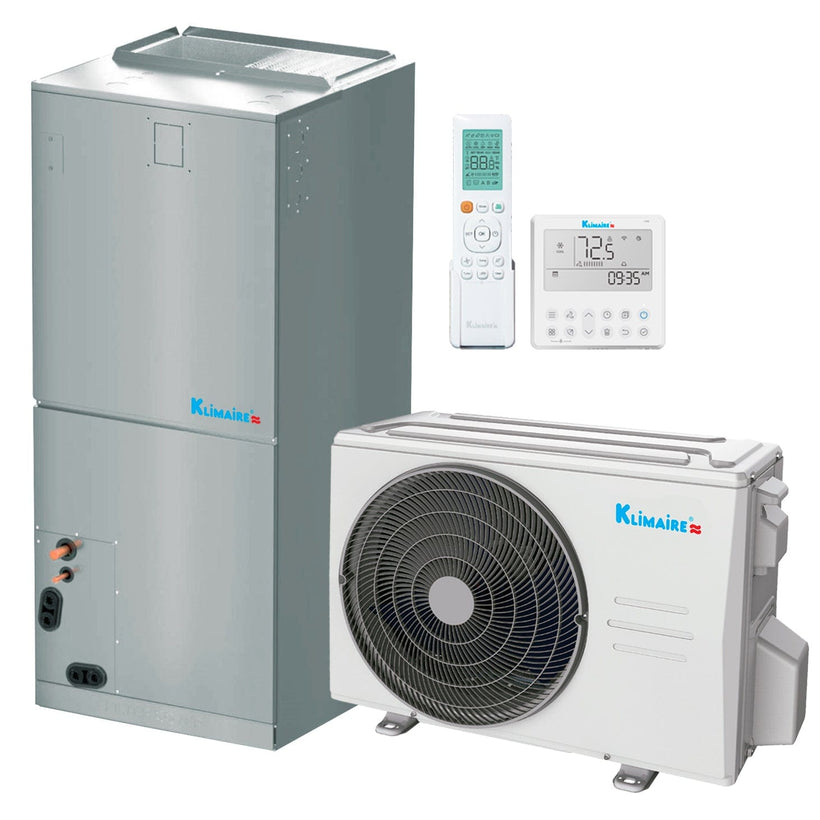

Your Klimaire Central Air Conditioner Heat Pump System Heat & Cool Comes With:
- KOIF30H2-1S | Outdoor Unit
- KIDF30H2-1S | Indoor Unit
- Wireless Remote Control with wall bracket holder

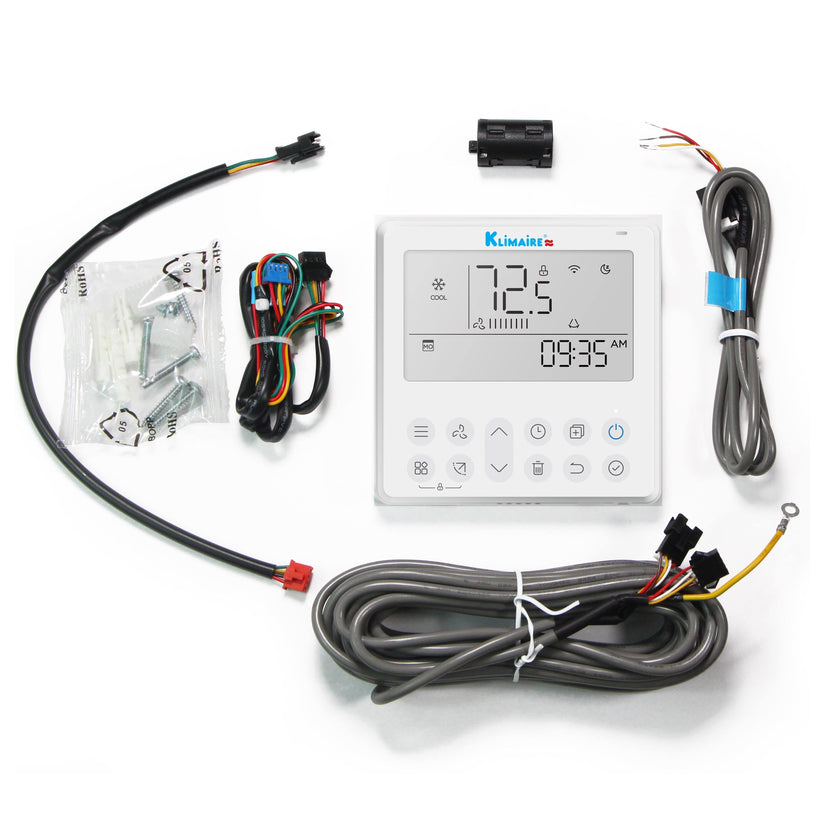

- Wired Remote Thermostat
- Installation manual
- User’s Manual
- Wired and Wireless Controls User’s Manuals
- Manufacturer Warranty
MANUFACTURER WARRANTY
- 5 Year parts warranty
- 7 Year compressor warranty
Downloads
- KIDF-KOIF FIT-PRO BROCHURE
- KIDF-KOIF FIT PRO SERIES - OWNER´S MANUAL
- KIDF-KOIF FIT PRO SERIES - WIRED REMOTE CONTROLLER
- KIDF-KOIF FIT PRO RG10(D2S) SERIES - WIRELESS REMOTE CONTROLLER
- KIDF-KOIF FIT PRO SERIES - INSTALLATION MANUAL
- KOIF-SERIES - OUTDOOR UNIT INSTALLATION MANUAL
- KIDF-KOIF FIT PRO SERIES - TECHNICAL SPECIFICATIONS
- KPI CENTRAL DUCTED & LIGHT COMMERCIAL - LIMITED WARRANTY
Key Specifications
- Klimaire
- Central Ducted Heat Pump Split System
- 2.5
- 1,900
- 30,000
- 33,000
- 16.2
- 8.9
- 7
- 10
- 3.3
- 208-230 V / 1 Phase / 60 Hz
- R-410A
- AHRI Certified / UL Listed
- 5 Year Parts 7 Years Compressor
- Side Discharge
- Yes
- 5
- -22
Bundle includes 2 items
2.5 Ton Klimaire KOIF30H2-1S Hyper-Heat Pump 18 SEER 230V
Model Number: KOIF30H2-1S SKU: KOF30H130032.5 Ton Klimaire KIDF30H2-1S Multi-position EEV Air Handler 230V
Model Number: KIDF30H2-1S SKU: KDF30H11003System Specifications
Air Conditioner Type | Central Ducted Heat Pump Split System |
---|---|
Nominal Capacity (Ton) | 2.5 |
Application Area (SqFt) | 1,900 |
Cooling Capacity (Btu) | 30,000 |
Heating Capacity (Btu) | 33,000 |
SEER2 | 16.2 |
HSPF2 | 8.9 |
HSPF5 | 7 |
EER2 | 10 |
COP2 | 3.3 |
Power Supply | 208-230 V / 1 Phase / 60 Hz |
Refrigerant Type | R-410A |
Certifications | AHRI Certified / UL Listed |
Manufacturer Limited Warranty | 5 Year Parts 7 Years Compressor |
Top Discharge / Side Discharge | Side Discharge |
WiFi Capability | Yes |
Minimum Outdoor Temperature for Cooling (F°) | 5 |
Minimum Outdoor Temperature for Heating (F°) | -22 |
Specifications for model: KIDF30H2-1S
Blower Motor | Multi-Speed ECM Blower Motor |
---|---|
Brand | Klimaire |
Certifications | AHRI Certified; UL Listed |
Depth | 16.1 in |
Electrical | 208-230 V; 1 Phase; 60 Hz |
Expansion Device | Electronic Expansion Valve |
Height | 32 in |
Manufacturer Limited Warranty (years) | 5 Year Parts 7 Years Compressor |
MCA (Minimum Circuit Ampacity) | 23 A |
Model Number | KIDF30H2-1S |
MOP (Maximum Overcurrent Protection-Breaker) | 35 A |
Must ship freight | Yes |
Net Weight | 160 lb |
Number of Fan Speeds | 3 |
