Klimaire’s newly redesigned KSIE Series ductless mini split air conditioner heat pumps focus on technology that protects your system and puts absolute comfort at your fingertips. A microprocessor in the main electronic control board is the brain of the system. It allows you to enjoy the full range of high efficiency with the LED remote control. You can expect lower energy bills due to the system’s high efficiency of up to 24 SEER rating. On top of that, built-in system safeguards including self-diagnostics/error code display and refrigerant leak detection make maintenance simple.
- 2-way airflow & long-range air discharge
- Adjustable louvers and auto-swing
- Self-cleaning function
With DC inverter variable speed technology, frequent thermostat adjustments become a thing of the past. Just choose a setting on your thermostat once and the system will auto regulate the compressor to deliver the right amount of heating and cooling to keep the room temperature steady, you will get all the benefits of superior cooling along with reliable heating on colder days. Inverter technology combined with air conditioner heat pump can generate energy savings up to 49% compared to standard on/off systems. Itys finely tuned climate control offers the added benefits of less system wear and tear and whisper quiet operation.

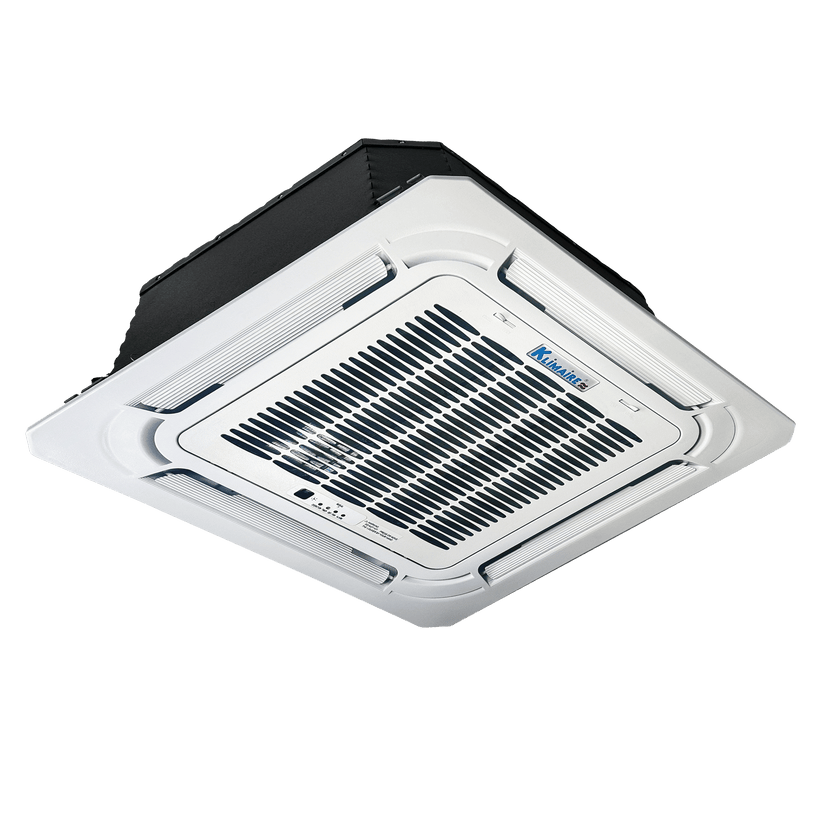

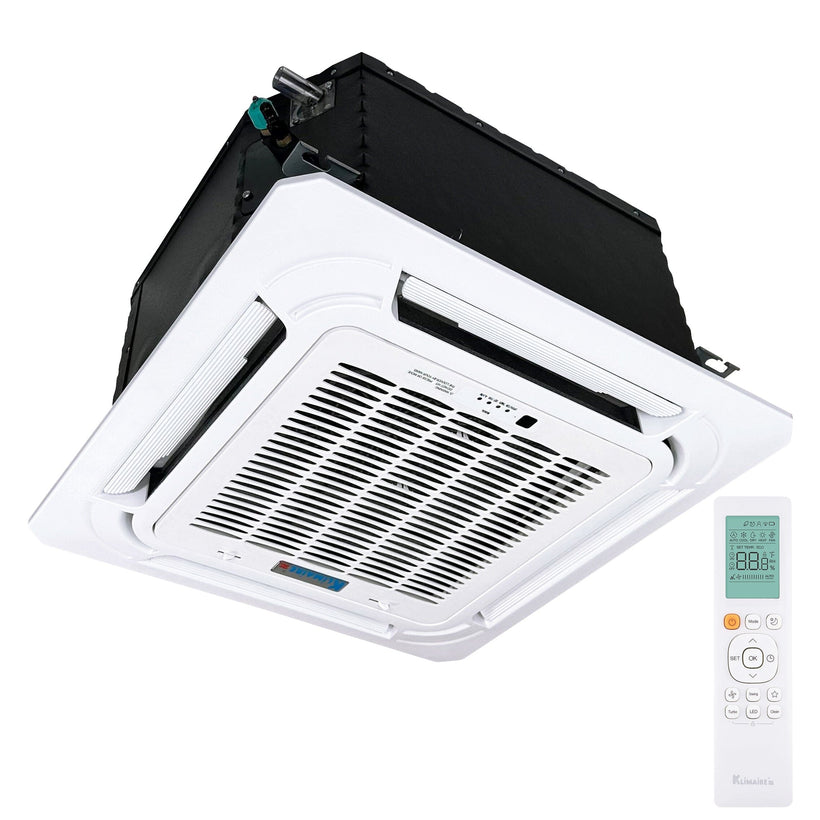

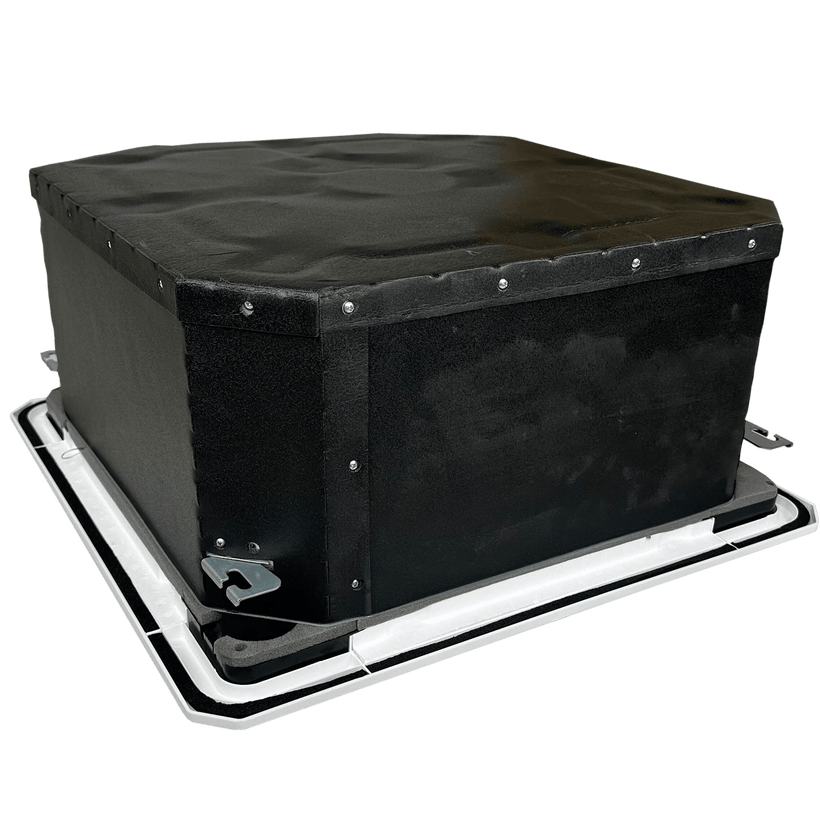

KTIR18-H2 + KTIR12-DFP | Indoor Unit
The KTIR unit disperses air in all directions for balanced comfort. Additionally, it can share capacity with an adjacent room via flexible duct. The unit’s off-white decorative panel blends easily with room and ceiling design. A built-in condensate pump provides flexible and easy installation. All that’s needed to accommodate this slim unit is a 24” x 24” space in a drop ceiling.

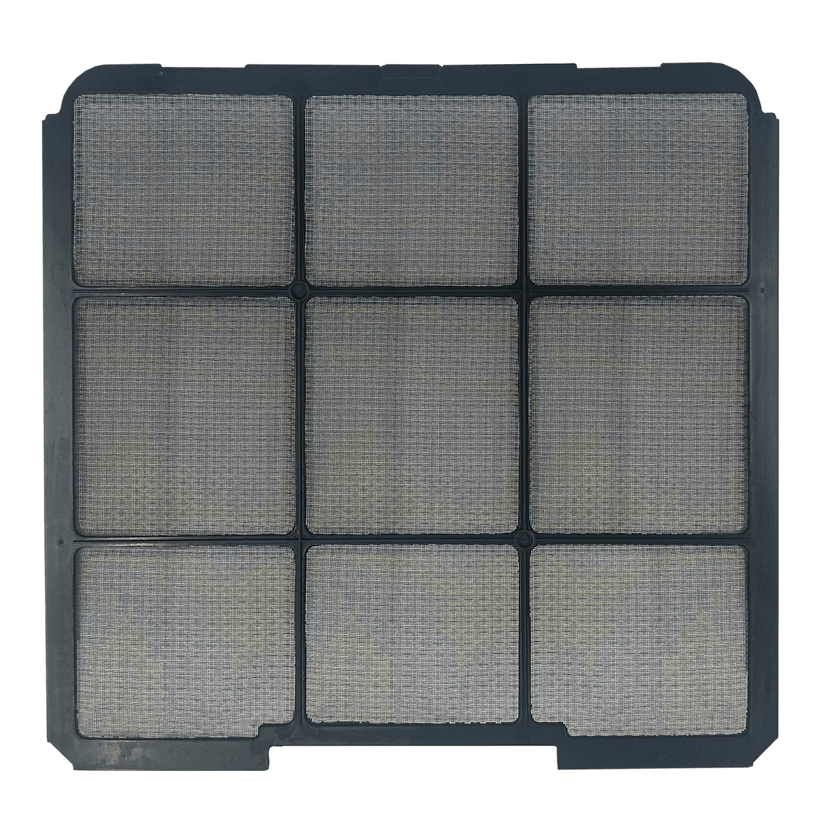

- Removable panel for easy cleaning
- Features fresh air intake design
- Can be connected to an alarm and long distance on/off control

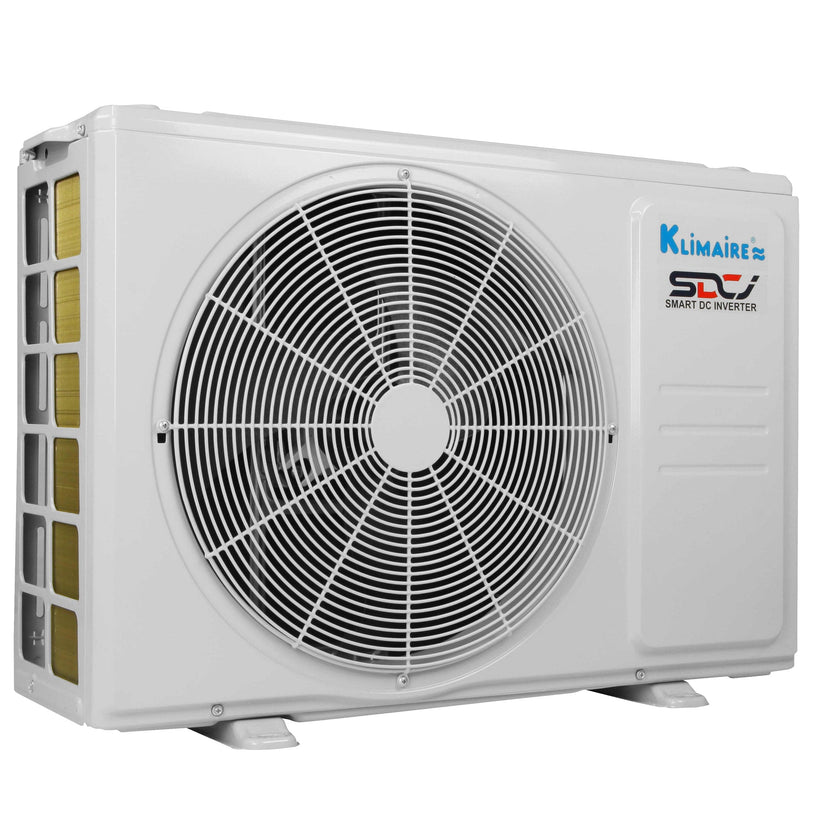

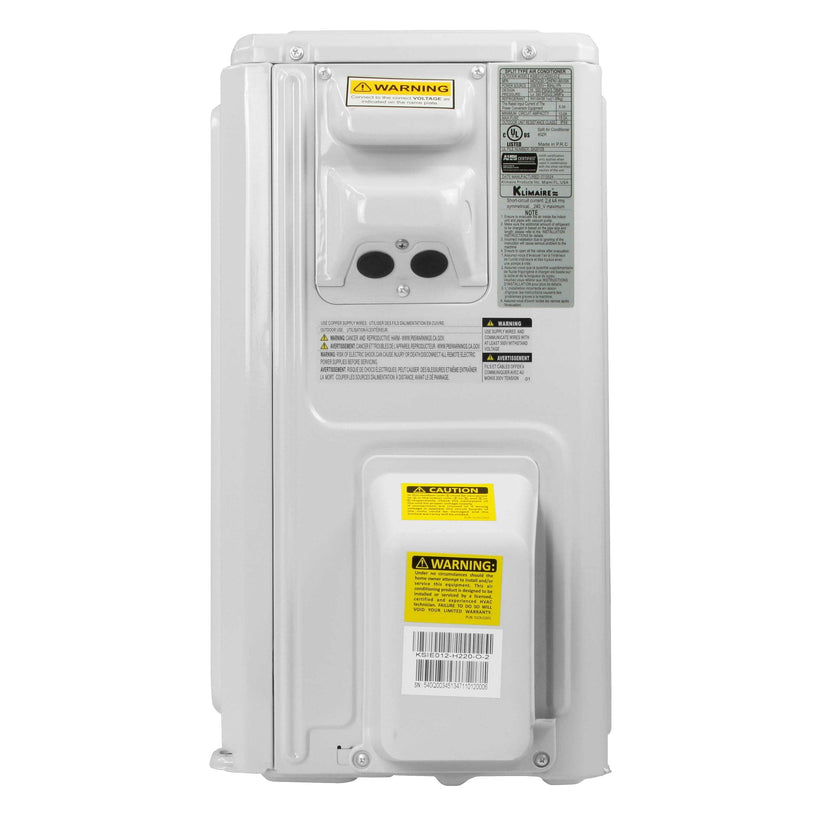

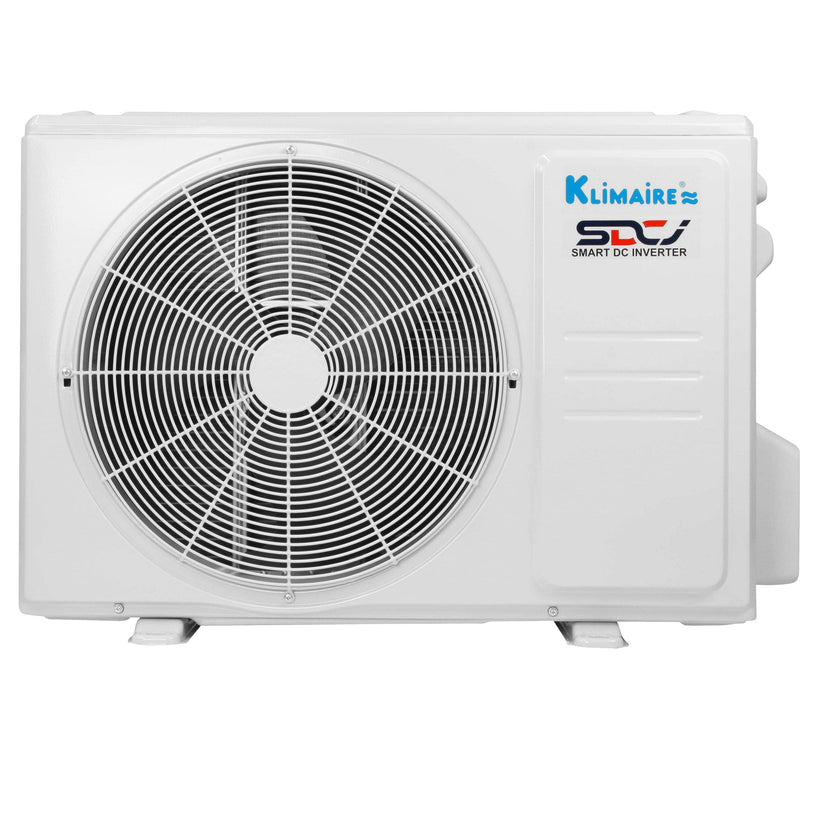

KSIE018-H220-O-2 | Outdoor Unit
Automatic defrost prevents condensation from freezing and damaging the compressor. The built-in base pan heater ensures reliable operation in temperatures as low as 5º F. A built-in compressor heater ensures compressor longevity and reliability. Compact outdoor unit requires little ground space and can be mounted to a wall with wall brackets (not included).
- Pre-charged for up to 25 feet of copper tubing
- Double cam twin rotary compressor
- Auto defrost
- Additional Features
- Auto restart in cases of power outages
- Sleep mode adjusts temperature so you fall asleep faster and stay asleep
- Anti-cold air function
- Indoor unit has multi-refrigerant outlet pipes: left/right/rear
- ON/OFF programmable timer
- Optional wired wall thermostat can be plugged-in easily for commercial or non-remote-control use
- Indoor unit is pre-vacuumed and outdoor unit is pre-charged
- Includes 15-foot pre-flared installation kit
Improved Performance
- SEER2: 20.5
- EER2: 12.5
- HSPF2: 10.5
Applications
- Sunrooms
- Greenhouses
- Indoor gardens / hydroponic gardening
- Room additions
- Renovations
- Family rooms
- Wine cellars
- Garages/workshops
WHAT’S INCLUDED

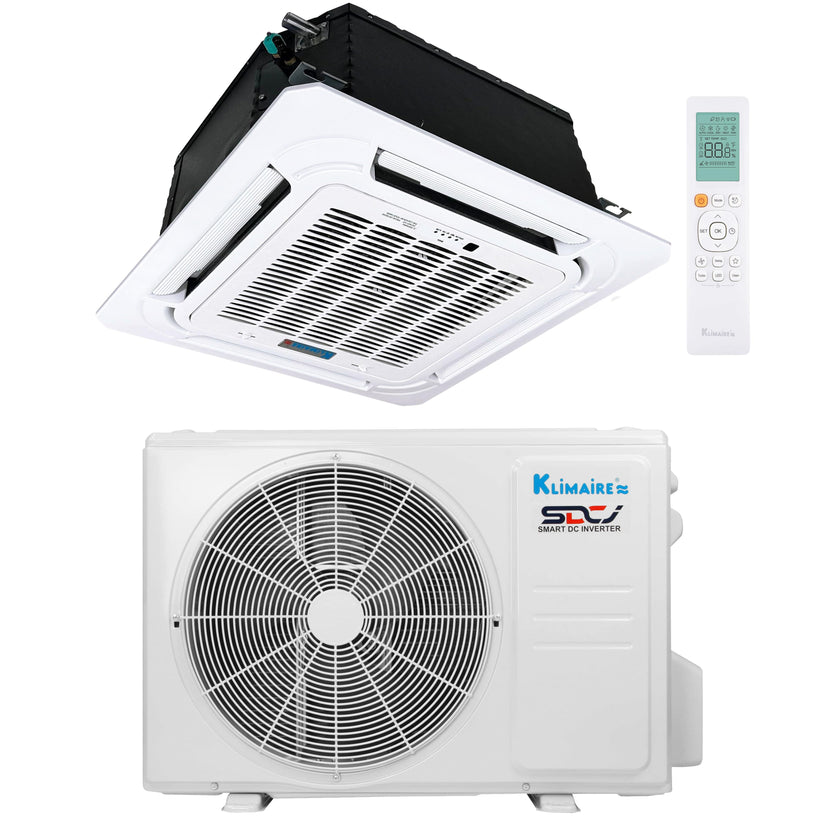

Your Klimaire KSIE Ductless Mini-Split Inverter Air Conditioner Heat Pump System from Heat & Cool Comes With:
- KTIR18-H2 | Indoor Unit
- KTIR12-DFP | Ceiling Casette Decorative Front Panel
- KSIE018-H220-O-2 | Outdoor Unit

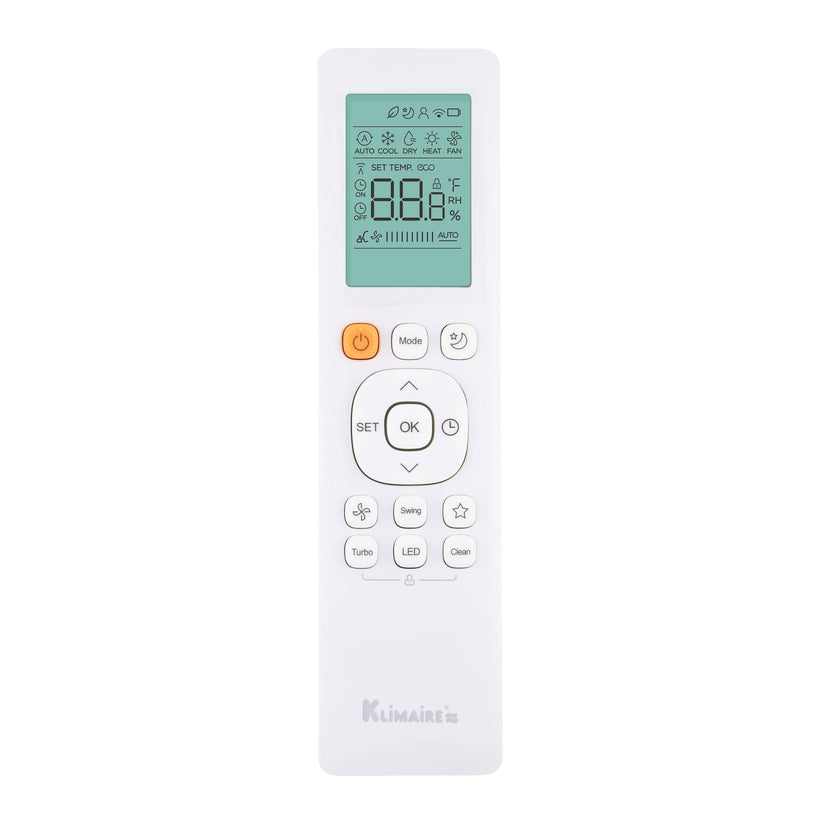

- Remote control with wall bracket holder
- Installation Manual
- User’s Manual
- Manufacturer’s Warranty
MANUFACTURER’S WARRANTY
- 5 Year Parts
- 7 Years Compressor
Key Specifications
- Klimaire
- 1,000 SqFt
- 1 Year Parts; 5 Year Compressor
- Ceiling Cassette
- KSIE018-H220-O-2 + KTIR18-H2 + KTIR12-DFP
- 1
- 20
- 152 lbs
Bundle includes 3 items
18,000 Btu Outdoor heat pump unit 23.7 SEER2 - 220 V KSIE018-H220-O-2
Model Number: KSIE018-H220-O-2 SKU: KEO180115
18,000 BTU Cassette Fan Coil Unit KTIR18-H2, 220 V
Model Number: KTIR18-H2 SKU: HCKPI1845
Decorative Front Panel KTIR12-DFP For 12K & 18K BTU KTIR Cassette Units
Model Number: KTIR12-DFP SKU: HCKPI1844System Specifications
| Application Area | 1,000 SqFt |
|---|---|
| Certifications | ETL ; AHRI |
| EER (Energy Efficiency Ratio) | 12.5 |
| HSPF (Heating Seasonal Performance Factor) | 10.3 |
| Manufacturer Limited Warranty (years) | 1 Year Parts; 5 Year Compressor |
| Mounting Type | Ceiling Cassette |
| Model Number | KSIE018-H220-O-2 + KTIR18-H2 + KTIR12-DFP |
| Mounting Type | Ceiling Cassette |
| Number of Zones (Rooms) | 1 |
| Must ship freight | Yes |
| Refrigerant | R410A |
| Efficiency (SEER) | 20 |
| SEER (Left Filter) | 20+ |
| Shipping Cost | 275 |
| Shipping Time | 24 to 72 hours |
| System Shipping Weight | 152 lbs |
| Technology | Inverter |
| Voltage | 208/230 Volt |
Specifications for model: KTIR18-H2
| Mounting Style | Ceiling Cassette |
|---|---|
| Airflow Rate (Hi/Mi/Lo) cfm | 560/483/415 |
| Indoor Unit Sound Level dB(A) (High/Medium/Low) | 44/39/36 |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 1/2 |
| Drain Line Size (In) | |
| Application Area (Sqft) | 1,000 |
| Indoor Air Quality Type | |
| Net/Gross weight (Lb) | 35.49/41.23 |
| Width / Depth / Height (In) | 22.44x22.44x10.24 |
| Packaged Width / Depth / Height (In) | 25.79x25.79x11.42 |
Specifications for model: KSIE018-H220-O-2
| Brand | Klimaire |
|---|---|
| Model Number | KSIE018-H220-O-2 |
| Unit Type (Selector) | Outdoor Unit |
| Cooling Capacity (BTU) | 18,000 |
| Heating Capacity (BTU) | 18,000 |
| [k_4] | 1.5 |
| Efficiency SEER2 | 23.7 |
| SEER2 Filter | 23+ |
| Efficiency (SEER) | 20.8 |
| SEER (Left Filter) | 20+ |
| HSPF2 | 10.3 |
| Eer2 Energy Efficiency Ratio 2 | 13.5 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Refrigerant Type | R410A/68.8 oz |
| Energy Star | No |
| Manufacturer Limited Warranty (Years) | 1 Year Parts; 5 Year Compressor |
| Certifications | AHRI; ETL |
| Compressor Type | Rotary |
| Outdoor Noise Level | 61 dB |
| Weight | 108.2 lbs |
| Depth | 14.29 in |
| Height | 27.64 in |
| Width | 33.27 in |
| Application | Heat Pump/heating & cooling |
| Matching Indoor Unit | KSIE018-H220-IW-2 |
| Maximum Fuse Size | 20 amps |
| Maximum Indoor Units | 1 |
| Outdoor Air Flow | 1470 cfm |
| Shipping Cost | 110 |
Specifications for model: KTIR12-DFP
| Unit Type | Decorative Front Panel for 12K and 18K Btu Cassette Units |
|---|---|
| Net/Gross weight (Lb) | 5.51/9.92 |
| Width / Depth / Height (In) | 25.47x25.47x1.97 |
| Packaged Width / Depth / Height (In) | 28.15x28.15x4.84 |

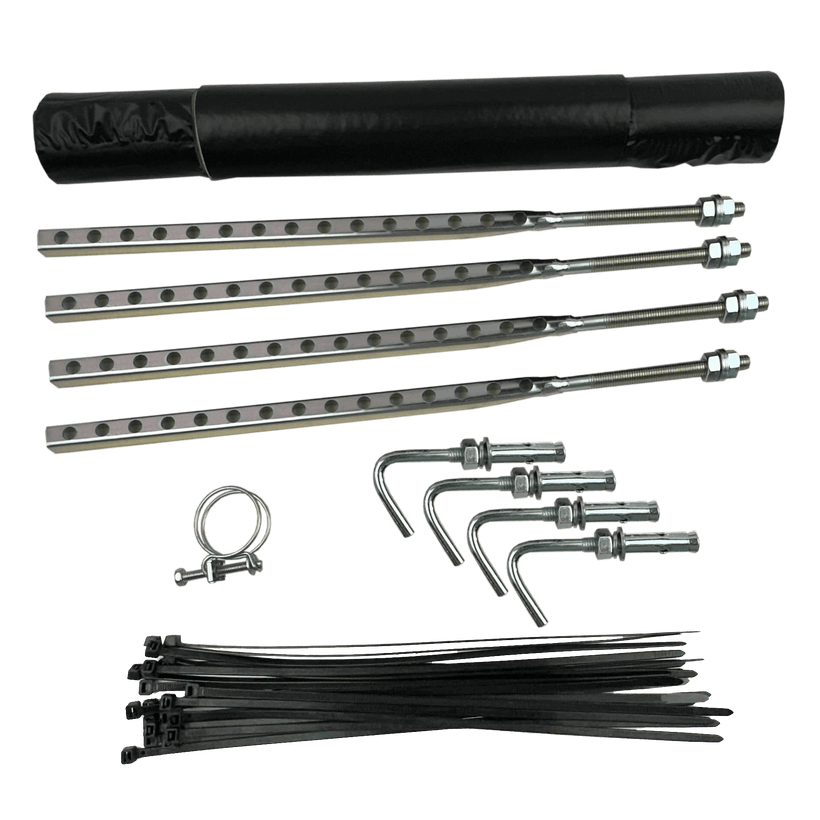

accessories
