Daikin ENTRA Wall Mount - Heat Pump systems provide energy efficiency and comfort control with an affordable, cost-saving solution. These systems feature streamlined wall mounted indoor units paired with quietly compact outdoor units.
Daikin ENTRA™ FTXB12BXVJU Single Zone Wall-Mount Fan Coil
Perfecting The Air We Share
A better understanding of how people inhabit their living spaces has led to products designed to create indoor environments that help use energy resources more effectively. Heat pumps extract or reject heat from the outside air, even in cold weather. They use an electrically powered compressor and are extremely effective at heating and cooling an apartment or a house. Daikin heat pumps are quiet and discreet, and use state-of-the-art
technology to keep your energy bills low. With a Daikin heat pump, a large portion of the energy used to heat or cool your home comes from the outside air, a free and infinitely renewable resource.
Comfort
We offer a wide range of products, and always provide you with the ideal solution, whether for an apartment, a condo, or a house. Our units are whisper quiet and, with their specially designed airflow pattern, they create your ideal indoor climate.
Daikin units are designed to include features that let you create your own unique ecosystem. From the wide-angle louver design to the auto-swing and comfortable mode controller settings, effective heating and cooling is ensured throughout the space.
Features:
- Powerful Operation
Pushing the POWERFUL button on the remote control gives you a boost in cooling or heating power for a 20-minute period, even if the unit is already operating at high capacity. - ECO+
An intelligent feature that ensures optimum energy consumption while fulfilling basic human comfort needs. Once activated, set temperature will be adjusted automatically to an optimum energy consumption level. - Blue Fin Protection
The hydrophilic coated fin ensures the condensate water moves easily to the drain pan — thus enhancing the cleanliness and lifespan of the cooling coil. - Titanium Apatite Photocatalytic Air Purifying Filter
This filter combines the air-purifying filter
and titanium apatite photocatalytic deodorizing filter in a single highly effective unit. - Multi-monitor lamp
The lamp color changes according to the mode of operation. - Cooling Range 50° - 115°F
- Heating Range 5° - 65°F
- Indoor Sound Pressure as low as 23 dB(A)
- Eco+
- Powerful Operation Mode
- Blue Fin Protection
- Titanium Apatite Photocatalytic Air Purifying Filter
- Auto Fan Speed Control
- Self-Diagnostics with Digital Display
- Auto Restart after Power Failure
- Anti-Corrosion Heat Exchanger Treatment
- Anti-Corrosion Treatment on Heat Exchanger
- Hot-start function (Heat Pump)
- Automatic defrosting (Heat Pump)

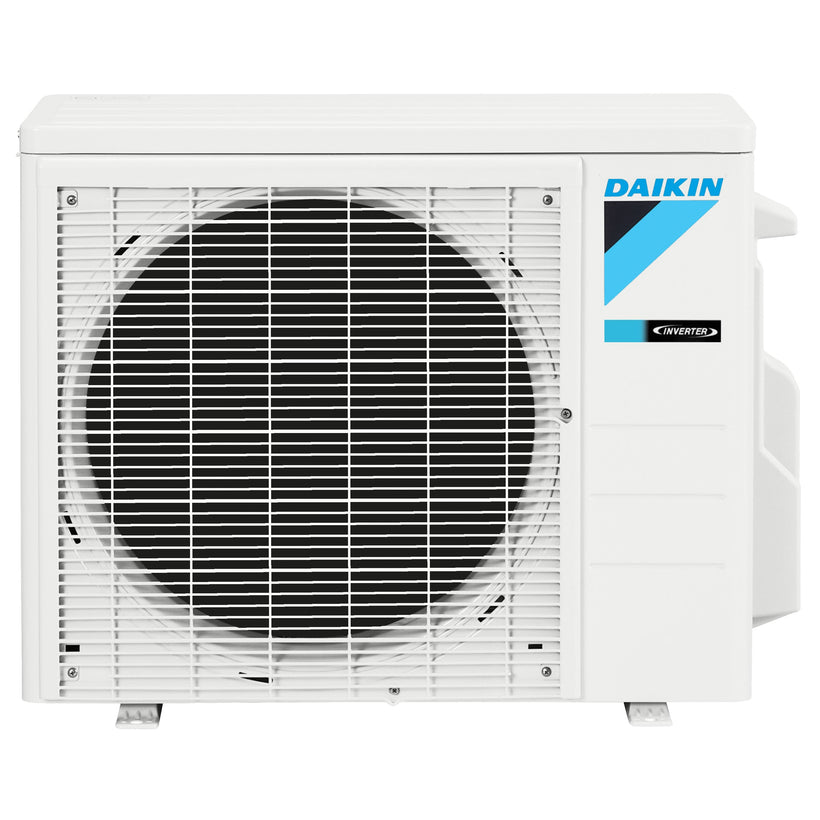

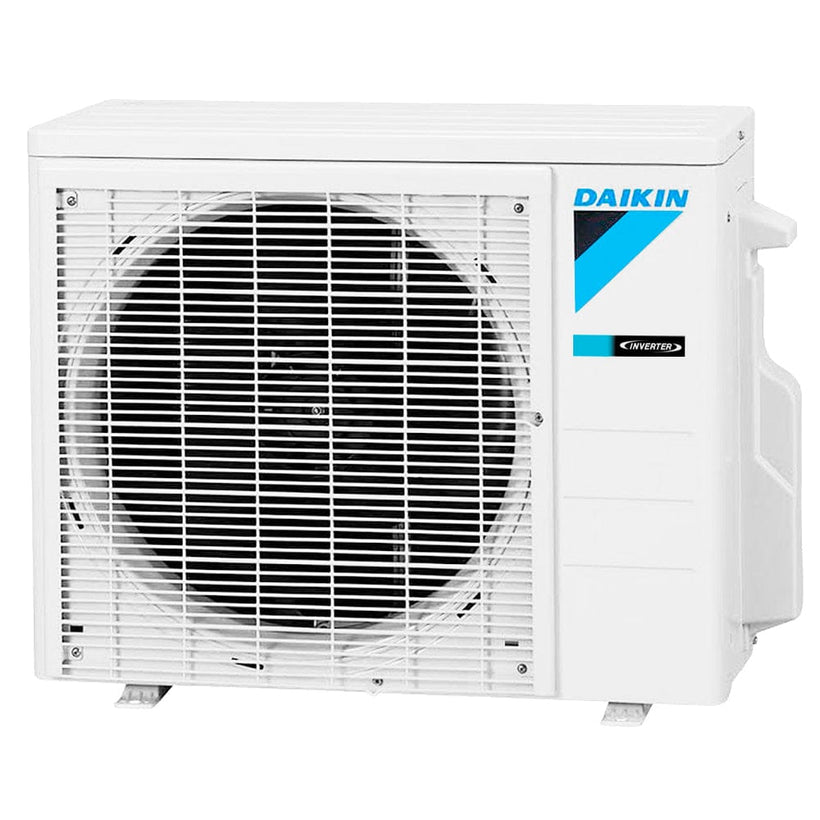

Daikin ENTRA™ Series RXB12BXVJU Outdoor Unit
Heat pumps extract or reject heat from the outside air, even in cold weather. They use an electrically powered compressor and are extremely effective at heating and cooling an apartment or a house. Daikin heat pumps are quiet and discreet, and use state-of-the-art technology to keep your energy bills low. With a Daikin heat pump, a large portion of the energy used to heat or cool your home comes from the outside air, a free and infinitely renewable resource.
Smart inverter technology
Integrated with a variable-speed, inverter, compressor, Daikin systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption by up to 30% or more (compared to traditional fixed-speed ducted systems). This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort.
Energy efficiency
Daikin products are designed to be highly efficient all year round, and their low energy consumption is reflected in low energy bills for you.
Features
- High-efficiency inverter driven swing compressor
- Energy Efficient – Up to 17 SEER / Up to 9.0 HSPF / Up to 11.5 EER
- Low-ambient cooling capable
- Auto-restart in case of power failure
- Coated coils for corrosion protection
- Automatic defrosting
- Anti-Corrosion Treatment on Heat Exchanger
Ideal solution for:
- Renovations, remodeling and new construction
- A perfect alternative to noisy and inefficient window or through-the-wall air conditioner units
- Sun rooms, basements, attics, garages, hot or cold rooms, and more
- Rooms where floor space comes at a premium or is not available for other application
- Ceiling void or attic does not allow for a viable duct run option
WHAT’S INCLUDED

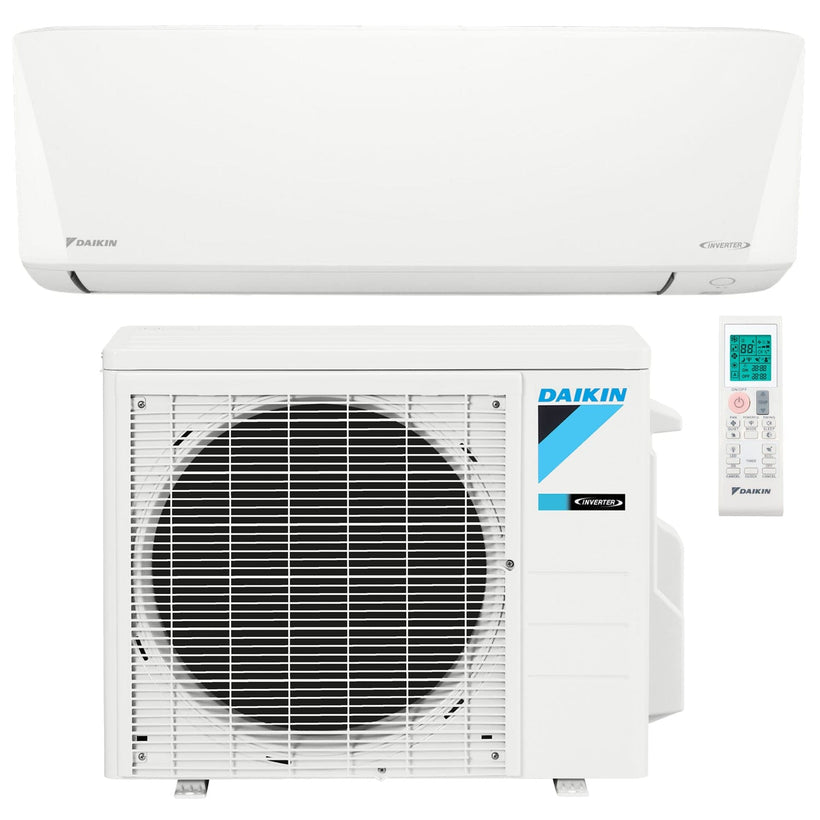

Your Daikin Ductless Mini-Split Inverter Air Conditioner Heat Pump System Comes With:
- FTXB12BXVJU | Indoor Unit
- RXB12BXVJU | Outdoor Unit

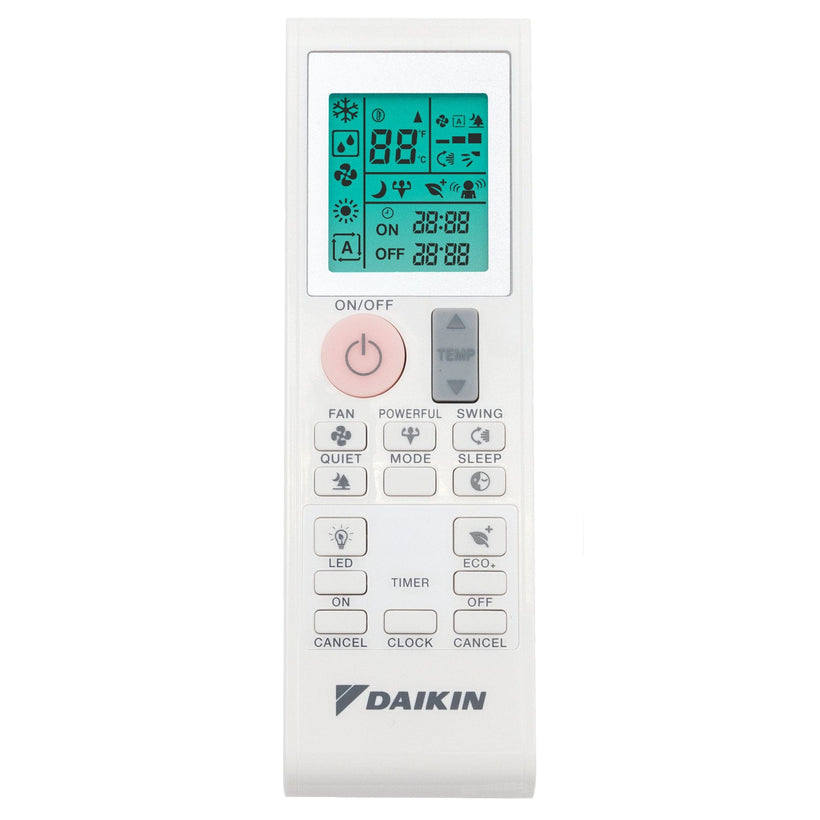

- Remote control
MANUFACTURER WARRANTY
- 10-year parts limited warranty
Downloads
- DAIKIN ENTRA SERIES - BROCHURE
- DAIKIN RXB12BXVJU + FTXB12BXVJU ENTRA SERIES - TECHNICAL SPECIFICATIONS
- DAIKIN FTXB-B_RXB-B ENTRA SERIES - ENGINEERING MANUAL
- DAIKIN FTXB-B_RXB-B ENTRA SERIES - INSTALLATION MANUAL
- DAIKIN FTXB-B_RXB-B ENTRA SERIES - SERVICE MANUAL
- DAIKIN FTXB-B_RXB-B ENTRA SERIES - LIMITED WARRANTY
Key Specifications
- Daikin
- Wall Mount
- 1,000 SqFt
- 11,000
- 11,300
- 18.0
- 9.0
- 8.5
- 208-230 V; 1 Phase; 60 Hz
- R-410A
- 1
- 12 Year Parts Warranty
- 3.3
Bundle includes 2 items
Daikin 12000 Btu Mini split Condenser Heat Pump Unit 18 SEER2
Model Number: RXB12BXVJU SKU: DRB12XV0502Daikin 12000 Btu Wall Mount Fan Coil
Model Number: FTXB12BXVJU SKU: DFTX12BX0492System Specifications
Indoor Model Number | FTXB12BXVJU |
---|---|
Model Number | RXB012XVJU + FTXB12BXVJU |
Outdoor Model Number | RXB012XVJU |
System Type (Selector) | Mini Split |
Type | Mini Split Systems |
Application Area | 1,000 SqFt |
Nominal Cooling Capacity (BTU) | 12,000 |
Cooling Capacity Btu | 11,000 |
Nominal Capacity (BTU) | 12,000 |
Nominal Heating Capacity (BTU) | 12,000 |
Heating Capacity (BTU) | 11,300 |
Efficiency SEER2 | 18.0 |
SEER2 Filter | 18+ |
HSPF2 | 9.0 |
EER2 | 8.5 |
Electrical | 208-230 V; 1 Phase; 60 Hz |
Voltage | 208/230 Volt |
Refrigerant | R-410A |
Number of Zones (Rooms) | 1 |
Manufacturer Limited Warranty (Years) | 12 Year Parts Warranty |
Shipping Time | 24 to 72 hours |
Application | Heat Pump / Heating & Cooling |
COP2 | 3.3 |
Fancoil Style | Wall Mounted |
Must ship freight | Yes |
Purifier Type | Electronic & HEPA |
Technology | Inverter |
Specifications for model: RXB12BXVJU
Brand | Daikin |
---|---|
Model Number | RXB12BXVJU |
Type | Ductless System Outdoor Units |
Unit Type (Selector) | Condensers Unit |
[k_4] | 1.0 |
Efficiency SEER2 | 18 |
HSPF2 | 9 |
EER2 | 8.5 |
Electrical | 208-230 V; 1 Phase; 60 Hz |
Voltage | 208/230 Volt |
Refrigerant | R-410A |
Manufacturer Limited Warranty (Years) | 10 Year Parts Warranty |
Outdoor Heating Room Temperature | 5~65 °F |
Outdoor Cooling Room Temperature | 50~115 °F |
Certifications | AHRI Certified; UL Listed |
Compressor Type | Swing |
Noise Level Dba | 48 dB(A) |
Weight | 62 lbs |
Depth | 11.2 in |
Height | 21.7 in |
Width | 26.5 in |
Shipping Time | 24 to 72 hours |
Application | Heat Pump / Heating & Cooling |
Blower Motor | Variable Speed ECM |
COP2 | 3.3 |
Maximum Indoor Units | 1 |
Must ship freight | Yes |
Specifications for model: FTXB12BXVJU
Auto Restart | Yes |
---|---|
Certifications | ETL / HARI Performance Certified 210/240 shipping_time |
Depth | 11.7 in |
Electrical | 208-230 V; 1 Phase; 60 Hz |
Fan Only | Yes |
Filter Cleaning Methods | Washable |
Height | 21.2 in |
Low Temperature Operation | Yes |
Manufacturer Limited Warranty (years) | 10 Year Parts Warranty |
Matching Outdoor Unit | RXB12BXVJU |
Memory | Yes |
Mounting Type | Wall Mounted |
Model Number | FTXB12BXVJU |
Mounting Type | Wall Mounted |
Must ship freight | Yes |
Smart Technology | Yes |
Suction Line Size | 3/8" |
Technology | Inverter |
Thermostat Type | Wireless Remote |
Unit Type (Selector) | Wall Mounted |
Voltage | 208/230 Volt |
Weight | 21 lbs |
Width | 26.5 in |
