Experience reliable indoor comfort for everyone in your home year after year after year.

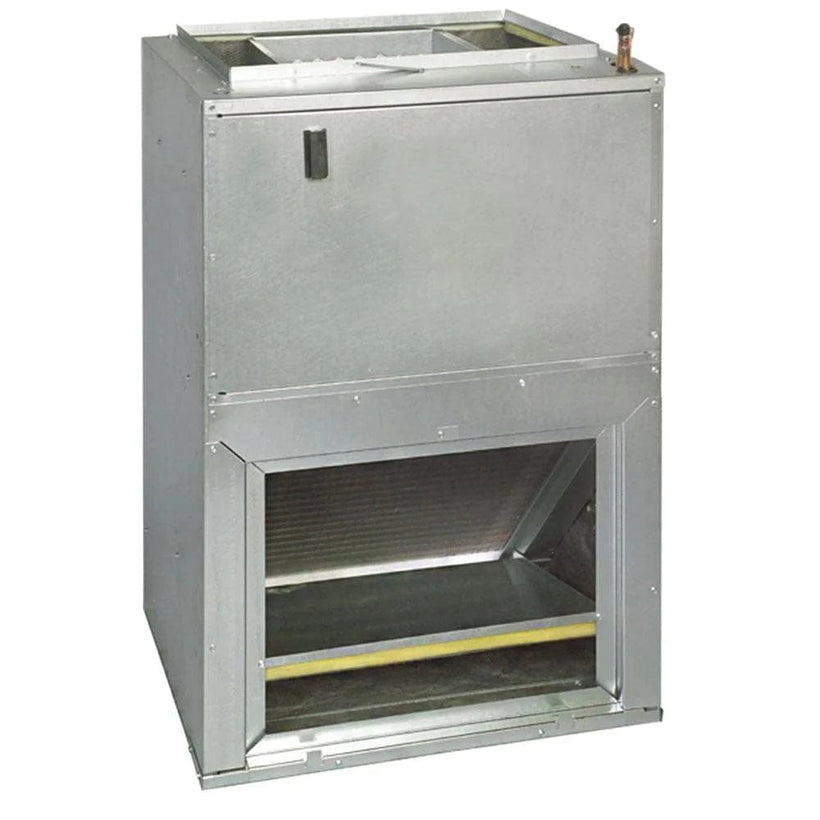

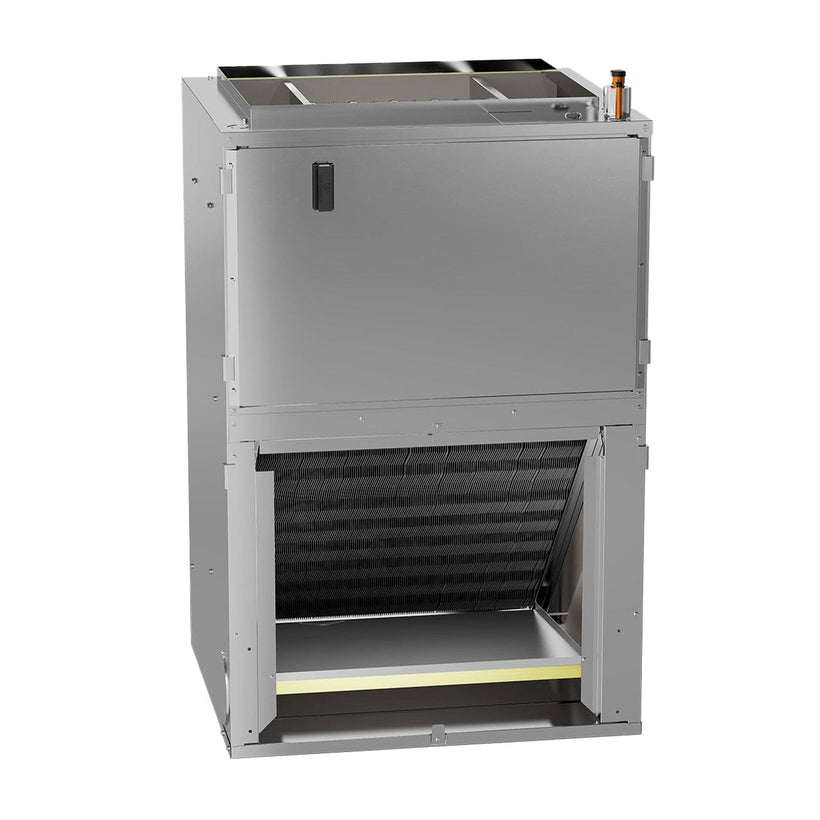

The Goodman AWST18SU1303 R-32 wall mount air handlers have features designed to provide outstanding performance, designed to provide refreshingly affordable and energy-efficient indoor comfort solutions using advanced technology. With the advanced techniques and materials used you will know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend you will love for many years.
Product Features
- AWST Models: Equipped with a fully adjustable TXV

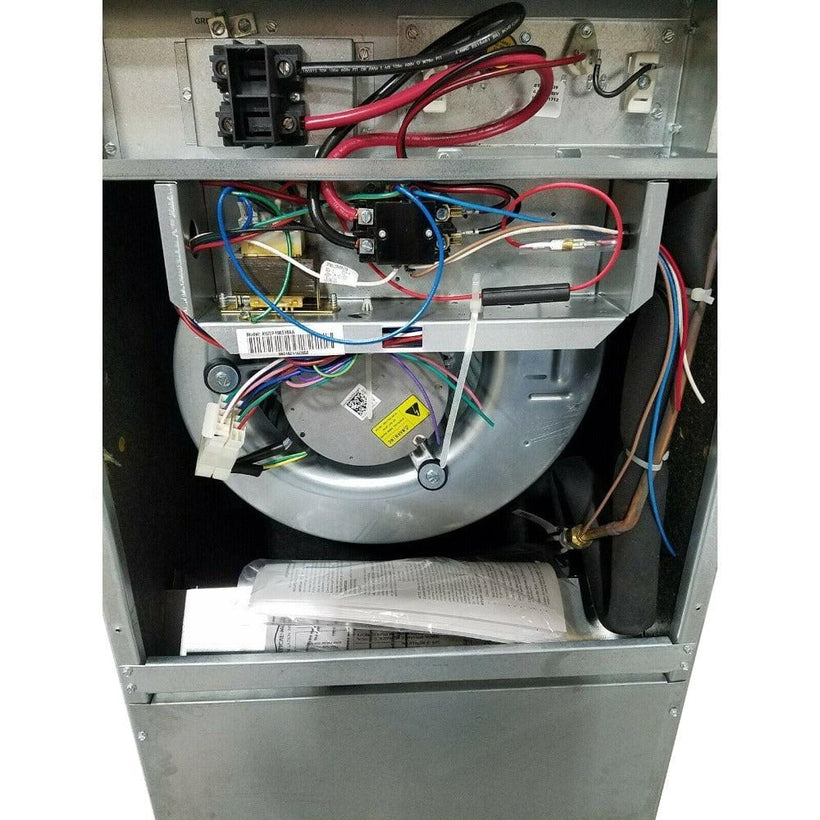

- Direct-drive, multi-speed motors allows air volume variation for heating/cooling
- Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
- Aluminum tubing coils on all models
- Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
- UL 60335 2-40 Compliant
- Factory installed R-32 sensor designed for the lifespan of the coil.
- Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
- Factory-installed pull-type disconnect
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack (filter included)
- Large chassis (2½- and 3-ton units) – front return only
- Small chassis (1½- and 2-ton units) – front or bottom return
- Wall-hanging bracket provided
-
AHRI Certified; ETL Listed
WHAT’S INCLUDED
Your Goodman Indoor Coils from Heat & Cool Comes with:
- Goodman AWST18SU1303 | Condenser Unit
- Installation Manual
- User’s Manual
- Manufacturer Warranty
MANUFACTURERS WARRANTY
- 10 Year Parts Warranty
Key Specifications
- Goodman
- Wall Mount Upflow
- 1.5
- 3
- 20 3/16
- 3/8"
- 5/8"
- 3/4"
- 109
- 20 3/16 / 16⅛ / 36
- 16.8/18.9
- 20/20
- AHRI Certified; ETL Listed
System Specifications
Configuration | Wall Mount Upflow |
---|---|
Nominal Capacity (Ton) | 1.5 |
Electric Heat (kW) | 3 |
Cabinet Width (In) | 20 3/16 |
Liquid Line Size | 3/8" |
Suction Line Size | 5/8" |
Drain Line Size | 3/4" |
Gross weight (Lb) | 109 |
Width / Depth / Height (In) | 20 3/16 / 16⅛ / 36 |
Minimum Circuit Ampacity (MCA) | 16.8/18.9 |
Max. Overcurrent Device (Amps) | 20/20 |
Certifications | AHRI Certified; ETL Listed |
