Choose the right heating and air conditioning system for your home and you’ll save money upfront, recuperate your investment through lower energy bills or both.
Goodman GLSX4M Condenser units use R-32 refrigerant gas. Therefore, they will not work with any R-410A AC equipment.
Goodman brand lives up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials, and spot-on manufacturing. Goodman brand heating and cooling systems are designed to provide refreshingly affordable and energy-efficient indoor comfort solutions using advanced technology.
Goodman uses advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that is designed to stay for many years.

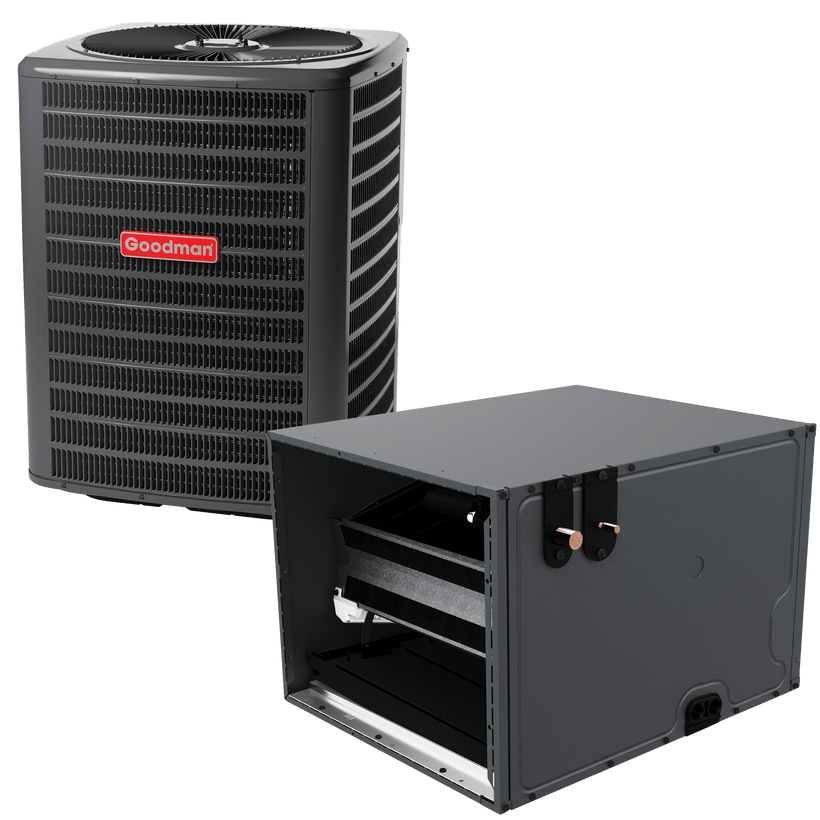

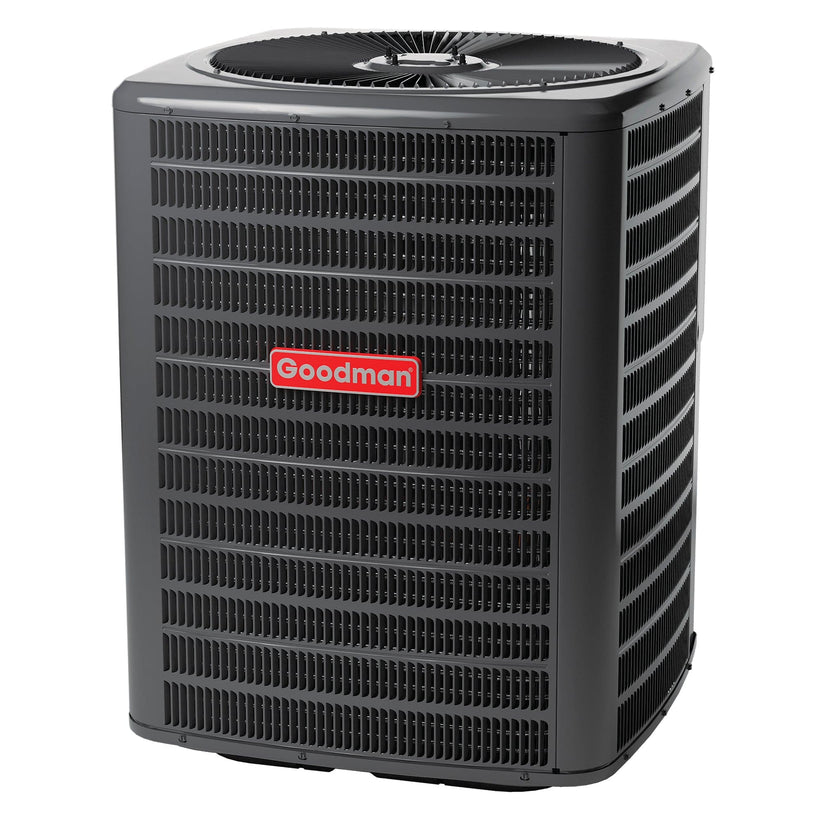

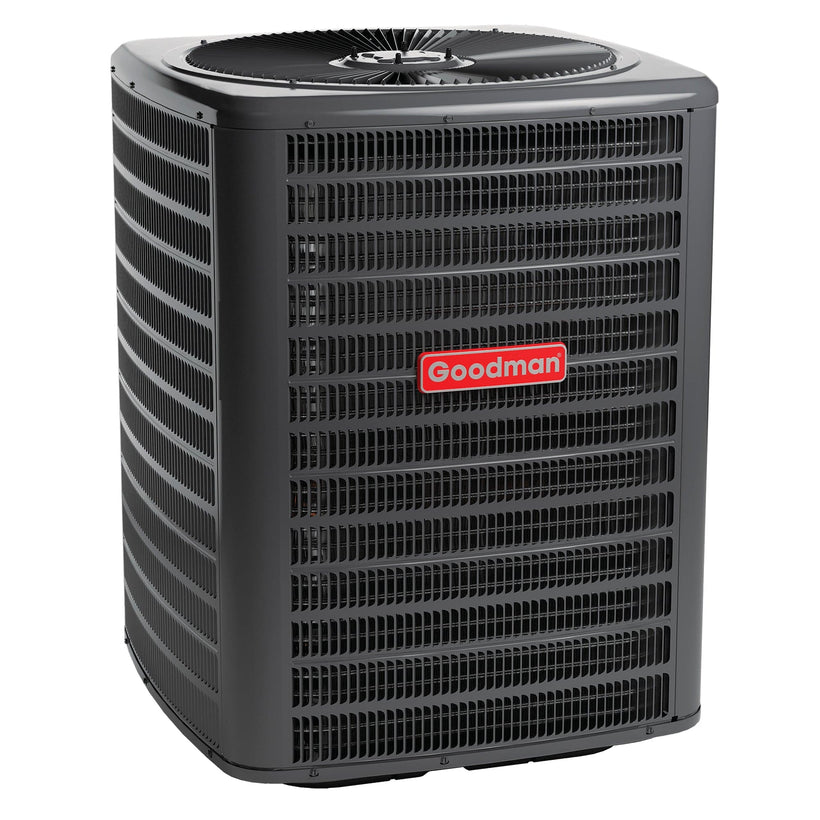

GLXS4MA1810 | Outdoor Unit
The Goodman GLXS4MA1810 Energy Efficient Classic, R-32, up to 14.3 SEER2 air conditioner is loaded with features designed to provide outstanding performance for years to come for lower energy bills compared to lower efficiency units. Additionally sound-dampening features help ensure that your cooling system does not interfere with a good night’s sleep. The near-silent operation is owed to the condenser fan system, which includes a three-bladed fan encased in a heavy-gauge galvanized louvered cabinet with noise suppressing features
Standard Features
Energy-efficient compressor
Fully charged for 15' of tubing length
Copper tube/ enhanced aluminum fin coil - 5mm diameter
Factory-installed filter drier
Sweat connection service valves with easy access to gauge ports
Enclosed contactor
High-pressure switch
Ground lug connection
Capacitors with extended life
AHRI Certified
ETL Listed
Cabinet Features
Removable grille-style top design compliant with UL 60335-2-40
Venturi for increased velocity of airflow
Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
Wire fan discharge grille
Steel louver coil guard
Top and side maintenance access
Single-panel access to controls with space provided for field-installed accessories
When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available

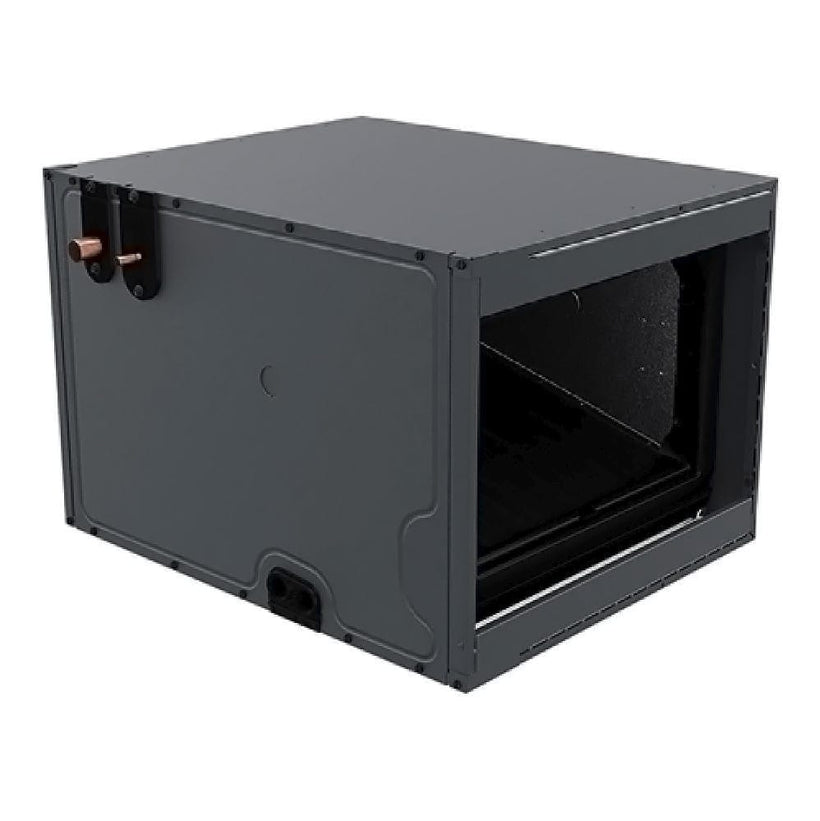

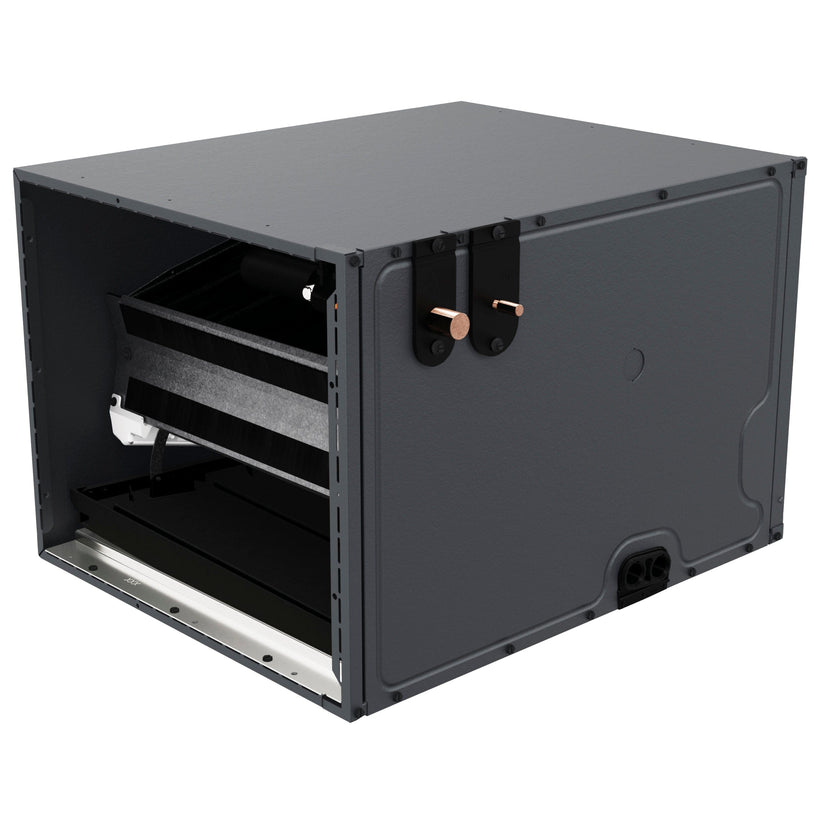

CHPTA1822B3 | Horizontal Left/Right Cased Coil
The All-Aluminum CHPTA1822B3R-32 evaporator coil is constructed from aluminum tubing, fins and end plates giving you a single metal solution for outstanding, time-tested, heat transfer performance properties. It is an evaporator coil design with many features coupled with enhanced performance, lab tested, and benefits to help create great value for enhanced indoor comfort.
Standard Features
All-Aluminum evaporator coil
Optimized for use with R-32 refrigerant including circuits and manifolds
R-32 sensor designed for the life span of the coil
CHPTA models feature factory installed thermal expansion valves for cooling and heat pump applications
Standardized copper suction tube stub length
21" depth for easier attic access
Foil-faced insulation covers the internal casing to reduce cabinet condensation
Rust resistant, thermoplastic drain pans featuring a low water-retention design
AHRI certified; ETL listed
What’s Included
Your Goodman Cased Coil from Heat & Cool comes with:
GLXS4MA1810 | Outdoor unit
CHPTA1822B3 | Horizontal Left/Right Cased Coil
Installation Manual
User’s Manual
Manufacturer’s Warranty
MANUFACTURER WARRANTY
10 YEAR Parts Limited Warranty - Complete warranty details available at www.goodmanmfg.com. To receive the 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec.
