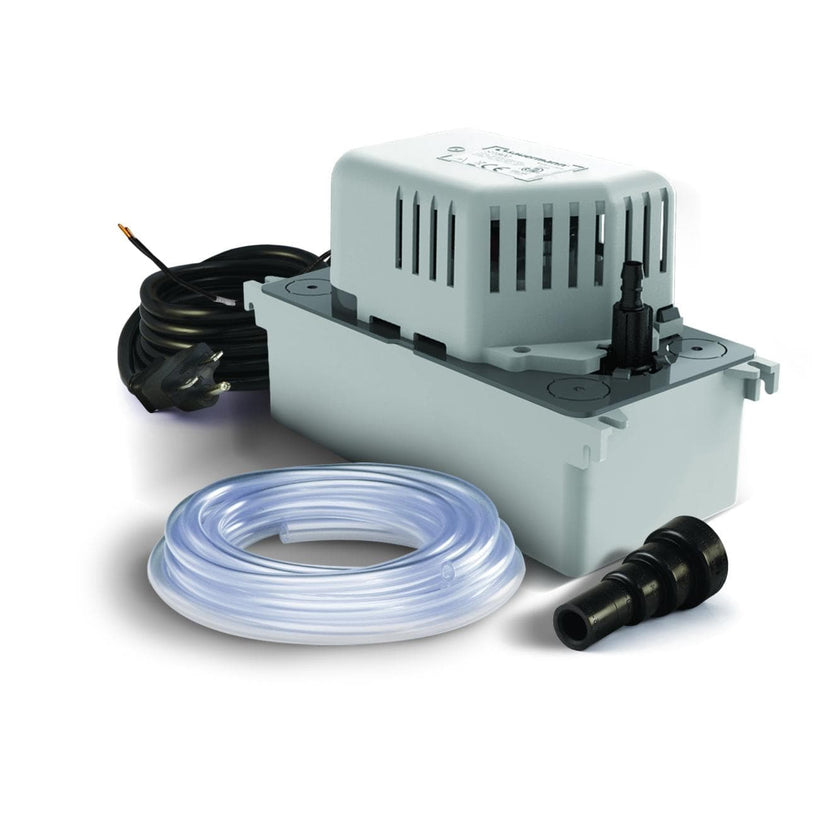

SI1801US11/T Sauermann Condensate Pump 120V
Overview
Technical
Reviews
Q&A
Overview
The Si-1801/T (includes tubing) centrifugal tank pump is capable of evacuating 132 gph with a 23' shut off head.
FEATURES
Built to Resist: Can endure acidic condensate pH > 2.5
Easily removable tank for simple maintenance
Oil & acid resistant flow
High performance: Discharges condensate up to 23'
Low sound level: ≤ 45 dBA
Kit includes 20' roll of 3/8" clear PVC tubing
TECHNICAL DETAILS
Max flow rate: 132 gph (500 l/h)
Mains supply: 120V: (SI1801US11/T)
Operation conditions: 30%: 3s ON - 7s OFF
Max condensate temperature: 150 °F (65 °C)
Max condensate acidity: pH > 2.5 (Gas Condensing Boilers)
Safety switch: NC 4 A resistive - 42V peak
PUMP DIMENSIONS
Width: 5 3/16 inches
Height: 6 23/32 inches
KIT COTENT
One-piece centrifugal pump with 1/2 gal. tank
Integrated barb end check valve 3/8” o.d. (10 mm)
6' power cord
Safety switch wires (1' bare ends)
Adaptor: 5/8" i.d., 3/4" i.d, 1" i.d., 1 1/4" i.d.
2 screws & 2 wall anchors
20' roll of 3/8" clear PVC tubing
at a glance
Brand:
Sauermann
Height
6 23/32 in
Width
5 3/16 in
Technical
System Specifications
Height
6 23/32 in
Width
5 3/16 in
