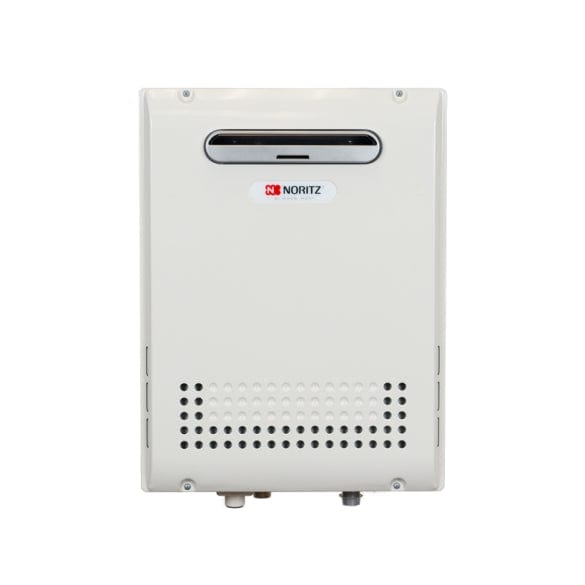

Noritz – NRC111OD Residential Tankless Water Heater
The NNRC111OD Residential Tankless Water Heater utilizes a dual heat exchanger, a fusion of stainless steel and copper heat exchangers. The 100% stainless steel component captures the residual heat from the exhaust temperature to preheat the incoming water before it runs through the main copper heat exchanger. This results in dramatic reduction of carbon dioxide and increases the heater's efficiency level to over 93%!
Another benefit of this technology is lower exhaust temperatures, which means less costly PVC can be used for its venting. A PVC adapter is built into the heater for easy installation.
Features:
- Heat Exchanger: Manufactured with commercial grade copper, 25% thicker piping than standard models
- Venting Options: Available as an Outdoor (requires no venting) or indoor Direct Vent (‐DV) model which includes special plastic flue adapters that are compatible with both 3" or 4" Schedule 40 and 80 PVC/CPVC pipe. The DV model can also be converted to an SV model with the use of a Conversion Kit (#SV‐CK‐3)
- Quick‐Connect: Two identical units can be linked together by using the optional Quick Connect Cord (#QC‐2) for twice the hot water capacity
- Thermal Efficiency: Fully condensing, 95% efficient for use with natural gas or propane
- Temperature Controls: Includes remote thermostat that can precisely adjust the output temperature from 100°F to 140°F with the capability to display temperatures in both°C and°F
- Power Cord Installatiohn Kit: 6' power cord is included with ‐DV models only
- Safety Devices: Flame Sensor, Overheat Prevention Device, Lightning Protection Device, Freeze Protection, Condensate Overfill
- Additional Fetures: Temperature Lockout, High Elevation Adjustment, Condensate Overflow Monitoring System, Service Reminder Function
WHAT’S INCLUDED
Your Tankless Water Heater From Heat and Cool Comes With:
- NRC111OD | Tankless Water Heater
- Energy Guide
- Installation Manual
- Owners Guide
- Parts List
- Technical Specification
Downloads
Key Specifications
- Noritz
- Yes
- 9.3 gpm
- 8.4 gpm
- 4.6 gpm
- 11.1 gpm
- Yes
- Outdoor
- 140 ºF
- 0.5 gpm
- Standard
- 213 W
System Specifications
| Case | Steel |
|---|---|
| Direct Electronic Ignition | Yes |
| Energy Star | Yes |
| Finish Family | Beige |
| Flow Rate @ 35 ºF Rise | 9.3 gpm |
| Flow Rate @ 45 ºF Rise | 8.4 gpm |
| Flow Rate @ 75 ºF Rise | 4.6 gpm |
| Flow Rate, Maximum | 11.1 gpm |
| Hard-Wired Remote | Yes |
| Heat Exchanger Warranty | 12 Year year |
| Indoor/Outdoor | Outdoor |
| Labor Warranty | 1 Year |
| Lightning Protection | Yes |
| Maximum Temperature | 140 ºF |
| Min. Installation Clearance, Front | 24 Inch |
| Min. Installation Clearance, Sides | 6 Inch in |
| Min. Installation Clearance, Top | 36 Inch in |
| Minimum Activation Rate | 0.5 gpm |
| Must ship freight | Yes |
| Parts Warranty | 5 Year Limited Parts Warranty |
| Product Depth | 9.4 in |
| Product Height | 24.2 in |
| Product Shipping Weight | 66 lb |
| Product Width | 18.33 in |
| Recirculation compatible | Yes |
| Shipping Cost | 140 |
| Shipping Time | 7 to 10 days |
| Thermal Efficiency | 0.93 % |
| Unit Type (Selector) | Standard |
| Warranty | 12 Year Limited Heat Exchange year |
| Water Connection Location | Top |
| Water Connection Size | 3/4 Inch in |
| Water Pressure Range, Min-Max | 15-150 psig |
| Wattage | 213 W |
