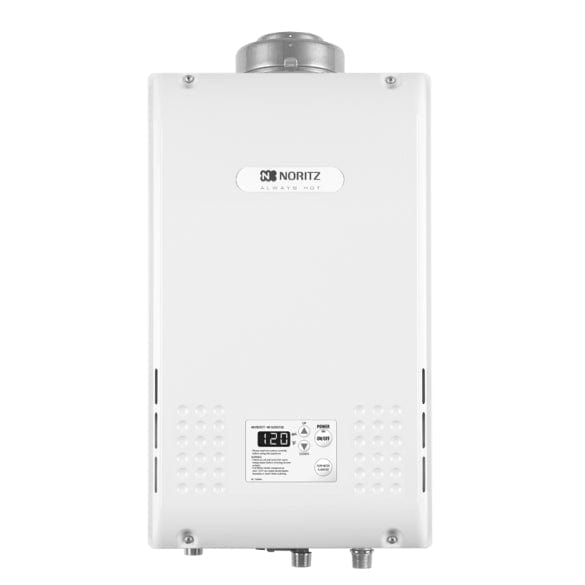

Noritz – NR98 DVC Residential Tankless Water Heater
This ENERGY STAR‐rated high‐efficiency condensing model demonstrates its commitment to the green movement by expanding its newest tankless water heater product line.
Noritz NR98 DVC condensing tankless water heaters are energy efficient. Offering a maximum input of 199,900 BTU per hour, this tankless water heater is designed to fully meet the domestic hot water needs of the Northeast.
Features:
- Standard Input: Gas consumption ranges from 16,000 BTUh to 199,900 BTUh
- Capacity Range: Flow rates from 0.5 gpm up to 9.8 gpm
- Compact Design: ANSI Z21.10.3/CSA 4.3 certified design that can be wall‐mounted indoors (‐SV and ‐DVC models only) or installed outdoors with an ‐OD model
- Heat Exchanger: Manufactured with commercial grade copper, 25% thicker piping than standard models
- Venting Options: Available in Power Vent (‐SV), Outdoor (‐OD), or Concentric Direct Vent (‐DVC) model that requires either 4" Category III or 5"/3" Noritz concentric stainless steel pipe
- Quick‐Connect: two identical units can be linked together by using the optional Quick Connect Cord (#QC‐2) for twice the hot water capacity
- Energy Factor: 0.82 (NG) 0.88 (LP) for all NR981 Series models
- Thermal Efficiency: 84% efficient for use with natural gas or propane
- Temperature Controls: Includes remote thermostat that can precisely adjust the output temperature from 100°F to 140°F with the capability to display temperatures in both °C and °F
- Power Cord Installation Kit: 6' power cord is included with ‐SV and ‐DVC models (assembly required for SV models)
- Safety Devices: Flame Sensor, Overheat Prevention Device, Lightning Protection Device, Freeze Protection
- Additional Features: Temperature Lockout, High Elevation Adjustment, Service Reminder Function
WHAT’S INCLUDED
Your Tankless Water Heater From Heat and Cool Comes With:
- NR98 DVC | Tankless Water Heater
- Energy Guide
- Installation Manual
- Owners Guide
- Parts List
- Technical Specification
Key Specifications
- Noritz
- Yes
- 8.4 gpm
- 7.5 gpm
- 4.2 gpm
- 9.8 gpm
- Yes
- Indoor
- 180 ºF
- 0.5 gpm
- Standard
- 161 W
System Specifications
| Case | Steel |
|---|---|
| Direct Electronic Ignition | Yes |
| Energy Star | Yes |
| Finish Family | Beige |
| Flow Rate @ 35 ºF Rise | 8.4 gpm |
| Flow Rate @ 45 ºF Rise | 7.5 gpm |
| Flow Rate @ 75 ºF Rise | 4.2 gpm |
| Flow Rate, Maximum | 9.8 gpm |
| Hard-Wired Remote | Yes |
| Heat Exchanger Warranty | 12 Year year |
| Indoor/Outdoor | Indoor |
| Labor Warranty | 1 Year |
| Lightning Protection | Yes |
| Maximum Temperature | 180 ºF |
| Min. Installation Clearance, Front | 4 Inch |
| Min. Installation Clearance, Sides | 2 Inch in |
| Min. Installation Clearance, Top | 12 Inch in |
| Minimum Activation Rate | 0.5 gpm |
| Must ship freight | Yes |
| Parts Warranty | 5 Year Limited Parts Warranty |
| Product Depth | 10.2 in |
| Product Height | 23.6 in |
| Product Shipping Weight | 55 lb |
| Product Width | 13.13 in |
| Recirculation compatible | Yes |
| Shipping Cost | 140 |
| Shipping Time | 7 to 10 days |
| Thermal Efficiency | 0.84 % |
| Unit Type (Selector) | Standard |
| Warranty | 12 Year Limited Heat Exchange year |
| Water Connection Location | Top |
| Water Connection Size | 3/4 Inch in |
| Water Pressure Range, Min-Max | 15-150 psig |
| Wattage | 161 W |
