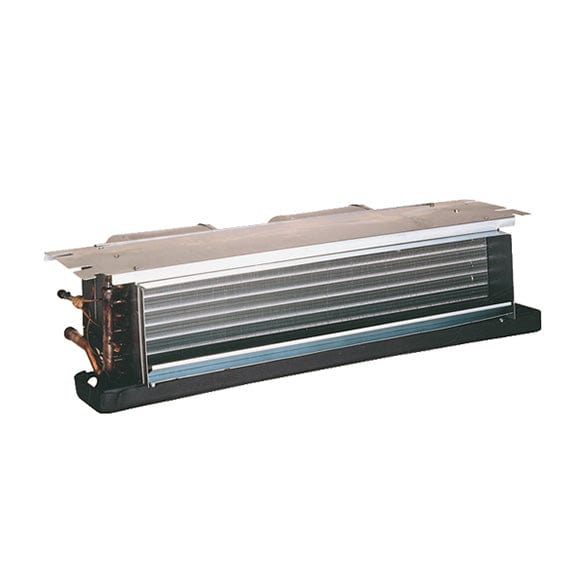

Goodman ACNF250516 2 Ton Energy-Efficient Ceiling Mount Air Handler (EEM motor) with 5 kW Electric Heater 1

Goodman ACNF250516 2 Ton Energy-Efficient Ceiling Mount Air Handler (EEM motor) with 5 kW Electric Heater

Model Number: ACNF250516 SKU: HCGMC2508
Regular price
Sale price
Regular price
Sold out
Unit price
In stock

| SHIPS IN: 24 to 72 hours

Out of stock
  • 60-Day Returns
  • PRICE Match Plus
  • Free Shipping
  • Tax-Free Sale*Except Florida
  • Goodman ACNF250516 Multi-Speed Ceiling-Mount Air Handlers

    The job of air conditioning isn't just to cool or heat a room. You depend on it for dehumidification, air filtration and essential ventilation. The Goodman Ceiling-Mount Air Handlers, ACNF250516 air handler surpasses performance standards with notable attributes such as a multi-speed PSC motor, multiple airflow positions, minimal air leakage and grooved aluminium tubes mechanically bonded to aluminium ripple-edged fins for industry leading heat transfer.

    The ACNF250516 air handler boasts a direct-drive, multi-speed motor which allows air volume variation for heating and cooling applications.

    Additional Features:

    • All-aluminium evaporator coil
    • Multi-speed motor
    • Multiple airflow positions
    • Check flowrater for heat pump and cooling-only applications
    • All-Aluminium tube/aluminium fin coil
    • Direct-drive, resilient-mount, multi-speed motor
    • Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
    • High-efficiency evaporator coil
    • Quiet operation
    • Models with EEM motor: ACNF25 & ACNF31
    • Models with PSC motors: ACNF18, ACNF24 & ACNF30
    • Available with and without heat
    • Primary/secondary drain connection in a high-temperature plastic drain pan
    • Suitable for free-return installation (non-ducted return air)
    • Galvanized-steel construction
    • Factory-installed pull-type disconnect
    • Easy service access
    • AHRI certified
    • ETL listed

    Your Goodman 2 Ton
    Ceiling-Mount Multi-Speed Air Handler from Heat & Cool Comes With:

    • ACNF250516 Air Handler
    • User’s Manual
    • Installation Manual
    • Manufacturer Warranty


    10-year parts limited warranty

    Key Specifications

    • Goodman
    • Multi Speed EEM
    • 21 in
    • 10 in
    • 43 ¼ in
    • Ceiling mounted
    • 10 Year Part Limited Warranty
    • 10 years
    • Air Handler
    • 69 lbs
    System Specifications
    Application Air Conditioner/cooling only
    Blower Motor Multi Speed EEM
    Cabinet Depth 21 in
    Cabinet Height 10 in
    Cabinet Width 43 ¼ in
    Certifications and Listings AHRI certified; ETL listed
    Configuration Ceiling mounted
    Drain Line 3/4"
    Electrical 208-240 V; 1 Phase
    Expansion Device Flowrater
    Handling Cost 15
    Installation Type Ceiling Mount
    Liquid Line Size 3/8"
    Manufacturer Limited Warranty (text) 10 Year Part Limited Warranty
    Manufacturer Parts Limited Warranty 10 years
    Must ship freight Yes
    Type Air Handler
    Shipping Cost 150
    Shipping Time 24 to 72 hours
    Suction Line Size 3/4"
    Unit Type (Selector) Air Handler
    Weight 69 lbs
