Choose the right heating and air conditioning system for your home and you’ll save money upfront, recuperate your investment through lower energy bills or both.
Offers a space saving design, quiet operation and an inverter "variable speed" compressor. Instead of noisy compressors and large ductwork, Daikin uses a small, easily hidden outdoor unit connected to an indoor via a pair of copper piping to cool your room or zone. These lines open into a small three-inch opening through a wall or ceiling. Its streamlined, indoor units and compact outdoor units blend in discreetly with any home design and run quietly, too. Whether you're enhancing a single room or adding on an entire wing, the system's space-saving, modular design is ideal for set-apart areas like a garage office or nursery.
Quick and easy duct-free installation
Precision temperature control for individual rooms
Space-saving design
Quiet operation
Inverter "variable speed" compressor
Fully optimized for R410A refrigerant, recognized as the future industry standard
Offers world-renowned Daikin technician support and customer service
Worry Free
Auto Restart after Power Failure
Anticorrosion Treatment of Outdoor Heat Exchanger Fin
Standard Features
Seamless integration in standard architectural ceiling tiles, leaving only 5/16"
High efficiencies with up to 20.9 SEER and up to 11.7 HSPF
Cooling Range 50° - 115° F (Extended operation to -4° - 115° F with facility setting)
Heating Range 5° - 65° F
Energy efficient thanks to specially developed small tube heat exchanger, DC fan motor and two optional intelligent sensors
Remarkable blend of iconic design and engineering excellence with an elegant finish in white or a combination of silver and white
No optional adapter needed for DIII-connection, link your unit into the wider building management system
Fresh air integration possible
12-Year Parts Limited Warranty
Specifications

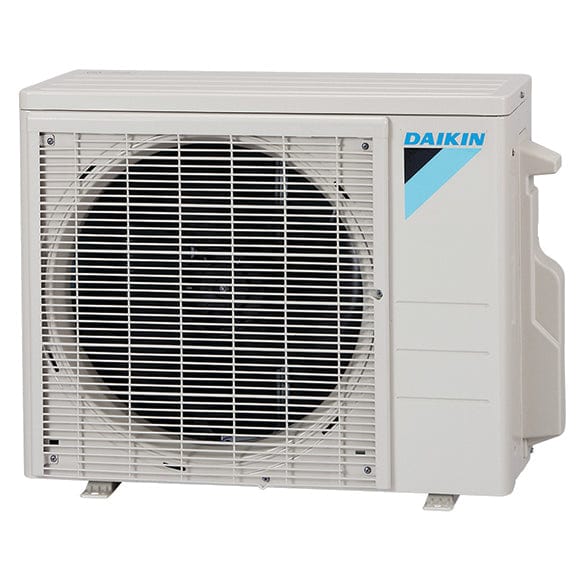

Outdoor Unit Model: RX09QMVJU
Matching Indoor Unit Model: FFQ09Q2VJU
Rated Cooling Conditions (°F DB/WB): 95 / 75
Rated Heating Conditions (°F DB/WB): 47 / 43
Cooling Capacity (Btu/hr): 9,100
Max/Min Cooling Capacity (Btu/hr): 11,000 / 4,600
Heating Capacity (Btu/hr): 10,000
Max/Min Heating Capacity (Btu/hr): 14,000 / 4,600
Power Supply (V/Hz/Ph): 208-230 / 60 / 1
Min. Circuit Amps MCA (A): 8.6
Max Overcurrent Protection (MOP) (A): 15
Airflow Rate (H) (CFM): 985
Liquid Line Size (in): 1/4
Gas Line Size (in): 3/8
Sound Pressure (H) (dBA): 46
Dimensions (HxWxD) (in): 21-5/8 x 26-9/16 x 11-3/16
