KSIE012-H220-IW-2 | Indoor Unit (x2) + KSIE018-H220-IW-2 | Indoor Unit (x2)

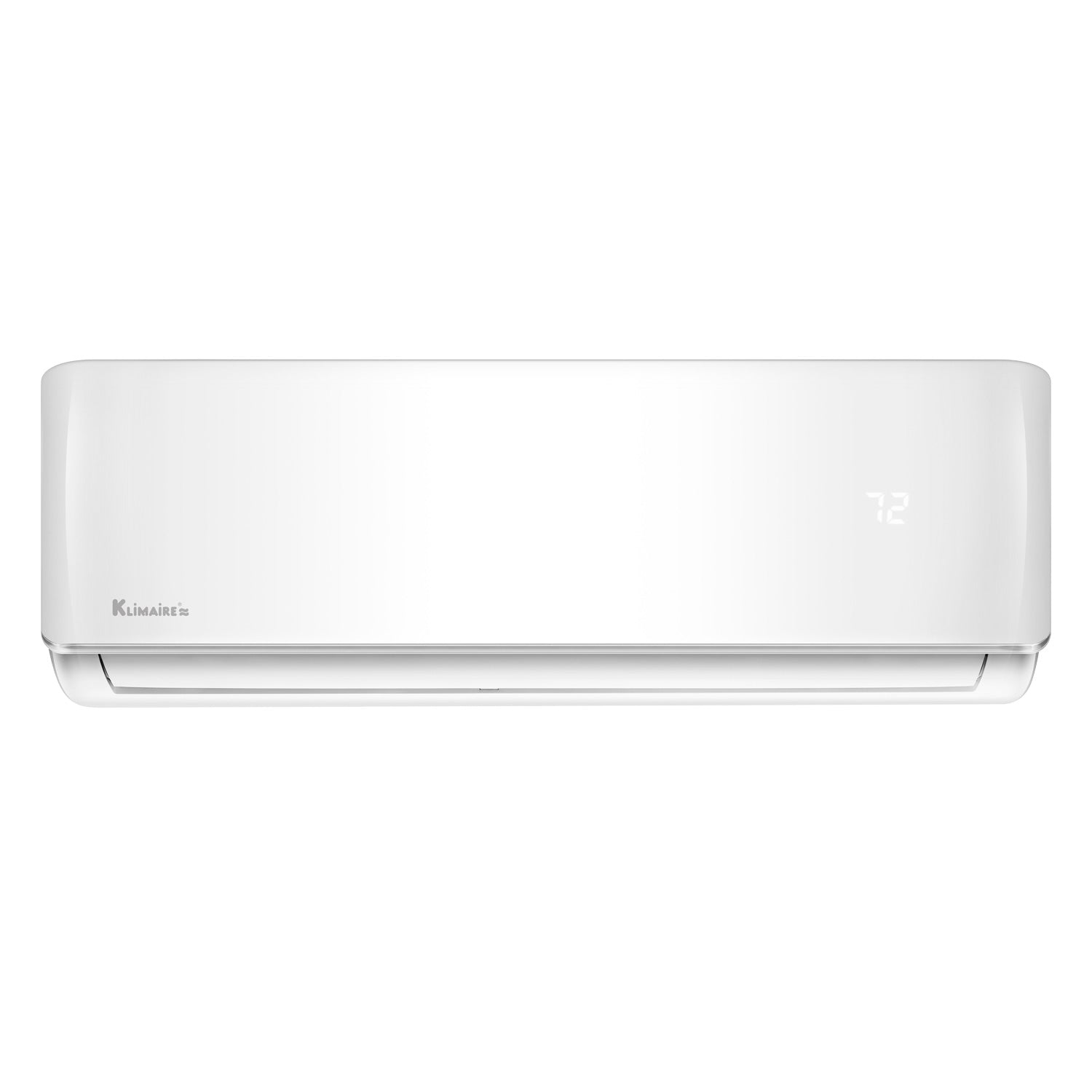

Don’t let the simple, clean lines of the elegantly-styled KSIE indoor wall-mounted unit fool you. It is jam-packed with high-tech features. With the Follow “Feeling” function activated, the temperature sensor “moves” from the wall unit to the remote control. The sensor then directs the mini-split to adjust heating and cooling based on the temperature immediately surrounding anyone carrying the remote.
Also enjoy 12 fan speeds, along with heating, cooling, dedicated dehumidification, turbo function and sleep mode. Auto clean function cleans and dries the evaporator to prevent mildew growth and maintain healthy indoor air quality. The new Home Away freeze protection feature maintains the room at 46º F when you are away for an extended period during the heating season.

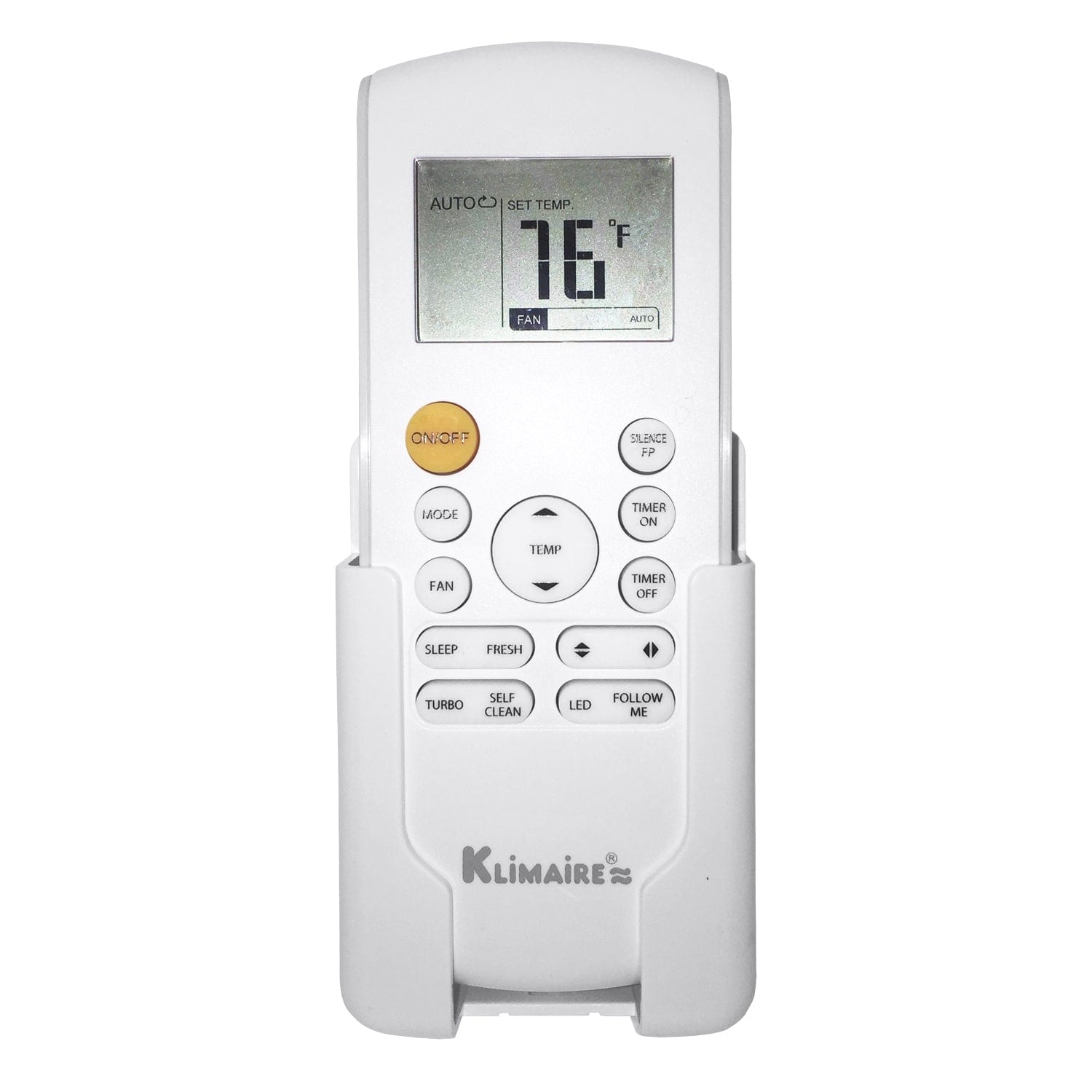

The remote control allows for manual operation of the unit when necessary. With the new “Quick-Hook Design,” the fan coil hangs on the wall easier and faster. An additional gap for pipe installation as well as right to left adjustments add to installation simplicity.
- 3D air flow technology distributes the air evenly throughout the room.
- 24 hour timer and memory function
- Turbo mode for fast heating & cooling
KMIR545-H219-2 | Outdoor Unit
Klimaire's new KMIR545-H219-2 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.
- Specially-designed for quiet operation
- Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off
- Small footprint fits most yards or easily mounts to a wall with bracket (sold separately)
- SEER2: 21.1
- EER2: 11.0
- HSPF2: 9.5
Applications
- Room additions
- Renovations
- Family rooms
- Sunrooms
- Wine cellars
- Garages/workshops
WHAT’S INCLUDED
Your Klimaire Ductless Three-Zone System from Heat & Cool Comes With:
- KSIE012-H220-IW-2 (x2) | Indoor Unit (x2)
- KSIE018-H220-IW-2 (x2) | Indoor Unit (x2)
- KMIR545-H219-2 | Outdoor Unit
- Outdoor unit is pre-charged with R-410A refrigerant
- Indoor unit mounting plates
- Remote controls with wall mount brackets
- Installation manual
- User’s manual
- Manufacturer warranty
Manufacturer Warranty
- 5 Year Parts
- 7 Years Compressor
Key Specifications
- Klimaire
- 208-230 V; 1 Phase; 60 Hz
- 5 Year Parts; 7 Year Compressor
- Wall Mounted
- 4
- 23.9
- Electronic & HEPA
- Standard
- KSIE012-H220-IW-2
- KSIE018-H220-IW-2
- KSIE018-H220-IW-2
Bundle includes 5 items
5-Zone Klimaire KMIR545-H219-2 Outdoor Heat Pump Unit - up to 21.1 SEER
Model Number: KMIR545-H219-2 SKU: KMR50082
12,000 BTU Klimaire KSIE012-H220-IW-2 Mini-split Wall Mount Fan Coil Unit 220V
Model Number: KSIE012-H220-IW-2 SKU: KEI120031
12,000 BTU Klimaire KSIE012-H220-IW-2 Mini-split Wall Mount Fan Coil Unit 220V
Model Number: KSIE012-H220-IW-2 SKU: KEI120031
18,000 BTU Klimaire KSIE018-H220-IW-2 Mini-split Wall Mount Fan Coil Unit 220V
Model Number: KSIE018-H220-IW-2 SKU: KEI180033
18,000 BTU Klimaire KSIE018-H220-IW-2 Mini-split Wall Mount Fan Coil Unit 220V
Model Number: KSIE018-H220-IW-2 SKU: KEI180033System Specifications
| Certifications | AHRI certified; ETL listed |
|---|---|
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Manufacturer Limited Warranty (years) | 5 Year Parts; 7 Year Compressor |
| Maximum Indoor Units | 4 |
| Mounting Type | Wall Mounted |
| Mounting Type | Wall Mounted |
| Number of Zones (Rooms) | 4 |
| Must ship freight | Yes |
| Number of Zones | 4 Zones |
| Refrigerant | R-410A |
| Efficiency (SEER) | 23.9 |
| Shipping Cost | 445 |
| Shipping Time | 24 to 72 hours |
| Type | Electronic & HEPA |
| Technology | Inverter |
| Unit Type (Selector) | Standard |
| Voltage | 208/230 Volt |
| Indoor 2: Model Number | KSIE012-H220-IW-2 |
| Indoor 3: Model Number | KSIE018-H220-IW-2 |
| Indoor 4: Model Number | KSIE018-H220-IW-2 |
Specifications for model: KSIE012-H220-IW-2
| Model Number | KSIE012-H220-IW-2 |
|---|---|
| System Type | Ductless Mini Split |
| Unit Type (Selector) | Wall Mounted |
| Mounting Type | Wall Mounted |
| Cooling Capacity (BTU) | 12,000 |
| Heating Capacity (BTU) | 12,000 |
| Efficiency SEER2 | 23.1 |
| SEER2 Filter | 23+ |
| Efficiency (SEER) | 21.5 |
| SEER (Left Filter) | 21+ |
| HSPF2 | 9.3 |
| HSPF (Heating Seasonal Performance Factor) | 9.8 |
| EER2 | 12.5 |
| EER (Energy Efficiency Ratio) | 13 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Manufacturer Limited Warranty (Years) | 1 Year Parts; 5 Year Compressor |
| Compressor Type | Rotary |
| Indoor Unit Noise Level (Hi/Me/Lo) | 39/25 |
| MCA (Minimum Circuit Ampacity) | 15 amps |
| Weight | 22 lbs |
| Depth | 7.44 in |
| Height | 11.69 in |
| Width | 31.57 in |
| Air Flow (Hi/Mi/Lo) | 306/212/147 |
| Shipping Time | 24 to 72 hours |
| Cop Coefficient Of Performance | 3.1 |
| Free Shipping | No |
| Must ship freight | Yes |
| Shipping Cost | 80 |
Specifications for model: KSIE018-H220-IW-2
| Mounting Style | Wall Mounted |
|---|---|
| Airflow Rate (Hi/Mi/Lo) cfm | 559/365/306 |
| Indoor Unit Sound Level dB(A) (Hi/Mi/Lo) | 45.5/-/34.5 |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 1/2 |
| Drain Line Size (In) | |
| Application Area (Sqft) | 1,000 |
| Indoor Air Quality Type | High density washable air filter and Cold catalyst filter |
| Net/Gross weight (Lb) | 29.1/37.0 |
| Width / Depth / Height (In) | 42.52x8.90x13.19 |
| Packaged Width / Depth / Height (In) | 45.47x16.34x12.40 |
Specifications for model: KMIR545-H219-2
| Compressor Type | Rotary |
|---|---|
| Sound Level | 64 |
| Minimum Circuit Ampacity (MCA) | 35 |
| Maximum Overcurrent protection (MOP) | 50 |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 3x3/8 + 2x1/2 |
| Operation Mode | null |
| Net/Gross Weight (Lb) | 223.77/255.07 |
| Width/Depth/Height (In) | 37.48x16.34x52.48 |
| Packaged Width/Depth/Height (In) | 43.11x19.49x58.27 |
| Refrigerant | R410A/162.3 |
