4MXS36RMVJU | Outdoor Unit
Daikin’s Multi-Split Systems are ideal for multi-room applications desiring individual room comfort in a space-saving design. With the ability to connect two, three or four indoor units to a single outdoor unit, over 1,000 combinations are possible with the choice of wall mount units, slim duct units, ceiling cassette units or a combination. Systems offer energy efficiency levels up to 20.2 SEER and up to 12.5 HSPF for enhanced home comfort and energy savings. Suitable for both new build and renovation projects, Daikin Multi-Split systems are the smart, reliable solution for your home.
Smart inverter technology — Integrated with an inverter variable-speed compressor, Daikin systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption by up to 30% or more (compared to traditional fixed-speed ducted systems). This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort.
- Energy Efficient – Up to 20.2 SEER, 12.5 HSPF, up to 12.7 EER – Variable-Speed Inverter Compressor
- Cooling Range 14° - 115°F
- Heating Range 5° - 60°F
MXS Features
- Anti-Corrosion Treatment on Heat Exchanger
- Quick Warming Function – Prevents the compressor from pumping liquid refrigerant in low-ambient conditions.
- Automatic Defrosting – Sensor performs automatic defrosting of the outdoor heat exchanger if necessary, ensuring optimum heating performance.
- Outdoor Unit Quiet Operation – Outdoor unit sound levels can be reduced by 3dB for times when quieter operation is needed.
Ideal solution for:
- Entire homes or floors of homes
- Multiple zones
- New construction
- Primary living areas (master bedrooms and living rooms)
- Basements

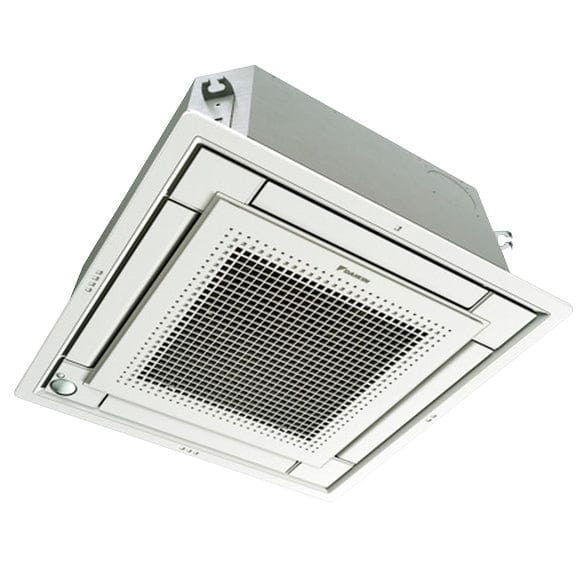

FFQ09Q2VJU - FFQ12Q2VJU | Indoor Unit
Unique design that integrates seamlessly into the ceiling
The Daikin VISTA ceiling cassettes are a remarkable blend of iconic design and engineering excellence with an elegant white or a silver and white finish. Fitting within the ceiling grid and discreetly mounted to the ceiling itself, VISTA is stylish, low profile, and compact. High efficiency and comfort are delivered through the combined use of floor and presence sensors (optional). It is also possible to close individual louvers via the wired remote control for personalized comfort.
Standard Features
- Indoor Sound Pressure as low as 29 dB(A)
- Energy efficient thanks to specially developed small tube heat exchanger, DC fan motor and two optional intelligent sensors
- No optional adaptor needed for DIII-connection, link your unit into the wider building management system
- Iconic award-winning design and engineering excellence
- Elegant finish in white or silver / white combination
- Seamless integration in standard architectural ceiling tiles, leaving only 5/16"
- Reduced energy consumption thanks to specially developed small tube heat exchanger, DC fan motor and two optimal intelligent sensors
- Remarkable blend of iconic design and engineering excellence with an elegant finish in white or a combination of silver and white.
- Draft Prevention
- Program Dry Function
- Hot Start Function
- Auto-Fan Speed Control (with wired controller)
- Self-Diagnostics with Digital Display
- Schedule TIMER operation (with wired controller)
Optional Features
- Wired controller
- Fresh air integration possible
- Presence and Floor Sensor
- Compatible with DKN Cloud Wi-Fi Adaptor
WHAT’S INCLUDED
Your Daikin Ductless Mini-Split Inverter Air Conditioner Heat Pump System Comes With:
- FFQ09Q2VJU | Indoor Unit
- FFQ09Q2VJU | Indoor Unit
- FFQ09Q2VJU | Indoor Unit
- FFQ18Q2VJU | Indoor Unit
- 4MXS36RMVJU | Outdoor Unit
MANUFACTURER WARRANTY
- 12 year parts limited warranty
Downloads
- DAIKIN FFQ SERIES - SERVICE MANUAL
- DAIKIN FFQ SERIES - INSTALLATION MANUAL
- DAIKIN FFQ SERIES - ENGINEERING MANUAL
- DAIKIN MULTIZONE SERIES - INSTALLATION MANUAL
- DAIKIN MULTIZONE SYSTEMS - BROCHURE
- DAIKIN INDOOR UNIT FFQ SERIES - TECHNICAL SPECIFICATIONS
- DAIKIN 4MXS36RMVJU SERIES - TECHNICAL SPECIFICATIONS
Key Specifications
- Daikin
- 400 + 400 + 400 + 550
- 208-230 V; 1 Phase; 60 Hz
- 12 Year Parts Warranty
- 4MXS36RMVJU
- 4
- 18
- 36,000
- 36,000
- 286 lbs
- Ductless Multizone Systems
- 208/230 Volt
- FFQ09Q2VJU
- FFQ09Q2VJU
- FFQ09Q2VJU
- FFQ18Q2VJU
Bundle includes 5 items
38,000 BTU Daikin MXS Series Multi-Zone Systems Outdoor Heat Pump Unit Up to 17.7 SEER 4MXS36RMVJUA
Model Number: 4MXS36RMVJUA SKU: HCDNA2284
9,000 BTU Ceiling Cassette Fan Coil Unit
Model Number: FFQ09Q2VJU SKU: HCDNA1071
9,000 BTU Ceiling Cassette Fan Coil Unit
Model Number: FFQ09Q2VJU SKU: HCDNA1071
9,000 BTU Ceiling Cassette Fan Coil Unit
Model Number: FFQ09Q2VJU SKU: HCDNA1071
18,000 BTU Ceiling Cassette Fan Coil Unit
Model Number: FFQ18Q2VJU SKU: HCDNA1074System Specifications
| Coverage (Sq/Ft), Each Indoor Model | 400 + 400 + 400 + 550 |
|---|---|
| Certifications | Ahri; ETL |
| EER (Energy Efficiency Ratio) | 9.2 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| HSPF (Heating Seasonal Performance Factor) | 12.2 |
| Manufacturer Limited Warranty (years) | 12 Year Parts Warranty |
| Maximum Indoor Units | 4 |
| Outdoor Model Number | 4MXS36RMVJU |
| Mounting Type | Cassette |
| Number of Zones (Rooms) | 4 |
| Must ship freight | Yes |
| Refrigerant | R-410A |
| Efficiency (SEER) | 18 |
| SEER (Left Filter) | 18+ |
| Shipping Cost | 390 |
| Shipping Time | 24 to 72 hours |
