4MXL36TVJU | Outdoor Unit
The Daikin AURORA multi-zone system is a flexible solution for individual zone comfort. Connecting up to 4 indoor units to a single outdoor unit reduces installation space and costs while maximizing comfort and energy efficiency. With a choice of 6 indoor unit types in a wide range of capacities, For all regions, the outdoor units of the multi-zone AURORA heat pump system have been redesigned to withstand extreme weather conditions with excellent energy efficiency ratings.
- Daikin AURORA heat pump for extreme weather conditions – Up to 100% heating capacity at 5°F (-15°C) and operate efficiently as low as -13°F ambient temperature.
- Outdoor Unit Quiet Operation – can reduce sound levels by 3dB for times when quieter operation is needed.
- Auto-Restart – The unit memorizes the operation mode, airflow and temperature settings. Should there be a power failure when the unit is in operation, it will automatically return to the same operating conditions when the power is restored.
- Intelligent Defrost Mode* – The outdoor unit will enable this mode to help prevent frost/ice from building up in cold climate conditions. It will also help with longer heating operation time for additional comfort for occupants (compared to HVAC systems without this function). *available on 4MXL only
- 2/3MXL outdoor unit drain pans have up to 14 holes which allows for effective drainage of condensation. In some case, this improved drain pan design eliminates the need for drain pan heaters, resulting in higher efficiencies in low ambient temperatures
- New Pain Drain – 4MXL newly designed drain pan on outdoor unit to help prevent condensate from freezing and causing damage to the fan and coil.
Standard Features
- Multi-Zone comfort: One outdoor unit connects up to four separate fan coils individually controlled
- Energy Efficient – Up to 21.7 SEER, up to 12.5 HSPF, up to 12.7 EER – Variable-Speed Inverter Compressor
- Cooling Range 14° - 115° F
- Heating Range -13° - 60° F
- Up to 100% heating capacity at 5°F / -15°C with confirmed continuous operation down to -13°F / 25°C
- Quick and easy installation
- Precision temperature control for individual rooms
- Space-saving design
- Quiet operation
- Fully optimized for R-410A refrigerant
- World renowned Daikin Inverter "Variable Speed" compressor technology
IDEAL SOLUTIONS FOR:
- Primary living area (master bedrooms and living rooms)
- Hot or cold rooms
- Rooms with poor air flow
- Renovations and remodeling
- Basements, attics and garages
- New construction

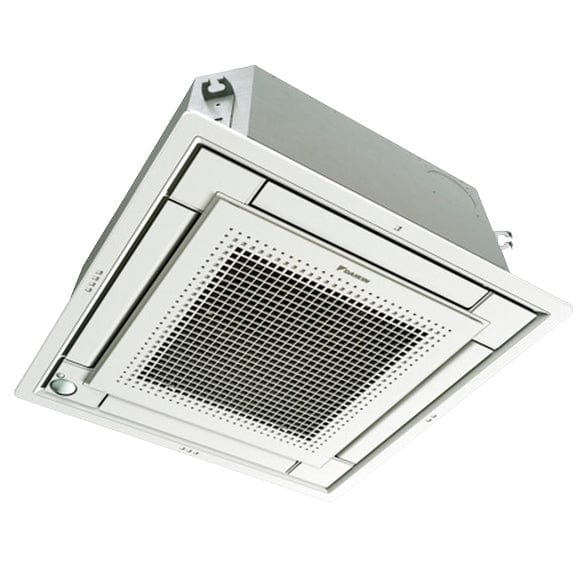

FFQ09Q2VJU - FFQ12Q2VJU - FFQ15Q2VJU | Indoor Unit
Unique design that integrates seamlessly into the ceiling
The Daikin VISTA ceiling cassettes are a remarkable blend of iconic design and engineering excellence with an elegant white or a silver and white finish. Fitting within the ceiling grid and discreetly mounted to the ceiling itself, VISTA is stylish, low profile, and compact. High efficiency and comfort are delivered through the combined use of floor and presence sensors (optional). It is also possible to close individual louvers via the wired remote control for personalized comfort.
Standard Features
- Indoor Sound Pressure as low as 29 dB(A)
- Energy efficient thanks to specially developed small tube heat exchanger, DC fan motor and two optional intelligent sensors
- No optional adaptor needed for DIII-connection, link your unit into the wider building management system
- Iconic award-winning design and engineering excellence
- Elegant finish in white or silver / white combination
- Seamless integration in standard architectural ceiling tiles, leaving only 5/16"
- Reduced energy consumption thanks to specially developed small tube heat exchanger, DC fan motor and two optimal intelligent sensors
- Remarkable blend of iconic design and engineering excellence with an elegant finish in white or a combination of silver and white.
- Draft Prevention
- Program Dry Function
- Hot Start Function
- Auto-Fan Speed Control (with wired controller)
- Self-Diagnostics with Digital Display
- Schedule TIMER operation (with wired controller)
Optional Features
- Wired controller
- Fresh air integration possible
- Presence and Floor Sensor
- Compatible with DKN Cloud Wi-Fi Adaptor
WHAT’S INCLUDED
Your Daikin Ductless Mini-Split Inverter Air Conditioner Heat Pump System Comes With:
- FFQ09Q2VJU | Indoor Unit
- FFQ09Q2VJU | Indoor Unit
- FFQ12Q2VJU | Indoor Unit
- FFQ15Q2VJU | Indoor Unit
- 4MXL36TVJU | Outdoor Unit
MANUFACTURER WARRANTY
- 12 year parts limited warranty
Downloads
- DAIKIN FFQ SERIES - SERVICE MANUAL
- DAIKIN FFQ SERIES - INSTALLATION MANUAL
- DAIKIN FFQ SERIES - ENGINEERING MANUAL
- DAIKIN MULTIZONE SERIES - INSTALLATION MANUAL
- DAIKIN MULTIZONE SYSTEMS - BROCHURE
- DAIKIN INDOOR UNIT FFQ SERIES - TECHNICAL SPECIFICATIONS
- DAIKIN 4MXL 5MXS SERIES OUTDOOR UNIT - SERVICE MANUAL
- DAIKIN 4MXL 5MXS SERIES - INSTALLATION MANUAL
- DAIKIN MXL SERIES - BROCHURE
- DAIKIN MXL SERIES - TECHNICAL SPECIFICATION
Key Specifications
- Daikin
- 208-230 V; 1 Phase; 60 Hz
- Yes
- 12 Year Parts Warranty
- 4MXL36TVJU
- 4
- 18
- 36,000
- 36,000
- 358 lbs
- Ductless Multizone Systems
- 208/230 Volt
- FFQ09Q2VJU
- FFQ09Q2VJU
- FFQ12Q2VJU
- FFQ15Q2VJU
Bundle includes 5 items
36,000 BTU Daikin MXL Series Multi-Zone Systems Outdoor Heat Pump Unit Up to 21.7 SEER 4MXL36TVJU
Model Number: 4MXL36TVJU SKU: HCDNA2332
9,000 BTU Ceiling Cassette Fan Coil Unit
Model Number: FFQ09Q2VJU SKU: HCDNA1071
9,000 BTU Ceiling Cassette Fan Coil Unit
Model Number: FFQ09Q2VJU SKU: HCDNA1071
12,000 BTU Daikin Vista Mini-Split Ceiling Cassette Fan Coil Unit FFQ12Q2VJU
Model Number: FFQ12Q2VJU SKU: HCDNA2045
15,000 BTU Daikin Vista Mini-Split Ceiling Cassette Fan Coil Unit FFQ15Q2VJU
Model Number: FFQ15Q2VJU SKU: HCDNA2046System Specifications
| Certifications | Ahri; ETL |
|---|---|
| EER (Energy Efficiency Ratio) | 9.2 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Energy Star | Yes |
| HSPF (Heating Seasonal Performance Factor) | 12.2 |
| Manufacturer Limited Warranty (years) | 12 Year Parts Warranty |
| Maximum Indoor Units | 4 |
| Minimum Outdoor Temperature for Heating | -13 |
| Outdoor Model Number | 4MXL36TVJU |
| Mounting Type | Cassette |
| Number of Zones (Rooms) | 4 |
