Elevate your expectations and get more out of your home’s indoor comfort system performance
As you think about the functionality of your home's indoor comfort system, the Daikin brand is ready to help you achieve control, energy efficiency and long-term peace of mind. Take that attention to quality one step farther by choosing a Daikin brand energyefficient ductless split system. We have designed and engineered all of our products to provide years of consistent indoor comfort – delivering you and your family premium Comfort for Life.
A better understanding of how people inhabit their living spaces has led to products designed to create indoor environments that help use energy resources more effectively. The Daikin brand Aurora Series is designed to blend in discreetly with any home design and are ideal for single rooms.
Smart inverter technology
Integrated with an inverter variable speed compressor, Daikin Aurora Series ductless systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption (compared to traditional fixed-speed ducted systems). This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort.
Experience comfort
Designed for Comfort for Life, the Daikin MXS Series units include features to ensure a comfortable experience every moment. From the wide angle louver design to the auto-swing and comfortable mode controller settings, effective heating and cooling is ensured throughout the space.
Quiet operation
Utilizing inverter technology to maintain comfort settings, Daikin systems most often operate at low speeds with indoor sound levels as low as 19 decibels (dB) and outdoor sound levels as low as 46 dB. Activate the indoor unit quiet operation and sound levels drop by 2-3 dB for gentler heating and cooling and quiet operation.
Additional features
-
Undisturbed Comfort
-
Advanced Filtration
-

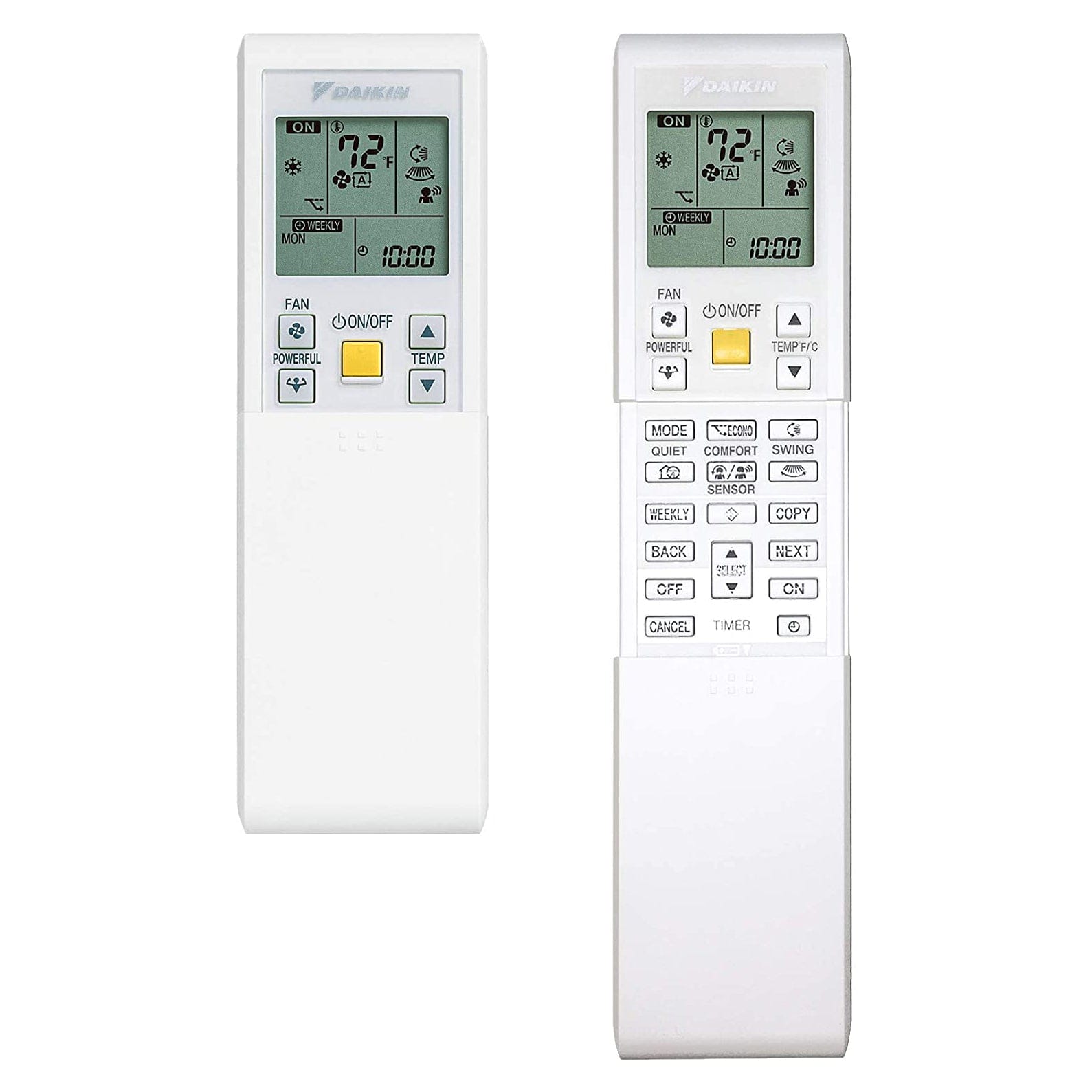

Wireless Control

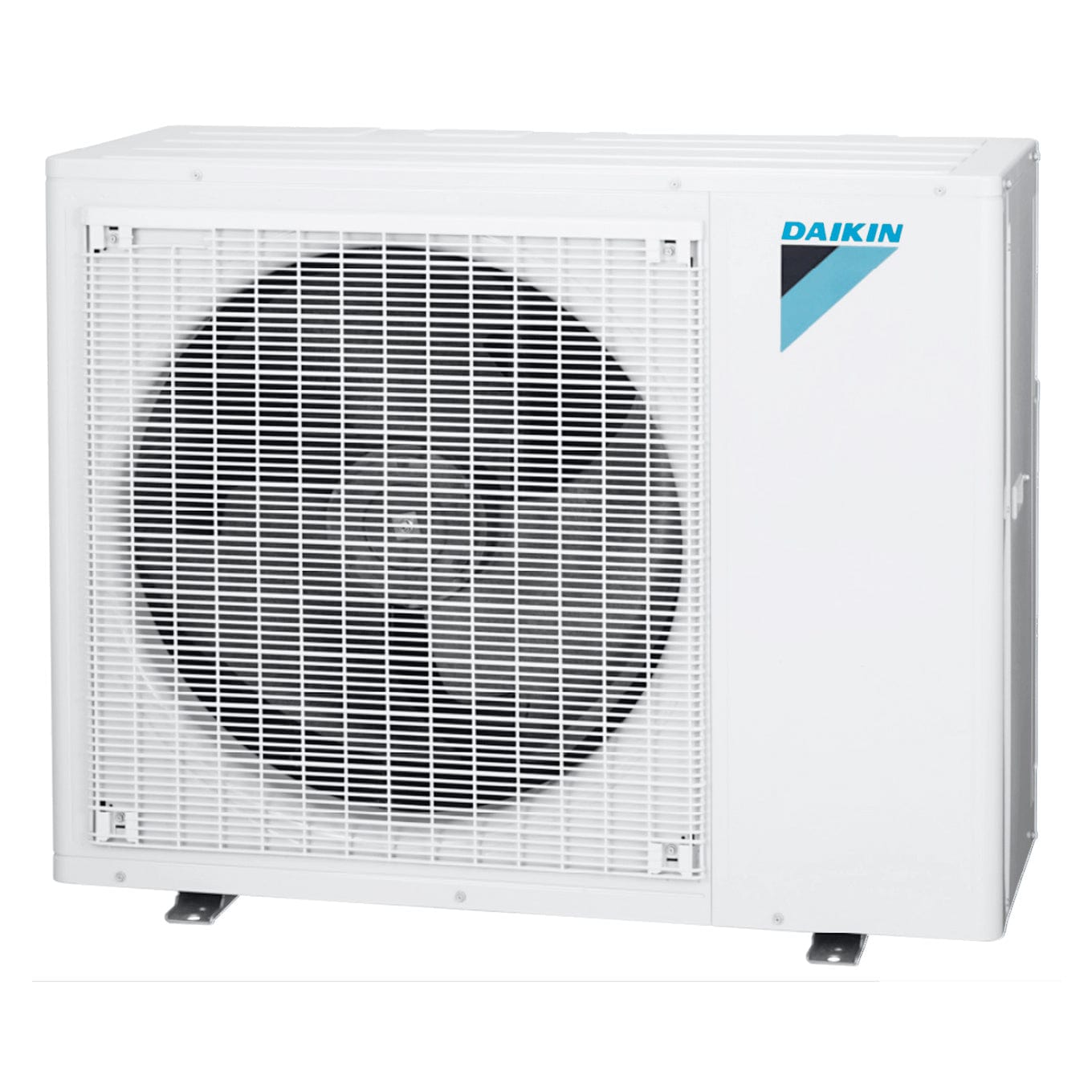

4MXL36TVJU | Outdoor Unit
The Daikin Multi-Zone System is a flexible solution for individual zone comfort. Connecting up to 4 indoor units to a single outdoor unit reduces installation space and costs while maximizing comfort and energy savings. With a choice of five indoor unit types in a wide range of capacities, Daikin Multi-Zone Systems allow mixed and matched combinations.
Features
-
Multi-zone comfort: One outdoor unit connects up to four separate fan coils individually controlled
-
Energy Efficient – Up to 21.7 SEER, up to 11.2 HSPF, up to 12.5 EER
-
Variable Speed Inverter Compressor Technology
-
Cooling Range 14° – 115° F
-
Heating Range 5° – 60° F
-
Quick and easy installation
-
Precision temperature control for individual rooms
-
Space-saving design
-
Quiet operation
-
Fully optimized for R-410A refrigerant
-
World renowned Daikin Inverter

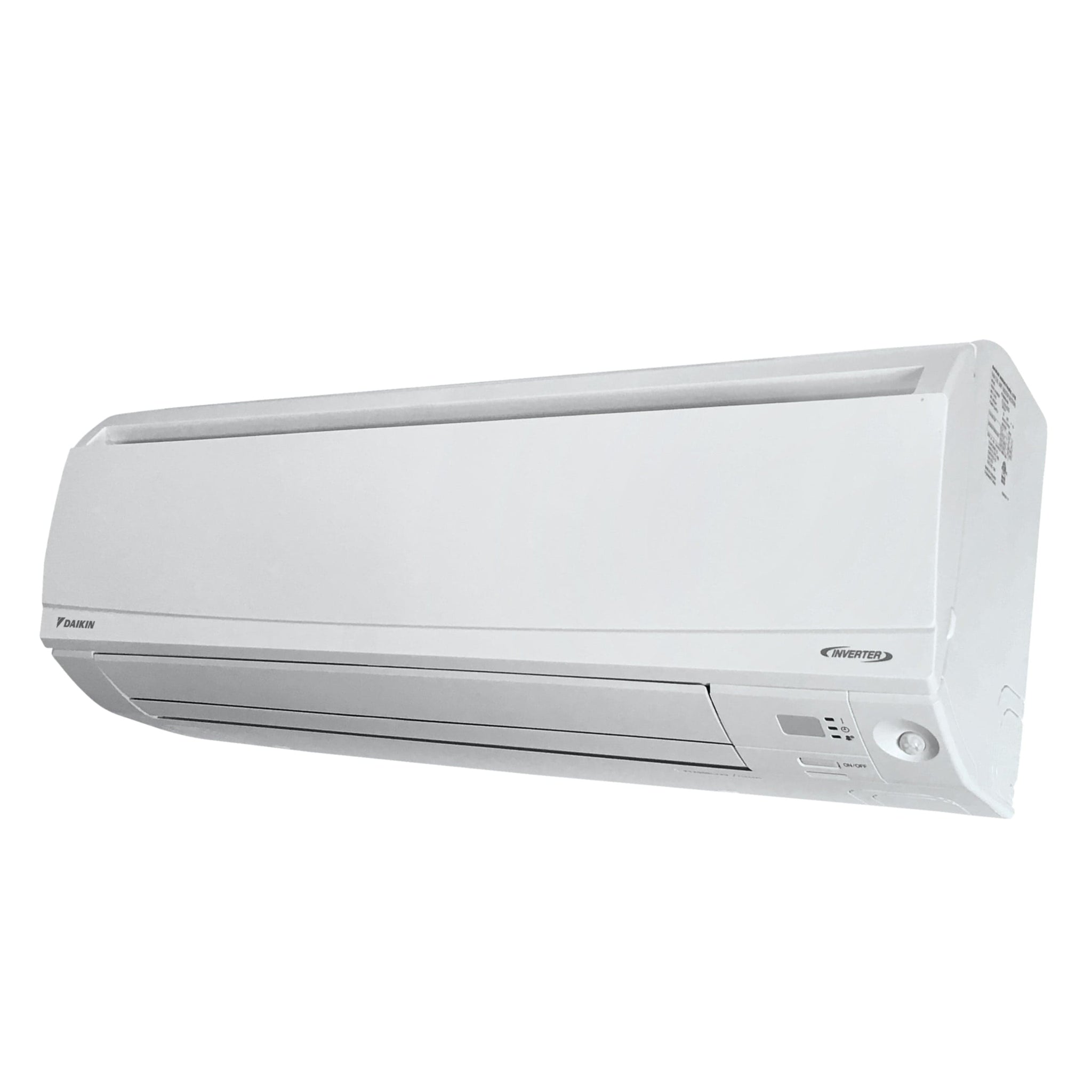

FTXS09LVJU (x3) + FTXS12LVJU | Indoor Unit
LV Series is a feature-packed, intelligent wall mounted system that includes intelligent eye for energy savings and horizontal auto swing outlet fins for 3-D airflow comfort.
Features FTXS09LVJU (x3)
-
0.75-Ton Wall Mounted Indoor Unit
-
Cooling Airflow Rate (cfm) H / M / L / SL: 381 - 279 - 194 - 145
-
Heating Airflow Rate (cfm) H / M / L / SL: 420 - 321- 233 - 219
-
Nominal Capacity 9,000 (Btu/hr)
-
Cooling Sound (dBA) H / M / L / SL: 41 / 33 / 25 / 22
-
Heating Sound (dBA) H / M / L / SL: 42 / 35 / 28 / 25
-
Dimensions (H × W × D) (in): 11-5/8 × 31-1/2 × 8-7/16
-
Piping Liquid (in): 1/4
-
Piping Gas (in): 3/8
Features FTXS12LVJU
- 1-Ton Wall Mounted Indoor Unit
- Cooling Airflow Rate (cfm) H / M / L / SL: 403 - 307 - 205 - 155
- Heating Airflow Rate (cfm) H / M / L / SL: 438 - 335 - 240 - 212
- Nominal Capacity 12,000 (Btu/hr)
- Cooling Sound (dBA) H / M / L / SL: 45 / 37 / 29 / 23
- Heating Sound (dBA) H / M / L / SL: 45 / 39 / 29 / 26
- Dimensions (H × W × D) (in): 11-5/8 × 31-1/2 × 8-7/16
- Piping Liquid (in): 1/4
- Piping Gas (in): 5/8
Applications
-
Primary living areas (master bedrooms and living rooms)
-
Hot or cold rooms
-
Rooms with poor air flow
-
Renovations and remodeling
-
Basements, attics and garages
-
New construction
WHAT’S INCLUDED
Your Daikin Ductless Mini-Split Inverter Air Conditioner Heat Pump System Comes With:
-
FTXS09LVJU | Indoor Unit
-
FTXS09LVJU | Indoor Unit
-
FTXS09LVJU | Indoor Unit
-
FTXS12LVJU | Indoor Unit
-
4MXL36TVJU | Outdoor Unit
MANUFACTURER WARRANTY
- 12 year parts limited warranty
Downloads
- DAIKIN AURORA SERIES - INSTALLATION MANUAL
- DAIKIN AURORA SERIES - SERVICE MANUAL
- DAIKIN LV FTXS SERIES - TECHNICAL SPECIFICATION
- DAIKIN SERIES - MANUFACTURER WARRANTY
- DAIKIN LV FTXS 15-18-24 SERIES - OPERATION MANUAL
- DAIKIN LV FTXS 15-18-24 SERIES - INSTALLATION MANUAL
- DAIKIN LV FTXS SERIES - SERVICE MANUAL
- DAIKIN MULTIZONE SYSTEMS - BROCHURE
- DAIKIN MXL SERIES - TECHNICAL SPECIFICATION
Key Specifications
- Daikin
- 400 + 400 + 400 + 550 SqFt
- 208-230 V; 1 Phase; 60 Hz
- 12 Year Parts Warranty
- 4MXL36TVJU + FTXS09LVJU + FTXS09LVJU + FTXS09LVJU + FTXS12LVJU
- 4
- 18.9
- 4 Zones
- 34,400 BTU
- 36,600 BTU
- Air Conditioners
- Ductless Multizone Systems
- 208/230 Volt
- FTXS09LVJU
- FTXS09LVJU
- FTXS09LVJU
- FTXS12LVJU
Bundle includes 5 items
36,000 BTU Daikin MXL Series Multi-Zone Systems Outdoor Heat Pump Unit Up to 21.7 SEER 4MXL36TVJU
Model Number: 4MXL36TVJU SKU: HCDNA2332
9000 Btu Daikin® LV-Series FTXS09LVJU Wall Mount Fan Coil Unit 230V
Model Number: FTXS09LVJU SKU: DTXS09LV0551
9000 Btu Daikin® LV-Series FTXS09LVJU Wall Mount Fan Coil Unit 230V
Model Number: FTXS09LVJU SKU: DTXS09LV0551
9000 Btu Daikin® LV-Series FTXS09LVJU Wall Mount Fan Coil Unit 230V
Model Number: FTXS09LVJU SKU: DTXS09LV0551
12000 Btu Daikin LV-Series Wall Mount Fan Coil Unit 230V FTXS12LVJU
Model Number: FTXS12LVJU SKU: DTXS12LV0552System Specifications
| Coverage (Sq/Ft), Each Indoor Model | 400 + 400 + 400 + 550 SqFt |
|---|---|
| Certifications | AHRI Performance Certified 210/240; ETL |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Manufacturer Limited Warranty (years) | 12 Year Parts Warranty |
| Maximum Indoor Units | 4 |
| Model Number | 4MXL36TVJU + FTXS09LVJU + FTXS09LVJU + FTXS09LVJU + FTXS12LVJU |
| Number of Zones (Rooms) | 4 |
| Must ship freight | Yes |
| Refrigerant | R-410A |
| Efficiency (SEER) | 18.9 |
| Shipping Time | 24 to 72 hours |
| Sub System Type (Selector) | 4 Zones |
| System Cooling Capacity (BTU) | 34,400 BTU |
| System Heating Capacity | 36,600 BTU |
| System Type (Selector) | Air Conditioners |
| System Type (Selector) | Ductless Multizone Systems |
| Technology | Inverter |
| Voltage | 208/230 Volt |
| Indoor 1: Model Number | FTXS09LVJU |
