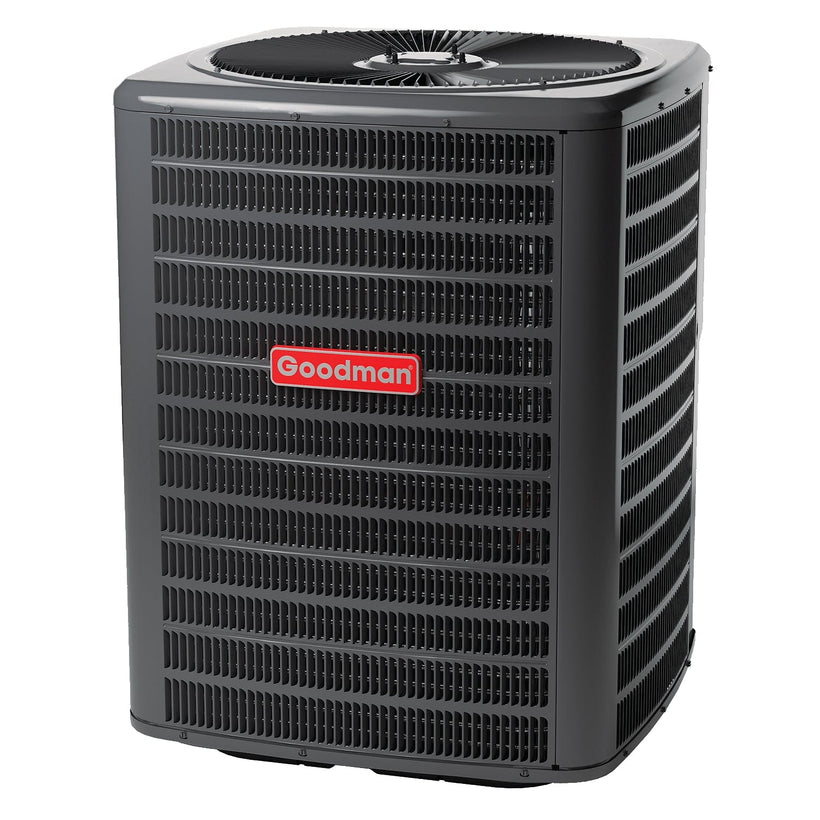

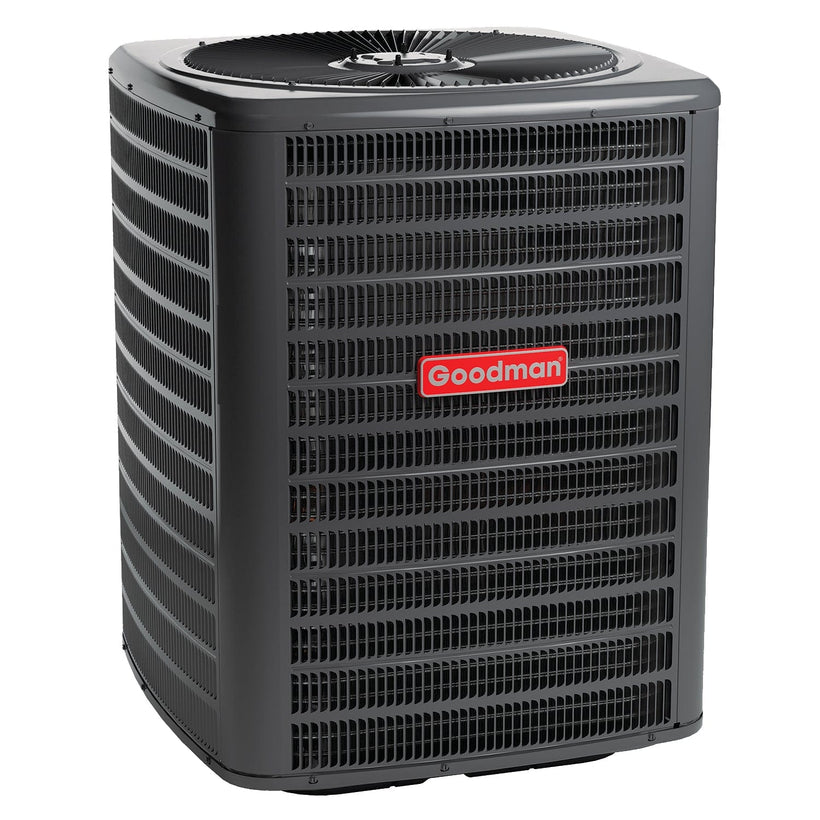

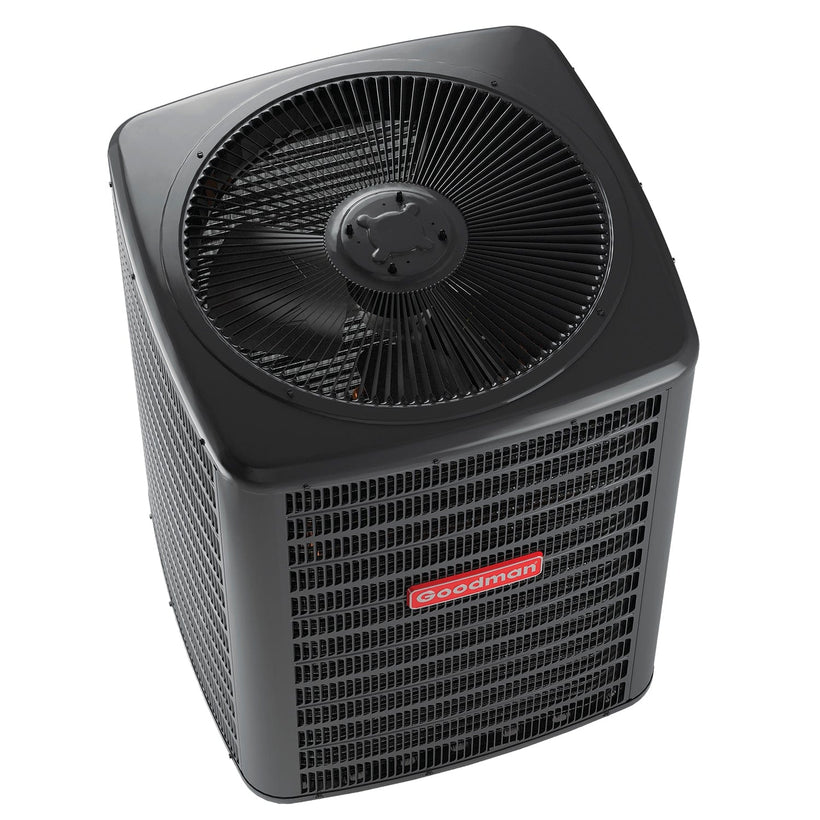

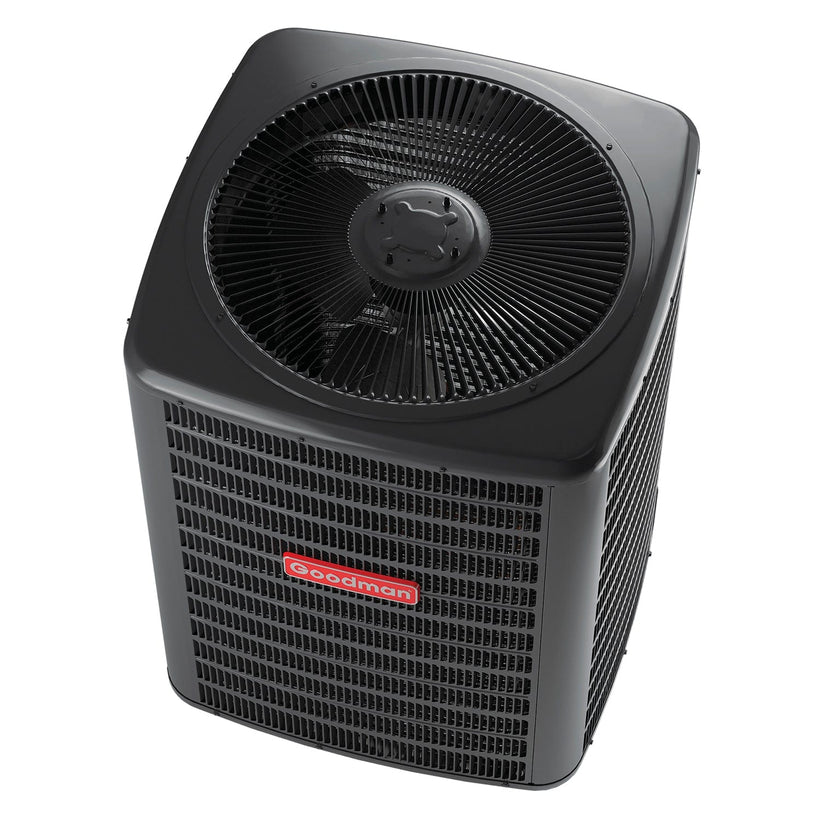

4 Ton GSXH504810 up to 15.2 SEER2 Outdoor Condensing Unit R-410A Refrigerant DISCONTINUED

GSXH504810 | Outdoor Unit

The Goodman GSXH504810 Energy Efficient Base Value, 15.2 SEER2 Performance is loaded with features designed to provide outstanding performance for years to come for lower energy bills compared to lower SEER units. Additionally sound-dampening features help ensure that your cooling system does not interfere with a good night’s sleep. The near-silent operation is owed to the condenser fan system, which includes a three-bladed fan encased in a heavy-gauge galvanized louvered cabinet with noise suppressing features.

• Energy-Efficient Compressor
• Copper tube/ enhanced aluminum fin coil-5mm diameter on 1.5-4.0T
• Factory-installed filter drier
• Fully charged for 15’ of tubing length
• Service valves with sweat connections and easy-to-access gauge ports

SPECIFICATIONS

• Model: GSXH5

• SEER2: 15.2

• BTU Rating: 48,000 Btu/hr

• HP Rating: 1/4 hp

• Nominal Capacity (TON): 4

• Compressor Type:Scroll

• Electrilcal (Voltage/Frequency/Phase) :208-230 V/60 Hz/1 ph

• Number of Stages: 1

• Refrigerant Type: R-410A

• Liquid Line Size: 3/8 in

• Suction Line Size: 7/8 in

• Sound Level (dBA):73

• Connection Type: C

• Fuse Rating (A): 45

• Motor Type: PSC

• Temperature Rating (°F):65 to 115

• Material: Steel

• Finish: Galvanized/Powder-Coated

• Color: Gray

• Dimensions (HxWxD) (in):36-1/2 x 35-1/2 x 35-1/2

• Additional Information: TXV Expansion Device
