4MXS36RMVJU | Outdoor Unit
Daikin’s Multi-Split Systems are ideal for multi-room applications desiring individual room comfort in a space-saving design. With the ability to connect two, three or four indoor units to a single outdoor unit, over 1,000 combinations are possible with the choice of wall mount units, slim duct units, ceiling cassette units or a combination. Systems offer energy efficiency levels up to 20.2 SEER and up to 12.5 HSPF for enhanced home comfort and energy savings. Suitable for both new build and renovation projects, Daikin Multi-Split systems are the smart, reliable solution for your home.
Smart inverter technology — Integrated with an inverter variable-speed compressor, Daikin systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption by up to 30% or more (compared to traditional fixed-speed ducted systems). This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort.
- Energy Efficient – Up to 20.2 SEER, 12.5 HSPF, up to 12.7 EER – Variable-Speed Inverter Compressor
- Cooling Range 14° - 115°F
- Heating Range 5° - 60°F
MXS Features
- Anti-Corrosion Treatment on Heat Exchanger
- Quick Warming Function – Prevents the compressor from pumping liquid refrigerant in low-ambient conditions.
- Automatic Defrosting – Sensor performs automatic defrosting of the outdoor heat exchanger if necessary, ensuring optimum heating performance.
- Outdoor Unit Quiet Operation – Outdoor unit sound levels can be reduced by 3dB for times when quieter operation is needed.
Ideal solution for:
- Entire homes or floors of homes
- Multiple zones
- New construction
- Primary living areas (master bedrooms and living rooms)
- Basements
FTXR09TVJUW - | Indoor Unit
The wall mounted FTXR EmuraTM series indoor units whisper quiet operation, and its sleek and curved silhouette will blend into any décor.
This Daikin indoor with its unique energy saving features provides excellent savings in the cooling or heating operation at any home.
Standard Features
- Stylish finish in silver or pure matte white
- High efficiencies with up to 18.9 SEER and up to 12.5 HSPF
- Whisper quiet sound levels down to 21 dB(A)
- Wireless controller as standard
- Can be controlled remotely with the Daikin Comfort Control App*
- Titanium apatite photo-catalytic air purification filter
- Intelligent eye
- Power airflow dual flaps and 3-D airflow
- Weekly timer
- Program Dry Function
- Econo Mode
- Comfort Mode
- Powerful Operation Mode
- Backlit wireless remote controller
- 12-Year Parts Limited Warranty

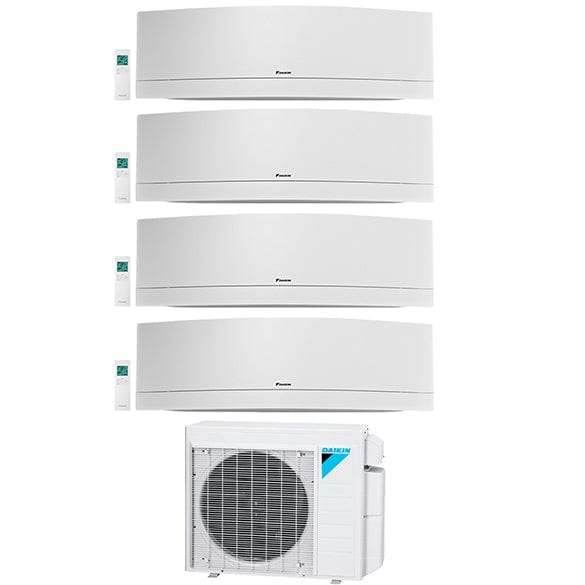

WHAT’S INCLUDED
Your Daikin Ductless Mini-Split Inverter Air Conditioner Heat Pump System Comes With:
- FTXR09TVJUW | Indoor Unit
- FTXR09TVJUW | Indoor Unit
- FTXR09TVJUW | Indoor Unit
- FTXR09TVJUW | Indoor Unit
- 4MXS36RMVJU | Outdoor Unit
MANUFACTURER WARRANTY
- 12 year parts limited warranty
Downloads
- DAIKIN FTXR-TVJUW SERIES - TECHNICAL SPECIFICATIONS
- DAIKIN FTXR-TVJUW SERIES - BROCHURE
- DAIKIN MXS SERIES - BROCHURE
- DAIKIN MXS SERIES - INSTALLATION MANUAL
- DAIKIN MXS SERIES - SERVICE MANUAL
- DAIKIN MXS SERIES - TECHNICAL SPECIFICATION
- DAIKIN MXS-NMVJU SERIES - TECHNICAL SPECIFICATIONS.pdf
- DAIKIN SERIES - MANUFACTURER WARRANTY
- DAIKIN AURORA SERIES - INSTALLATION MANUAL
- DAIKIN AURORA SERIES - SERVICE MANUAL
- DAIKIN FTXR-TVJUW SERIES - SERVICE MANUAL
Key Specifications
- Daikin
- 400 + 400 + 400 + 400
- 36,000
- 208-230 V; 1 Phase; 60 Hz
- 12 Year Parts Warranty
- 4MXS36RMVJU
- 4
- 18
- 36,000
- 36,000
- 245 lbs
- Ductless Multizone Systems
- 208/230 Volt
- FTXR09TVJUW
- FTXR09TVJUW
- FTXR09TVJUW
- FTXR09TVJUW
Bundle includes 5 items
38,000 BTU Daikin MXS Series Multi-Zone Systems Outdoor Heat Pump Unit Up to 17.7 SEER 4MXS36RMVJUA
Model Number: 4MXS36RMVJUA SKU: HCDNA2284
9,000 BTU FTXR09WVJUW9 Daikin Emura White Mini-Split Wall Mount Fan Coil Unit
Model Number: FTXR09WVJUW9 SKU: DTXR09W90697
9,000 BTU FTXR09WVJUW9 Daikin Emura White Mini-Split Wall Mount Fan Coil Unit
Model Number: FTXR09WVJUW9 SKU: DTXR09W90697
9,000 BTU FTXR09WVJUW9 Daikin Emura White Mini-Split Wall Mount Fan Coil Unit
Model Number: FTXR09WVJUW9 SKU: DTXR09W90697
9,000 BTU FTXR09WVJUW9 Daikin Emura White Mini-Split Wall Mount Fan Coil Unit
Model Number: FTXR09WVJUW9 SKU: DTXR09W90697System Specifications
| Coverage (Sq/Ft), Each Indoor Model | 400 + 400 + 400 + 400 |
|---|---|
| Certifications | Ahri; ETL |
| Cooling Capacity (BTU) | 36,000 |
| EER (Energy Efficiency Ratio) | 12.7 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| HSPF (Heating Seasonal Performance Factor) | 12.5 |
| Manufacturer Limited Warranty (years) | 12 Year Parts Warranty |
| Maximum Indoor Units | 4 |
| Outdoor Model Number | 4MXS36RMVJU |
| Mounting Type | Wall Mounted |
| Number of Zones (Rooms) | 4 |
| Must ship freight | Yes |
