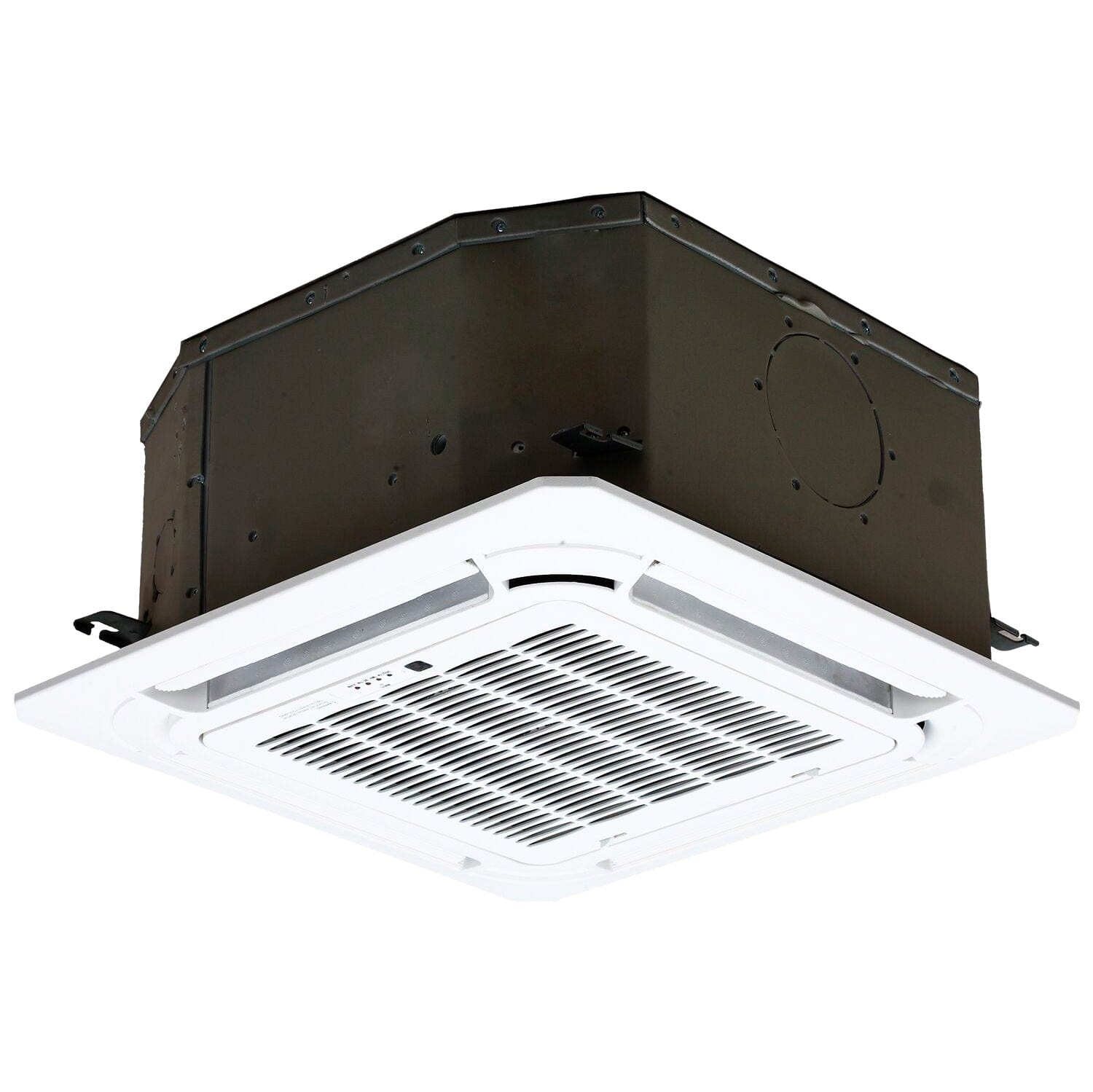

KTIR 12-H2 (x2) + KTIR 18-H2 (x2) | Indoor Unit
Each recessed ceiling cassette unit disperses air in all directions for balanced comfort. Additionally, each unit can share capacity with an adjacent room via flexible duct. The unit’s off-white decorative panel blends easily with room and ceiling design. A built-in condensate pump provides flexible and easy installation. All that’s needed to accommodate this slim unit is a 24” x 24” space in a drop ceiling.
- Removable panel for easy cleaning
- Features fresh air intake design
- Can be connected to an alarm and long distance on/off control

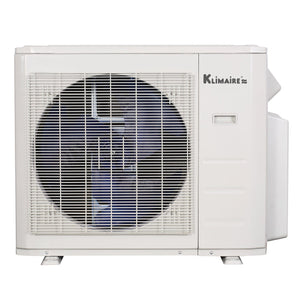

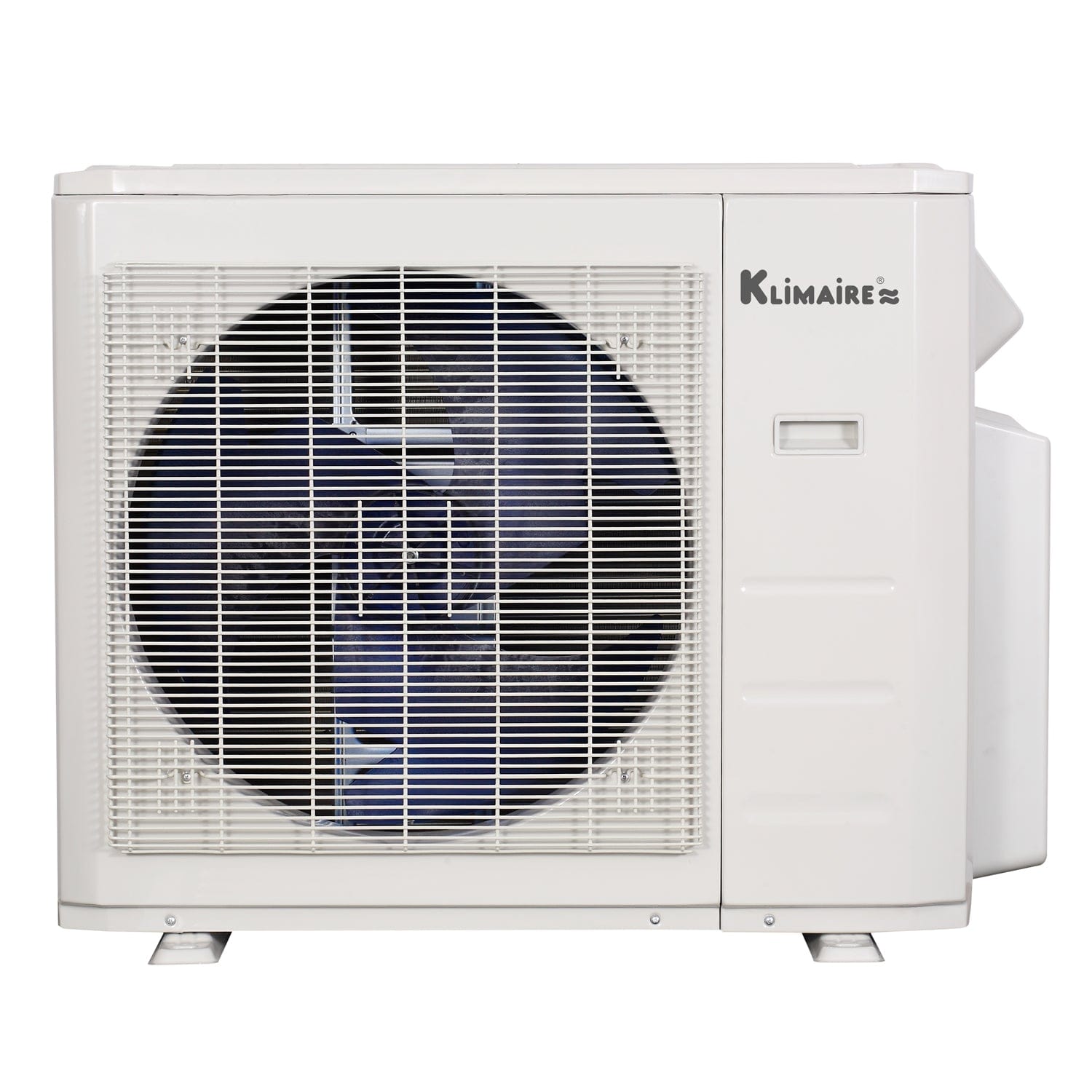

KMIR436-H217-2 | Outdoor Unit
Klimaire's new KMIR436-H217-2 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.
- Specially-designed for quiet operation
- Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off
- Small footprint fits most yards or easily mounts to a wall with bracket (sold separately)
Applications
- Room additions
- Renovations
- Family rooms
- Sunrooms
- Wine cellars
- Garages/workshops

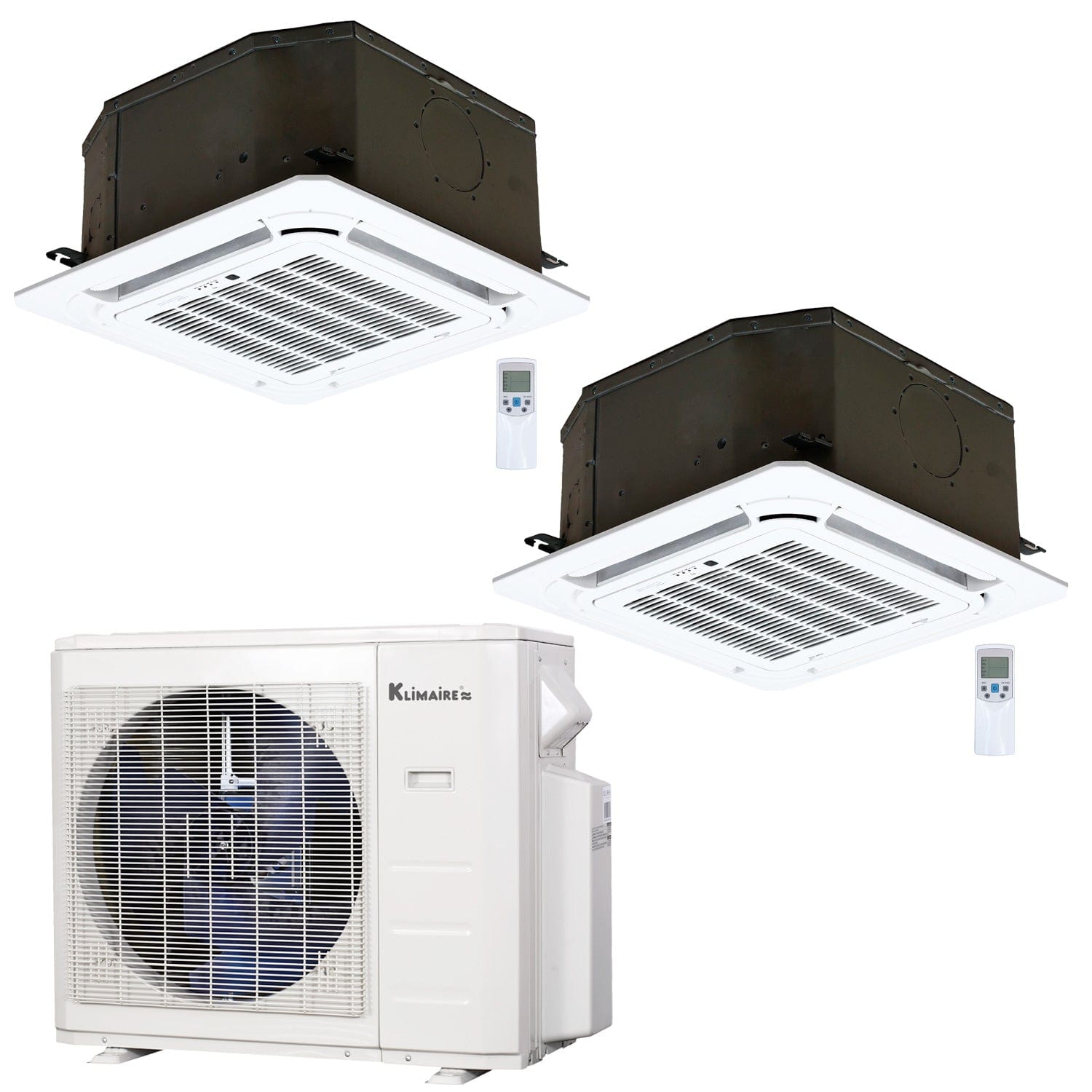

WHAT’S INCLUDED
Your Klimaire Ductless Three-Zone System from Heat & Cool Comes With:
- KTIR12-H2 | Indoor Unit (x2)
- KTIR18-H2 | Indoor Unit (x2)
- KTIR12-DFP | Front Panel (x4)
- KMIR436-H217-2 | Outdoor Unit
- Outdoor unit is pre-charged with R-410A refrigerant
- Indoor unit mounting plates

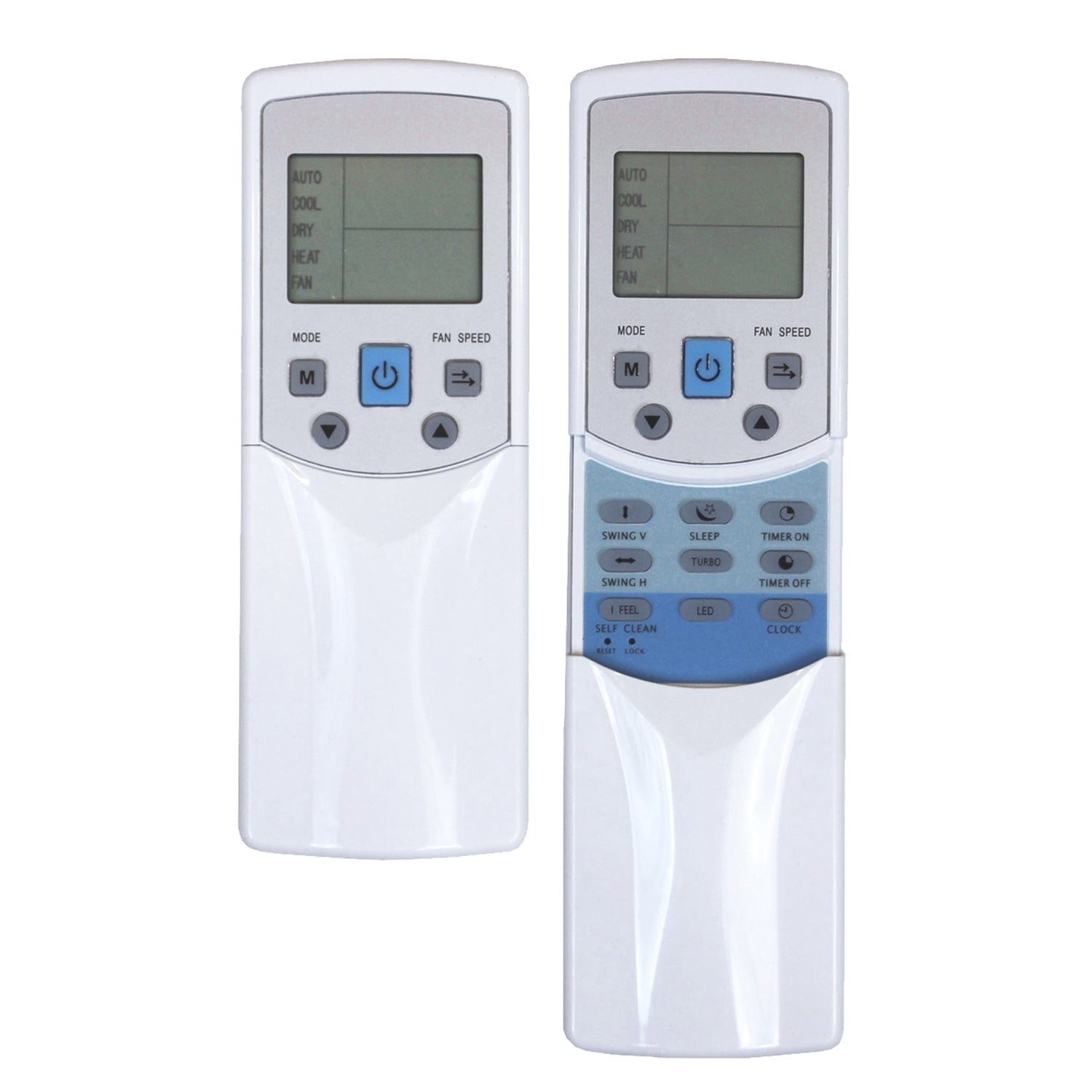

- Remote controls with wall mount brackets
- Installation manual
- User’s manual
- Manufacturer warranty
Manufacturer Warranty
- 5 Year Parts
- 7 Years Compressor
Key Specifications
- Klimaire
- 1000 + 1000
- 208-230 V; 1 Phase; 60 Hz
- 5 Year Parts; 7 Year Compressor
- 2
- 21.8
- Ductless MiniSplit Multizones
- KTIR18-H2
- KTIR18-H2
Bundle includes 5 items
4-Zone Klimaire KMIR436-H217-2 Outdoor Heat Pump Unit up to 23.1 SEER
Model Number: KMIR436-H217-2 SKU: KMR40081
18,000 BTU Cassette Fan Coil Unit KTIR18-H2, 220 V
Model Number: KTIR18-H2 SKU: HCKPI1845
18,000 BTU Cassette Fan Coil Unit KTIR18-H2, 220 V
Model Number: KTIR18-H2 SKU: HCKPI1845
Decorative Front Panel For 12K & 18K BTU KTIR Cassette Units
Model Number: KTIR12-DFP SKU: HCKPI1844 Open in a new tab
Decorative Front Panel For 12K & 18K BTU KTIR Cassette Units
Model Number: KTIR12-DFP SKU: HCKPI1844 Open in a new tabSystem Specifications
| Coverage (Sq/Ft), Each Indoor Model | 1000 + 1000 |
|---|---|
| Certifications | AHRI Performance Certified 210/240; ETL |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| HSPF (Heating Seasonal Performance Factor) | 11.5 |
| Manufacturer Limited Warranty (years) | 5 Year Parts; 7 Year Compressor |
| Maximum Indoor Units | 2 |
| Mounting Type | Ceiling Cassette |
| Number of Zones (Rooms) | 2 |
| Must ship freight | Yes |
| Number of Zones | 2 Zones |
| Refrigerant | R-410A |
| Efficiency (SEER) | 21.8 |
| Shipping Time | 24 to 72 hours |
| System Type (Selector) | Ductless MiniSplit Multizones |
| Technology | Inverter |
| Voltage | 208/230 Volt |
| Indoor 1: Model Number | KTIR18-H2 |
| Indoor 2: Model Number | KTIR18-H2 |
Specifications for model: KTIR18-H2
| Mounting Style | Ceiling Cassette |
|---|---|
| Airflow Rate (Hi/Mi/Lo) cfm | 560/483/415 |
| Indoor Unit Sound Level dB(A) (High/Medium/Low) | 44/39/36 |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 1/2 |
| Drain Line Size (In) | |
| Application Area (Sqft) | 1,000 |
| Indoor Air Quality Type | |
| Net/Gross weight (Lb) | 35.49/41.23 |
| Width / Depth / Height (In) | 22.44x22.44x10.24 |
| Packaged Width / Depth / Height (In) | 25.79x25.79x11.42 |
Specifications for model: KMIR436-H217-2
| Compressor Type | Rotary |
|---|---|
| Sound Level | 63.4 |
| Minimum Circuit Ampacity (MCA) | 30 |
| Maximum Overcurrent protection (MOP) | 45 |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 3x3/8 + 1x1/2 |
| Operation Mode | null |
| Net/Gross Weight (Lb) | 156.53/167.55 |
| Width/Depth/Height (In) | 37.24x16.14x31.89 |
| Packaged Width/Depth/Height (In) | 42.91x19.69x34.06 |
| Refrigerant | R410A/105.8 |
Specifications for model: KTIR12-DFP
| Unit Type | Decorative Front Panel for 12K and 18K Btu Cassette Units |
|---|---|
| Net/Gross weight (Lb) | 5.51/9.92 |
| Width / Depth / Height (In) | 25.47x25.47x1.97 |
| Packaged Width / Depth / Height (In) | 28.15x28.15x4.84 |
