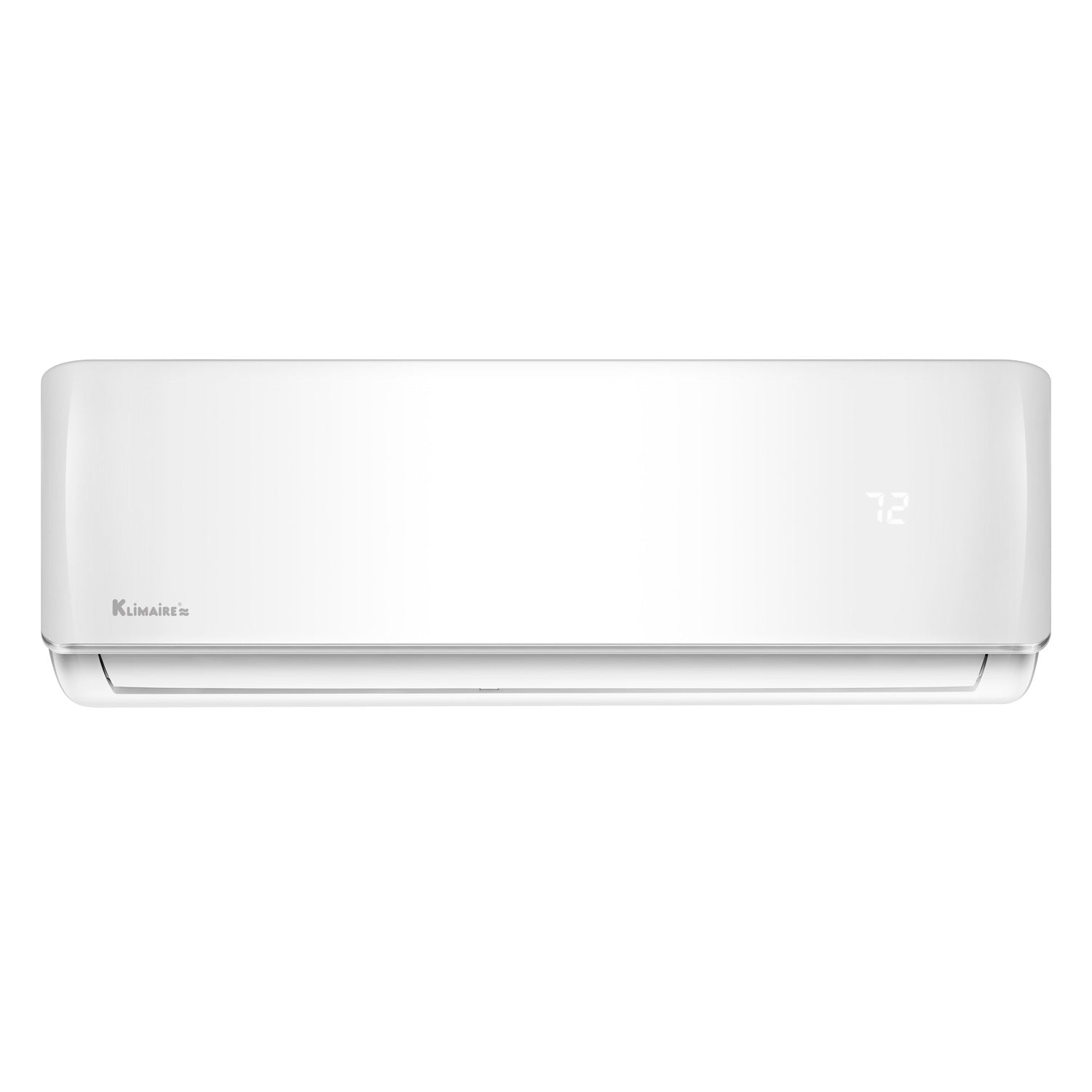

KSIE012-H220-IW-2 | Indoor Unit
Don’t let the simple, clean lines of the elegantly-styled KSIE indoor wall-mounted unit fool you. It is jam-packed with high-tech features. With the Follow “Feeling” function activated, the temperature sensor “moves” from the wall unit to the remote control. The sensor then directs the mini-split to adjust heating and cooling based on the temperature immediately surrounding anyone carrying the remote.
Also enjoy 12 fan speeds, along with heating, cooling, dedicated dehumidification, turbo function and sleep mode. Auto clean function cleans and dries the evaporator to prevent mildew growth and maintain healthy indoor air quality. The new Home Away freeze protection feature maintains the room at 46º F when you are away for an extended period during the heating season.

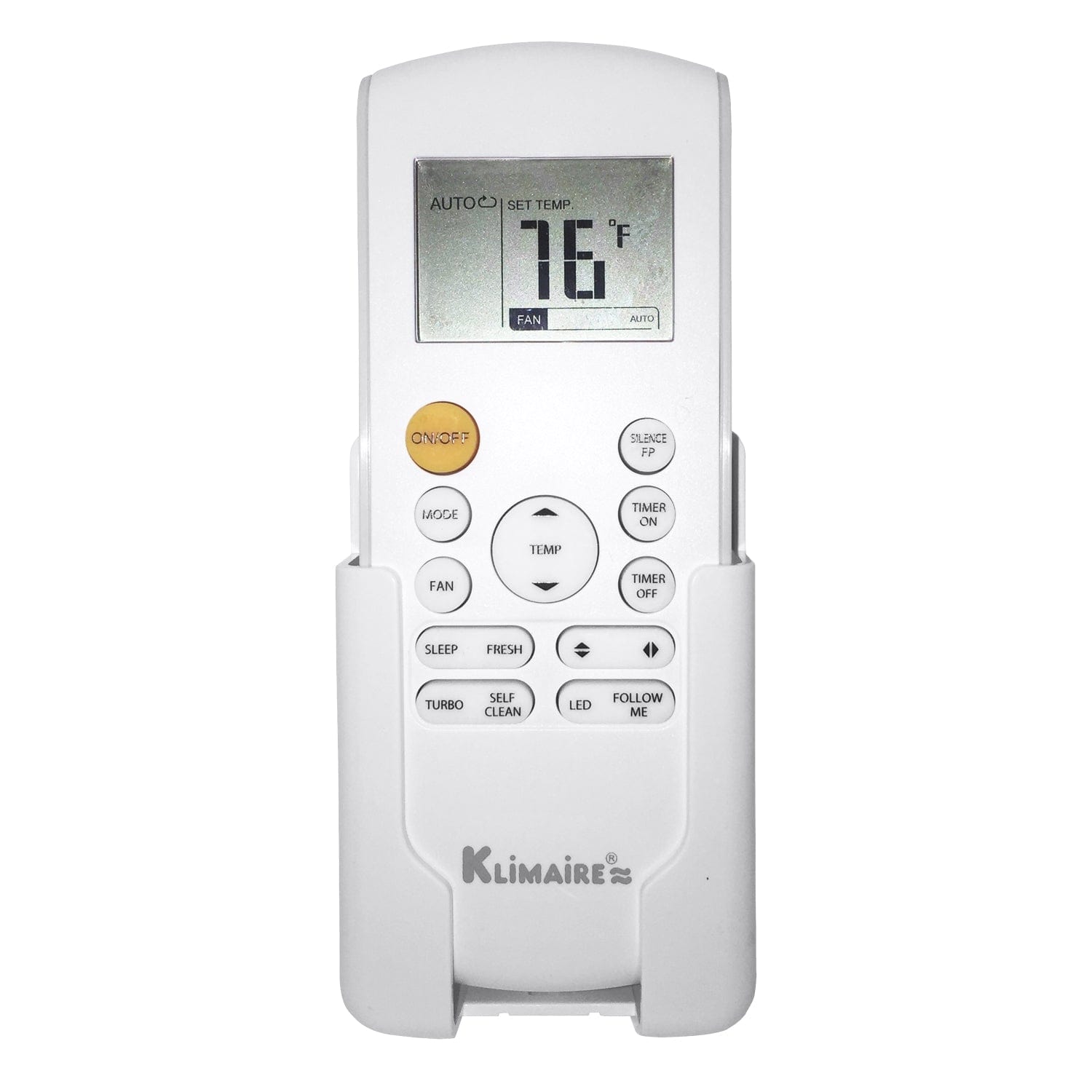

The remote control allows for manual operation of the unit when necessary. With the new “Quick-Hook Design,” the fan coil hangs on the wall easier and faster. An additional gap for pipe installation as well as right to left adjustments add to installation simplicity.
- 3D air flow technology distributes the air evenly throughout the room.
- 24 hour timer and memory function
- Turbo mode for fast heating & cooling

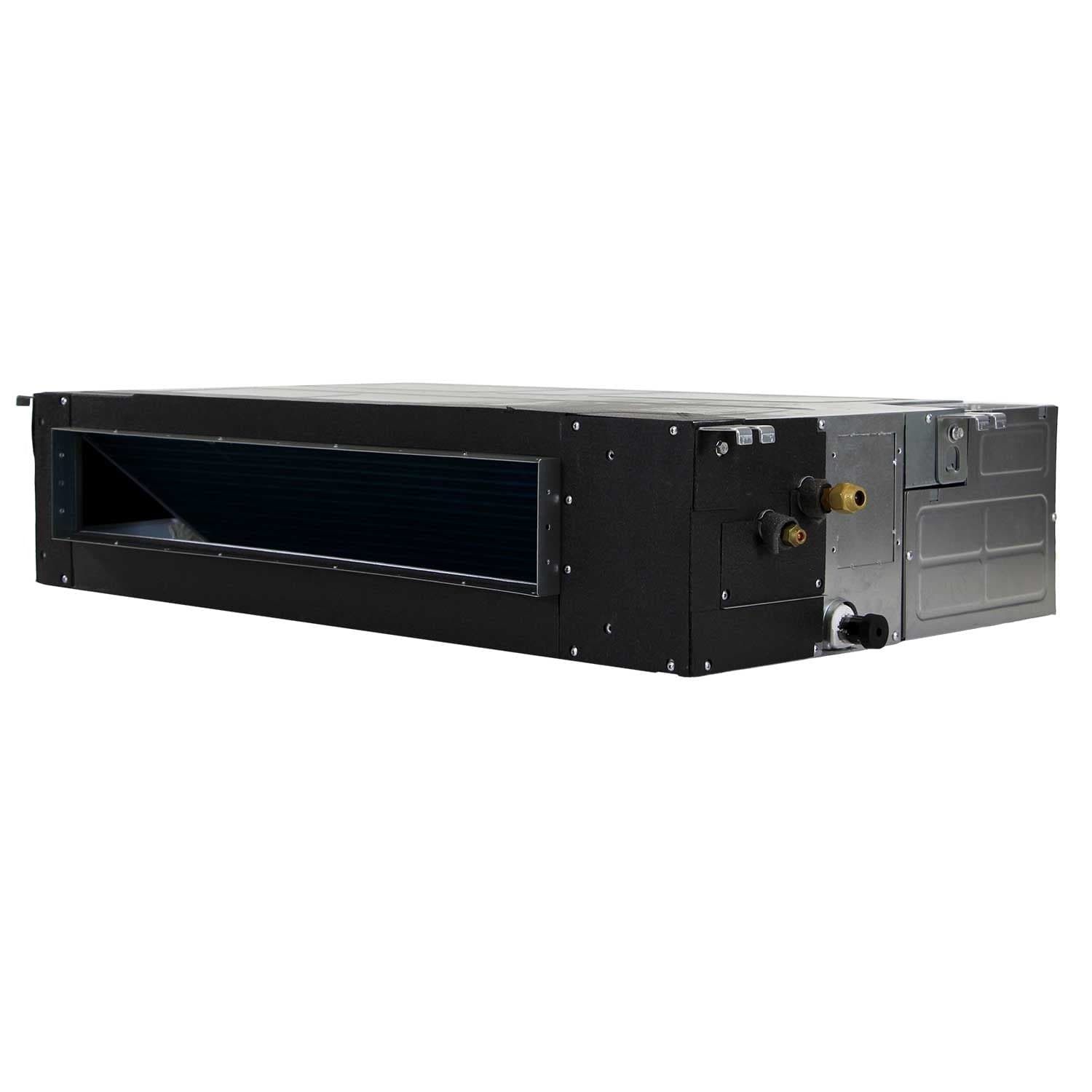

KDIP18-H2 | Indoor Unit
Simple duct connections to this recessed ceiling unit allows you to combine 2 rooms into one zone. Each 18,000 BTU unit offers capacity for up to 1000 square feet. Add a duct and spread the cooling capacity across a bathroom and bedroom combination in a residential application or foyer and office shared use in a commercial layout. At only 9 inches high, the unit fits easily in a drop ceiling or attic space.
- Choice of back or bottom air return
- Slim, hideaway profile
- Anti-cold blast function prevents cold air flow at start of heat cycle

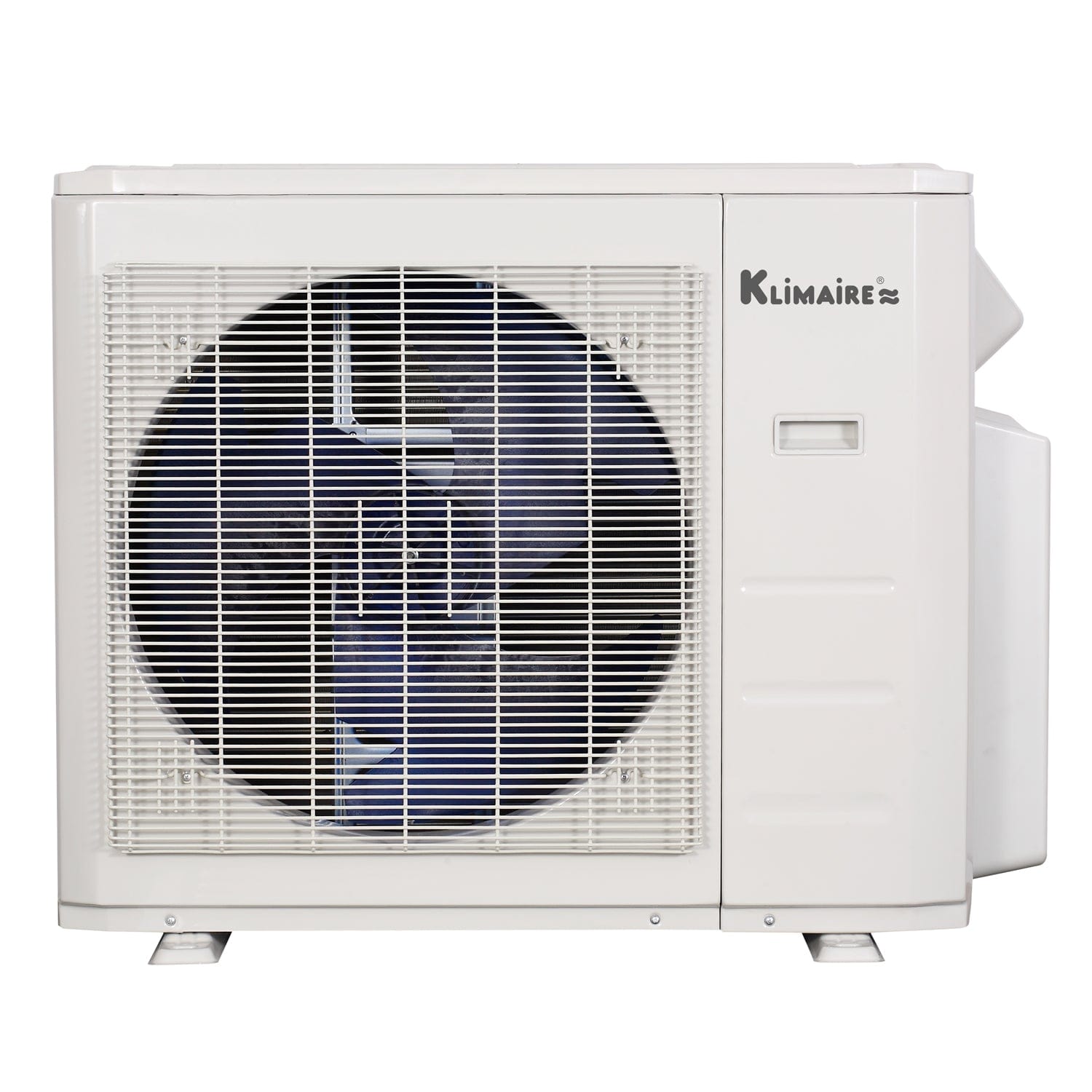

KMIR327-H217-2 | Outdoor Unit
Klimaire's new KMIR327-H217-2 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.
- Specially-designed for quiet operation
- Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off
- Small footprint fits most yards or easily mounts to a wall with bracket (sold separately)
Improved Performance
- SEER2: 22.25
- EER2: 11.95
- HSPF2: 9.2
Applications
- Room additions
- Renovations
- Family rooms
- Sunrooms
- Wine cellars
- Garages/workshops
WHAT’S INCLUDED
Your Klimaire Ductless Three-Zone System from Heat & Cool Comes With:
- KSIE012-H220-IW-2 | Indoor Unit
- KDIP18-H2 | Indoor Unit
- KMIR327-H217-2 | Outdoor Unit
- Outdoor unit is pre-charged with R-410A refrigerant
- Indoor unit mounting plates
- Remote controls with wall mount brackets
- Installation manual
- User’s manual
- Manufacturer warranty
Manufacturer Warranty
- 5 Year Parts
- 7 Years Compressor
Key Specifications
- Klimaire
- 550 + 1000
- 208-230 V; 1 Phase; 60 Hz
- 5 Year Parts; 7 Year Compressor
- Wall Mounted
- 2
- 21.75
- Ductless MiniSplit Multizones
- KSIE012-H220-IW-2
- KDIP18-H2
Bundle includes 3 items
3-Zone Klimaire KMIR327-H217-2 Outdoor Heat Pump Unit up to 23.5 SEER 220V
Model Number: KMIR327-H217-2 SKU: KMR30080

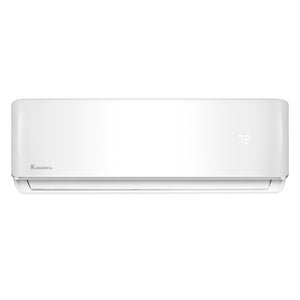

12,000 BTU Klimaire KSIE012-H220-IW-2 Mini-split Wall Mount Fan Coil Unit 220V
Model Number: KSIE012-H220-IW-2 SKU: KEI120031
18000 Btu Ducted Recessed Fan Coils - 208-230V KDIP18-H2
Model Number: KDIP18-H2 SKU: HCKPI1984System Specifications
| Coverage (Sq/Ft), Each Indoor Model | 550 + 1000 |
|---|---|
| Certifications | AHRI Performance Certified 210/240; ETL |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| HSPF (Heating Seasonal Performance Factor) | 10.2 |
| Manufacturer Limited Warranty (years) | 5 Year Parts; 7 Year Compressor |
| Maximum Indoor Units | 2 |
| Mounting Type | Wall Mounted |
| Mounting Type | Ducted Recessed |
| Mounting Type | Wall Mounted |
| Number of Zones (Rooms) | 2 |
| Must ship freight | Yes |
| Number of Zones | 2 Zones |
| Refrigerant | R-410A |
| Efficiency (SEER) | 21.75 |
| Shipping Time | 24 to 72 hours |
| Room 2: Mount Type | Ducted Recessed |
| System Type (Selector) | Ductless MiniSplit Multizones |
| Technology | Inverter |
| Voltage | 208/230 Volt |
| Indoor 1: Model Number | KSIE012-H220-IW-2 |
| Indoor 2: Model Number | KDIP18-H2 |
Specifications for model: KSIE012-H220-IW-2
| Model Number | KSIE012-H220-IW-2 |
|---|---|
| System Type | Ductless Mini Split |
| Unit Type (Selector) | Wall Mounted |
| Mounting Type | Wall Mounted |
| Cooling Capacity (BTU) | 12,000 |
| Heating Capacity (BTU) | 12,000 |
| Efficiency SEER2 | 23.1 |
| SEER2 Filter | 23+ |
| Efficiency (SEER) | 21.5 |
| SEER (Left Filter) | 21+ |
| HSPF2 | 9.3 |
| HSPF (Heating Seasonal Performance Factor) | 9.8 |
| EER2 | 12.5 |
| EER (Energy Efficiency Ratio) | 13 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Manufacturer Limited Warranty (Years) | 1 Year Parts; 5 Year Compressor |
| Compressor Type | Rotary |
| Indoor Unit Noise Level (Hi/Me/Lo) | 39/25 |
| MCA (Minimum Circuit Ampacity) | 15 amps |
| Weight | 22 lbs |
| Depth | 7.44 in |
| Height | 11.69 in |
| Width | 31.57 in |
| Air Flow (Hi/Mi/Lo) | 306/212/147 |
| Shipping Time | 24 to 72 hours |
| Cop Coefficient Of Performance | 3.1 |
| Free Shipping | No |
| Must ship freight | Yes |
| Shipping Cost | 80 |
Specifications for model: KDIP18-H2
| Type | Ducted Recessed |
|---|---|
| Unit Type (Selector) | Ducted Recessed |
| Mounting Type | Ducted Recessed |
| Shipping Cost | 100 |
Specifications for model: KMIR327-H217-2
| Compressor Type | Rotary |
|---|---|
| Sound Level | 63,4 |
| Minimum Circuit Ampacity (MCA) | 25 |
| Maximum Overcurrent protection (MOP) | 35 |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 3/8 |
| Operation Mode | null |
| Net/Gross Weight (Lb) | 149.91/160.94 |
| Width/Depth/Height (In) | 37.24x16.14x31.89 |
| Packaged Width/Depth/Height (In) | 42.91x19.69x34.45 |
| Refrigerant | R410A/98.8 |
