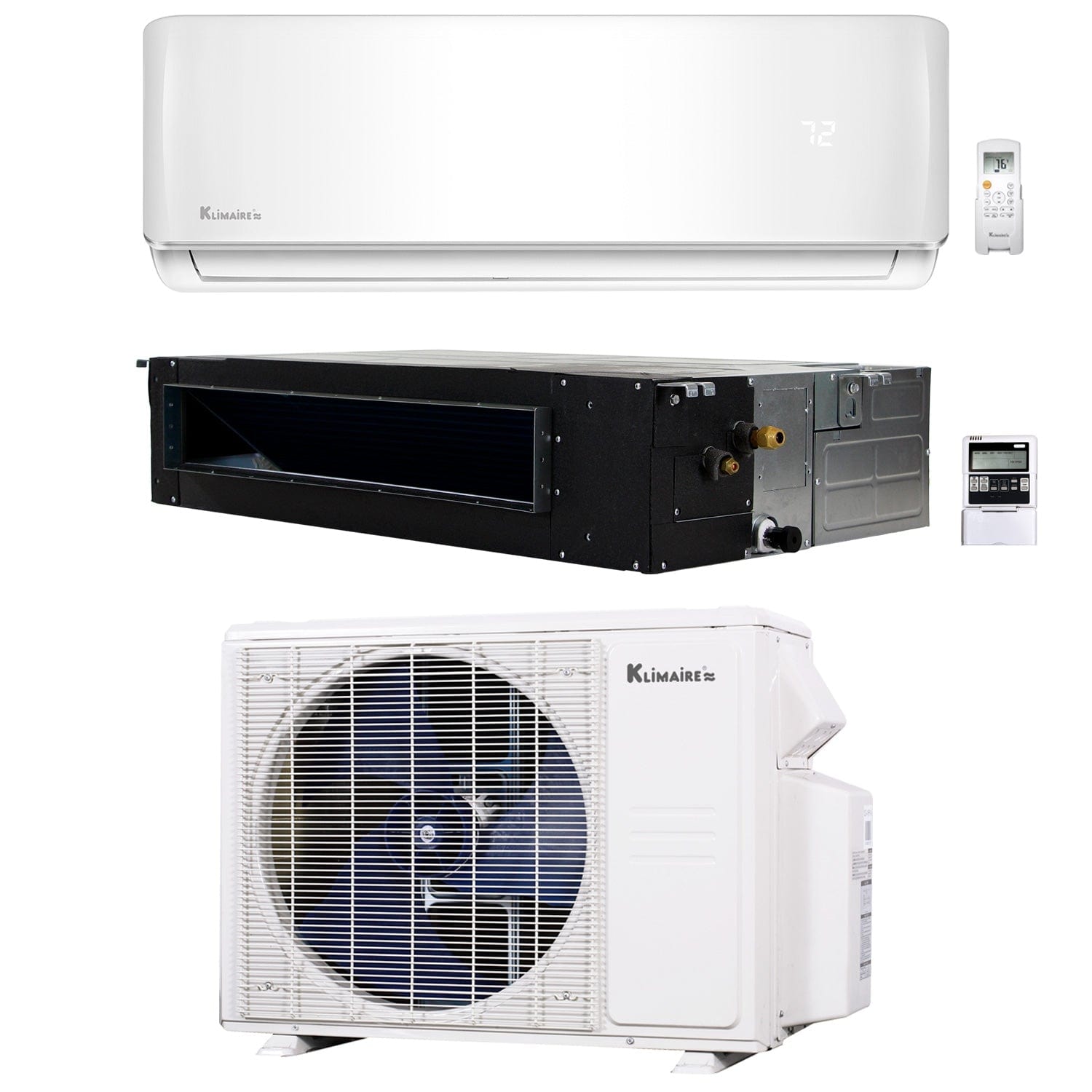

2-Zone Klimaire 20 SEER2 Multi Split Wall Mount Ducted Air Conditioner Heat Pump System 12+12

Model Number: KMIR218-H221-2 + KSIE012-H220-IW-2 + KDIP12-H2 SKU: KMRS2WD0090
Regular price
$2,017.00
Sale price
$2,017.00
Regular price
$2,506.00
Sold out
Unit price
per
In stock

| SHIPS IN: 24 to 72 hours

Out of stock
  • 60-Day Returns
  • PRICE Match Plus
  • 5 Year Parts 7 Years Compressor
  • Free Shipping
  • Tax-Free Sale*Except Florida
  • Accessories

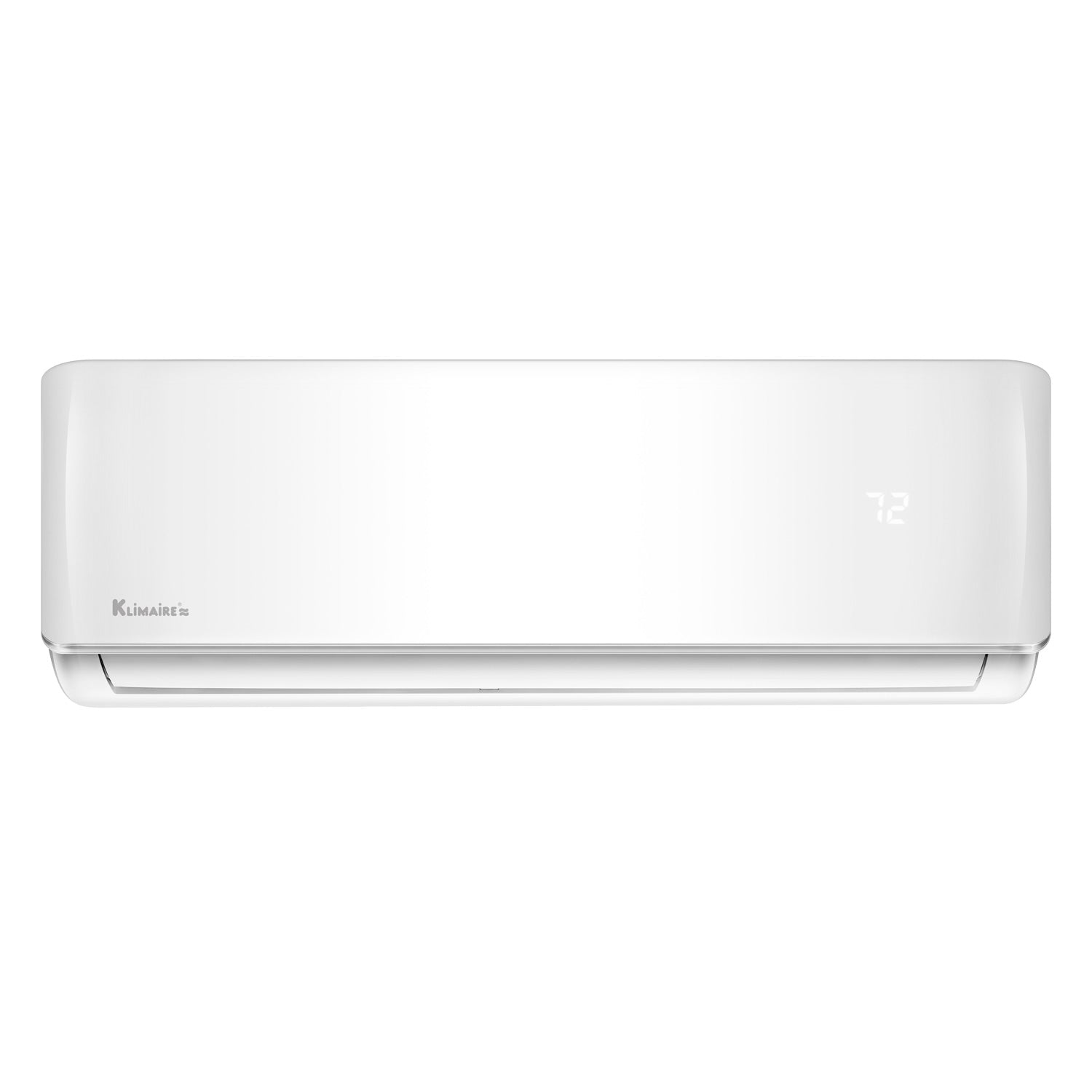

    KSIE012-H220-IW-2 | Indoor Unit

    Don’t let the simple, clean lines of the elegantly-styled KSIE indoor wall-mounted unit fool you. It is jam-packed with high-tech features. With the Follow “Feeling” function activated, the temperature sensor “moves” from the wall unit to the remote control. The sensor then directs the mini-split to adjust heating and cooling based on the temperature immediately surrounding anyone carrying the remote.

    Also enjoy 12 fan speeds, along with heating, cooling, dedicated dehumidification, turbo function and sleep mode. Auto clean function cleans and dries the evaporator to prevent mildew growth and maintain healthy indoor air quality. The new Home Away freeze protection feature maintains the room at 46º F when you are away for an extended period during the heating season.

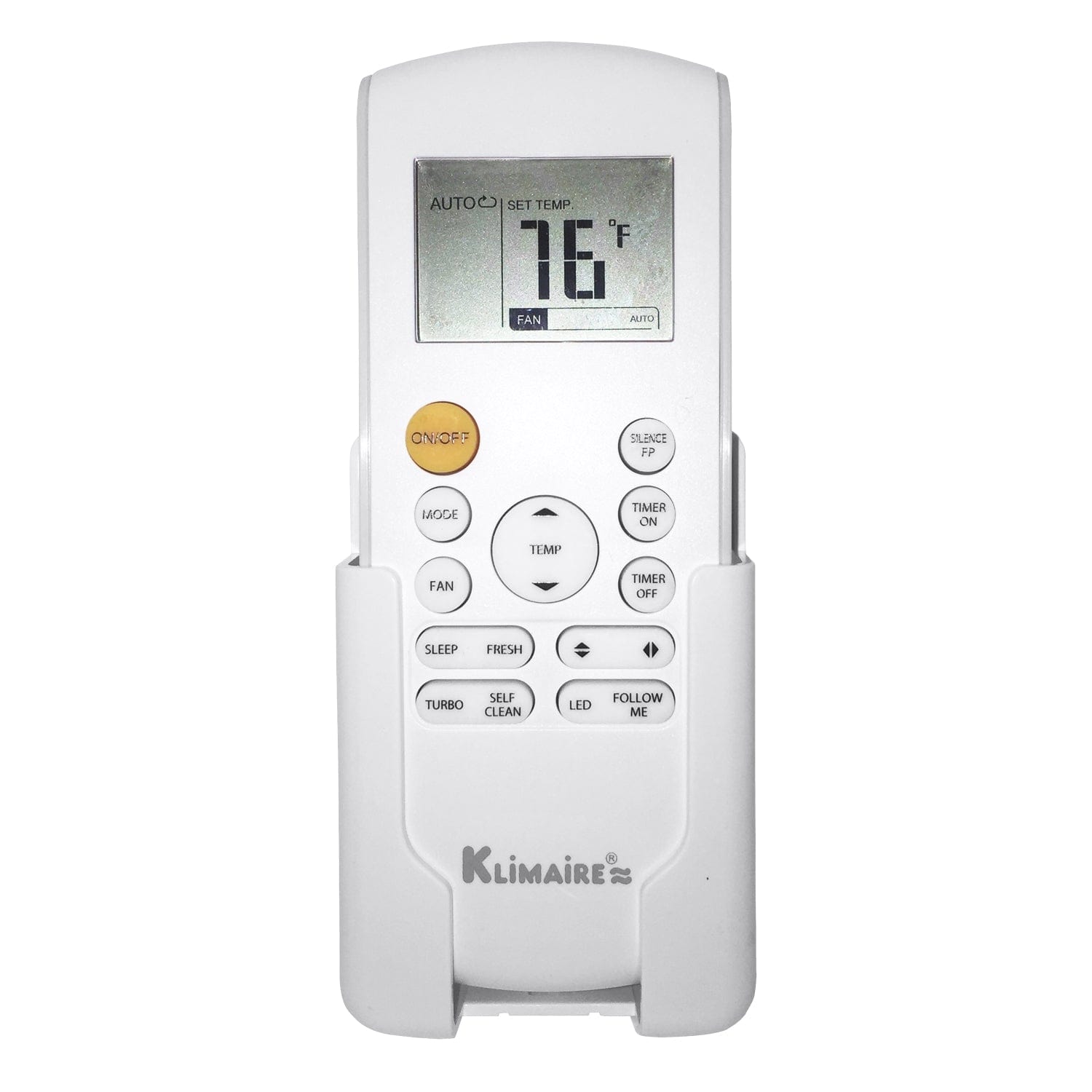

    The remote control allows for manual operation of the unit when necessary. With the new “Quick-Hook Design,” the fan coil hangs on the wall easier and faster. An additional gap for pipe installation as well as right to left adjustments add to installation simplicity.

    • 3D air flow technology distributes the air evenly throughout the room.
    • 24 hour timer and memory function
    • Turbo mode for fast heating & cooling

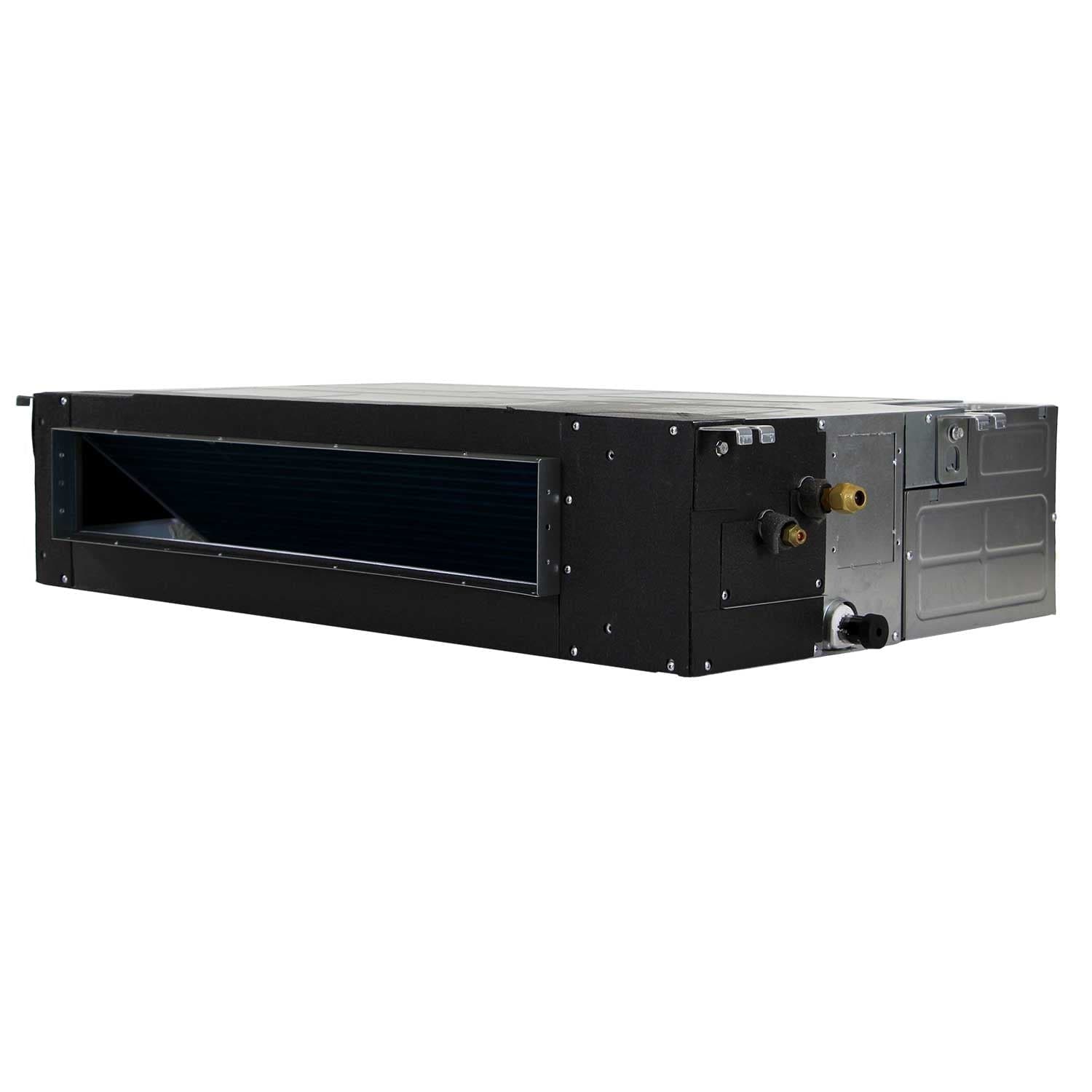

    KDIP12-H2 | Indoor Unit

    Simple duct connections to this recessed ceiling unit allows you to combine 2 rooms into one zone. Each 12,000 BTU unit offers capacity for up to 550 square feet. Add a duct and spread the cooling capacity across a bathroom and bedroom combination in a residential application or foyer and office shared use in a commercial layout. At only 9 inches high, the unit fits easily in a drop ceiling or attic space.

    • Choice of back or bottom air return
    • Slim, hideaway profile
    • Anti-cold blast function prevents cold air flow at start of heat cycle

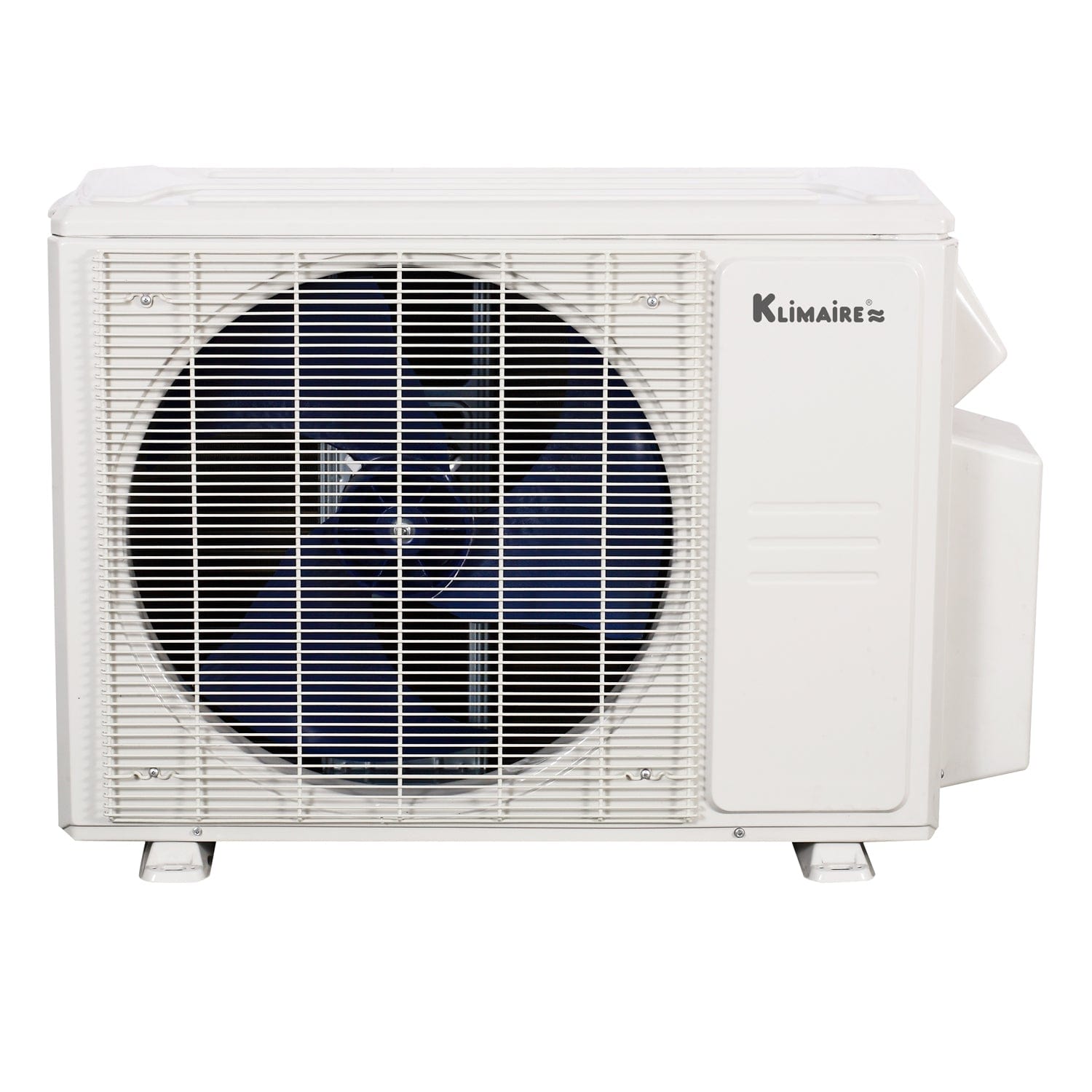

    KMIR218-H221-2 | Outdoor Unit

    Klimaire's new KMIR218-H221-2 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.

    • Specially-designed for quiet operation
    • Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off
    • Small footprint fits most yards or easily mounts to a wall with bracket (sold separately)

    Improved Performance

    • SEER2: 20
    • EER2: 12.25
    • HSPF2: 10

    Applications

    • Room additions
    • Renovations
    • Family rooms
    • Sunrooms
    • Wine cellars
    • Garages/workshops

    WHAT’S INCLUDED
    Your Klimaire Ductless Three-Zone System from Heat & Cool Comes With:

    • KSIE012-H220-IW-2 | Indoor Unit
    • KDIP12-H2 | Indoor Unit
    • KMIR218-H221-2 | Outdoor Unit
    • Outdoor unit is pre-charged with R-410A refrigerant
    • Indoor unit mounting plates
    • Remote controls with wall mount brackets
    • Installation manual
    • User’s manual
    • Manufacturer warranty

    Manufacturer Warranty

    • 5 Year Parts
    • 7 Years Compressor

    Key Specifications

    • Klimaire

    Bundle includes 3 items

    2-Zone Klimaire KMIR218-H221-2 Outdoor Heat Pump Unit up to 21 SEER

    2-Zone Klimaire KMIR218-H221-2 Outdoor Heat Pump Unit up to 21 SEER

    Model Number: KMIR218-H221-2 SKU: KMR20079
    12,000 BTU Klimaire KSIE012-H220-IW-2 Mini-split Wall Mount Fan Coil Unit 220V

    12,000 BTU Klimaire KSIE012-H220-IW-2 Mini-split Wall Mount Fan Coil Unit 220V

    Model Number: KSIE012-H220-IW-2 SKU: KEI120031
    12000 Btu Ducted Recessed Fan Coils - 208-230V KDIP12-H2

    12000 Btu Ducted Recessed Fan Coils - 208-230V KDIP12-H2

    Model Number: KDIP12-H2 SKU: HCKPI1983
    System Specifications

    Specifications for model: KSIE012-H220-IW-2
    Model Number KSIE012-H220-IW-2
    System Type Ductless Mini Split
    Unit Type (Selector) Wall Mounted
    Mounting Type Wall Mounted
    Cooling Capacity (BTU) 12,000
    Heating Capacity (BTU) 12,000
    Efficiency SEER2 23.1
    SEER2 Filter 23+
    Efficiency (SEER) 21.5
    SEER (Left Filter) 21+
    HSPF2 9.3
    HSPF (Heating Seasonal Performance Factor) 9.8
    EER2 12.5
    EER (Energy Efficiency Ratio) 13
    Electrical 208-230 V; 1 Phase; 60 Hz
    Manufacturer Limited Warranty (Years) 1 Year Parts; 5 Year Compressor
    Compressor Type Rotary
    Indoor Unit Noise Level (Hi/Me/Lo) 39/25
    MCA (Minimum Circuit Ampacity) 15 amps
    Weight 22 lbs
    Depth 7.44 in
    Height 11.69 in
    Width 31.57 in
    Air Flow (Hi/Mi/Lo) 306/212/147
    Shipping Time 24 to 72 hours
    Cop Coefficient Of Performance 3.1
    Free Shipping No
    Must ship freight Yes
    Shipping Cost 80
    Specifications for model: KDIP12-H2
    Mounting Type Ducted Recessed
    Shipping Cost 60
    Unit Type (Selector) Ducted Recessed
    Specifications for model: KMIR218-H221-2
    Compressor Type Rotary
    Sound Level 62.4
    Minimum Circuit Ampacity (MCA) 18
    Maximum Overcurrent protection (MOP) 25
    Liquid Line Size (In) 1/4
    Suction Line Size (In) 3/8
    Operation Mode null
    Net/Gross Weight (Lb) 105.82/114.64
    Width/Depth/Height (In) 33.27x14.29x27.64
    Packaged Width/Depth/Height (In) 37.99x15.55x29.72
    Refrigerant R410A/70.5
