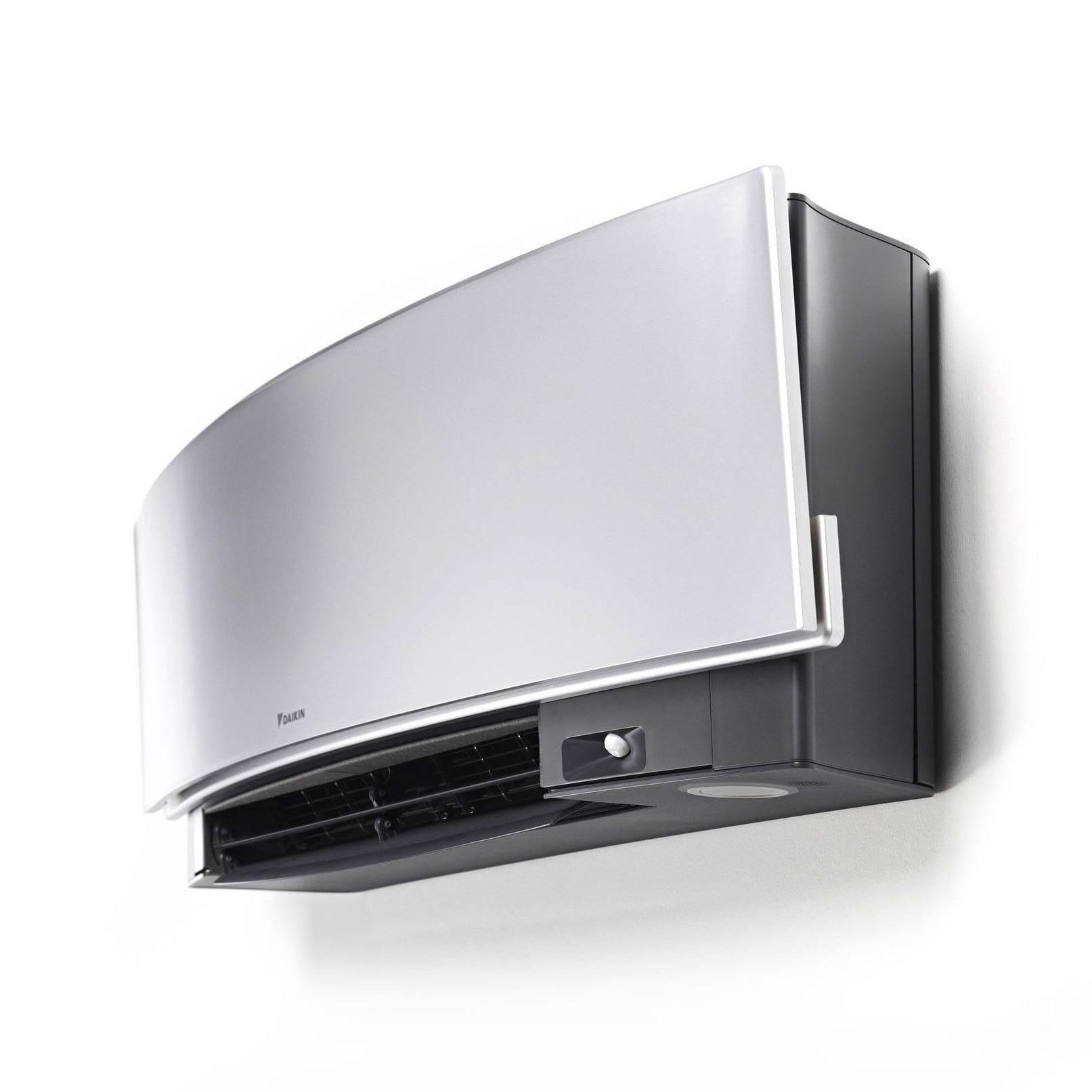

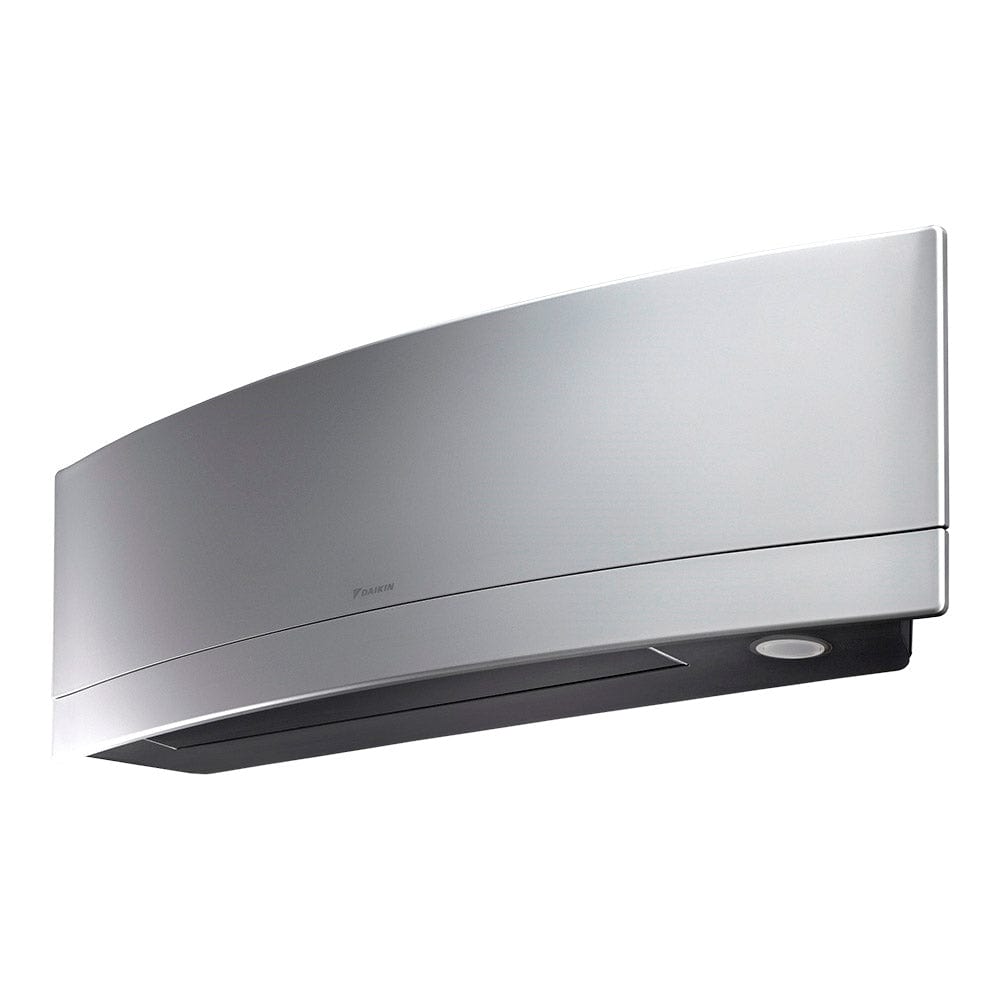

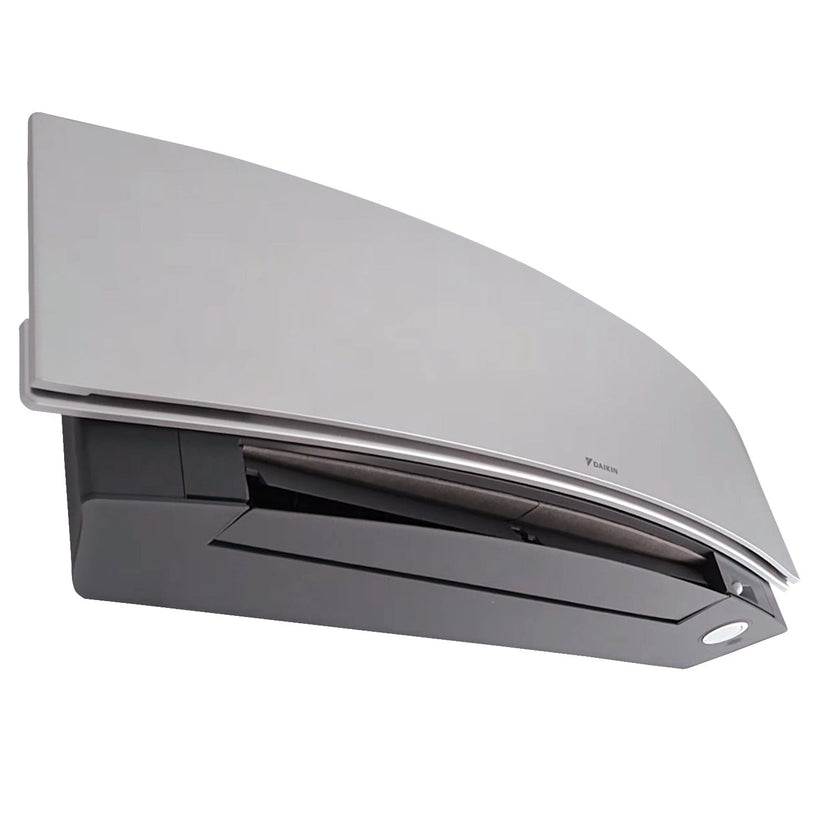

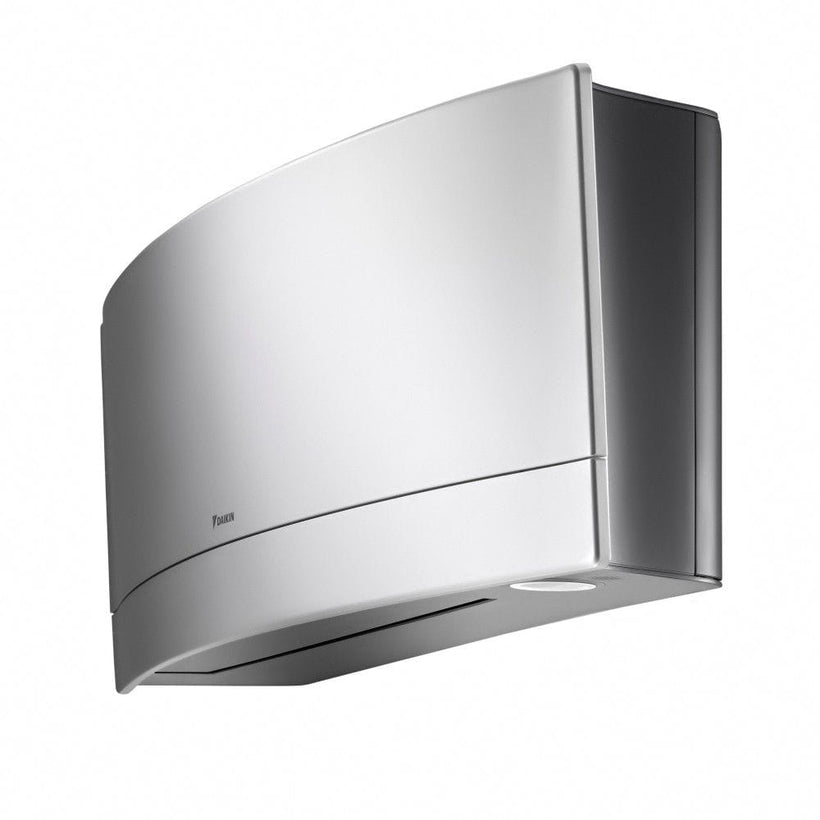

Daikin 18,000 BTU Emura Silver Mini-Split Wall Mount Fan Coil Unit FTXR18TVJUS

Daikin Emura Indoor Unit 18,000 Btu, Up to 18 SEER, Single Zone Wall Mount Heat Pump

A highly intelligent system with innovative features.
The next generation of home air conditioning is here, offering smart technology within a sleek, curved silhouette. Daikin EMURA air conditioners are designed to satisfy a uniquely “Designer” sense of style.

Offering a sophisticated solution for contemporary interiors, the new Daikin EMURA single-zone system combines form and functionality to create an icon of contemporary climate control. Available in silver or pure matte white, Daikin EMURA makes a modern design statement on any wall.

Inside the understated exterior is a highly intelligent system, which can be controlled remotely via the Daikin Comfort App even away from the home.

WALL-MOUNTED SYSTEMS
Up to 18 SEER / Up to 9.3 HSPF / Up to 11.0 EER
INVERTER, VARIABLE-SPEED COMPRESSOR

Indoor Specifications

• Nominal Capacity (Btu/h): 18,000
• Cooling Capacity (Btu/h): 18,000
• Heating Capacity (Btu/h): 20,000
• Rated (Min/Max) Cooling & Heating Capacity (Btu/h): 5,800 / 21,200
• Cooling Standard Operating Range: 50°F – 115°F

• Cooling Extended Operating Range*: -4°F – 115°F
  *With field settings and wind baffle

• Heating Operating Range (°F WB): 5°F – 65°F
• SEER: 14.5
• HSPF: 9.8
• EER:9.6
• COP: 3.34
• Airflow Rate Cooling (H/M/L/SL) (cfm): 350/245/226/208
• Airflow Rate Heating 8H/M/L/SL) (cfm): 413/332/275/208
• Sound Cooling (H/M/L/SL) (dBA): 46 / 40 / 35 / 30
• Sound Heating (H/M/L/SL) (dBA): 47 / 41 / 35 / 30
• Dimensions (H×W×D) (in): 11-15/16 × 39-5/16 × 8-3/8
• Weight (Lbs): 27

• Color Selection: Silver
• Piping:
  • Liquid (in) 1/4
  • Gas (in) /2
  • Drain (in) 11/16

• MCA (Minimum Circuit Amps) (A): 12.8
• MOP (Maximum Overcurrent Protection) (A): 15

Standard Features

• Energy Efficient – Up to 18 SEER, 9.3 HSPF, 11.0 EER
• Cooling Range: 50° - 115° F (Extended operation to -4° - 115° F with facility setting and air adjustment grille)
• Heating Range: 5° - 65° F
• Redesigned PCB in the outdoor unit to withstand extreme conditions
• Indoor Sound Pressure as Low as 19 dB(A)
• Outdoor Sound Pressure as Low as 46 dB(A)
• Washable Air Filter
• Program Dry Function
• Econo Mode
• Titanium Apatite Photocatalytic Air Purifying Filter
• Powerful Operation Mode

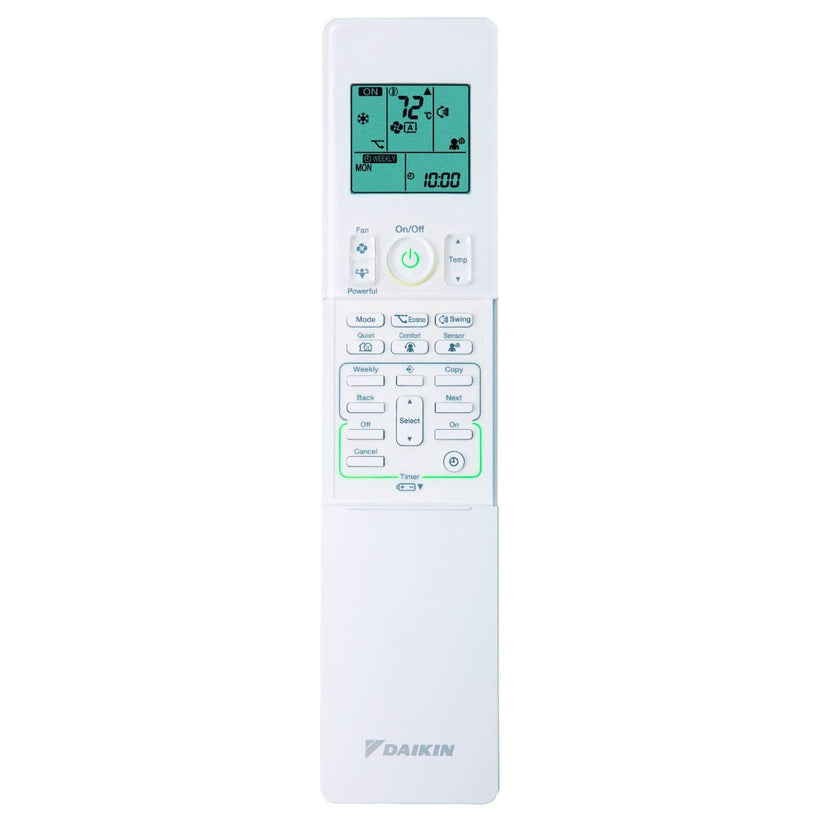

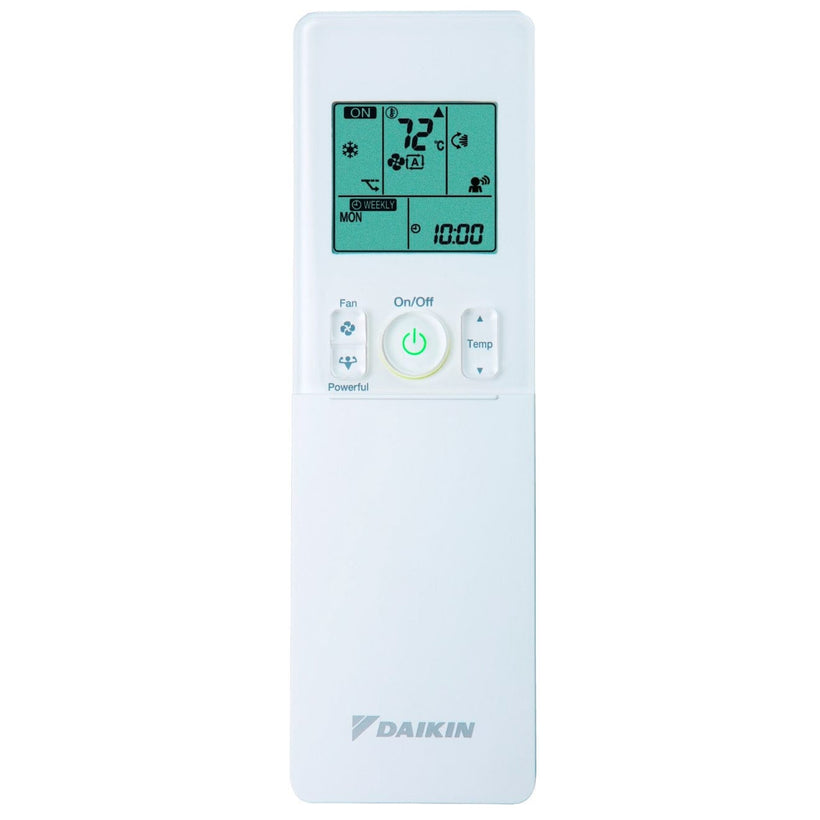

• Backlit Wireless Remote Controller
• Outdoor Unit Quiet Operation
• Auto-Changeover
• Auto-Fan Speed Control
• Self Diagnostics with Digital Display
• Auto-Restart After Power Failure
• Anti-Corrosion Heat Exchanger Treatment
• Quick Warming Function
• Hot Start Function
• Automatic Defrosting
