Mini-Split System KSIV is the most recent addition to Klimaire’s line of high-performance wall mounted. A Mini split system offers a full range of features that make it the smartest choice when you look for a reliable heating source or a supplement to your current heating or air conditioning system, with a much lower energy consumption than a traditional central unit. With DC inverter variable speed technology, frequent thermostat adjustments become a thing of the past. Just choose a setting on your thermostat once and the system will auto regulate the compressor to deliver the right amount of heating and cooling to keep the room temperature steady, you will get all the benefits of superior cooling along with reliable heating on colder days. Inverter technology combined with air conditioner heat pump can generate energy savings up to 49% compared to standard on/off systems. Its finely tuned climate control offers the added benefits of less system wear and tear and whisper quiet operation.

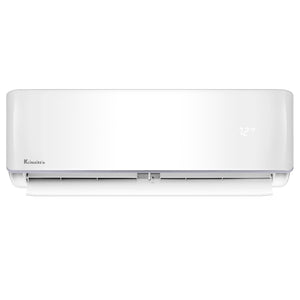

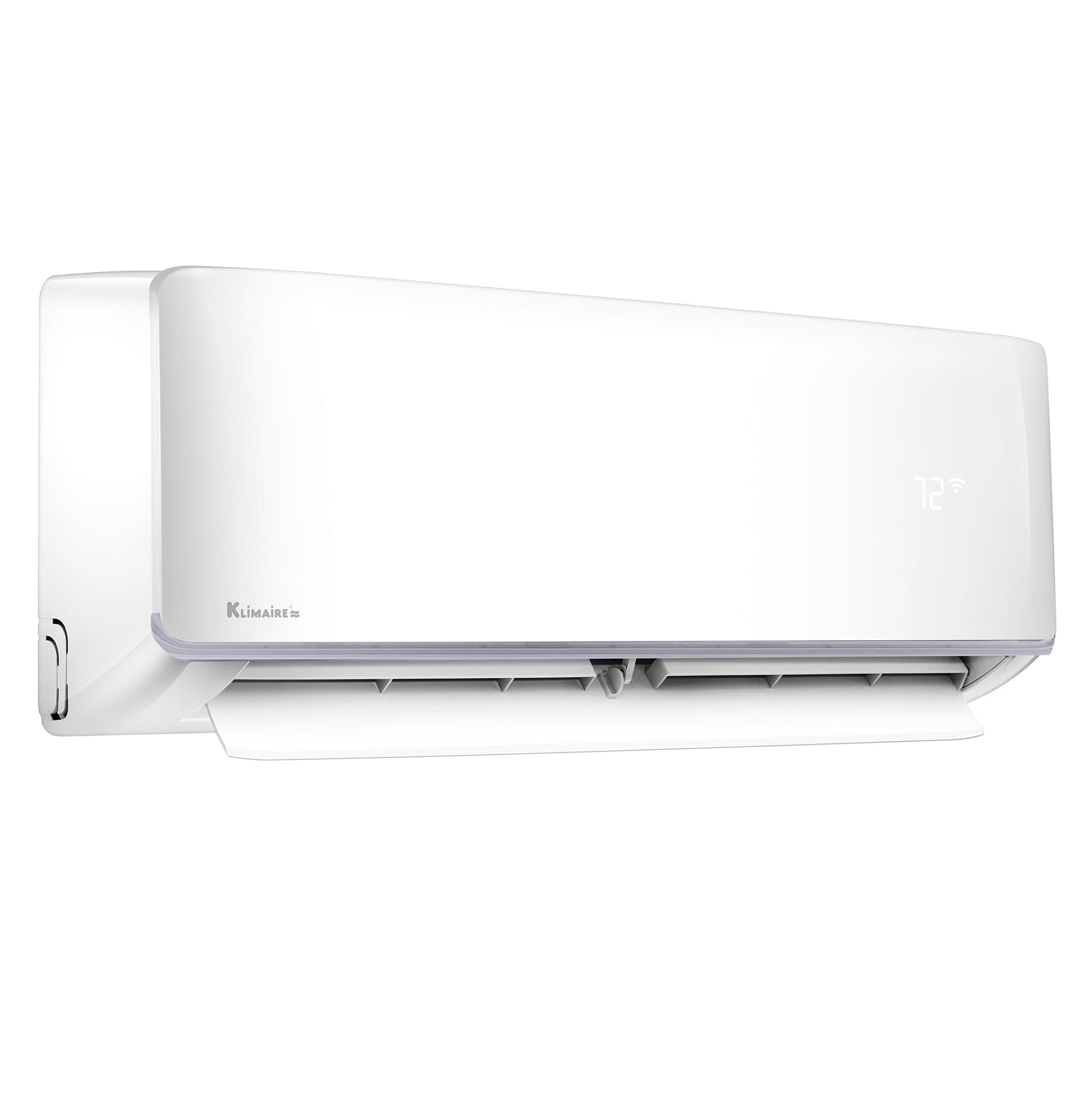

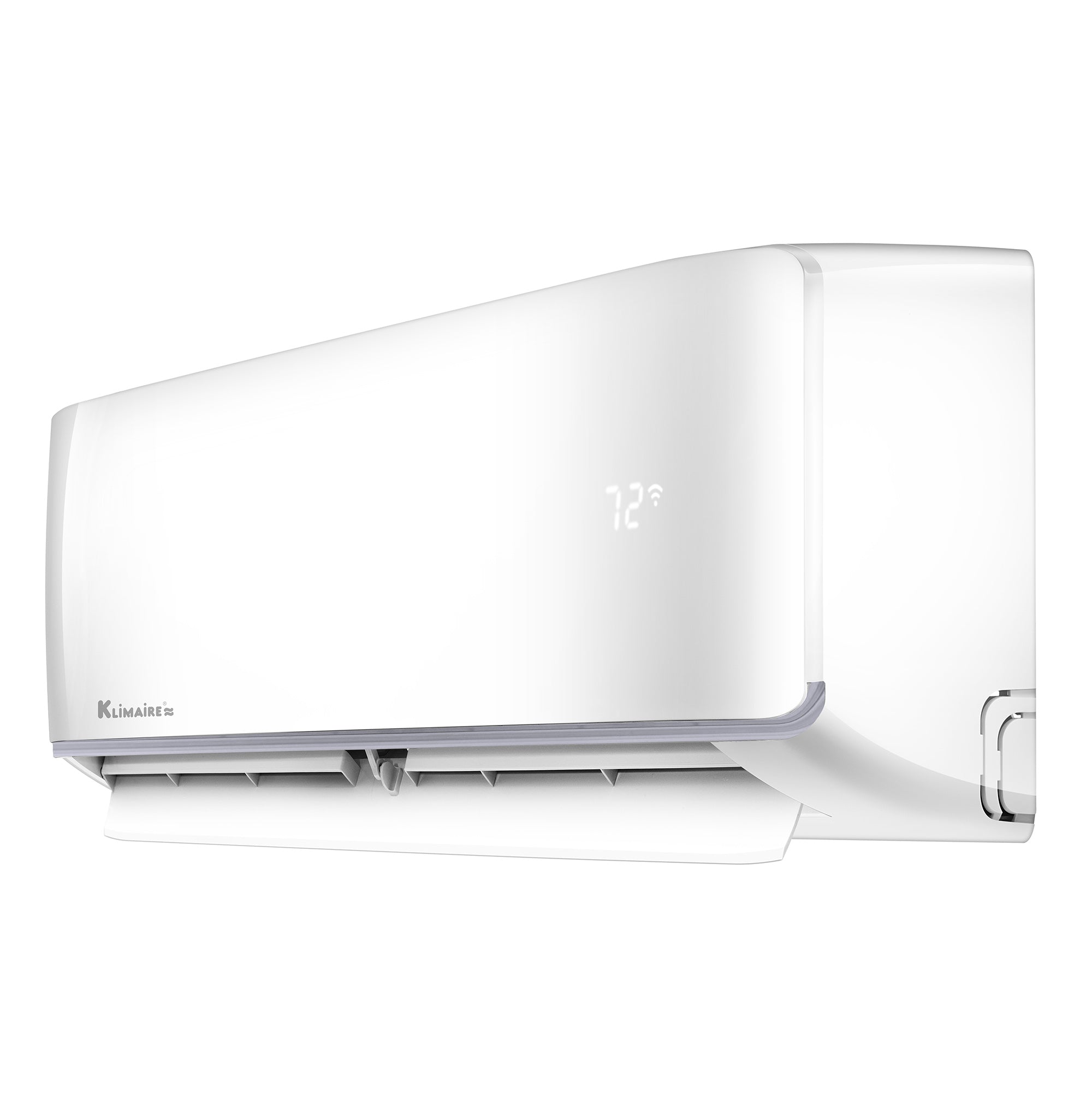

KSIV018-H219-IW-2 | Indoor Unit
The KSIV Inverter optimizes energy usage, the result is lower electric bills along with exceptional cooling and heating capacity, along with its selection of fan speeds, along with heating, cooling, dedicated dehumidification, turbo function and sleep mode. The auto clean function cleans and dries the evaporator to prevent mildew growth and maintain healthy indoor air quality. The new Home Away freeze protection feature maintains the room at 46º F when you are away for an extended period during the heating season. The remote control allows for manual operation of the unit when necessary. With the new “Quick-Hook Design,” the wall unit hangs easier and faster. An additional gap for pipe installation as well as right to left adjustments add to installation simplicity.
- 3D Air Flow supplies more even and comfortable air flow in cooling mode
- 24-hour timer and memory function
- Turbo mode for fast heating & cooling
ADDITIONAL FEATURES
- Low ambient cooling capacity
- Anti-cold air
- Auto Restart Function
- Turbo mode
- Silent mode
- Sleep Mode
- Follow me
- Auto defrosting
- Self-cleaning
- 46º F Heating
- High density air filter
- Temperature Compensation
- Refrigerant Leakage Detection
- High air discharge temperature

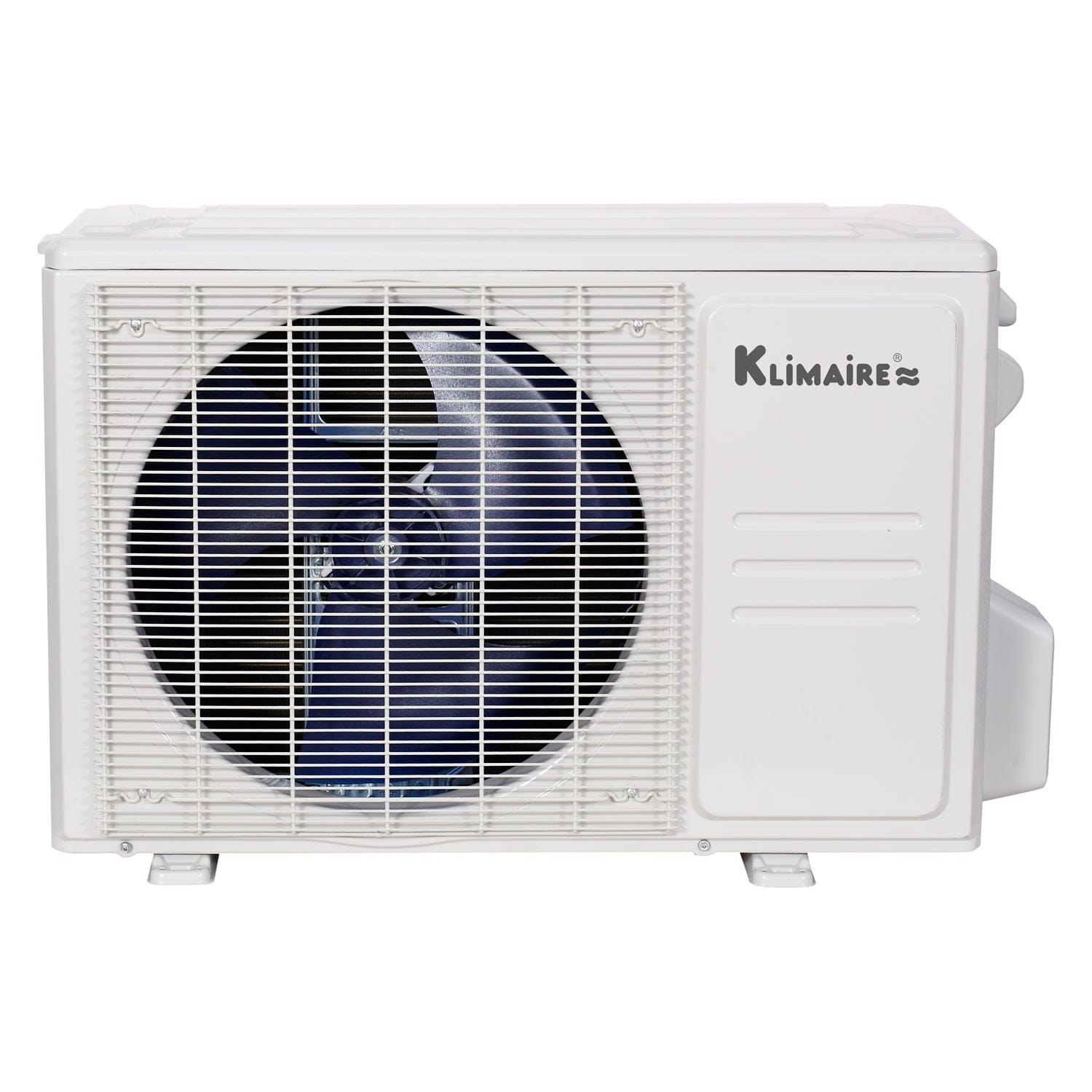

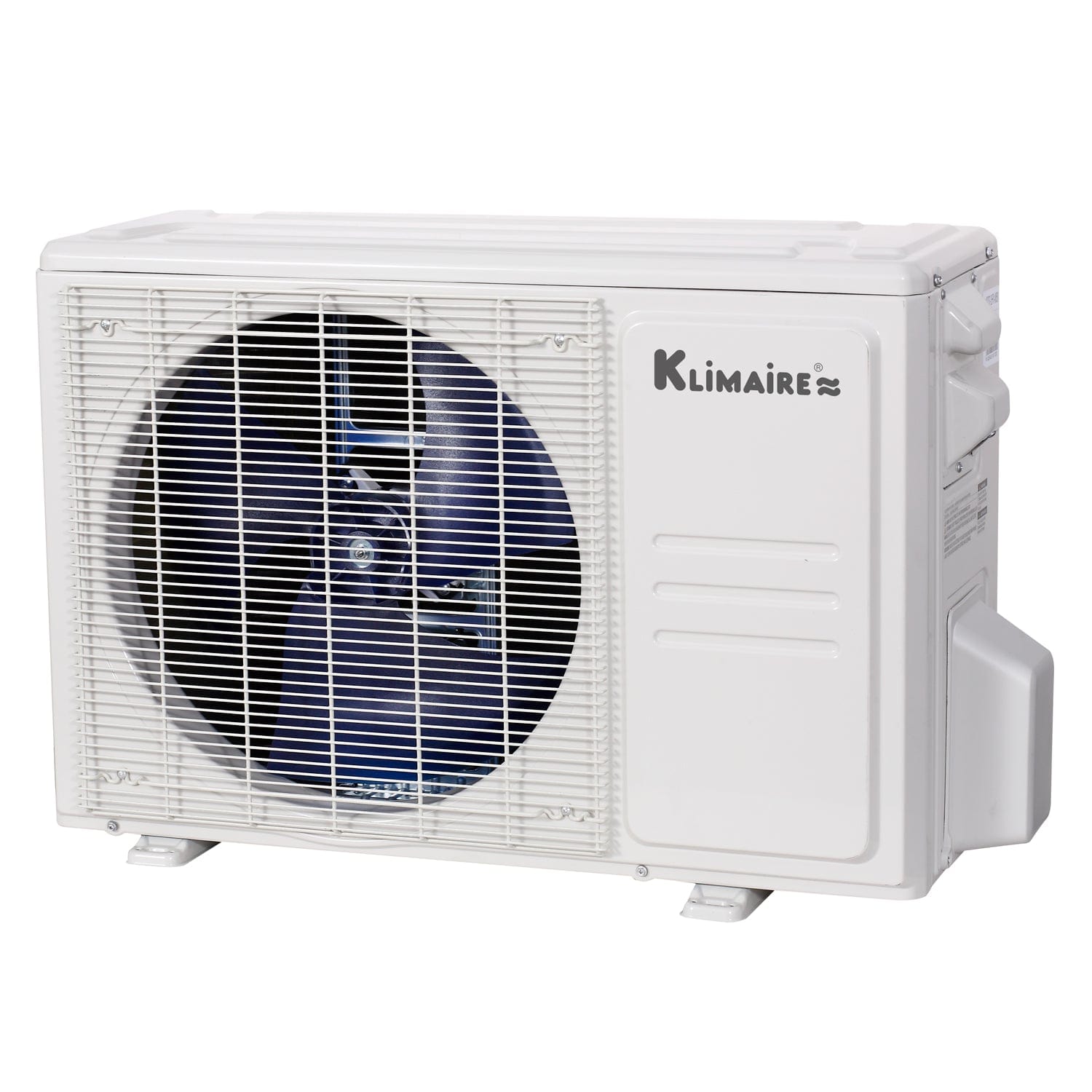

KSIV018-H219-O | Outdoor Unit
Automatic defrost prevents condensation from freezing and damaging the compressor. The built-in base pan heater ensures reliable operation in temperatures as low as 5º F. A built-in compressor heater ensures compressor longevity and reliability. Compact outdoor unit requires little ground space and can be mounted to a wall with wall brackets (not included).
- Pre-charged for up to 25 feet of copper tubing
- Double cam twin rotary compressor
- Auto defrost
Improved Performance
-
SEER2: 19 | HSPF2: 8.7 | EER2: 10.5
Additional Features
- High efficiency
- Lower vibration & noise
- Special base plate design for easy draining
- Prominent defrosting procedure
- Wide operation range down to 5 ºF
Applications
- Sunrooms
- Greenhouses
- Indoor gardens / hydroponic gardening
- Room additions
- Renovations
- Family rooms
- Wine cellars
- Garages/workshops
Wi-Fi Receiver Module for Klimaire Ductless Mini-Split Air Conditioners and Heat Pump Units. The KPIMDWF module allows you to remotely control your Klimaire Wi-Fi enabled ductless mini-split via a secure connection to your home network using your smart phone, allowing for superior comfort, and having full control of your air conditioner over the internet. You will be able to check the temperature and settings of your AC and adjust settings as you like.
WIFI Connection
WHAT’S INCLUDED

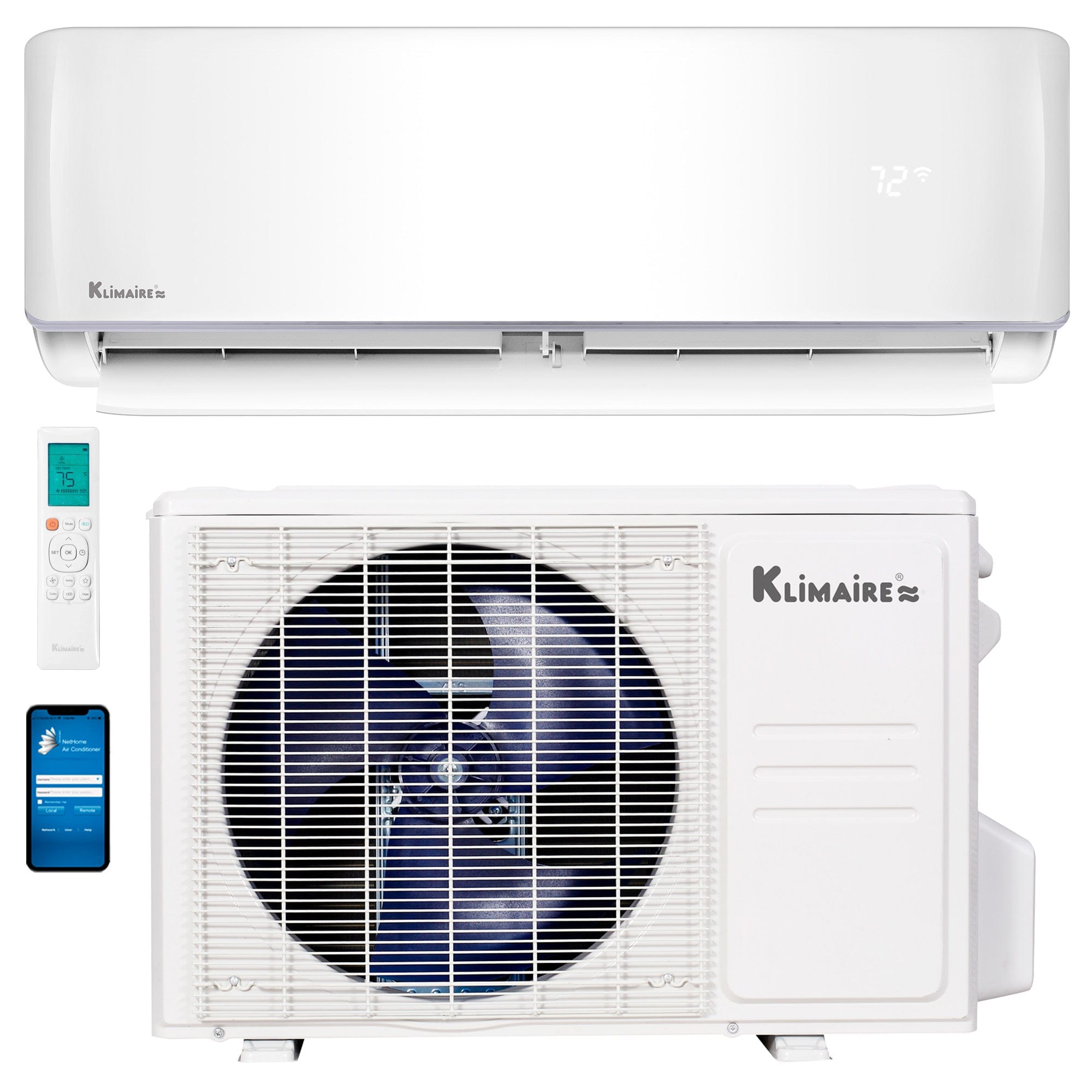

Your Klimaire KSIV Ductless Mini-Split Inverter Air Conditioner Heat Pump System from Heat & Cool Comes With:
- KSIV018-H219-IW-2 | Indoor Unit
- KSIV018-H219-O-2 | Outdoor Unit
- Remote control with wall bracket holder
- Indoor unit wall mounting bracket
- User Manual
- Manufacturer Warranty
MANUFACTURER WARRANTY
- 5 year parts limited warranty
- 7 year compressor limited warranty
Key Specifications
- Klimaire
- Ductless Mini Split Wall Mount
- 1,000
- 18,000
- 18,000
- 19
- 8.7
- 10.5
- 2.10
- 208-230 V / 1 Phase / 60 Hz
- R-410A
- 1
- 5 Year Parts 7 Years Compressor
- Yes
- 5
- 5
Bundle includes 2 items
18,000 BTU Klimaire KSIV018-H219-O-2 Mini-split Inverter Heat Pump Unit 19 SEER2 220V
Model Number: KSIV018-H219-O-2 SKU: KVO180033
18,000 BTU Klimaire KSIV018-H219-IW-2 Mini-split Wall Mount Fan Coil Unit 220V
Model Number: KSIV018-H219-IW-2 SKU: KVI180027System Specifications
| Air Conditioner Type | Ductless Mini Split Wall Mount |
|---|---|
| Application Area (SqFt) | 1,000 |
| Cooling Capacity (Btu) | 18,000 |
| Heating Capacity (Btu) | 18,000 |
| SEER2 | 19 |
| HSPF2 | 8.7 |
| EER2 | 10.5 |
| COP | 2.10 |
| Power Supply | 208-230 V / 1 Phase / 60 Hz |
| Refrigerant Type | R-410A |
| Number Of Zones (Rooms) | 1 |
| Manufacturer Limited Warranty | 5 Year Parts 7 Years Compressor |
| Wifi Capibility | Yes |
| Minimum Outdoor Temperature for Cooling (F°) | 5 |
| Minimum Outdoor Temperature for Heating (F°) | 5 |
Specifications for model: KSIV018-H219-IW-2
| Mounting Style | Wall Mounted |
|---|---|
| Airflow Rate (H/M/L/S) | 449/393/262 |
| Indoor Unit Sound Level (Db) | 43/35/30.5 |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 1/2 |
| Drain Line Size (In) | |
| Application Area (Sqft) | 1,000 |
| Indoor Air Quality Type | Washable Primary Air Filter and High Density Filter |
| Net/Gross weight (Lb) | 79.8/85.76 |
| Width / Depth / Height (In) | 31.50x13.11x21.81 |
| Packaged Width / Depth / Height (In) | 36.22x15.35x24.21 |
Specifications for model: KSIV018-H219-O-2
| Compressor Type | Rotary |
|---|---|
| Sound Level | 57.5 |
| Minimum Circuit Ampacity (MCA) | 20 |
| Maximum Overcurrent protection (MOP) | |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 1/2 |
| Operation Mode | Heat Pump / Heating & Cooling |
| Net/Gross Weight (Lb) | 79.8/85.76 |
| Width/Depth/Height (In) | 31.50x13.11x21.81 |
| Packaged Width/Depth/Height (In) | 36.22x15.35x24.21 |
