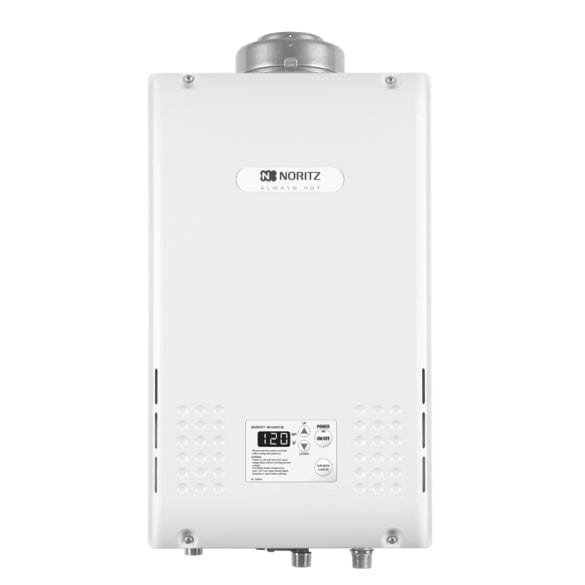

Noritz – NR83 Residential Tankless Water Heater
Noritz has engineered the Noritz NR83 Residential Tankless Water Heater from the ground up to be a direct replacement for tank based water heaters. The combination of endless hot water, lower monthly energy bills and reliability ensure that any homeowner can benefit from purchasing a Noritz tankless hot water heater. The commercial grade copper heat exchanger provides long term reliability guaranteed to last any homeowner for decades, and an average efficiency of 84% means that tankless replacement of indirect fired water heaters is finally not only possible, but practical. A small footprint and standard inputs and outputs translate into both ease of installation and low install costs.
Features:- Gas consumption ranges from 18,000 BTU/h to 180,000 BTU/h
- Flow rates from 0.5 gpm up to 8.3 gpm
- ANSI Z21.10.3/CSA 4.3 certified design that can be wall mounted indoors
- Manufactured with commercial grade copper, 25% thicker piping than standard models
- Concentric direct vent (DVC) design that uses 5"/3" Noritz
- concentric stainless steel vent pipe and is rated for zero clearance
- Two identical units can be linked together by using the optional Quick Connect Cord for twice the hot water capacity
- 0.85 (NG) 0.82 (LP)
- 85% efficient for use with natural gas or propane
- Includes remote thermostat attached to the front
- panel that can precisely adjust the output temperature from 100°F to 140°F and display temperatures in both °C and °F
- Comes pre installed with 6" power cord
- Flame Sensor, Overheat Prevention Device, Lightning Protection
- Device, Freeze Protection
- Temperature Lockout, High Elevation Adjustment
- Service Reminder Function (unit can be programmed to signal a reminder for regular maintenance)
- Durability and Reliability to Last for Decades
WHAT’S INCLUDED
Your Tankless Water Heater From Heat and Cool Comes With:
- NR83 | Tankless Water Heater
- Energy Guide
- Installation Manual
- Owners Guide
- Parts List
- Technical Specification
Key Specifications
- Noritz
- 7.6 gpm
- 6.7 gpm
- 3.8 gpm
- 8.3 gpm
- Yes
- Indoor
- 140 ºF
- 0.5 gpm
- Standard
- 161 W
System Specifications
| Case | Steel |
|---|---|
| Direct Electronic Ignition | Yes |
| Finish Family | Beige |
| Flow Rate @ 35 ºF Rise | 7.6 gpm |
| Flow Rate @ 45 ºF Rise | 6.7 gpm |
| Flow Rate @ 75 ºF Rise | 3.8 gpm |
| Flow Rate, Maximum | 8.3 gpm |
| Hard-Wired Remote | Yes |
| Heat Exchanger Warranty | 12 Year year |
| Indoor/Outdoor | Indoor |
| Labor Warranty | 1 Year |
| Lightning Protection | Yes |
| Maximum Temperature | 140 ºF |
| Min. Installation Clearance, Front | 4 Inch |
| Min. Installation Clearance, Sides | 2 Inch in |
| Min. Installation Clearance, Top | 12 Inch in |
| Minimum Activation Rate | 0.5 gpm |
| Must ship freight | Yes |
| Parts Warranty | 5 Year Limited Parts Warranty |
| Product Depth | 9.4 in |
| Product Height | 23.6 in |
| Product Shipping Weight | 49 lb |
| Product Width | 13.13 in |
| Recirculation compatible | Yes |
| Shipping Cost | 140 |
| Shipping Time | 7 to 10 days |
| Thermal Efficiency | 0.85 % |
| Unit Type (Selector) | Standard |
| Warranty | 12 Year Limited Heat Exchange year |
| Water Connection Location | Top |
| Water Connection Size | 3/4 Inch in |
| Water Pressure Range, Min-Max | 15-150 psig |
| Wattage | 161 W |
