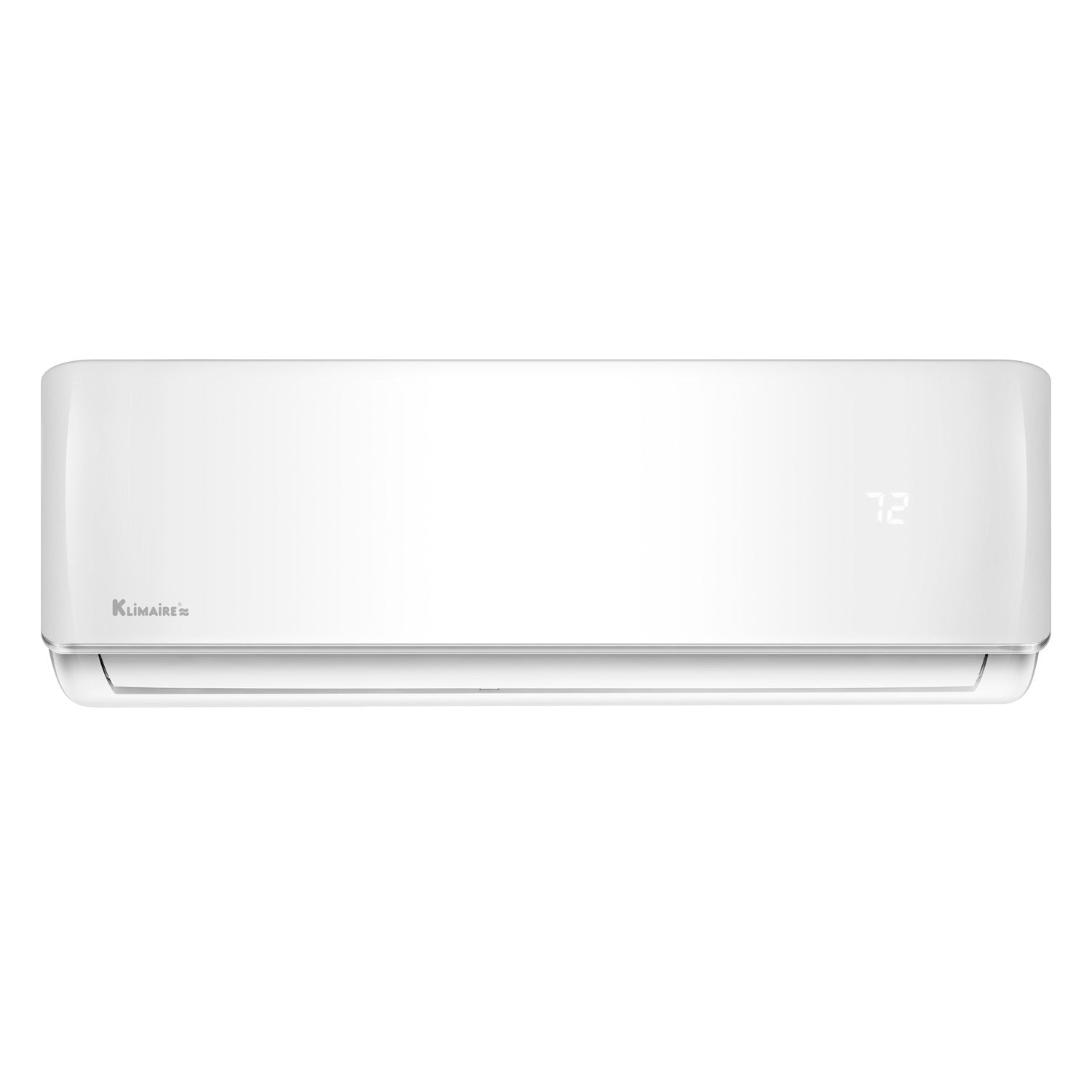

KSIE018-H220-IW-2 | Indoor Unit
Don’t let the simple, clean lines of the elegantly-styled KSIE indoor wall-mounted unit fool you. It is jam-packed with high-tech features. With the Follow “Feeling” function activated, the temperature sensor “moves” from the wall unit to the remote control. The sensor then directs the mini-split to adjust heating and cooling based on the temperature immediately surrounding anyone carrying the remote.
Also enjoy 12 fan speeds, along with heating, cooling, dedicated dehumidification, turbo function and sleep mode. Auto clean function cleans and dries the evaporator to prevent mildew growth and maintain healthy indoor air quality. The new Home Away freeze protection feature maintains the room at 46º F when you are away for an extended period during the heating season.

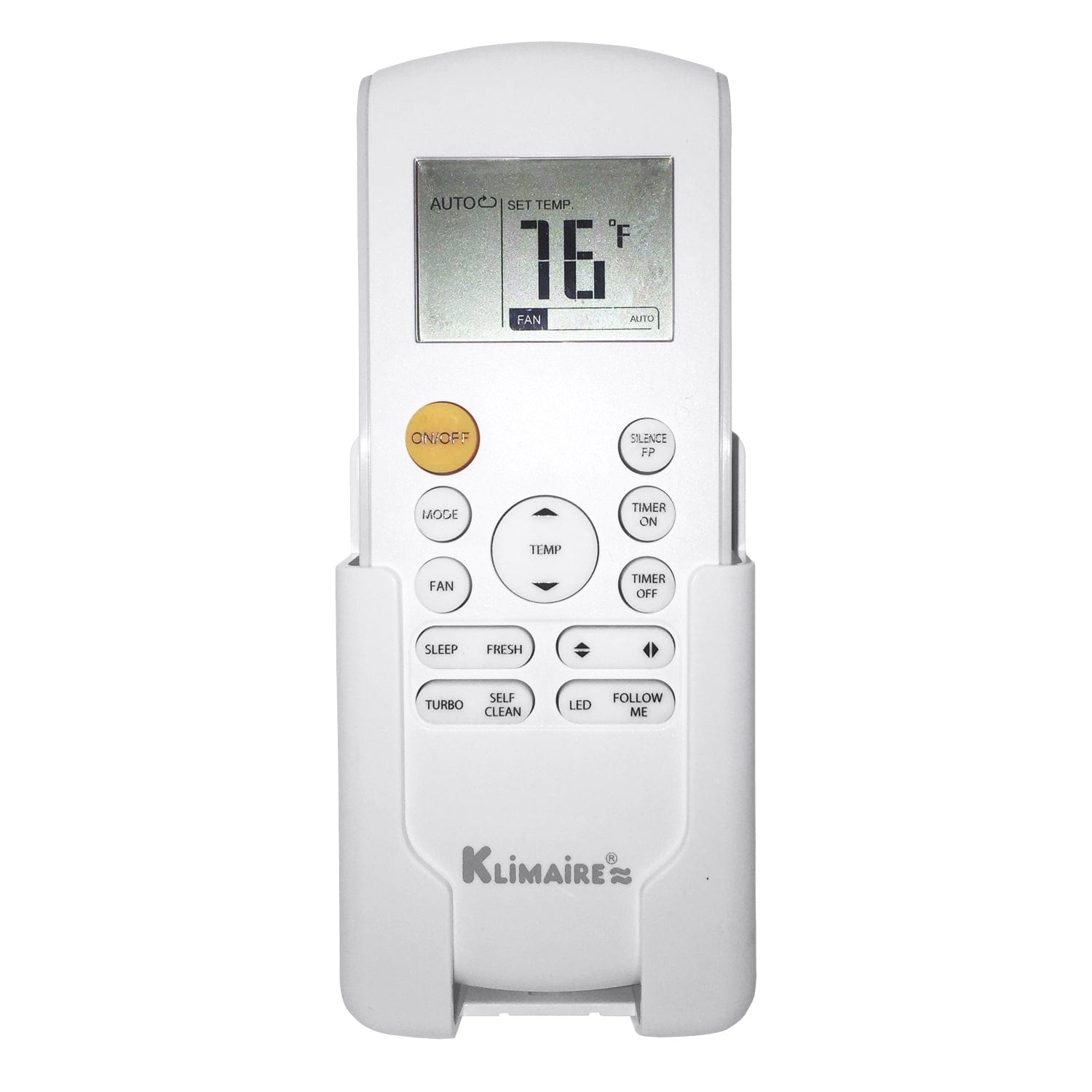

The remote control allows for manual operation of the unit when necessary. With the new “Quick-Hook Design,” the fan coil hangs on the wall easier and faster. An additional gap for pipe installation as well as right to left adjustments add to installation simplicity.
- 3D air flow technology distributes the air evenly throughout the room.
- 24 hour timer and memory function
- Turbo mode for fast heating & cooling
KUIR24-H2 | Indoor Unit
Extremely quiet operation and rugged construction make the 24,000 BTU KUIR24-H2 220-volt fan coil unit by Klimaire ideal for heavy traffic and public areas. It arrives pre-vacuumed and can be installed on the ceiling, low on a wall or on the floor. Includes slide out washable air filter and wireless remote control. Choose from cooling, fan and dehumidification modes. Features 24-hour timer, sleep mode and auto restart.
Directional air flow: Using the included remote control, manually adjust the airflow direction or set the unit to auto swing. This ensures that your commercial space is cooled evenly and prevents a continuous blast of cold air in one direction. This is especially important in commercial applications such as hydroponic indoor gardens or restaurants, both of which are ideally suited for commercial mini-split air conditioner systems.
- Adjustable airflow with wireless LED remote
- Auto swing louvers
- Auto restart after power failure

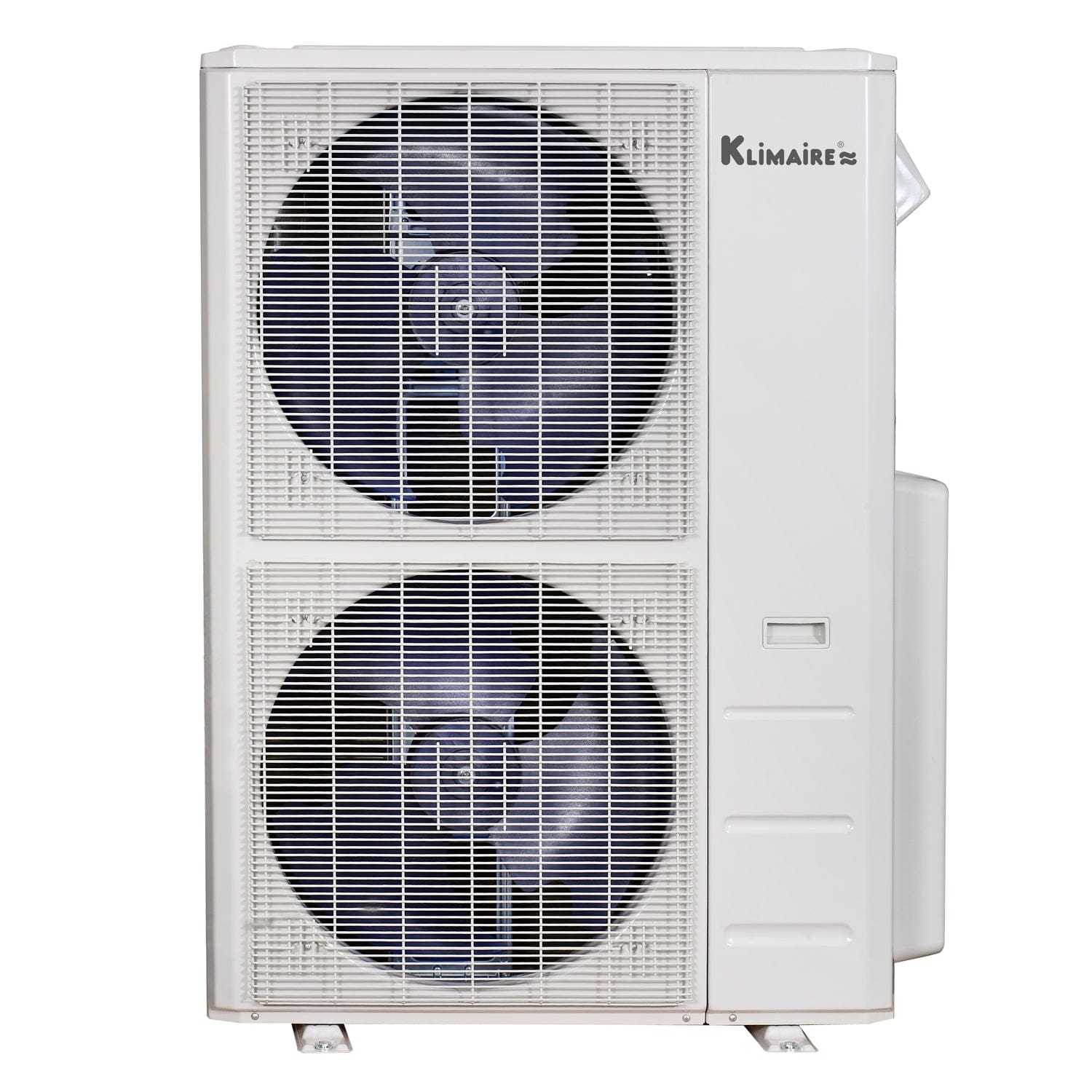

KMIR545-H219-2 | Outdoor Unit
Klimaire's new KMIR545-H219-2 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.
- Specially-designed for quiet operation
- Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off
- Small footprint fits most yards or easily mounts to a wall with bracket (sold separately)
EER2: 11.0
HSPF2: 9.5
Applications
- Room additions
- Renovations
- Family rooms
- Sunrooms
- Wine cellars
- Garages/workshops
WHAT’S INCLUDED
Your Klimaire Ductless Three-Zone System from Heat & Cool Comes With:
- KSIE018-H220-IW-2 | Indoor Unit
- KUIR24-H2 | Indoor Unit
- KMIR545-H219-2 | Outdoor Unit
- Outdoor unit is pre-charged with R-410A refrigerant
- Indoor unit mounting plates
- Remote controls with wall mount brackets
- Installation manual
- User’s manual
- Manufacturer warranty
Manufacturer Warranty
- 5 Year Parts
- 7 Years Compressor
Key Specifications
- Klimaire
- 1000 + 1500
- 208-230 V; 1 Phase; 60 Hz
- 5 Year Parts; 7 Year Compressor
- Wall Mounted
- 2
- 21.1
- 36,500
- 37,500
- Ductless MiniSplit Multizones
- KSIE018-H220-IW-2
- KUIR24-H2
Bundle includes 3 items
5-Zone Klimaire KMIR545-H219-2 Outdoor Heat Pump Unit - up to 21.1 SEER
Model Number: KMIR545-H219-2 SKU: KMR50082
18,000 BTU Klimaire KSIE018-H220-IW-2 Mini-split Wall Mount Fan Coil Unit 220V
Model Number: KSIE018-H220-IW-2 SKU: KEI180033
24,000 BTU Floor-Ceiling Fan Coil Unit
Model Number: KUIR24-H2 SKU: HCKPI2053System Specifications
| Coverage (Sq/Ft), Each Indoor Model | 1000 + 1500 |
|---|---|
| Certifications | AHRI Performance Certified 210/240; ETL |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Manufacturer Limited Warranty (years) | 5 Year Parts; 7 Year Compressor |
| Maximum Indoor Units | 2 |
| Mounting Type | Wall Mounted |
| Mounting Type | Floor Mounted / Ceiling Suspended |
| Number of Zones (Rooms) | 2 |
| Must ship freight | Yes |
| Number of Zones | 2 Zones |
| Refrigerant | R-410A |
| Efficiency (SEER) | 21.1 |
| Shipping Cost | 445 |
| Shipping Time | 24 to 72 hours |
| Room 2: Mount Type | Ceiling Suspended |
| System Cooling Capacity (BTU) | 36,500 |
| System Heating Capacity | 37,500 |
| System Type (Selector) | Ductless MiniSplit Multizones |
| Technology | Inverter |
| Voltage | 208/230 Volt |
| Indoor 1: Model Number | KSIE018-H220-IW-2 |
| Indoor 2: Model Number | KUIR24-H2 |
Specifications for model: KSIE018-H220-IW-2
| Mounting Style | Wall Mounted |
|---|---|
| Airflow Rate (Hi/Mi/Lo) cfm | 559/365/306 |
| Indoor Unit Sound Level dB(A) (Hi/Mi/Lo) | 45.5/-/34.5 |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 1/2 |
| Drain Line Size (In) | |
| Application Area (Sqft) | 1,000 |
| Indoor Air Quality Type | High density washable air filter and Cold catalyst filter |
| Net/Gross weight (Lb) | 29.1/37.0 |
| Width / Depth / Height (In) | 42.52x8.90x13.19 |
| Packaged Width / Depth / Height (In) | 45.47x16.34x12.40 |
Specifications for model: KUIR24-H2
| Brand | Klimaire |
|---|---|
| Model Number | KUIR24-H2 |
| Type | Fan Coil Unit |
| Unit Type (Selector) | Floor Ceiling |
| Mounting Style | Ceiling Suspended |
| Mounting Type | Floor Mounted / Ceiling Suspended |
| Cooling Capacity Btu | 24,000 |
| Heating Capacity (BTU) | 24,000 |
| HSPF (Heating Seasonal Performance Factor) | 10.4 |
| EER (Energy Efficiency Ratio) | 11.6 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Voltage | 208/230 Volt |
| Manufacturer Limited Warranty (Years) | 1 Year Parts; 5 Year Compressor |
| Ambient Temperature Cooling Range | 62～90 °F |
| Ambient Temperature Heating Range | 32～86 °F |
| Certifications | ETL; AHRI Performance Certified 210/240 |
| Noise Level (Dba) | 53/48/42 dB(A) |
| Liquid Line Size | 3/8 inches |
| Suction Line Size | 5/8 inches |
| Weight | 69.2 lbs |
| Depth | 26.57 |
| Height | 9.25 |
| Width | 42.05 |
| Temperature | 62～86 °F |
| Shipping Cost | 200 |
| Rpm | 1350/1260/1120 rpm |
| Technology | Inverter |
| Temperature Indoor Air Flow | 759/708/598 cfm |
Specifications for model: KMIR545-H219-2
| Compressor Type | Rotary |
|---|---|
| Sound Level | 64 |
| Minimum Circuit Ampacity (MCA) | 35 |
| Maximum Overcurrent protection (MOP) | 50 |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 3x3/8 + 2x1/2 |
| Operation Mode | null |
| Net/Gross Weight (Lb) | 223.77/255.07 |
| Width/Depth/Height (In) | 37.48x16.34x52.48 |
| Packaged Width/Depth/Height (In) | 43.11x19.49x58.27 |
| Refrigerant | R410A/162.3 |
