KUIR18-H2 | Indoor Unit / KUIR24-H2 | Indoor Unit
Extremely quiet operation and rugged construction make the KUIR 220-volt fan coil unit by Klimaire ideal for heavy traffic and public areas. It arrives pre-vacuumed and can be installed on the ceiling, low on a wall or on the floor. Includes slide out washable air filter and wireless remote control. Choose from cooling, fan and dehumidification modes. Features 24-hour timer, sleep mode and auto restart.
Directional air flow: Using the included remote control, manually adjust the airflow direction or set the unit to auto swing. This ensures that your commercial space is cooled evenly and prevents a continuous blast of cold air in one direction. This is especially important in commercial applications such as hydroponic indoor gardens or restaurants, both of which are ideally suited for commercial mini-split air conditioner systems.
- Adjustable airflow with wireless LED remote
- Auto swing louvers
- Auto restart after power failure

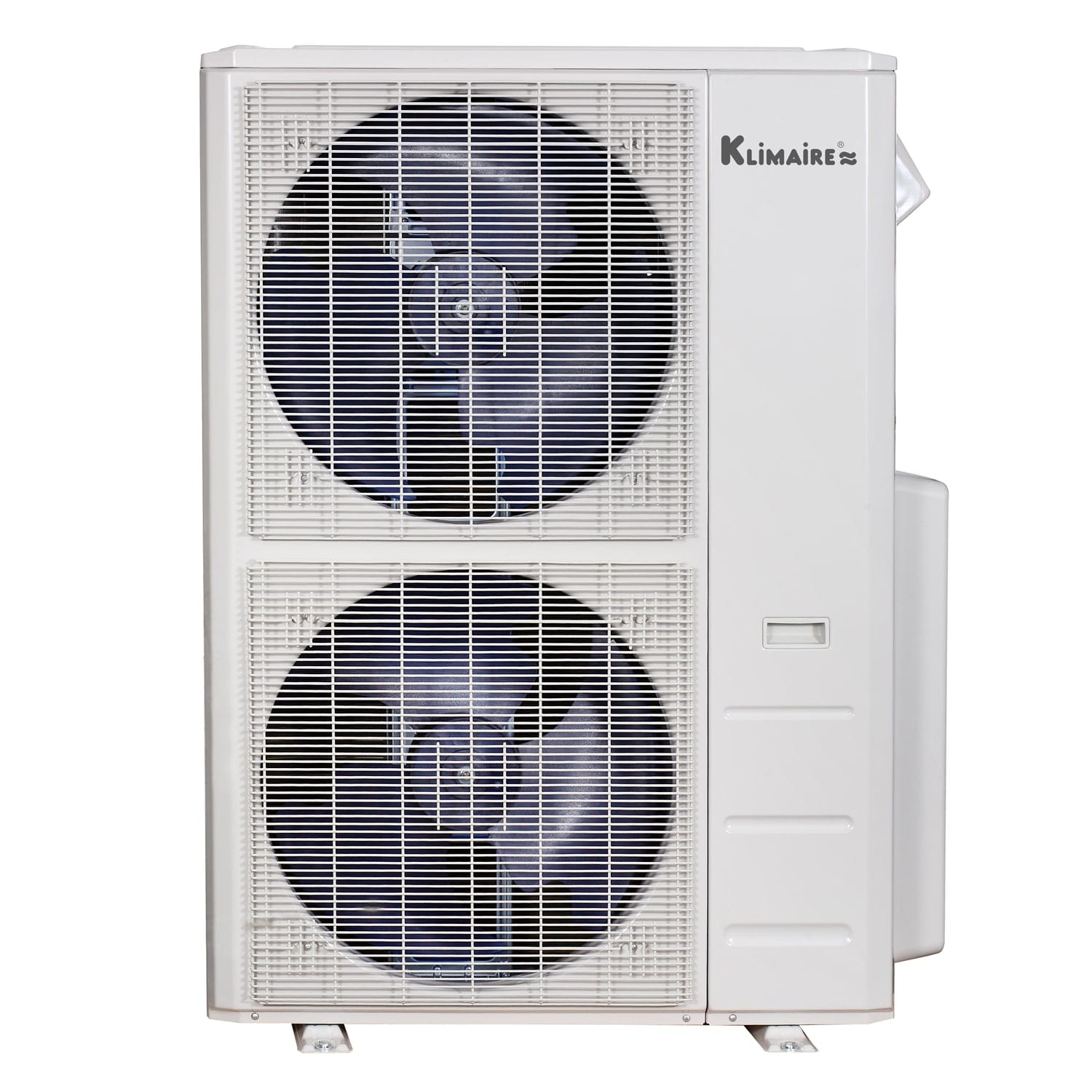

KMIR545-H219-2 | Outdoor Unit
Klimaire's new KMIR545-H219-2 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.
- Specially-designed for quiet operation
- Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off
- Small footprint fits most yards or easily mounts to a wall with bracket (sold separately)
- SEER2: 22.1
- EER2: 13.9
- HSPF2: 10.5
Applications
- Room additions
- Renovations
- Family rooms
- Sunrooms
- Wine cellars
- Garages/workshops
WHAT’S INCLUDED
Your Klimaire Ductless Three-Zone System from Heat & Cool Comes With:
- KUIR18-H2 | Indoor Unit
- KUIR24-H2 | Indoor Unit
- KMIR545-H219-2 | Outdoor Unit
- Outdoor unit is pre-charged with R-410A refrigerant
- Indoor unit mounting plates
- Remote controls with wall mount brackets
- Installation manual
- User’s manual
- Manufacturer warranty
Manufacturer Warranty
- 1 year parts limited warranty
- 5 years compressor limited warranty
Key Specifications
- Klimaire
- 1000 + 1500
- 208-230 V; 1 Phase; 60 Hz
- 1 Year Parts; 5 Year Compressor
- 2
- 21.1
- 2 Zones
- 36500 BTU
- 37500 BTU
- Air Conditioners
- Ductless Multizone Systems
- 208/230 Volt
- KUIR18-H2
- KUIR24-H2
Bundle includes 3 items
5-Zone Klimaire KMIR545-H219-2 Outdoor Heat Pump Unit - up to 21.1 SEER
Model Number: KMIR545-H219-2 SKU: KMR50082
18000 Btu FLOOR CEILING FAN COIL UNIT KUIR18-H2
Model Number: KUIR18-H2 SKU: HCKPI2490
System Specifications
| Coverage (Sq/Ft), Each Indoor Model | 1000 + 1500 |
|---|---|
| Certifications | AHRI Performance Certified 210/240; ETL |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Manufacturer Limited Warranty (years) | 1 Year Parts; 5 Year Compressor |
| Maximum Indoor Units | 2 |
| Number of Zones (Rooms) | 2 |
| Must ship freight | Yes |
| Refrigerant | R-410A |
| Efficiency (SEER) | 21.1 |
| Shipping Cost | 445 |
| Shipping Time | 24 to 72 hours |
| Room 2: Mount Type | Ceiling Suspended |
| Sub System Type (Selector) | 2 Zones |
| System Cooling Capacity (BTU) | 36500 BTU |
| System Heating Capacity | 37500 BTU |
| System Type (Selector) | Air Conditioners |
| System Type (Selector) | Ductless Multizone Systems |
| Technology | Inverter |
| Voltage | 208/230 Volt |
| Indoor 1: Model Number | KUIR18-H2 |
| Indoor 2: Model Number | KUIR24-H2 |
Specifications for model: KUIR18-H2
| Certifications | ETL; AHRI Performance Certified 210/240 |
|---|---|
| Depth | 26.57 |
| EER (Energy Efficiency Ratio) | 11.6 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Height | 9.25 |
| HSPF (Heating Seasonal Performance Factor) | 10.4 |
