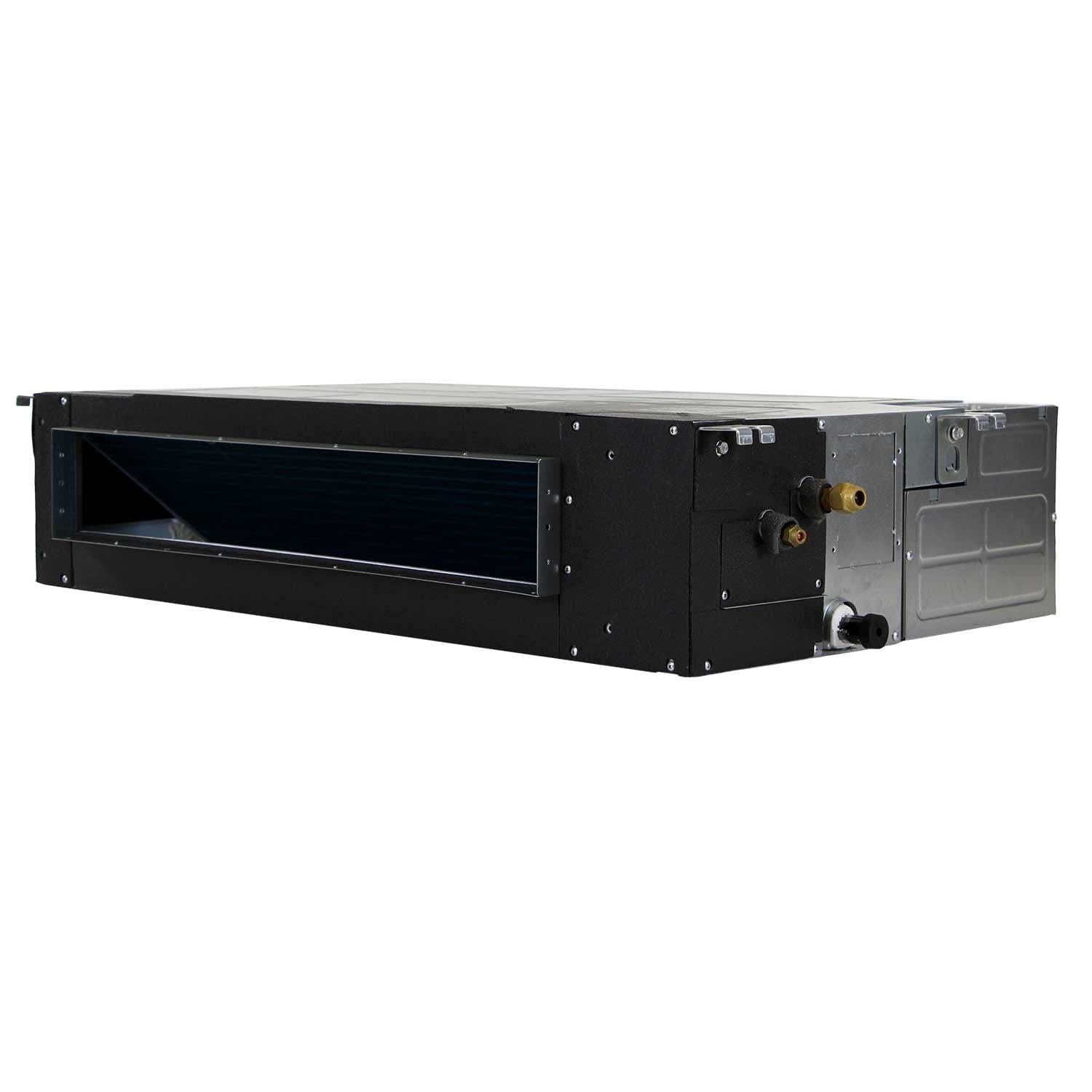

KDIP12-H2 + KDIP24-H2 | Indoor Unit
Simple duct connections to this recessed ceiling unit allows you to combine 2 rooms into one zone. Each 18,000 BTU unit offers capacity for up to 1000 square feet. Add a duct and spread the cooling capacity across a bathroom and bedroom combination in a residential application or foyer and office shared use in a commercial layout. At only 9 inches high, the unit fits easily in a drop ceiling or attic space.
- Choice of back or bottom air return
- Slim, hideaway profile
- Anti-cold blast function prevents cold air flow at start of heat cycle

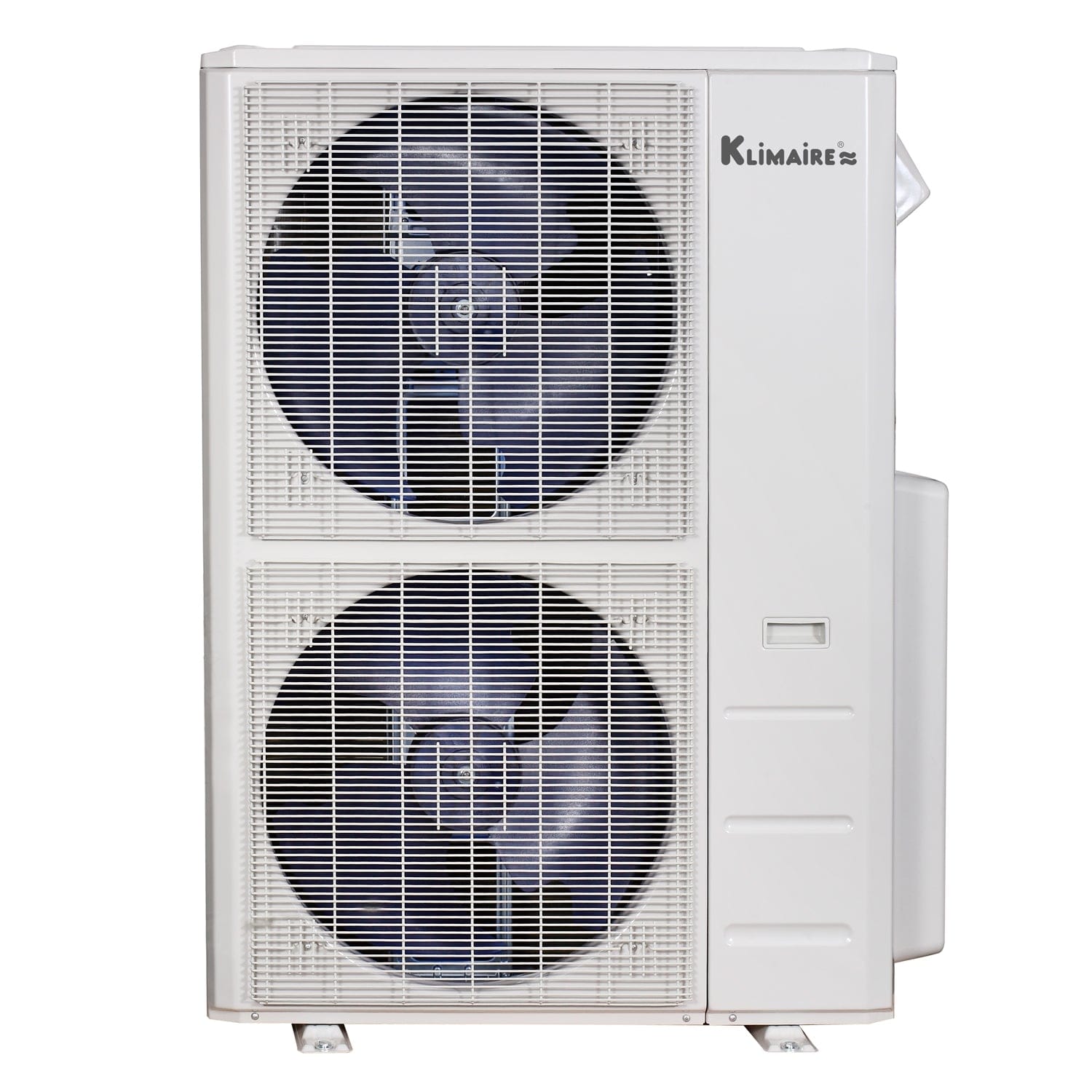

KMIR545-H219-2 | Outdoor Unit
Klimaire's new KMIR545-H219-2 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.
- Specially-designed for quiet operation
- Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off
- Small footprint fits most yards or easily mounts to a wall with bracket (sold separately)
Improved Performance
- SEER2: 20.5
- EER2: 10.8
- HSPF2: 9.7
Applications
- Room additions
- Renovations
- Family rooms
- Sunrooms
- Wine cellars
- Garages/workshops
WHAT’S INCLUDED

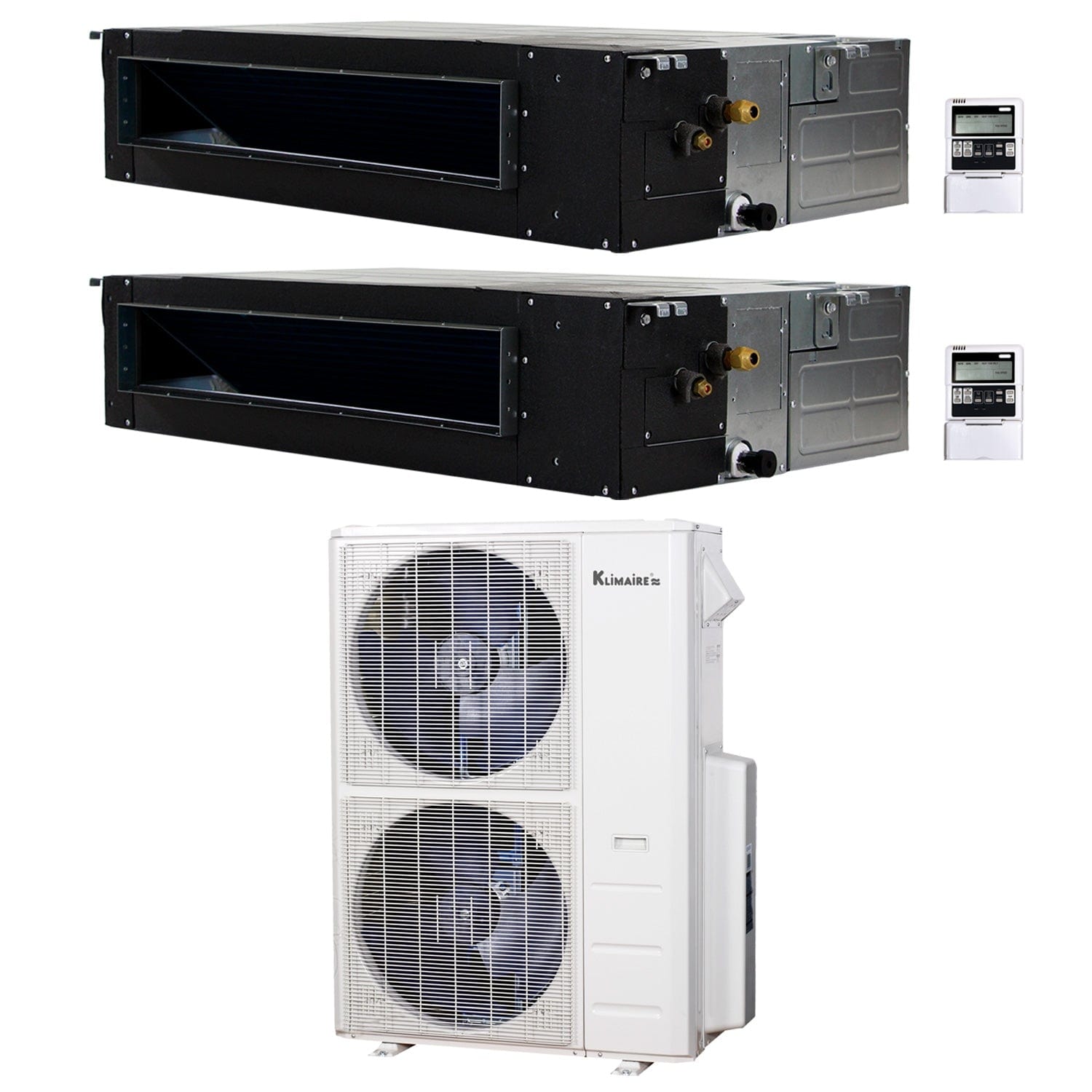

Your Klimaire Ductless Three-Zone System from Heat & Cool Comes With:
- KDIP12-H2 | Indoor Unit
- KDIP24-H2 | Indoor Unit
- KMIR545-H219-2 | Outdoor Unit
- Outdoor unit is pre-charged with R-410A refrigerant
- Indoor unit mounting plates

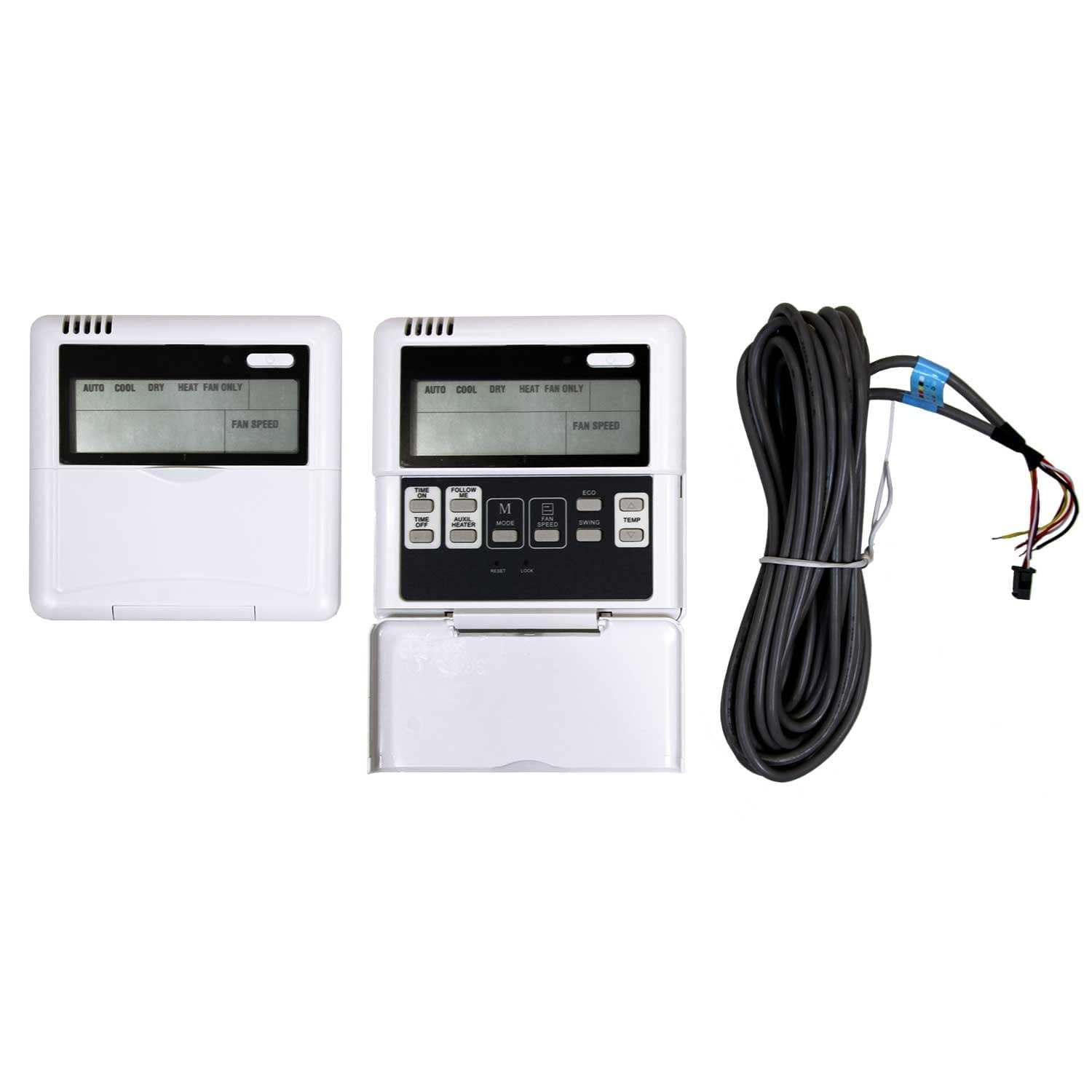

- Remote controls with wall mount brackets
- Installation manual
- User’s manual
- Manufacturer warranty
Manufacturer Warranty
- 5 Year Parts
- 7 Years Compressor
Downloads
Key Specifications
- Klimaire
- 1000 + 1500
- 208-230 V; 1 Phase; 60 Hz
- 5 Year Parts; 7 Year Compressor
- 2
- 20.5
- 31,500
- 32,500
- Ductless MiniSplit Multizones
- KDIP12-H2
- KDIP24-H2
Bundle includes 3 items
5-Zone Klimaire KMIR545-H219-2 Outdoor Heat Pump Unit - up to 21.1 SEER
Model Number: KMIR545-H219-2 SKU: KMR50082
12000 Btu Ducted Recessed Fan Coils - 208-230V KDIP12-H2
Model Number: KDIP12-H2 SKU: HCKPI1983
24000 Btu Ducted Recessed Fan Coils - 208-230V KDIP24-H2
Model Number: KDIP24-H2 SKU: HCKPI1985System Specifications
| Coverage (Sq/Ft), Each Indoor Model | 1000 + 1500 |
|---|---|
| Certifications | AHRI Performance Certified 210/240; ETL |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Manufacturer Limited Warranty (years) | 5 Year Parts; 7 Year Compressor |
| Maximum Indoor Units | 2 |
| Mounting Type | Ducted Recessed |
| Number of Zones (Rooms) | 2 |
| Must ship freight | Yes |
| Number of Zones | 2 Zones |
| Refrigerant | R-410A |
| Efficiency (SEER) | 20.5 |
| Shipping Cost | 445 |
| Shipping Time | 24 to 72 hours |
| Room 2: Mount Type | Ducted Recessed |
| System Cooling Capacity (BTU) | 31,500 |
| System Heating Capacity | 32,500 |
| System Type (Selector) | Ductless MiniSplit Multizones |
| Technology | Inverter |
| Voltage | 208/230 Volt |
| Indoor 1: Model Number | KDIP12-H2 |
| Indoor 2: Model Number | KDIP24-H2 |
Specifications for model: KDIP12-H2
| Mounting Type | Ducted Recessed |
|---|---|
| Shipping Cost | 60 |
| Unit Type (Selector) | Ducted Recessed |
Specifications for model: KDIP24-H2
| Brand | Klimaire |
|---|---|
| Model Number | KDIP24-H2 |
| Purifiers Air Type | Electronic & HEPA |
| Type | Ducted Recessed |
| Unit Type (Selector) | Ducted Recessed |
| Mounting Type | Ducted Recessed |
| Capacity | 24400 |
| Heating Capacity (BTU) | 24,000 |
| Product Shipping Weight | 68.34 lb |
| Depth | 25 |
| Heigh | 10.63 |
| Wide | 36.22 |
Specifications for model: KMIR545-H219-2
| Compressor Type | Rotary |
|---|---|
| Sound Level | 64 |
| Minimum Circuit Ampacity (MCA) | 35 |
| Maximum Overcurrent protection (MOP) | 50 |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 3x3/8 + 2x1/2 |
| Operation Mode | null |
| Net/Gross Weight (Lb) | 223.77/255.07 |
| Width/Depth/Height (In) | 37.48x16.34x52.48 |
| Packaged Width/Depth/Height (In) | 43.11x19.49x58.27 |
| Refrigerant | R410A/162.3 |
