PTSB330E Sub-Base Kit 230/208 V 30 A

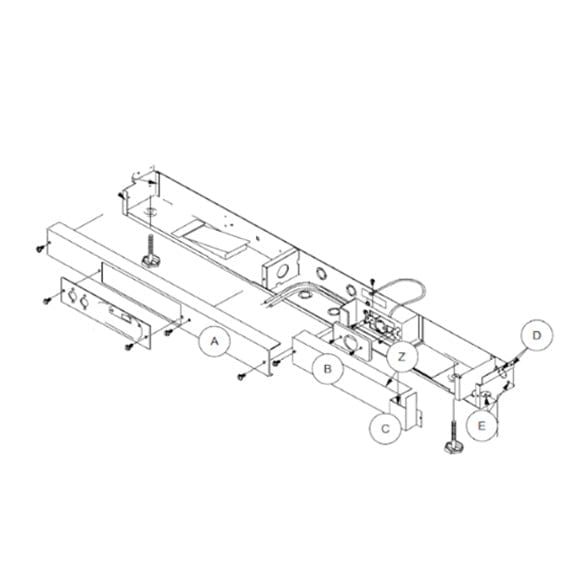

The fully skirted sub-base conceals wiring and provides strong support.
Plug-in receptacle and field-wiring access speed installation.
Electrical accessories meet NEC requirements; can be installed in the unit sub-base.
Sub-base may be installed onto wall sleeve either before or after sleeve installation.
Minimum clearance between wall sleeve bottom and finished floor is 3¾"; maximum height clearance from bottom of wall sleeve and finished floor is 5".
Minimum clearance between wall sleeve flange and finished wall is 2¾".
Key Specifications
- Amana
- Standard
System Specifications
| Must ship freight | Yes |
|---|---|
| Shipping Cost | 65 |
| Shipping Time | 24 to 72 hours |
| Unit Type (Selector) | Standard |
