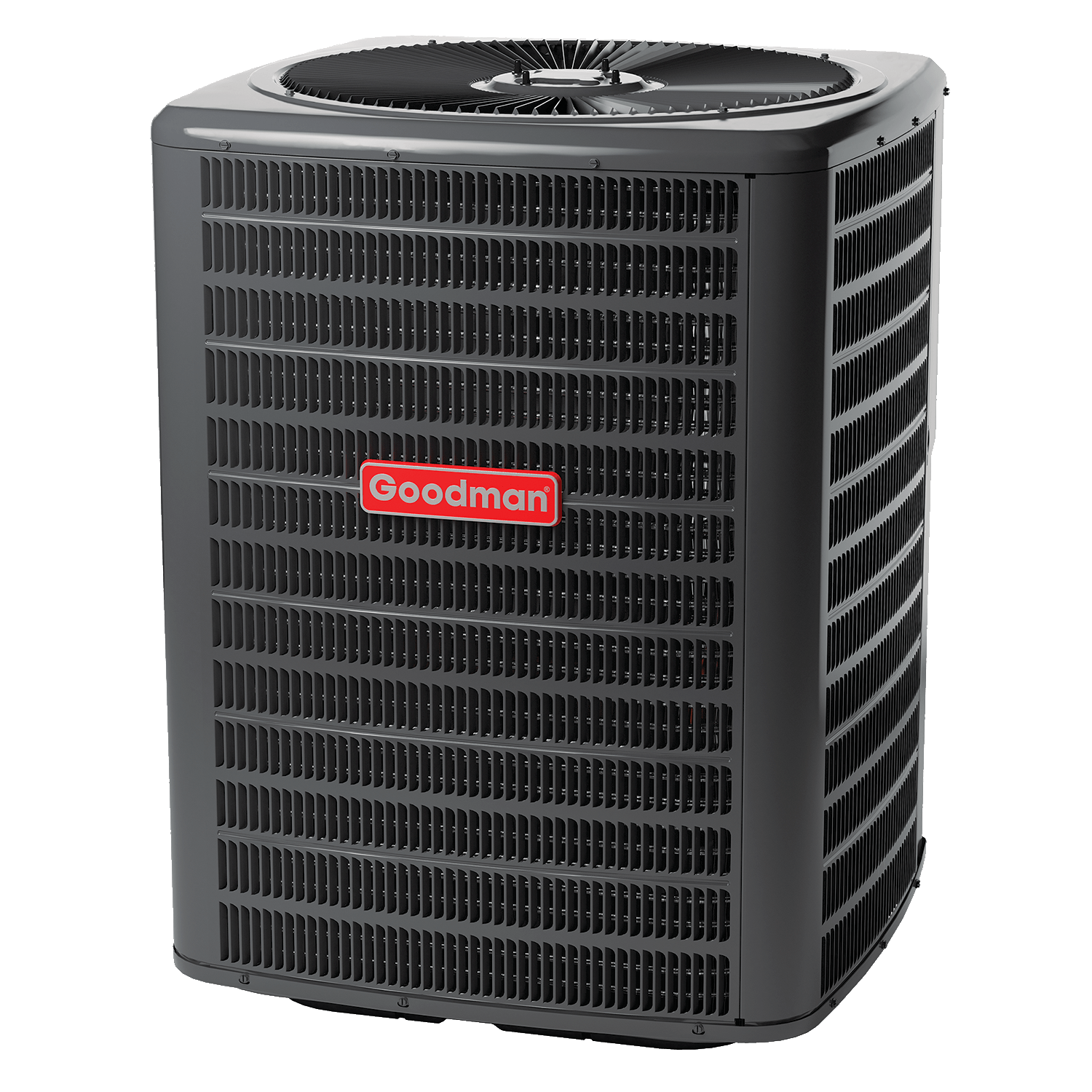

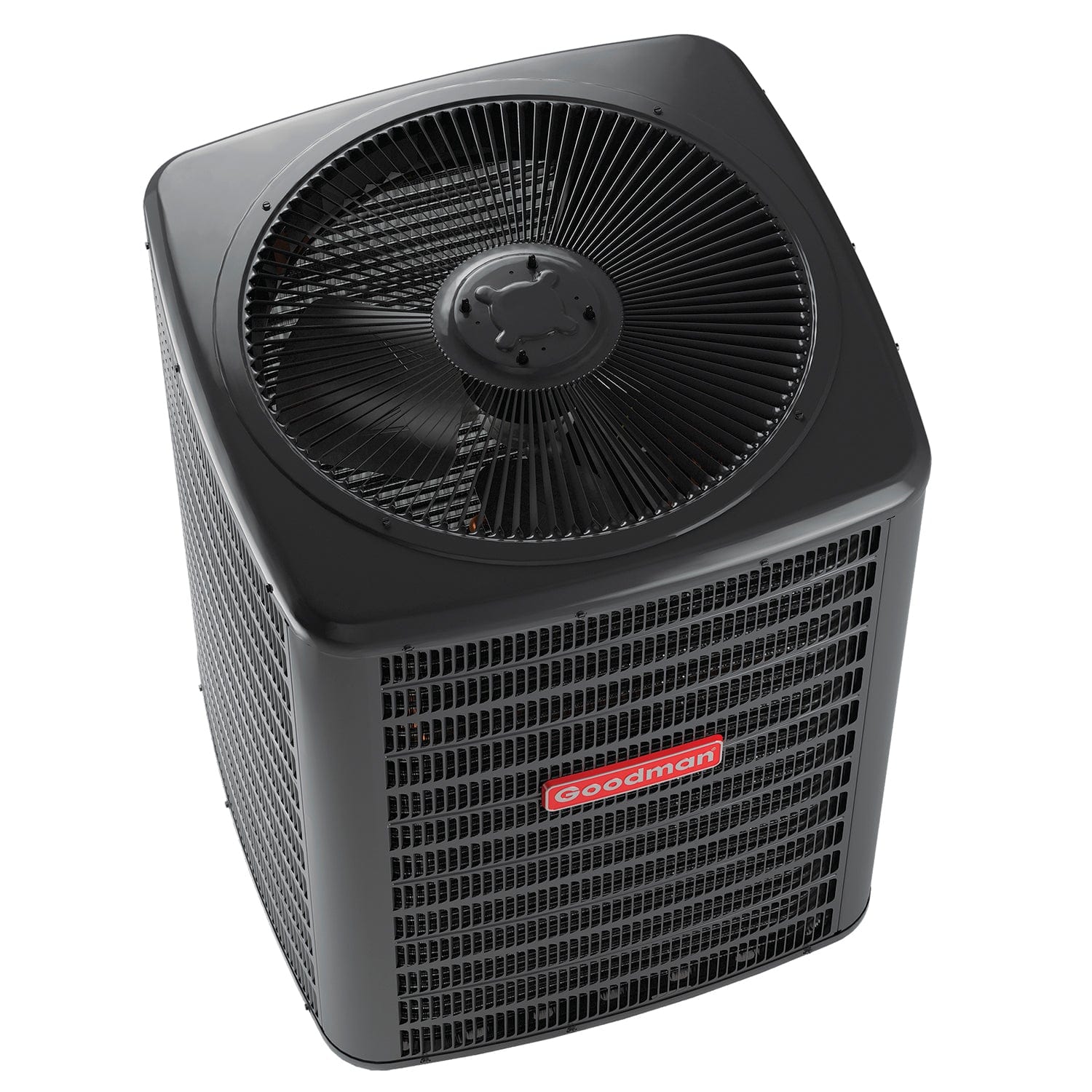

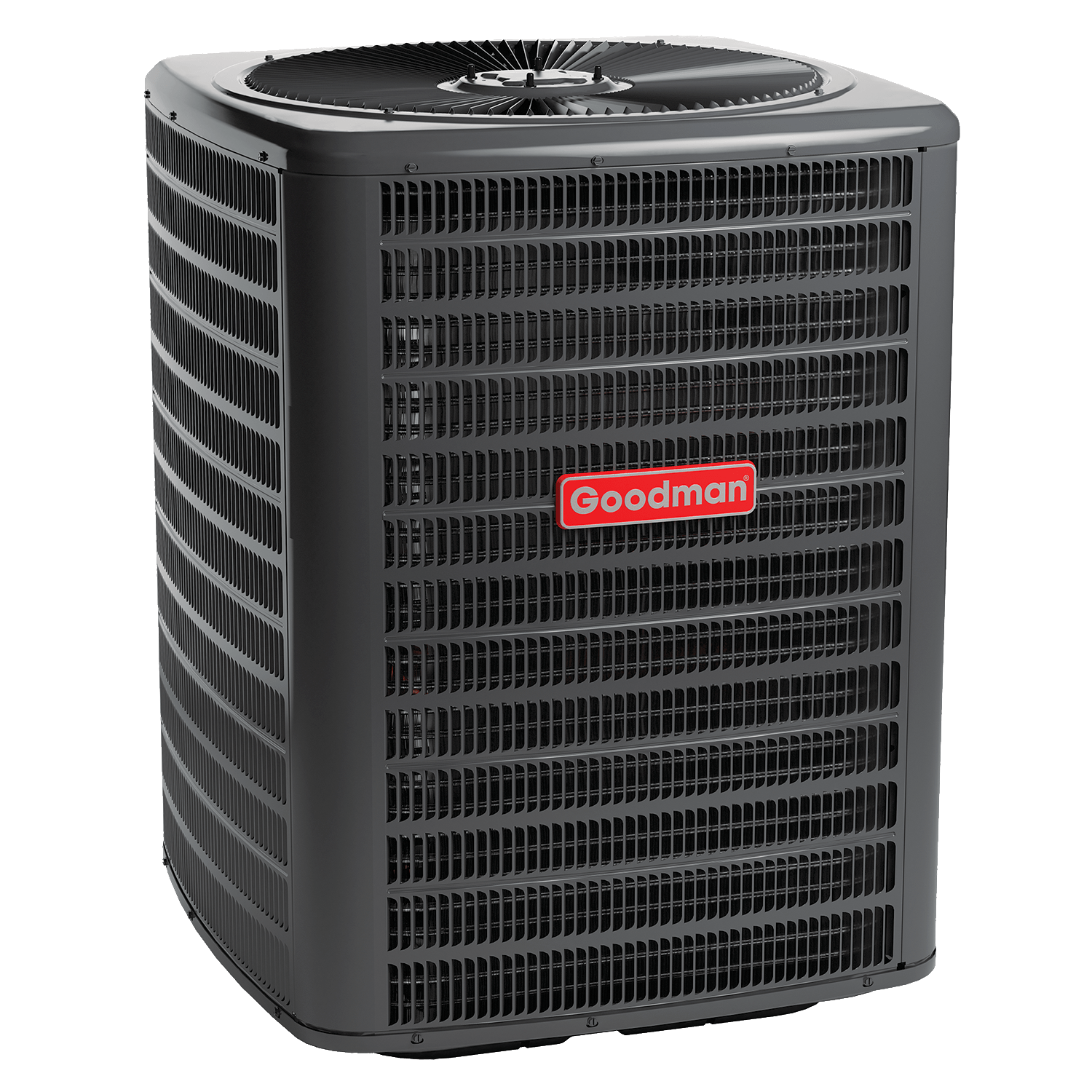

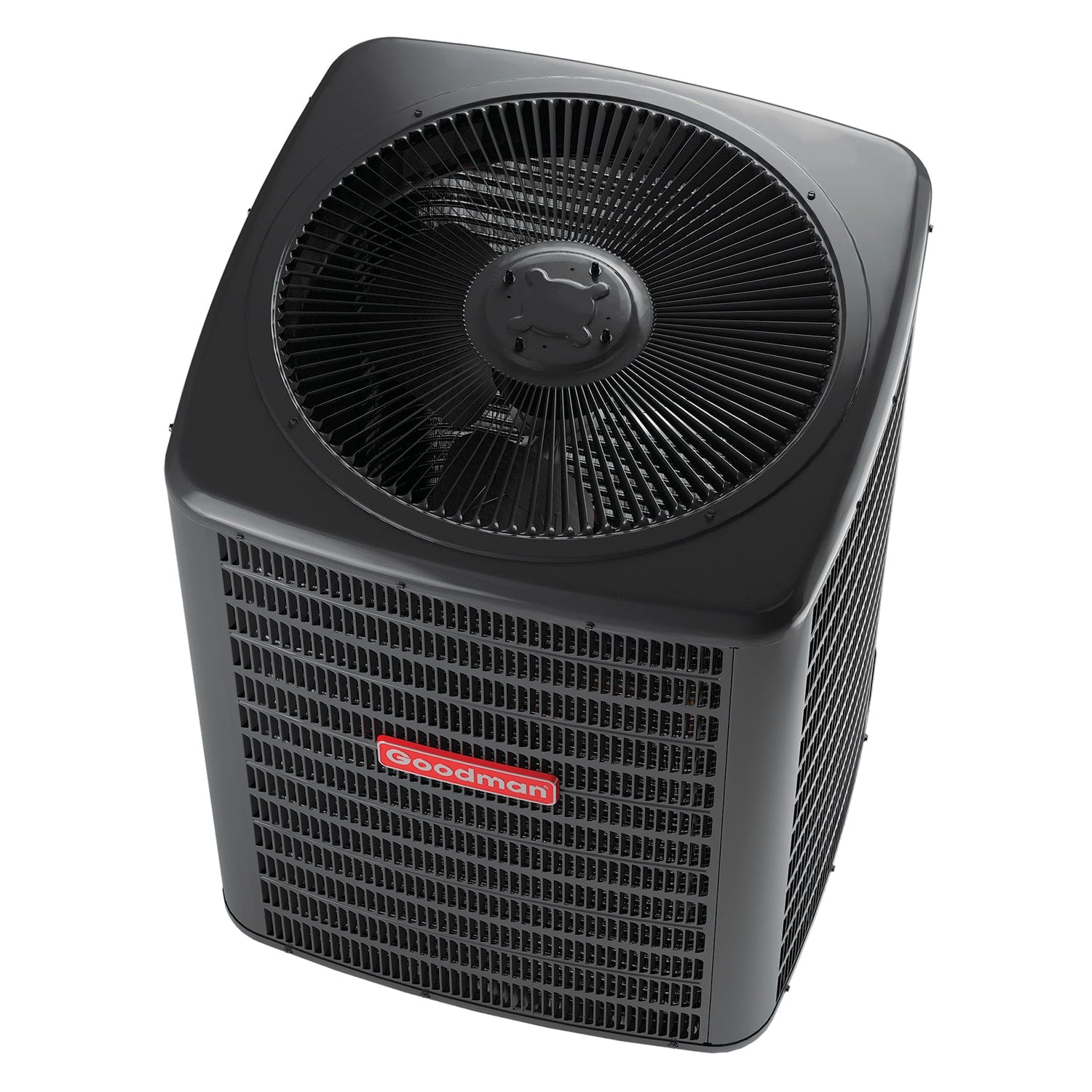

Goodman 18 SEER Energy Star-Certified Outdoor Air Conditioning Condensing Unit
The heart of the 5 Ton GSXC180481 is the high efficiency Copeland® scroll compressor paired with Goodman’s proprietary SMARTCOIL™. Together they maximize thermal heat transfer ability and reduce the amount of refrigerant needed. Additionally sound-dampening features help ensure that your cooling system doesn’t interfere with a good night’s sleep. The near-silent operation is owed to the condenser fan system, which includes a three-bladed fan encased in a heavy-gauge galvanized louvered cabinet with noise suppressing features.
- Save money and resources with SMARTCOIL™ 5mm copper tubing
- Weather resistant, attractive architectural gray finish on outdoor unit
- Pre-charged with chlorine-free R-410A refrigerant
Additional Features
- Wire fan discharge grille
- Service valves with sweat connections and easy-to-access gauge ports
- Brass liquid & suction line valves
- Cabinet when properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type wind (Anchor bracket kits available)
- 500-hour salt-spray approval on architectural gray powder-paint finish
- Contactor with lug connection and ground lug connection
- Energy Star Listed
- AHRI Performance Certified 210/240
- ETL Listed
- ISO Certified
WHAT’S INCLUDED
Your Goodman GSXC180601 Outdoor Condensing Unit from Heat & Cool Comes With:
- GSXC180601 | Outdoor Condensing Unit
- Installation Manual
- User’s Manual
- Manufacturer Warranty
MANUFACTURER WARRANTY
- 10 year parts limited warranty
Key Specifications
- Goodman
- 2
- 35.75 in
- 208-230 V; 1 Phase; 60 Hz
- Yes
- Yes
- 42.25 in
- GSXC180601
- Corded Electric
- 18
- 35.75 in
System Specifications
| Certifications | AHRI Performance Certified 210/240; ETL ; Energy Star; ISO Certified |
|---|---|
| Compressor Stages | 2 |
| Compressor Type | Scroll |
| Depth | 35.75 in |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Energy Star | Yes |
| Energy Star | Yes |
| Expansion Device | TXV |
| Height | 42.25 in |
| Manufacturer Limited Warranty (years) | |
| MCA (Minimum Circuit Ampacity) | 31.4 amps |
| Model Number | GSXC180601 |
| MOP (Maximum Overcurrent Protection-Breaker) | 50 Amp |
| Must ship freight | Yes |
| Power Source | Corded Electric |
| Refrigerant | R-410A |
| Efficiency (SEER) | 18 |
| SEER (Left Filter) | 18+ |
| Shipping Weight | 326 lbs |
| Sound Level | 74 dB |
| Suction Line Size | 1 1/8" |
| Suction Valve Size | 7/8" |
| Weight | 304 lbs |
| Width | 35.75 in |
