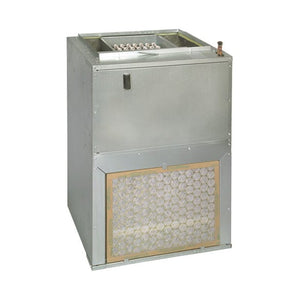

Goodman AWUF180316 Multi-Speed Wall - Mounted Air Handlers
The job of air conditioning isn't just to cool or heat a room. You depend on it for dehumidification, air filtration and essential ventilation. The Goodman Wall-Mount Air Handlers, AWUF air handler surpasses performance standards with notable attributes such as a multi-speed PSC motor, multiple airflow positions, minimal air leakage and grooved aluminium tubes mechanically bonded to aluminium ripple-edged fins for industry leading heat transfer.
The AWUF180316 air handler boasts a direct-drive, multi-speed motor which allows air volume variation for heating and cooling applications.
Additional Features:
- Equipped with a Check Flowrater for cooling-only and heat pump operation
- Direct-drive, multi-speed motors allows air volume variation for heating/cooling
- Multi-speed ECM: AWUF19, 25, 31, 32, 37
- Multi-speed PSC motor: AWUF18, 24, 30, 36
- Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
- Aluminum tubing coils on all models
- Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- Factory-installed pull-type disconnect
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack (filter included)
- Large chassis (2½- and 3-ton units)
Key Specifications
- Goodman
- Multi Speed-PSC
- 36 in
- 20 ¼ in
- Wall mounted
- 10 Year Part Limited Warranty
- 10 years
- Air Handler
- 84 lbs
System Specifications
| Application | Air Conditioner/cooling only |
|---|---|
| Blower Motor | Multi Speed-PSC |
| Cabinet Height | 36 in |
| Cabinet Width | 20 ¼ in |
| Certifications and Listings | AHRI certified; ETL listed |
| Configuration | Wall mounted |
| Drain Line | 3/4" |
| Electrical | 208-240 V; 1 Phase |
| Expansion Device | Flowrater |
| Handling Cost | 15 |
| Installation Type | Wall Mount |
| Liquid Line Size | 3/8" |
| Manufacturer Limited Warranty (text) | 10 Year Part Limited Warranty |
| Manufacturer Parts Limited Warranty | 10 years |
| Must ship freight | Yes |
| Type | Air Handler |
| Shipping Cost | 150 |
| Shipping Time | 24 to 72 hours |
| Suction Line Size | 5/8" |
| Unit Type (Selector) | Air Handler |
| Weight | 84 lbs |
