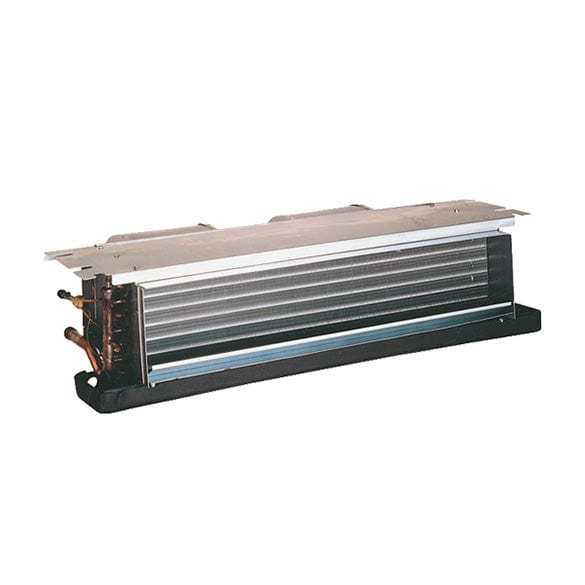

Goodman ACNF240616 Multi-Speed Ceiling-Mount Air Handlers
The job of air conditioning isn't just to cool or heat a room. You depend on it for dehumidification, air filtration and essential ventilation. The Goodman Ceiling-Mount Air Handlers, ACNF240616 air handler surpasses performance standards with notable attributes such as a multi-speed PSC motor, multiple airflow positions, minimal air leakage and grooved aluminium tubes mechanically bonded to aluminium ripple-edged fins for industry leading heat transfer.
The ACNF240616 air handler boasts a direct-drive, multi-speed motor which allows air volume variation for heating and cooling applications.
Additional Features:
- All-aluminium evaporator coil
- Multi-speed motor
- Multiple airflow positions
- Check flowrater for heat pump and cooling-only applications
- All-Aluminium tube/aluminium fin coil
- Direct-drive, resilient-mount, multi-speed motor
- Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
- High-efficiency evaporator coil
- Quiet operation
- Models with EEM motor: ACNF25 & ACNF31
- Models with PSC motors: ACNF18, ACNF24 & ACNF30
- Available with and without heat
- Primary/secondary drain connection in a high-temperature plastic drain pan
- Suitable for free-return installation (non-ducted return air)
- Galvanized-steel construction
- Factory-installed pull-type disconnect
- Easy service access
- AHRI certified
- ETL listed
WHAT'S INCLUDED
Your Goodman 2 Ton Ceiling-Mount Multi-Speed Air Handler from Heat & Cool Comes With:
- ACNF240616 Air Handler
- User’s Manual
- Installation Manual
- Manufacturer Warranty
MANUFACTURER WARRANTY
10-year parts limited warranty
Key Specifications
- Goodman
- Multi Speed-PSC
- 21 in
- 10 in
- 43 ¼ in
- Ceiling mounted
- 10 Year Part Limited Warranty
- 10 years
- Air Handler
- 69 lbs
System Specifications
| Application | Air Conditioner/cooling only |
|---|---|
| Blower Motor | Multi Speed-PSC |
| Cabinet Depth | 21 in |
| Cabinet Height | 10 in |
| Cabinet Width | 43 ¼ in |
| Certifications and Listings | AHRI certified; ETL listed |
| Configuration | Ceiling mounted |
| Drain Line | 3/4" |
| Electrical | 208-240 V; 1 Phase |
| Expansion Device | Flowrater |
| Handling Cost | 15 |
| Installation Type | Ceiling Mount |
| Liquid Line Size | 3/8" |
| Manufacturer Limited Warranty (text) | 10 Year Part Limited Warranty |
| Manufacturer Parts Limited Warranty | 10 years |
| Must ship freight | Yes |
| Type | Air Handler |
| Shipping Cost | 150 |
| Shipping Time | 24 to 72 hours |
| Suction Line Size | 3/4" |
| Unit Type (Selector) | Air Handler |
| Weight | 69 lbs |
