KSIE009-H221-IW | Indoor Unit
KSIE012-H220-IW | Indoor Unit

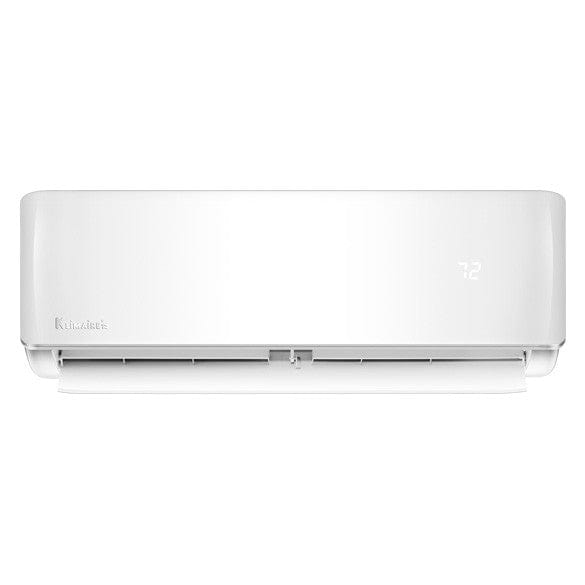

Don’t let the simple, clean lines of the elegantly-styled KSIE indoor wall-mounted unit fool you. It is jam-packed with high-tech features. With the Follow “Feeling” function activated, the temperature sensor “moves” from the wall unit to the remote control. The sensor then directs the mini-split to adjust heating and cooling based on the temperature immediately surrounding anyone carrying the remote.
Also enjoy 12 fan speeds, along with heating, cooling, dedicated dehumidification, turbo function and sleep mode. Auto clean function cleans and dries the evaporator to prevent mildew growth and maintain healthy indoor air quality. The new Home Away freeze protection feature maintains the room at 46º F when you are away for an extended period during the heating season.

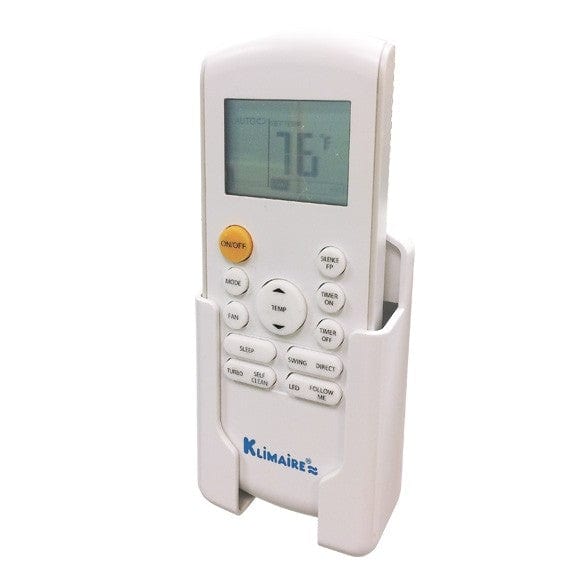

The remote control allows for manual operation of the unit when necessary. With the new “Quick-Hook Design,” the fan coil hangs on the wall easier and faster. An additional gap for pipe installation as well as right to left adjustments add to installation simplicity.
- 3D air flow technology distributes the air evenly throughout the room.
- 24 hour timer and memory function
- Turbo mode for fast heating & cooling
KUIR18-H2 | Indoor Unit

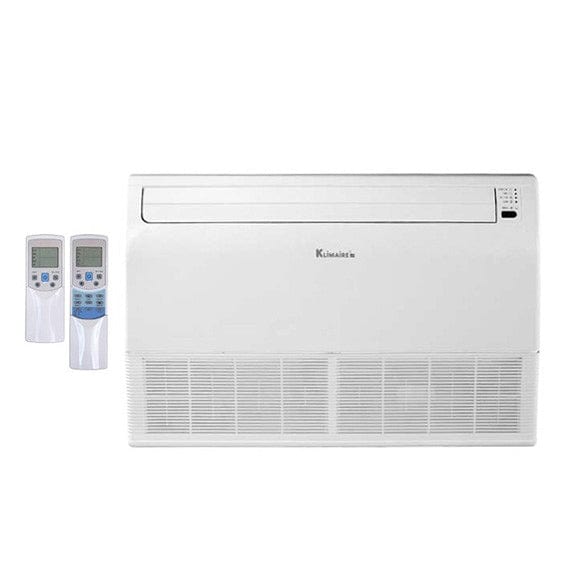

The KUIM unique decorative and versatile design allows the unit to be suspended from the ceiling or placed low on the wall or simply placed on the floor. Extremely quiet, and rugged construction makes it ideal for areas of heavy traffic and public areas.
- Attractive, modern design
- Exceptionally quiet operation
- Turbo mode

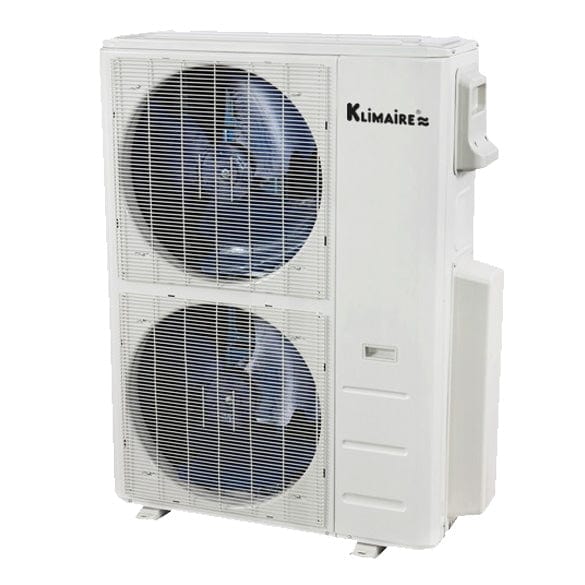

KMIR545-H219 | Outdoor Unit
Klimaire's new KMIR545-H219 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.
- Specially-designed for quiet operation
- Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off
- Small footprint fits most yards or easily mounts to a wall with bracket (sold separately)
Applications
- Room additions
- Renovations
- Family rooms
- Sunrooms
- Wine cellars
- Garages/workshops
WHAT’S INCLUDED

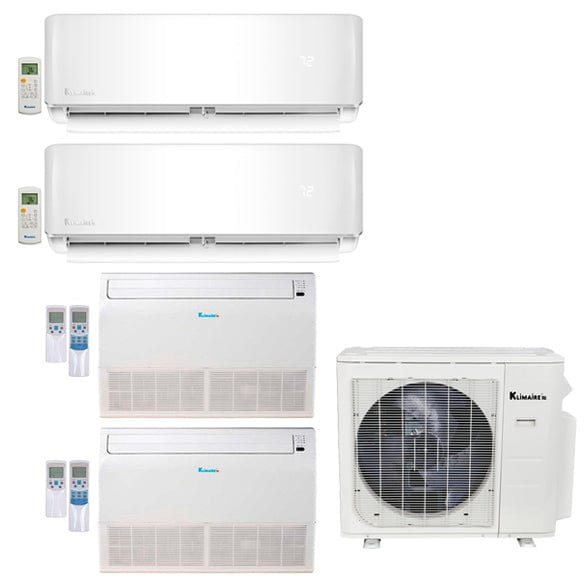

Your Klimaire Ductless Three-Zone System from Heat & Cool Comes With:
- KSIE009-H221-IW | Indoor Unit x 1
- KSIE012-H220-IW | Indoor Unit x 1
- KUIR018-H2 | Indoor Unit x 2
- KMIR545-H219 | Outdoor Unit
- Outdoor unit is pre-charged with R-410A refrigerant
- Indoor unit mounting plates
- Remote controls with wall mount brackets
- Installation manual
- User’s manual
- Manufacturer warranty
Manufacturer Warranty
- 1 year parts limited warranty
- 5 years compressor limited warranty
Downloads
- KUIM SERIES - TECHNICAL SPECIFICATIONS
- KUIM SERIES - INSTALLATION MANUAL
- KSIE SERIES - INSTALLATION MANUAL
- KMIR545-H219 - Energy Guide
- KMIR545-H219 W - Non-Ducted Units AHRI Certificate
- KMIR SERIES - INSTALLATION MANUAL
- KMIR SERIES - TECHNICAL SPECIFICATIONS
- KMIR SERIES - SERVICE MANUAL
- KSIE SERIES - TECHNICAL SPECIFICATIONS
- KSIE SERIES - REMOTE CONTROL
- KLIMAIRE MULTIZONE SERIES - INSTALLATION MANUAL
- KLIMAIRE MULTIZONE SERIES - BROCHURE
Key Specifications
- Klimaire
- 48,000
- 208-230 V; 1 Phase; 60 Hz
- 1 Year Parts; 5 Year Compressor
- KMIR545-H219
- 4
- 21.5
- 48,000
- 48,000
- Standard
- 208/230 Volt
- KSIE009-H221-IW
- KSIE012-H220-IW
- KUIR018-H2
- KUIR018-H2
Bundle includes 5 items
5 Zone Outdoor Dc Inverter Heat Pump -21 Seer - 208-230v/1/60
Model Number: KMIR545-H219 SKU: HCKPI1691
12,000 BTU Klimaire Mini-Split Wall Mount WiFi Enabled Fan Coil Unit - 220V
Model Number: KSIE012-H220-IW SKU: HCKPI1826
9,000 BTU Klimaire Mini-Split Wall Mount WiFi Enabled Fan Coil Unit - 220V
Model Number: KSIE009-H221-IW SKU: HCKPI1823
18000 Btu FLOOR CEILING FAN COIL UNIT KUIR18-H2
Model Number: KUIR18-H2 SKU: HCKPI2490
18000 Btu FLOOR CEILING FAN COIL UNIT KUIR18-H2
Model Number: KUIR18-H2 SKU: HCKPI2490System Specifications
| Certifications | ETL; AHRI Performance Certified 210/240 |
|---|---|
| Cooling Capacity (BTU) | 48,000 |
| EER (Energy Efficiency Ratio) | 11.6 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| HSPF (Heating Seasonal Performance Factor) | 10.4 |
| Installation Kit (Included) | Yes |
| Manufacturer Limited Warranty (years) | 1 Year Parts; 5 Year Compressor |
| Maximum Fuse Size | 50 amps |
| Maximum Indoor Units | 5 |
| Outdoor Model Number | KMIR545-H219 |
| Number of Zones (Rooms) | 4 |
| Must ship freight | Yes |
| Refrigerant | R-410A |
| Efficiency (SEER) | 21.5 |
| SEER (Left Filter) | 21+ |
| Shipping Time | 24 to 72 hours |
| System Cooling Capacity (BTU) | 48,000 |
| System Heating Capacity | 48,000 |
| Technology | Inverter |
| Unit Type (Selector) | Standard |
| Voltage | 208/230 Volt |
| Indoor 1: Model Number | KSIE009-H221-IW |
