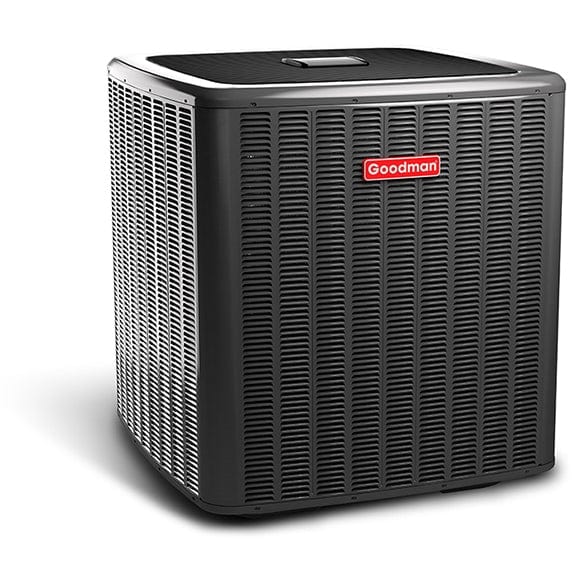

GSZC180481 | Outdoor Unit
The Goodman GSZC18 two-stage heat pumps series packs a lot of power and precision. These heat pumps are designed to consume less energy with fewer moving parts. The compressor uses chlorine-free R-410A refrigerant to provide home owners with years of reliable cooling comfort.
CHPF4860D6 Cased Coil | Indoor Unit
Goodman’s SMARTCOIL™ all-aluminum evaporator coil is constructed with thick-walled aluminum tubing, corrugated fins and panels for a single metal solution for outstanding, time-tested, heat transfer performance properties. It’s painted architectural gray and features a leather grain embossed finish. Cased coil for horizontal applications. Easy access owed to split seam front and 21 1/8” depth. Fits 21” cabinet. Also compatible with split-system air conditioning and heat pump systems.
- Inhibits mildew with low water-retention design
- Cabinet condensation reduced with foil faced insulation
- Copper coil stud for connecting copper liquid suction lines
MBVC2000AA-1A | Blower Motor
Modular Configurations with Upflow, Counterflow and Horizontal Positions to support easy installation of unit regardless of your house type. The MBVC2000AA-1A Blower Motor is compatible with the ComfortNet™ system of communicating control products. With a large assortment of built-in features, your contractor can
easily auto-configure, monitor and review data from the system during
maintenance or servicing needs. This allows for outstanding performance and accurate detection of any systemrelated issue.
- Variable-speed ECM blower motor
- ComfortNet™ Communicating System compatible
- Advanced configuration of the airflow and tonnage in communicating mode
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Fault recall of six most recent faults
- Provides adjustable low CFM for efficient fan-only operation
- Improved humidity and comfort control
- Built-in compatibility with multi-stage heat pump and cooling applications
- 3 kW – 21 kW electric heat kits
- Blower section usable as electric heater
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Cabinet air leakage less than 2% at 1.0 inch H20 when tested in accordance with ASHRE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193
- AHRI certified; ETL listed
Downloads
- GSZC18 SERIES - BROCHURE
- GSZC18 SERIES - INSTALLATIONS MANUAL
- GSZC18 SERIES - MANUFACTURER WARRANTY
- GSZC18 SERIES - SERVICE MANUAL
- GSZC18 SERIES - TECHNICAL SPECIFICATIONS
- MBVC SERIES - INSTALLATION MANUAL
- MBVC BROCHURE
- MBVC SERIES - SERVICE MANUAL
- MBVC SERIES - TECHNICAL MANUAL
- MBVC SERIES - TECHNICAL SPECIFICATIONS
- ACNF/ARUF/ASPT/AVPTC/AWUF/MBVC SERIES - MANUFACTURER WARRANTY
- CAPF/CAPT/CAUF/CHPF/CSCF SERIES - MANUFACTURER WARRANTY
- CAPT/CAPF/CHPF/CAUF/CSCF SERIES - BROCHURE
- CAUF/CAPF/CAPT/CHPF/CSCF SERIES - TECHNICAL SPECIFICATIONS
- CAPF SERIES - INSTALLATION MANUAL
Key Specifications
- Goodman
- Variable Speed ECM
- 47,500
- 13
- 208-230 V; 1 Phase; 60 Hz
- 47,500
- 10 years
- 10 years
- CHPF4860D6
- GSZC180481
- 18
- 208/230 Volt
- 499 lbs

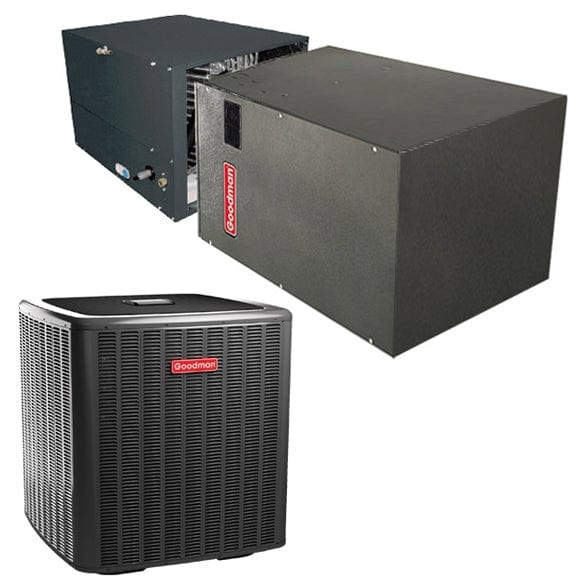

Bundle includes 4 items
4 - 5 Ton Goodman CHPF4860D6 Horizontal Cased Coil Fits 24.5 Inch Cabinet
Model Number: CHPF4860D6 SKU: HCGMC1717

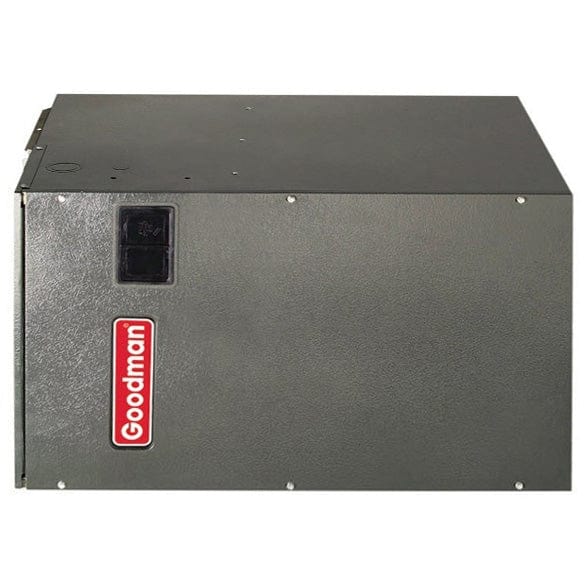

Goodman MBVC2000AA-1A Multi-Position, Variable-Speed ECM-Based Modular Blower
Model Number: MBVC2000AA-1A SKU: HCGMC2429 Open in a new tab

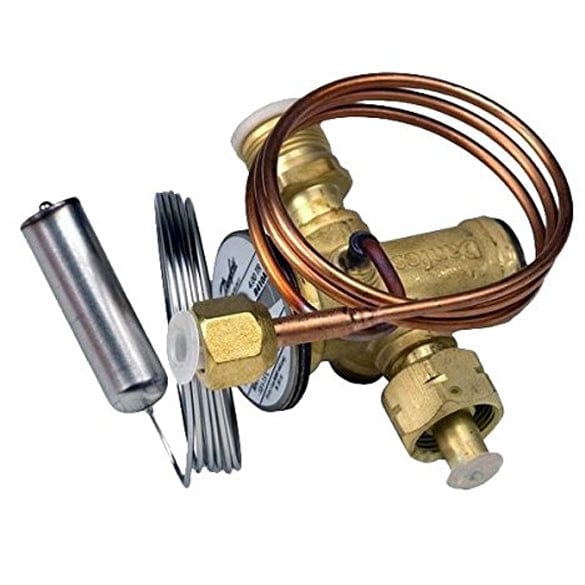

Non-bleed Expansion Valve - 3.5-4 Ton HP Systems
Model Number: TX5N4 SKU: HCGMC1730System Specifications
| Blower Motor | Variable Speed ECM |
|---|---|
| Certifications | Ahri; ETL |
| Cooling Capacity (BTU) | 47,500 |
| EER (Energy Efficiency Ratio) | 13 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Heating Capacity (BTU) | 47,500 |
| Heating Source Type | Heat Pump |
| HSPF (Heating Seasonal Performance Factor) | 9.5 |
| Manufacturer Parts Limited Warranty | 10 years |
| Manufacturer Limited Warranty (years) | 10 years |
| Indoor Model Number | CHPF4860D6 |
| Outdoor Model Number | GSZC180481 |
| Must ship freight | Yes |
| Product Category | Central Heating Systems |
| Efficiency (SEER) | 18 |
| SEER (Left Filter) | 18+ |
| Shipping Cost | 360 |
| Shipping Time | 24 to 72 hours |
| Video Codes | 4qwzk4tqoy |
| Voltage | 208/230 Volt |
| Weight | 499 lbs |
Specifications for model: CHPF4860D6
| Cabinet Height | 24.5 in |
|---|---|
| Coil Configuration | Horizontal |
| Depth | 21.1 in |
| Handling Cost | 15 |
| Height | 24.5 in |
| Installation Type | with Gas Furnace |
| Manufacturer Parts Limited Warranty | 10 |
| Must ship freight | Yes |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Refrigerant | R-410A |
| Shipping Cost | 80 |
| Model Number | CHPF4860D6 |
| Unit Type (Selector) | Standard |
