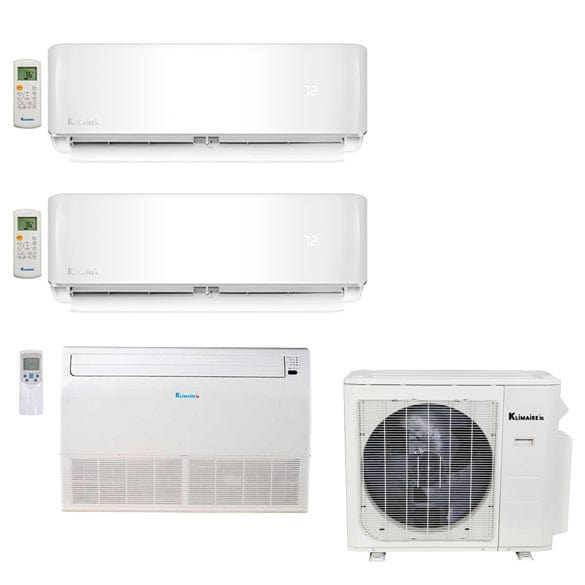

3-Zone Klimaire 22.5 SEER Multi split Air Conditioner Heat Pump System 9+9+18

Model Number: KMIR436-H217 + 2xKSIE009-H221-IW + KUIM018-H2 SKU: HCKPI1944
$3,572.00
$3,572.00
$4,465.00
Sold out
Out of stock

Call for Availability

  • 60-Day Returns
    		•
  • PRICE Match Plus
    		•
  • Free Shipping
    		•
  • Tax-Free Sale*Except Florida
    		•

    Do You Have Questions?

    Accessories

    KSIE009-H221-IW | Indoor Unit x 2

    Don’t let the simple, clean lines of the elegantly-styled KSIE indoor wall-mounted unit fool you. It is jam-packed with high-tech features. With the Follow “Feeling” function activated, the temperature sensor “moves” from the wall unit to the remote control. The sensor then directs the mini-split to adjust heating and cooling based on the temperature immediately surrounding anyone carrying the remote.

    Also enjoy 12 fan speeds, along with heating, cooling, dedicated dehumidification, turbo function and sleep mode.  Auto clean function cleans and dries the evaporator to prevent mildew growth and maintain healthy indoor air quality. The new Home Away freeze protection feature maintains the room at 46º F when you are away for an extended period during the heating season.

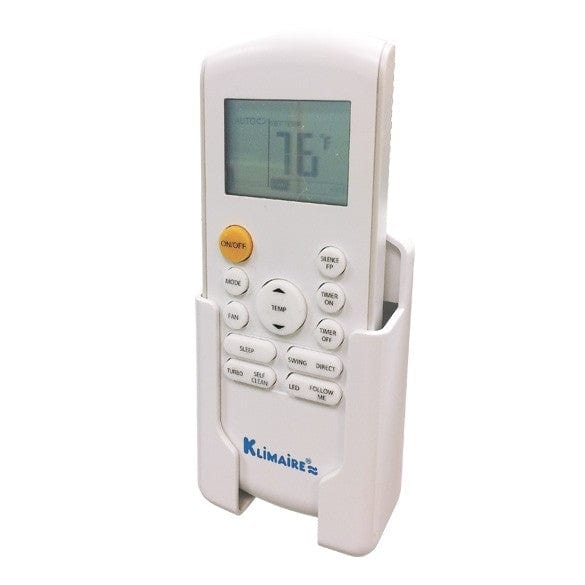

    The remote control allows for manual operation of the unit when necessary. With the new “Quick-Hook Design,” the fan coil hangs on the wall easier and faster. An additional gap for pipe installation as well as right to left adjustments add to installation simplicity.

    • 3D air flow technology distributes the air evenly throughout the room.
    • 24 hour timer and memory function
    • Turbo mode for fast heating & cooling

    KUIM018-H2 | Indoor Unit

    The KUIM unique decorative and versatile design allows the unit to be suspended from the ceiling or placed low on the wall or simply placed on the floor. Extremely quiet, and rugged construction makes it ideal for areas of heavy traffic and public areas.

    • Attractive, modern design
    • Exceptionally quiet operation
    • Turbo mode

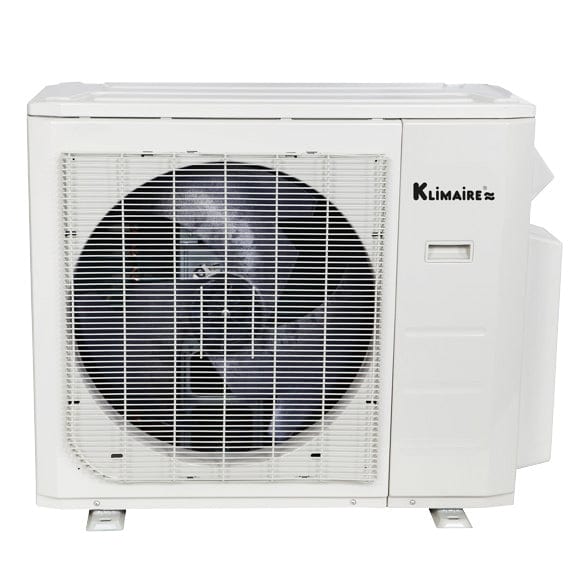

    KMIR436-H217  | Outdoor Unit

    Klimaire's new KMIR436-H217 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.

    • Specially-designed for quiet operation
    • Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off
    • Small footprint fits most yards or easily mounts to a wall with bracket (sold separately)

    Applications

    • Room additions
    • Renovations
    • Family rooms
    • Sunrooms
    • Wine cellars
    • Garages/workshops

    WHAT’S INCLUDED
    Your Klimaire Ductless Three-Zone System from Heat & Cool Comes With:

    • KSIE009-H221-IW | Indoor Unit x 2
    • KUIM018-H2 | Indoor Unit x1
    • KMIR436-H217 | Outdoor Unit
    • Outdoor unit is pre-charged with R-410A refrigerant
    • Indoor unit mounting plates
    • Remote controls with wall mount brackets
    • Installation manual
    • User’s manual
    • Manufacturer warranty

    Manufacturer Warranty

    • 1 year parts limited warranty
    • 5 years compressor limited warranty

    Downloads

    Key Specifications

    • Klimaire
    • 400 - 400 - 900
    • 36,000
    • 208-230 V; 1 Phase; 60 Hz
    • 255.5
    • KMIR436-H217+2xKSIE009-H221-IW+KUIM018-H2
    • KMIR436-H217
    • 3
    • 22.5
    • 34,000
    • 30,000
    • Standard
    • 208/230 Volt
    • KSIE009-H221-IW
    • KSIE009-H221-IW
    • KUIM018-H2

    Bundle includes 4 items

    4 Zone Outdoor Dc Inverter Heat Pump - 22.5 Seer - 208-230v/1/60

    4 Zone Outdoor Dc Inverter Heat Pump - 22.5 Seer - 208-230v/1/60

    Model Number: KMIR436-H217 SKU: HCKPI1793

    Product N/A

    Product N/A
    9,000 BTU Klimaire Mini-Split Wall Mount WiFi Enabled Fan Coil Unit - 220V

    9,000 BTU Klimaire Mini-Split Wall Mount WiFi Enabled Fan Coil Unit - 220V

    Model Number: KSIE009-H221-IW SKU: HCKPI1823
    System Specifications
    Coverage (Sq/Ft), Each Indoor Model 400 - 400 - 900
    Certifications ETL; AHRI Performance Certified 210/240
    Cooling Capacity (BTU) 36,000
    EER (Energy Efficiency Ratio) 10.9
    Electrical 208-230 V; 1 Phase; 60 Hz
    HSPF (Heating Seasonal Performance Factor) 10.3
    Installation Kit (Included) Yes
    Manufacturer Limited Warranty (text) 255.5
    Maximum Fuse Size 45 amps
    Maximum Indoor Units 4
    Model Number KMIR436-H217+2xKSIE009-H221-IW+KUIM018-H2
    Outdoor Model Number KMIR436-H217
    Number of Zones (Rooms) 3
    Must ship freight Yes
    Refrigerant R-410A
    Efficiency (SEER) 22.5
    SEER (Left Filter) 22+
    Shipping Time 24 to 72 hours
    System Cooling Capacity (BTU) 34,000
    System Heating Capacity 30,000
    Technology Inverter
    Unit Type (Selector) Standard
    Voltage 208/230 Volt
    Indoor 1: Model Number KSIE009-H221-IW
