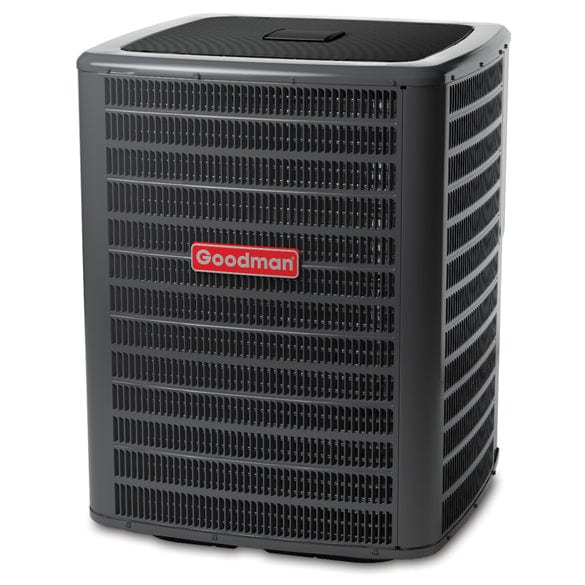

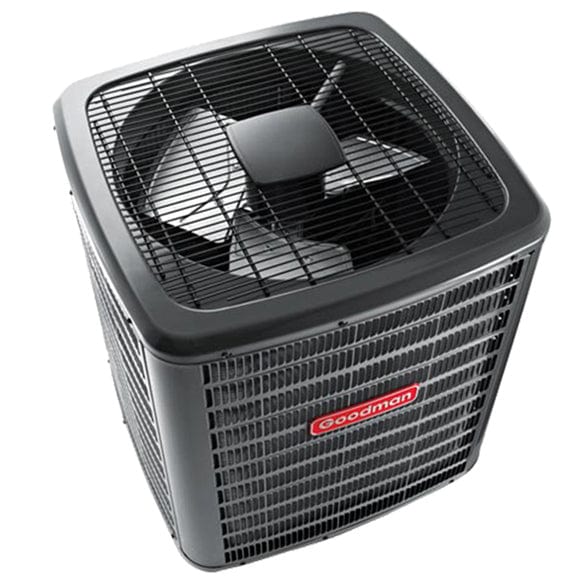

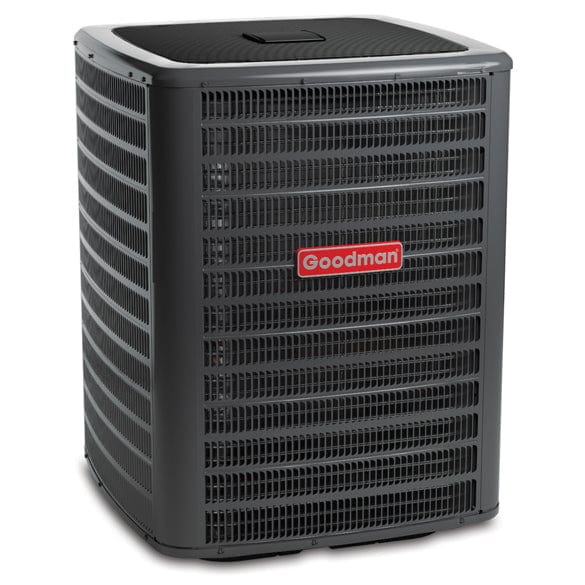

GSZ160421 | Outdoor Unit
With the design of the Energy Star certified GSZ160421 heat pump, Goodman, one of the world’s largest heating and cooling manufacturers, has taken a smart design and made it better. The unit’s SMARTCOIL condenser coil copper tubing is smaller and smarter so the benefit is energy savings through less refrigerant use and lower energy consumption. The maintenance-free, heavy-gauge galvanized steel cabinet is enhanced with a steel louver coil guard.
- Up to 9.7 HSPF
- Fully charged for 15 feet of tubing length
- Copper tube / enhanced aluminum fin coil

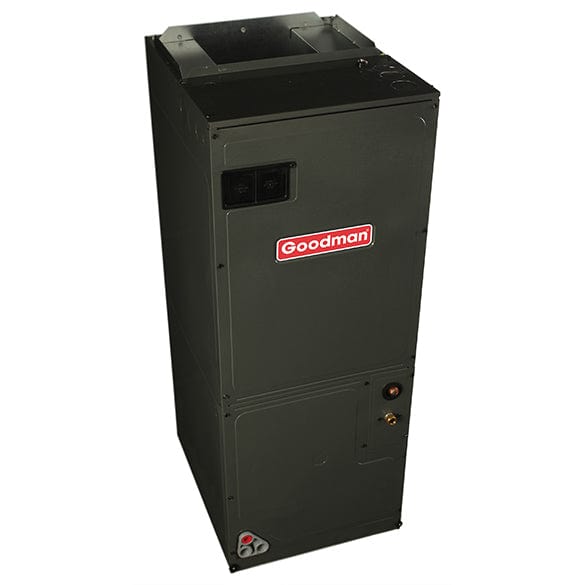

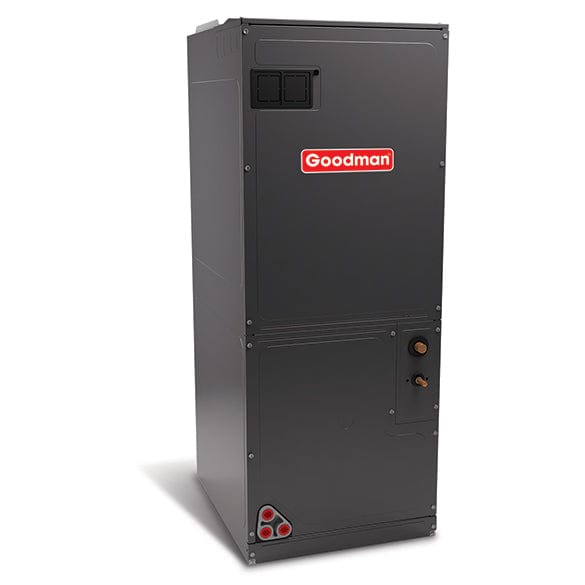

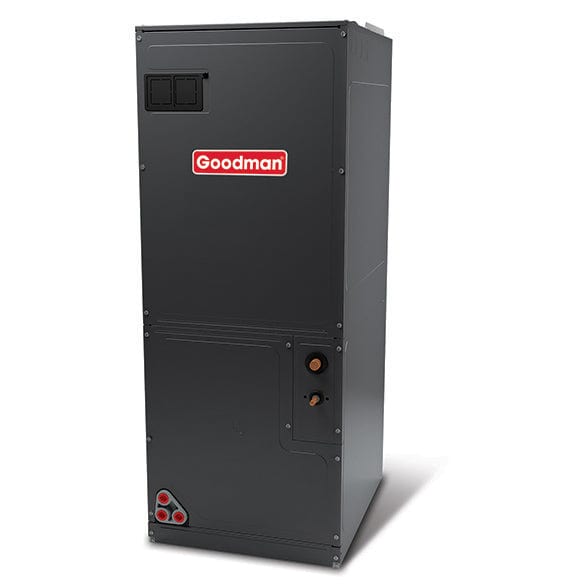

ASPT47D14A | Indoor Unit
The Goodman ASPT47D14 air handler with ECM multi-speed motor allows for more precise climate control and eliminates hot and cold spots in rooms that is often experienced with standard on/off units. Instead of simply turning off once the desired temperature is reached, your unit’s blower speed can be reduced to match the cooling or heating needed to maintain the desired temperature.
- Painted, leather grain-embossed finish
- 21” depth for easier attic access
- Transformer and blower time-delay
Downloads
Key Specifications
- Goodman
- Multi Speed ECM
- 36,000
- 13
- Yes
- Lifetime Compressor
- 10 Year Parts Warranty
- 10 years
- AVPTC37D14
- GSZC160361
- 17
- 208/240 Volt
- 395 lbs

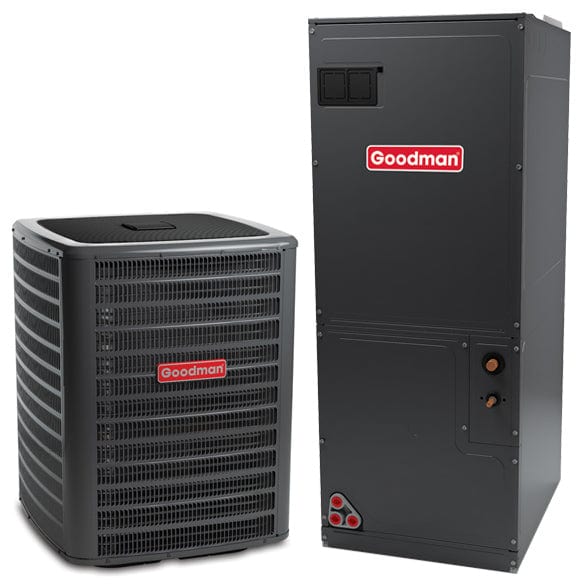

Bundle includes 2 items
GSZC160361 Heat pump up to 17 SEER
Model Number: GSZC160361 SKU: HCGMC3787
Goodman AVPTC37D14 2.5 to 3.5 Ton Variable Speed Multi-Position ECM-Based Air Handler with Internal TXV
Model Number: AVPTC37D14 SKU: HCGMC2530 Open in a new tabSystem Specifications
| Blower Motor | Multi Speed ECM |
|---|---|
| Certifications | AHRI; ETL |
| Cooling Capacity (BTU) | 36,000 |
| EER (Energy Efficiency Ratio) | 13 |
| Electrical | 220/240 V; 1 Phase; 60 Hz |
| Energy Star | Yes |
| HSPF (Heating Seasonal Performance Factor) | 9.7 |
| Manufacturer Limited Warranty (text) | Lifetime Compressor |
| Manufacturer Limited Warranty (years) | 10 Year Parts Warranty |
| Manufacturer Limited Warranty (years) | 10 years |
| Indoor Model Number | AVPTC37D14 |
| Outdoor Model Number | GSZC160361 |
| Must ship freight | Yes |
| Efficiency (SEER) | 17 |
| SEER (Left Filter) | 17+ |
| Shipping Cost | 360 |
| Shipping Time | 24 to 72 hours |
| Video Codes | 4qwzk4tqoy |
| Voltage | 208/240 Volt |
| Weight | 395 lbs |
Specifications for model: AVPTC37D14
| Application | Heat Pump/heating & cooling |
|---|---|
| Blower Motor | Variable Speed ECM |
| Cabinet Depth | 21 in |
| Cabinet Width | 24 ½ in |
| Certifications | AHRI Certified; ETL Listed |
| Communications Capability | Yes |
| Configuration | Multi-position |
| Drain Line | 3/4" |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| Expansion Device | TXV |
| Fan Only | Yes |
| Handling Cost | 15 |
| Installation Type | Central ducted |
| Liquid Line Size | 3/8" |
| Manufacturer Limited Warranty (years) | 10 Year Parts Warranty |
| MOP (Maximum Overcurrent Protection-Breaker) | 15 Amp |
| Must ship freight | Yes |
