Complete Heating and Cooling for Year‐Round Comfort and Energy Savings
The GSX140361, 3 Ton, 14 SEER, 36,000 BTU central air conditioning system will help reduce energy consumption throughout the life of the system. Goodman’s SMARTCOIL™ 5mm tube condensing coil design optimizes the heat transfer ability of R‐410A refrigerant compared to standard 3/8”copper tubing. The coil is made of rifled refrigeration‐grade copper tubing and corrugated aluminum fins in a design that maximizes surface area. These high‐quality components together cool your home effectively.

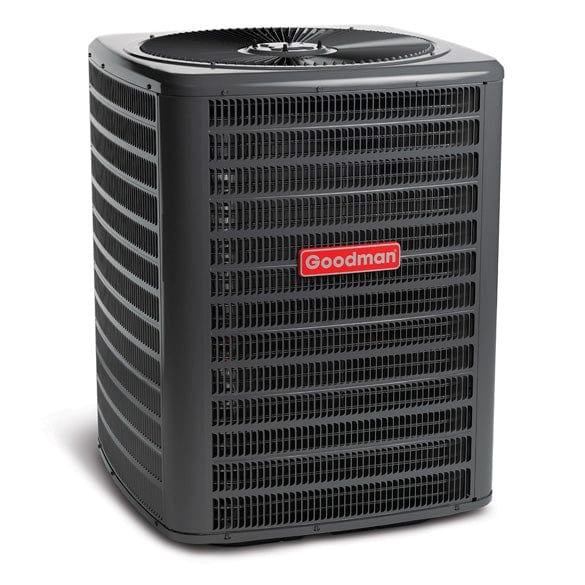

GSX140361 | Outdoor Unit
The heart of the 3 Ton GSX140361 is the high efficiency Copeland® scroll compressor paired with Goodman’s proprietary SMARTCOIL™. Together they maximize thermal heat transfer ability and reduce the amount of refrigerant needed. Additionally sound-dampening features help ensure that your cooling system doesn’t interfere with a good night’s sleep. The near‐silent operation is owed to the condenser fan system, which includes a three-bladed fan encased in a heavy-gauge galvanized louvered cabinet with noise suppressing features.
- Save money and resources with SMARTCOIL™ 5mm copper tubing
- Weather resistant, attractive architectural gray finish on outdoor unit
- Pre-charged with chlorine-free R-410A refrigerant

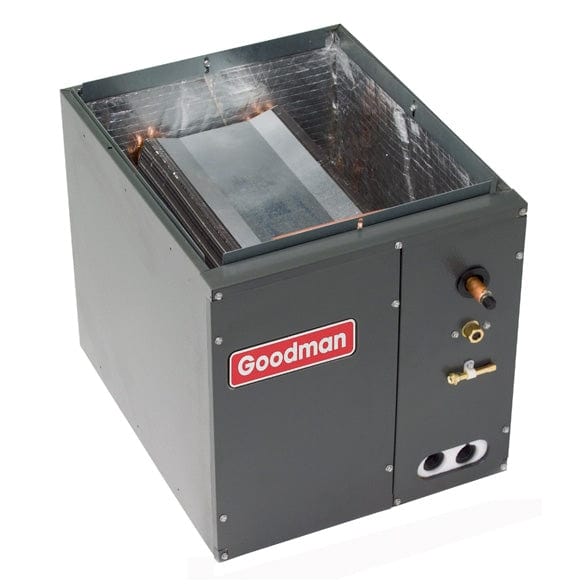

CAPF3743C6 | Indoor Unit
Goodman’s all-aluminum evaporator coil is constructed from aluminum tubing, corrugated fins and panels giving you a single metal solution for outstanding, time-tested, heat transfer performance properties. Cased coil for upflow/downflow applications.
Additional Features
- Helium pressure-tested during construction
- Finished pressure tested and vacuum tested with leak “sniffing” by “hound-dog”
- Aluminum-lanced sine fin design for optimum heat transfer
- Thick-walled aluminum tubing provides superb strength
- Copper coil stud for connecting copper liquid suction lines
- AHRI certified
- ETL listed

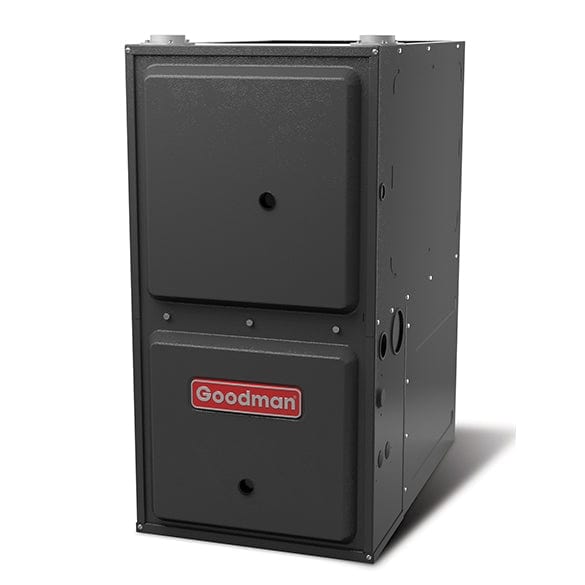

GCVC961005CN | Furnace
Get the most out of your heating dollars with the Goodman 100,000 BTU GCVC961005CN high-efficiency gas furnace’s next generation technology. Unlike a standard furnace, which vents left-over heat out of your home in the form of exhaust, the Goodman GCVC961005CN high-efficient furnace passes the exhaust through a secondary stainless steel heat exchanger to extract additional heat. That extra heat – up to 30% more – which would have otherwise been wasted is circulated through your home. The end result is 96 cents out of every dollar you spend on heating is used to keep your home warm.
This two-stage gas furnace saves energy and maintains a steady temperature by adjusting its airflow according to the heating or cooling demands of your home. Also enjoy advanced diagnostics, automatic maintenance alerts and continuous monitoring of the system’s performance. Ideal for installation in a closet, alcove, utility room, basement or attic.
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- Complies with California 40 ng/J Low NOx emissions standard
- Multiple continuous fan speed options silently circulate the air
What’s Included:

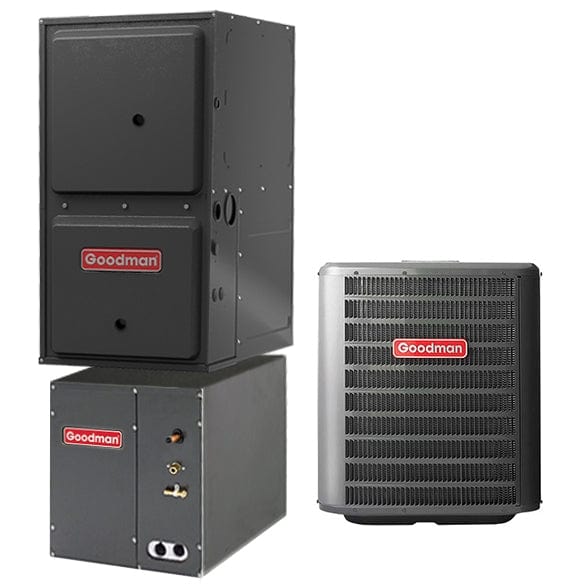

Your Goodman Central Air Conditioning System with Gas Furnace from Heat & Cool Comes With:
- GSX140361 | Outdoor Unit
- CAPF3743C6 | Indoor Unit
- GCVC961005CN | Gas Furnace
- Installation Manual
- Brochure
- Manufacturer Warranty
- Technical Specification
Downloads
- CAPF/CAPT/CAUF/CHPF/CSCF SERIES - MANUFACTURER WARRANTY
- CAPT/CAPF/CHPF/CAUF/CSCF SERIES - BROCHURE
- CAUF/CAPF/CAPT/CHPF/CSCF SERIES - TECHNICAL SPECIFICATIONS
- GCVC96 SERIES - BROCHURE
- GCVC96 SERIES - MANUFACTURER WARRANTY
- GCVC96 SERIES - TECHNICAL SPECIFICATIONS
- GSX14/GSX16/GSZ14/GSZ16/GPH SERIES - MANUFACTURER WARRANTY
- GSX14 SERIES - TECHNICAL SPECIFICATIONS
- GSX14 SERIES - BROCHURE
- CAPF SERIES - INSTALLATION MANUAL
- GSX DSX GSZ DSZ VSX VSZ - SERVICE MANUAL
Key Specifications
- Goodman
- CAPF3743C6
- GSX140361
- Downflow
- 80%
- GCVC961005CN
- 14
- 36,000
- 100,000
- 208/230 Volt
Bundle includes 4 items
3 - 3.5 Ton Goodman CAPF3743C6 Upflow/Downflow Cased Coil Fits 21 Inch Cabinet
Model Number: CAPF3743C6 SKU: HCGMC1708
System Specifications
| Coil Model Number | CAPF3743C6 |
|---|---|
| Condenser Model Number | GSX140361 |
| System Configuration | Downflow |
| Heating Efficiency (AFUE) | 80% |
| Furnace Model Number | GCVC961005CN |
| Must ship freight | Yes |
| Efficiency (SEER) | 14 |
| SEER (Left Filter) | 14+ |
| Shipping Cost | 360 |
| Shipping Time | 7 to 10 days |
| System Cooling Capacity (BTU) | 36,000 |
| System Heating Capacity | 100,000 |
| Video Codes | t8rjs6qgyz |
| Voltage | 208/230 Volt |
Specifications for model: CAPF3743C6
| Cabinet Height | 30 in |
|---|---|
| Cabinet Width | 21 in |
| Coil Configuration | Upflow/Downflow |
| Depth | 21 in |
| Expansion Device | Flowrater |
| Handling Cost | 15 |
| Height | 30 in |
| Installation Type | with Gas Furnace |
| Manufacturer Parts Limited Warranty | 10 |
| Must ship freight | Yes |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Refrigerant | R-410A |
| Shipping Cost | 80 |
| Model Number | CAPF3743C6 |
| Unit Type (Selector) | Cased Coil |
| Width | 21 in |
