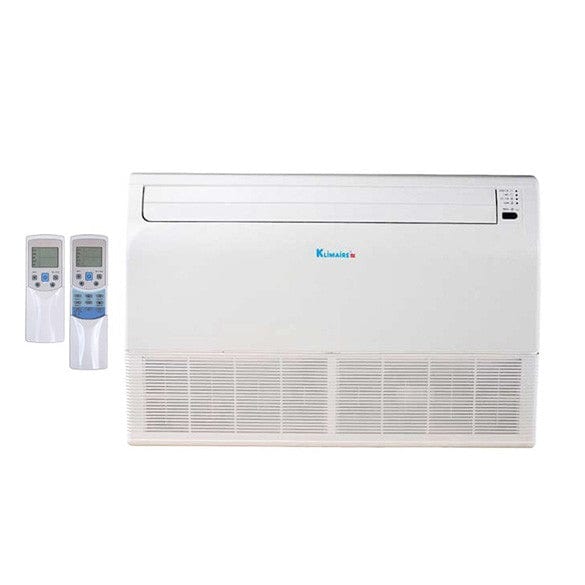

KUIM018-H2 | Indoor Unit x2
The KUIM unique decorative and versatile design allows the unit to be suspended from the ceiling or placed low on the wall or simply placed on the floor. Extremely quiet, and rugged construction makes it ideal for areas of heavy traffic and public areas.
- Attractive, modern design
- Exceptionally quiet operation
- Turbo mode

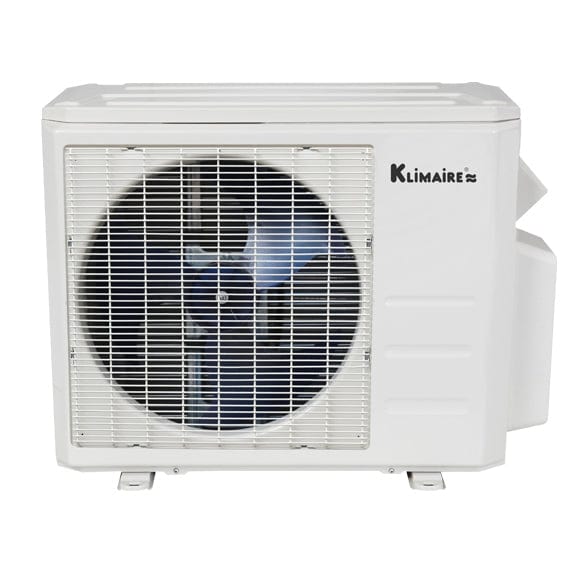

KMIR436-H217 | Outdoor Unit
Klimaire's new KMIR436-H211 outdoor unit has a high-performance twin rotary compressor for lasting durability and quiet operation. The variable speed compressor keeps operational noise low as the motor speeds up and slows down gradually in alignment with the indoor temperature needs. Controlled by the variable speed compressor, dedicated dehumidification mode effectively maintains recommended air moisture levels.
- Specially-designed for quiet operation
- Compressor auto-adjusts to keep temperature steady instead of abruptly powering on and off
- Small footprint fits most yards or easily mounts to a wall with bracket (sold separately)
Applications
- Room additions
- Renovations
- Family rooms
- Sunrooms
- Wine cellars
- Garages/workshops
WHAT’S INCLUDED

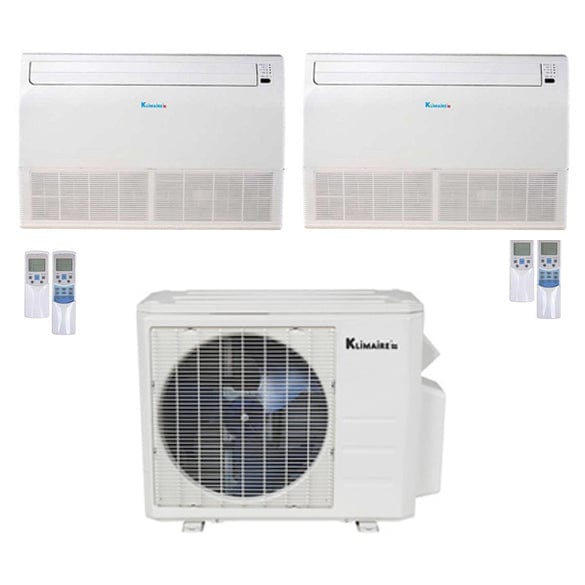

Your Klimaire Ductless Three-Zone System from Heat & Cool Comes With:
- KUIM018-H2 | Indoor Unit x 2
- KMIR436-H217 | Outdoor Unit
- Outdoor unit is pre-charged with R-410A refrigerant
- Indoor unit mounting plates

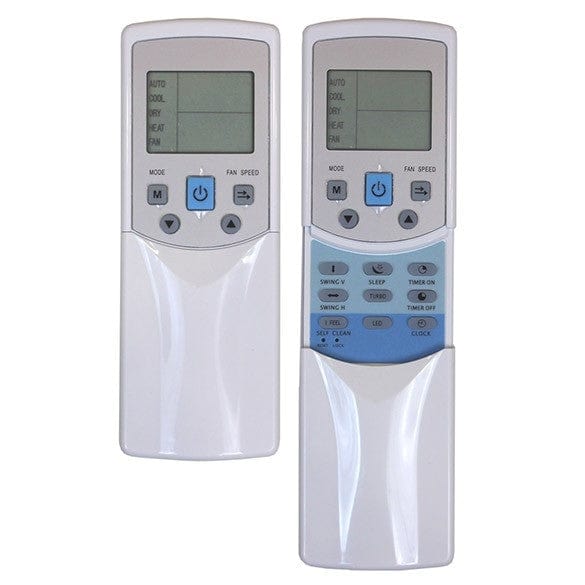

- Remote controls with wall mount brackets
- Installation manual
- User’s manual
- Manufacturer warranty
Manufacturer Warranty
- 1 year parts limited warranty
- 5 years compressor limited warranty
Downloads
- KUIM SERIES - TECHNICAL SPECIFICATIONS
- KUIM SERIES - INSTALLATION MANUAL
- KMIR436-H217 W - Non-Ducted Units AHRI Certificate
- KMIR SERIES - INSTALLATION MANUAL
- KMIR SERIES - TECHNICAL SPECIFICATIONS
- KMIR SERIES - SERVICE MANUAL
- KLIMAIRE MULTIZONE SERIES - INSTALLATION MANUAL
- KLIMAIRE MULTIZONE SERIES - BROCHURE
Key Specifications
- Klimaire
- 1000
- 36,000
- 208-230 V; 1 Phase; 60 Hz
- 1 Year Parts; 5 Year Compressor
- KMIR436-H217+2xKUIM018-H2
- KMIR436-H217
- 2
- 22.5
- 34,000
- 34,000
- 299.5 lbs
- Standard
- 208/230 Volt
- KUIM018-H2
- KUIM018-H2
Bundle includes 3 items
4 Zone Outdoor Dc Inverter Heat Pump - 22.5 Seer - 208-230v/1/60
Model Number: KMIR436-H217 SKU: HCKPI1793
System Specifications
| Coverage (Sq/Ft), Each Indoor Model | 1000 |
|---|---|
| Certifications | ETL; AHRI Performance Certified 210/240 |
| Cooling Capacity (BTU) | 36,000 |
| EER (Energy Efficiency Ratio) | 10.9 |
| Electrical | 208-230 V; 1 Phase; 60 Hz |
| HSPF (Heating Seasonal Performance Factor) | 10.3 |
| Installation Kit (Included) | Yes |
| Manufacturer Limited Warranty (years) | 1 Year Parts; 5 Year Compressor |
| Maximum Fuse Size | 45 amps |
| Maximum Indoor Units | 4 |
| Model Number | KMIR436-H217+2xKUIM018-H2 |
| Outdoor Model Number | KMIR436-H217 |
| Number of Zones (Rooms) | 2 |
| Must ship freight | Yes |
| Refrigerant | R-410A |
| Efficiency (SEER) | 22.5 |
| SEER (Left Filter) | 22+ |
| Shipping Time | 24 to 72 hours |
| System Cooling Capacity (BTU) | 34,000 |
| System Heating Capacity | 34,000 |
| System Total Weight | 299.5 lbs |
| Technology | Inverter |
| Unit Type (Selector) | Standard |
| Voltage | 208/230 Volt |
| Indoor 1: Model Number | KUIM018-H2 |
| Indoor 2: Model Number | KUIM018-H2 |
Specifications for model: KMIR436-H217
| Certifications | AHRI; ETL |
|---|---|
| Compressor Type | Rotary |
