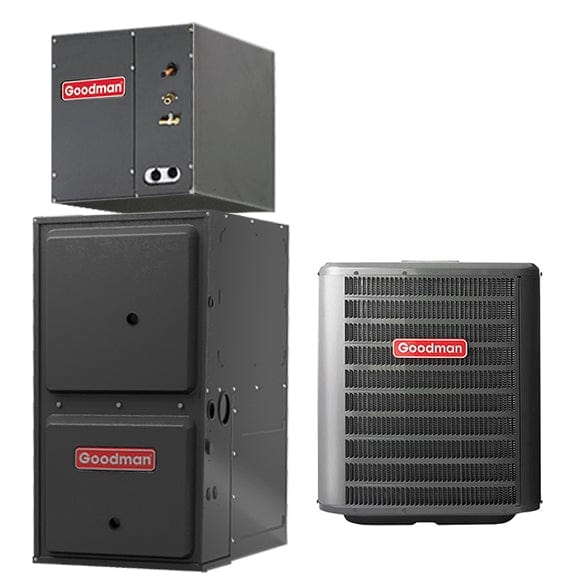

Complete Heating and Cooling for Year‐Round Comfort and Energy Savings
The GSX140301, 2.5 Ton, 14 SEER, 30,000 BTU central air conditioning system will help reduce energy consumption throughout the life of the system. Goodman’s SMARTCOIL™ 5mm tube condensing coil design optimizes the heat transfer ability of R‐410A refrigerant compared to standard 3/8”copper tubing. The coil is made of rifled refrigeration‐grade copper tubing and corrugated aluminum fins in a design that maximizes surface area. These high‐quality components together cool your home effectively.
Goodman GMVM970804CN variable‐speed, two‐stage 30,000 BTU gas furnace offers reliable performance and time‐tested durability. A quiet, four‐speed direct drive blower motor is coupled with a two‐stage gas valve that allows installer to turn on two‐stage operation with the flip of a dipswitch. Use with natural gas or add converter for use with propane, or LP.
GSX140301 | Outdoor Unit
The heart of the 2.5 Ton GSX140301 is the high efficiency Copeland® scroll compressor paired with Goodman’s proprietary SMARTCOIL™. Together they maximize thermal heat transfer ability and reduce the amount of refrigerant needed. Additionally sound-dampening features help ensure that your cooling system doesn’t interfere with a good night’s sleep. The near‐silent operation is owed to the condenser fan system, which includes a three-bladed fan encased in a heavy-gauge galvanized louvered cabinet with noise suppressing features.
- Save money and resources with SMARTCOIL™ 5mm copper tubing
- Weather resistant, attractive architectural gray finish on outdoor unit
- Pre-charged with chlorine-free R-410A refrigerant
CAPF3642C6 | Indoor Unit
Goodman’s all-aluminum painted cased evaporator coil is constructed from aluminum tubing, corrugated fins and panels giving you a single metal solution for outstanding, time-tested, heat transfer performance properties. Easy access owed to split seam front and 24 ½” depth. Fits 21” furnace cabinet.
- Superb strength provided by thick-walled aluminum tubing
- Reliable quality control/pressure and vacuum-tested at factory
- Reduced cabinet condensation achieved with foil-faced insulation over the internal casing
GMVM970804CN | Gas Furnace
When you choose a Goodman high efficiency gas furnace system you're not the only one who benefits. High efficiency means you'll lower your operating cost – great for you! And you'll reduce your environmental footprint – great for the global community. Then, of course, anyone who spends time in your house will enjoy balanced room comfort and better indoor air quality. Invest in Goodman and share the comfort.
This 80% high efficiency 80,000 BTU2‐stage condensing furnace by Goodman, model GMVC80804CN has been carefully engineered to work to its fullest capacity. When it comes to your personal comfort, no detail has been overlooked. The furnace's variable speed ECM blower gently ramps up or down according to heating demands keeping sound at a minimum and energy costs low. The multiple continuous fan speed options quietly circulate the air keeping the temperature balanced and steady.
Unlike a standard furnace, which vents left‐over heat out of your home in the form of exhaust, the Goodman high‐efficient furnace passes the exhaust through a secondary stainless steel heat exchanger to extract additional heat. That extra heat – up to 30% more – which would have otherwise been wasted is circulated through your home by a near‐silent two‐speed induced draft blower. The end result is 80 cents out of every dollar you spend on heating is used to keep your home warm.
The two‐stage gas valve works in unison with the variable speed motor to save energy and maintain an even indoor temperature by adjusting its airflow according to the heating demands of your home. Also enjoy advanced diagnostics, automatic maintenance alerts and continuous monitoring of the system's performance. Ideal for installation in a closet, alcove, utility room, basement or attic.
Additional Features
- ComfortNet™ Communicating System compatible
- Heavy‐duty aluminized‐steel tubular heat exchanger
- Stainless‐steel secondary heat exchanger
- Self‐calibrating modulating gas valve auto‐configure for each installation
- Durable Silicon Nitride igniter
- Quiet variable‐speed induced draft blower
- Utilizes ComfortNet™ communicating, two‐stage or single‐stage thermostats
- Self‐diagnostic control board with constant memory fault code history output to a dual 7‐segment display
- Color‐coded low‐voltage terminals with provisions for electronic air cleaner and humidifier
- Efficient and quiet variable‐speed airflow system gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Auto‐Comfort and enhanced dehumidification modes available
- All models comply with California 40 ng/J Low NOx emissions standard
- AHRI Certified; ETL Listed
- Designed for multi‐position installation – GMVM97: upflow, horizontal left or right GCVM97: downflow, horizontal left or right
- Certified for direct vent (2‐pipe) or non‐direct vent (1‐pipe)
- Easy‐to‐install top venting with optional side venting
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak) <= 2%
- Heavy‐gauge steel cabinet with durable finish
- Fully insulated heat exchanger and blower section
- Airtight solid bottom or side return with easy‐cut tabs for effortless removal in bottom air‐inlet applications
What’s Included:
Your Goodman Central Air Conditioning System with Gas Furnace from Heat & Cool Comes With:
- GSX140301 | Outdoor Unit
- CAPF3642C6 | Indoor Unit
- GMVC80804CN | Gas Furnace
- TXV-30 | Thermal Expansion Valve
- Installation Manual
- Brochure
- Manufacturer Warranty
- Technical Specification
Downloads
- CAPF/CAPT/CAUF/CHPF/CSCF SERIES - MANUFACTURER WARRANTY
- CAPT/CAPF/CHPF/CAUF/CSCF SERIES - BROCHURE
- CAUF/CAPF/CAPT/CHPF/CSCF SERIES - TECHNICAL SPECIFICATIONS
- GSX14/GSX16/GSZ14/GSZ16/GPH SERIES - MANUFACTURER WARRANTY
- GSX14 SERIES - TECHNICAL SPECIFICATIONS
- GSX14 SERIES - BROCHURE
- GMVC8/GCVC8 SERIES - INSTALLATION MANUAL
- GMVC8/GCVC8 SERIES - TECHNICAL SPECIFICATIONS
- GMVC8/GCVC8 SERIES - SERVICE MANUAL
- GMVC8/GCVC8 SERIES - BROCHURE
- CAPF SERIES - INSTALLATION MANUAL
- GSX DSX GSZ DSZ VSX VSZ - SERVICE MANUAL
Key Specifications
- Goodman
- CAPF3642C6
- GSX140301
- Upflow
- 80%
- GMVC80805CX
- 14
- 30,000
- 80,000
- 208/230 Volt
Bundle includes 5 items
3 - 3.5 Ton Goodman CAPF3642C6 Upflow/Downflow Cased Coil Fits 21 Inch Cabinet
Model Number: CAPF3642C6 SKU: HCGMC1707

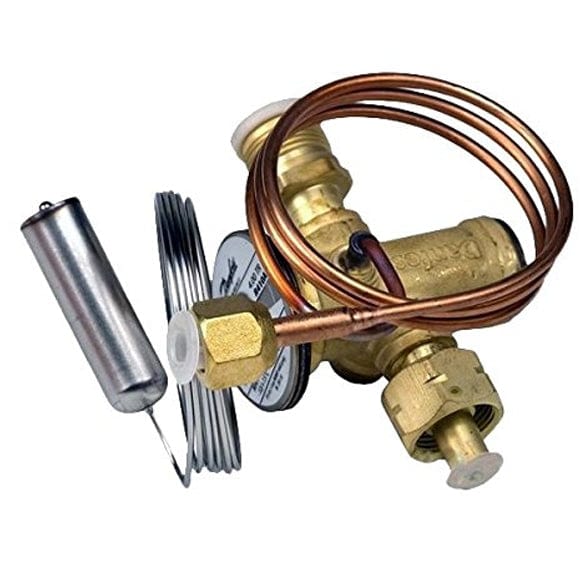

Non-bleed Expansion Valve - 2-2.5 Ton AC Systems
Model Number: TXV-30 SKU: HCGMC1731System Specifications
| Coil Model Number | CAPF3642C6 |
|---|---|
| Condenser Model Number | GSX140301 |
| System Configuration | Upflow |
| Heating Efficiency (AFUE) | 80% |
| Furnace Model Number | GMVC80805CX |
| Handling Cost | 40 |
| Must ship freight | Yes |
| Efficiency (SEER) | 14 |
| SEER (Left Filter) | 14+ |
| Shipping Cost | 300 |
| Shipping Time | 7 to 10 days |
| System Cooling Capacity (BTU) | 30,000 |
| System Heating Capacity | 80,000 |
| Video Codes | t8rjs6qgyz |
| Voltage | 208/230 Volt |
Specifications for model: CAPF3642C6
| Cabinet Height | 22 in |
|---|---|
| Cabinet Width | 21 in |
| Coil Configuration | Upflow/Downflow |
| Depth | 21 in |
| Expansion Device | Flowrater |
| Handling Cost | 15 |
| Height | 22 in |
| Installation Type | with Gas Furnace |
| Manufacturer Parts Limited Warranty | 10 |
| Must ship freight | Yes |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Refrigerant | R-410A |
| Shipping Cost | 80 |
| Model Number | CAPF3642C6 |
| Unit Type (Selector) | Cased Coil |
| Width | 21 in |
Specifications for model: TXV-30
| Handling Cost | 5 |
|---|---|
| Must ship freight | Yes |
| Shipping Cost | 15 |
| Shipping Time | 24 to 72 hours |
| Model Number | TXV-30 |
| Unit Type (Selector) | Standard |
