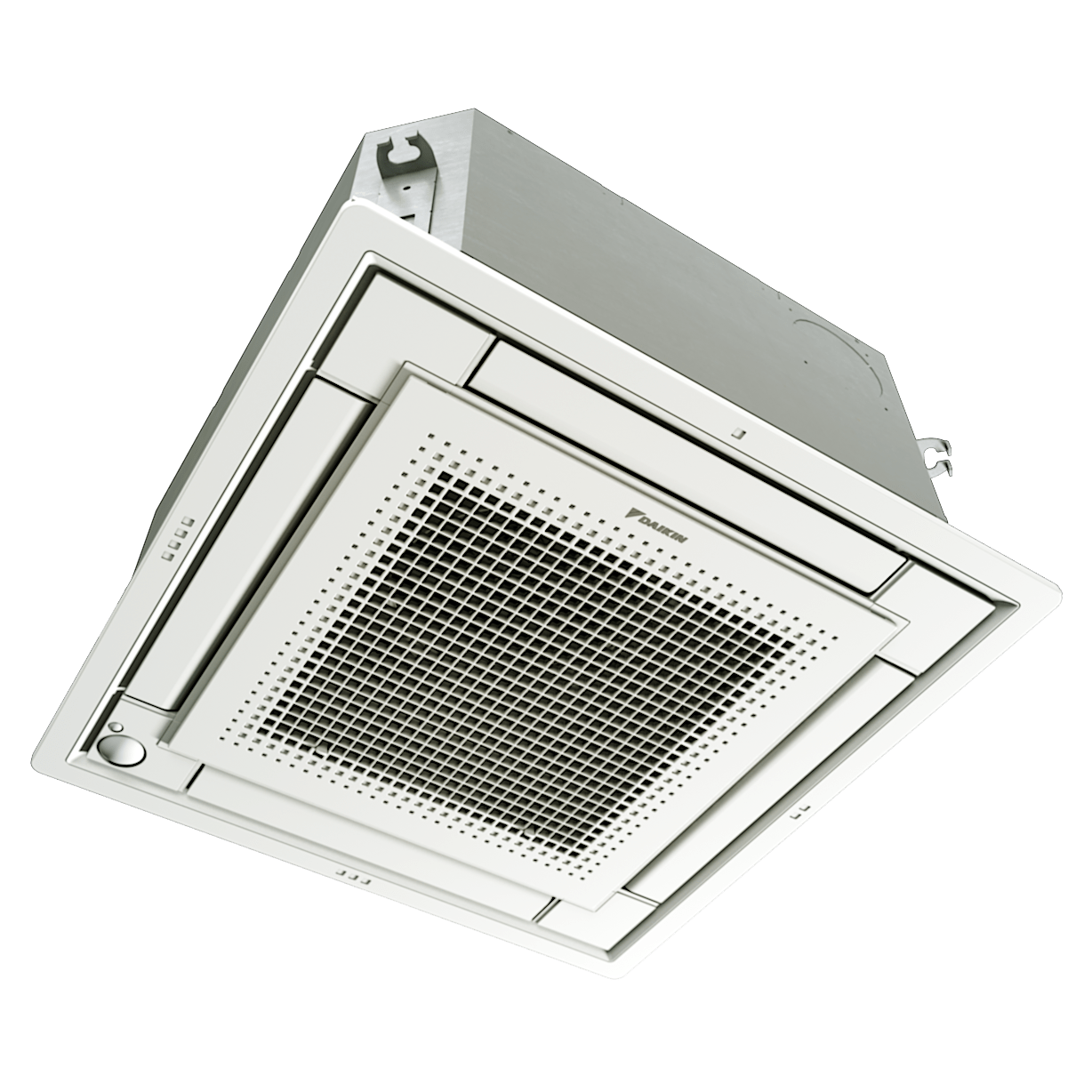

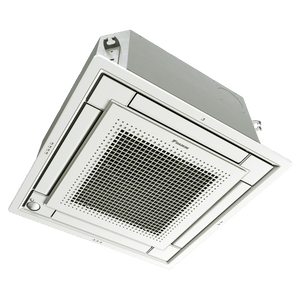

Daikin VISTA Ceiling Cassette
The Daikin VISTA ceiling cassettes are a remarkable blend of iconic design and engineering excellence with an elegant white or a silver and white finish. Fitting within the ceiling grid and discreetly mounted to the ceiling itself, Daikin VISTA is stylish, low profile, and compact. High-Efficiency and comfort is delivered through the combined use of floor and presence sensors (optional). It is also possible to close individual louvers via the wired remote control for personalized comfort.
Remote Controller options include:
- Wired Navigation Remote Controller - Model Number: BRC1E73
- Wireless Remote Controller (White) - Model Number: BRC082A42W
- Wireless Remote Controller (Silver) - Model Number: BRC082A42S
Low Profile Decoration Panel options include:
- Low Profile Decoration Panel (Silver) - 1-¹³⁄₁₆ × 24-⁷⁄₁₆ × 24-⁷⁄₁₆ - Model Number: BYFQ60C2W1S
- Low Profile Decoration Panel (White) - 1-¹³⁄₁₆ × 24-⁷⁄₁₆ × 24-⁷⁄₁₆ - Model Number: BYFQ60C2W1W

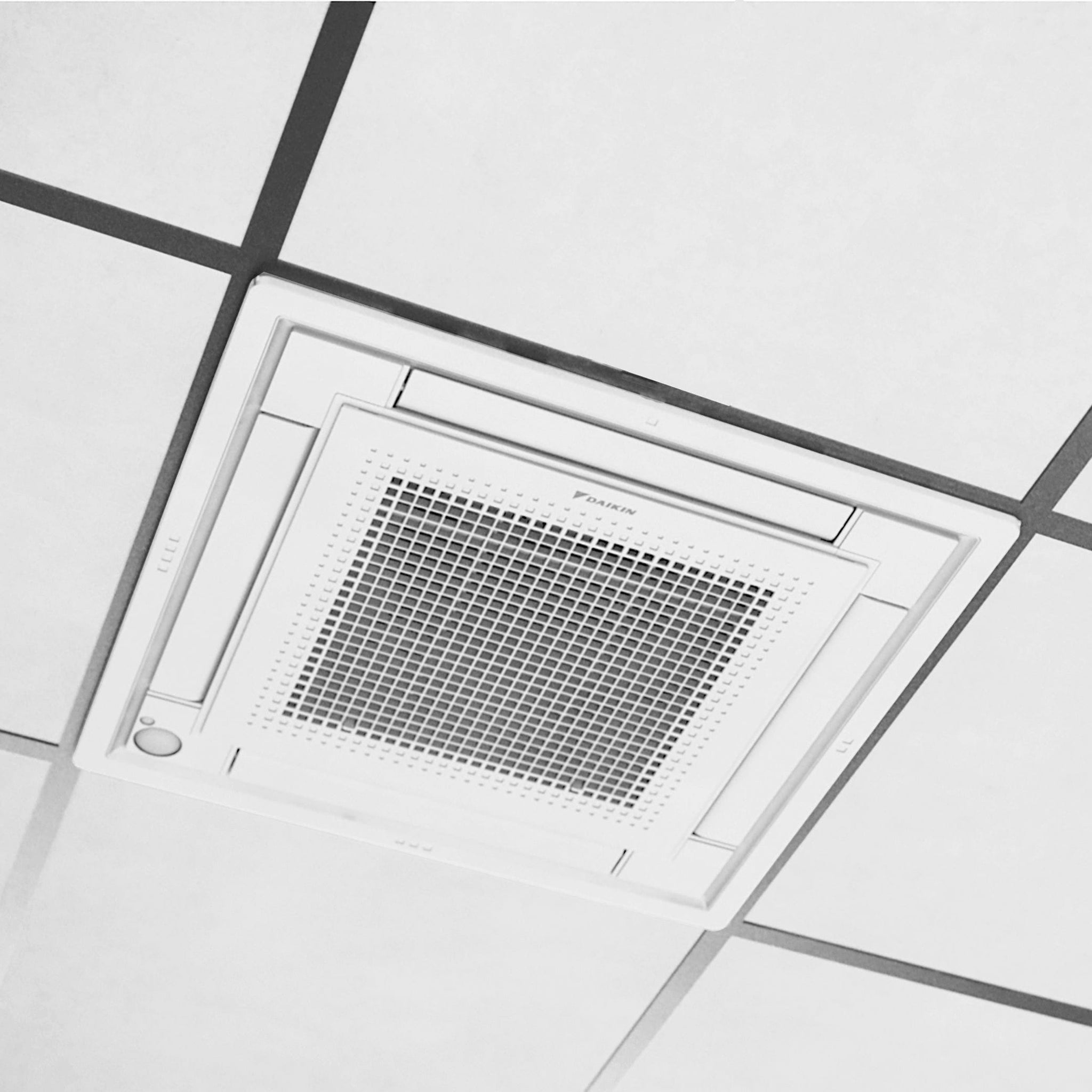

Enhanced aesthetics designed to integrate seamlessly into the ceiling
As VISTA is a remarkable blend oficonic design and engineering excellence with an elegant white or a silver and white finish.
Fitting within the ceiling grid and discreetly mounted to the ceiling itself, VISTA is stylish, low profile, and compact. High efficiency and comfort is delivered through the combined use of floor and presence sensors (optional).
It is also possible to close individual louvers via the wired remote control for personalized comfort.
- Energy Efficient – 19.8 SEER2, 9.4 HSPF2
- 12 Year Parts Limited Warranty
- Turbo mode cools or warms up the room fast
A better understanding of how people inhabit their living spaces has led to products designed to create indoor environments that help use energy resources more effectively. The Daikin brand 20 Series is designed to blend in discreetly with any home design.
Smart inverter technology
Integrated with an inverter variablespeed compressor, 20 Series ductless systems deliver the capacity required to maintain desired room conditions, typically reducing energy consumption (compared to traditional fixed-speed ducted systems).
This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort.
Designed for Comfort for Life, the Daikin Vista Series units include features to ensure a comfortable experience every moment.
The new louver changes the delivery angle to horizontal for cooling and vertical for heating operation, to keep cold or warm air from blowing directly onto your body.
- Indoor Sound Pressure as low as 29 dB(A)
- Energy efficient thanks to specially developed small
- tube heat exchanger, DC fan motor and two optional
- intelligent sensors
- No optional adaptor needed for DIII-connection, link
- your unit into the wider building management system
- Draft Prevention
- Program Dry Function
- Hot Start Function
- Auto-Fan Speed Control (with wired controller)
- Self-Diagnostics with Digital Display
- Schedule TIMER operation (with wired controller)
- Wired controller
- Fresh air integration possible
- Presence and Floor Sensor
- Compatible with Daikin One+ Smart Thermostat, DKN Cloud Wi-Fi adaptor or Daikin DKN Plus Interface.
- 750 SqFt
- 22.625 in
- 208-230 V; 1 Phase; 60 Hz
- 10.25 in
- 12 Year Parts Warranty
- Ceiling Cassette
- Ceiling Cassette
- 208/230 Volt
- 36 lbs
- 22.625 in
|Application Area||750 SqFt|
|Electrical||208-230 V; 1 Phase; 60 Hz|
|Fan Type||Turbo Fan|
|Manufacturer Limited Warranty (years)||12 Year Parts Warranty|
|Mounting Style||Ceiling Cassette|
|Number of Fan Speeds||3|
|Shipping Time||24 to 72 hours|
|Suction Line Size||1/2"|
|Suction Line Size||3/8"|
|Unit Type (Selector)||Ceiling Cassette|
